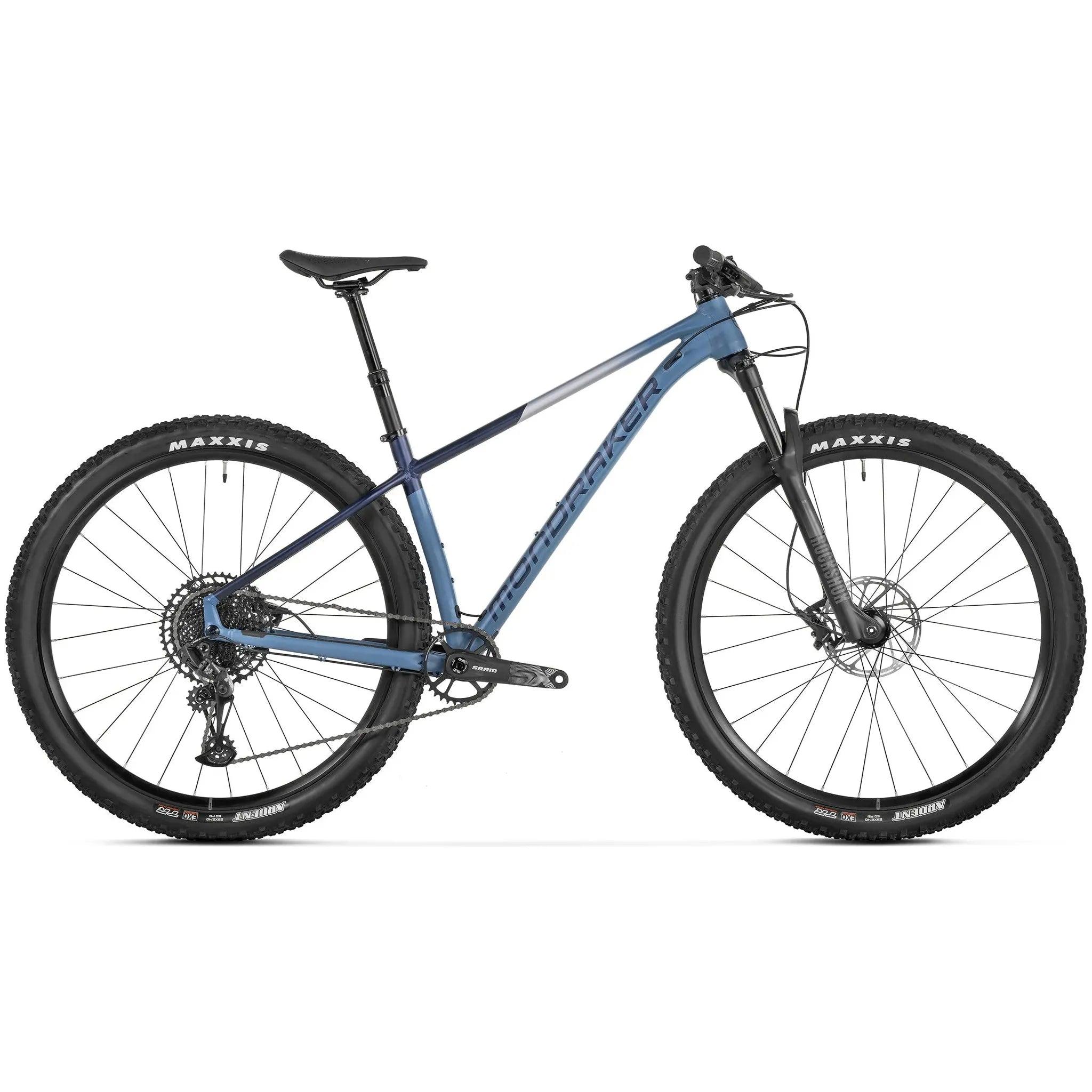

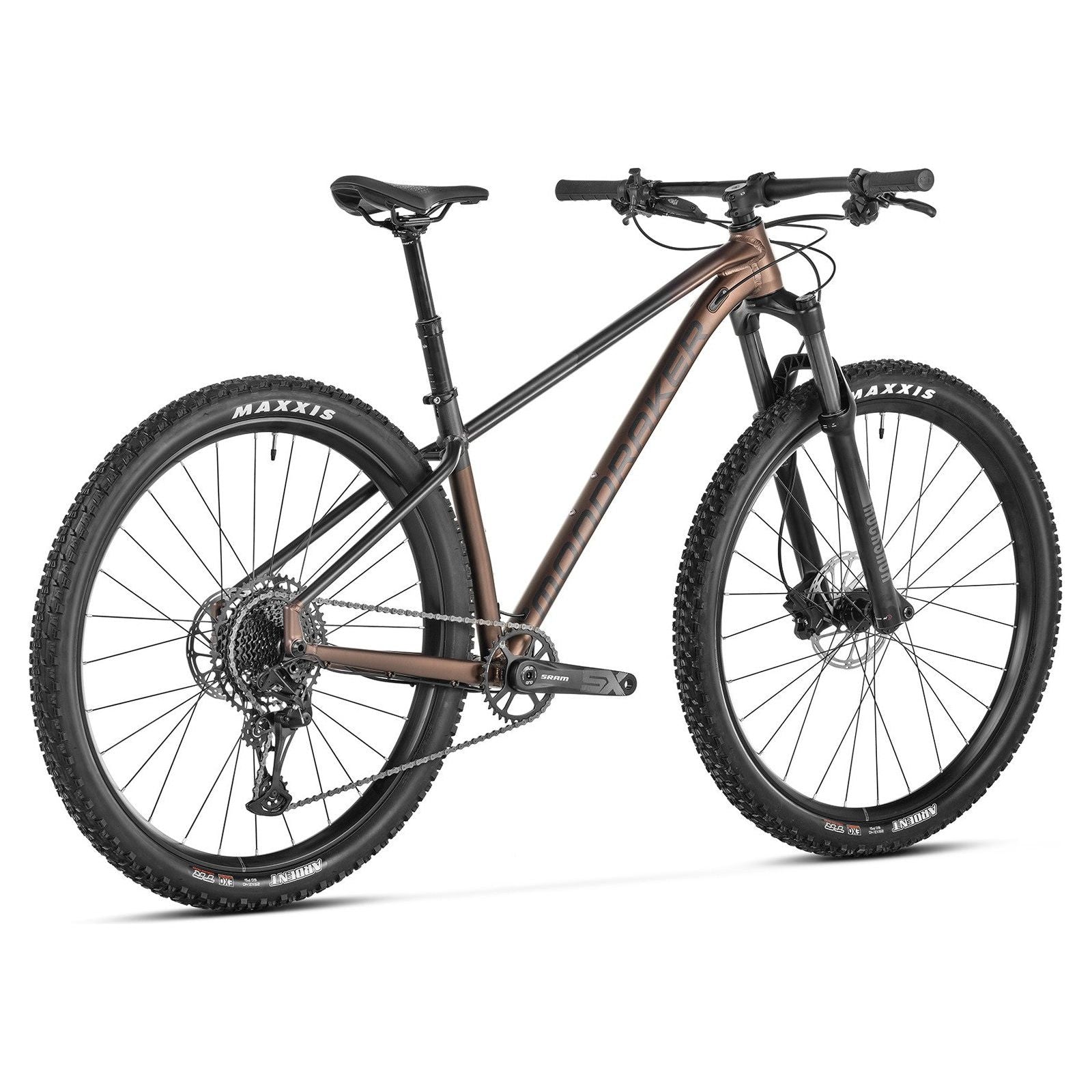

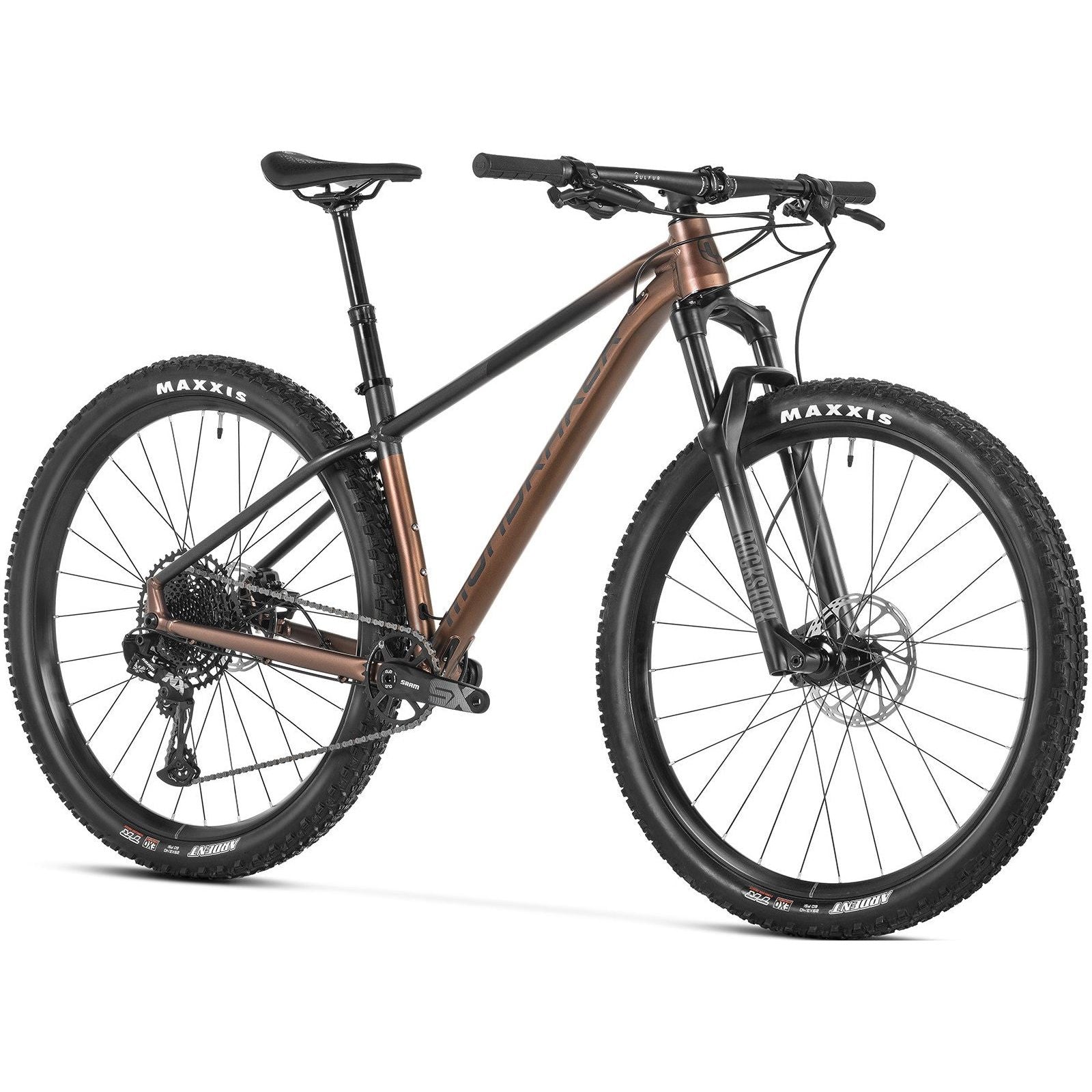

Mondraker Chrono DC R Mountain Bike

FRAME

• Chrono 29 6061 Xtralite Alloy butted, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design

SIZES

• S: 395mm / M: 430mm / L: 470mm / XL: 520mm

FORK

• RockShox Recon Silver RL Remote 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 30mm aluminum stanchions, offset 42mm. Settings: Onelock 2 pos remote compression (open/lock), rebound, air preload

FORK REMOTE

• RockShox PopLoc

HEADSET

• Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

STEM

• Onoff Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm

HANDLEBAR

• Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, 31.8mm barbore

GRIPS

• Onoff Twin, 1lock-on, 135mm

SEATPOST

• Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever S size: 405x95-125mm, M size: 405x95-125mm, L size: 458x120-150mm, XL size: 458x120-150mm

SADDLE

• Mondraker MDK Series, SRX, steel rail

FRONT BRAKE

• Sram Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

REAR BRAKE

• Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

BRAKE LEVER

• Sram Level, tooled reach adjust, lever pivot bushings

RIMS

• Mavic CrossRide 29, 30mm internal width, sleeved rim, hookless, tubeless ready, 28 spokes

SPOKES

• Mavic J-bend steel round spokes

FRONT HUB

• Mavic, Boost 15x110mm, IS 6 bolts

REAR HUB

• Mavic ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, HG freehub

FRONT TYRE

• Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead

REAR TYRE

• Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead

CRANKSET

• Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 52

RINGS

• 34T, steel, X-Sync 2

BOTTOM BRACKET

• Sram DUB BSA, sealed bearings, 73mm

CHAIN

• Sram SX Eagle, 12s, Powerlock

REAR DERAILLEUR

• Sram NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

SHIFT LEVERS

• Sram Trigger SX Eagle, 12s, X-Actuation 1:1

CASSETTE

• Sram PG-1210, 11-50T, 12s

DERAILLEUR HANGER

• Mondraker M068

WEIGHT

• 13.9 kg

STEALTH ALLOY

STEALTH ALLOY encompasses all processes in the creation of the frame, from the industrial design to the specific production of each of its tubes with the calculation of the most precise details. Each tube and part is carefully designed to carry out a specific function while striving to achieve the lowest possible weight. Stealth technology is evolving every year with optimised shapes and internal updates to deliver the best riding experience in our aluminium frames.

ADVANTAGES

• Advanced Industrial Design.
• Distinctive looks.
• Best-in-class lightweight/structural stiffness.
