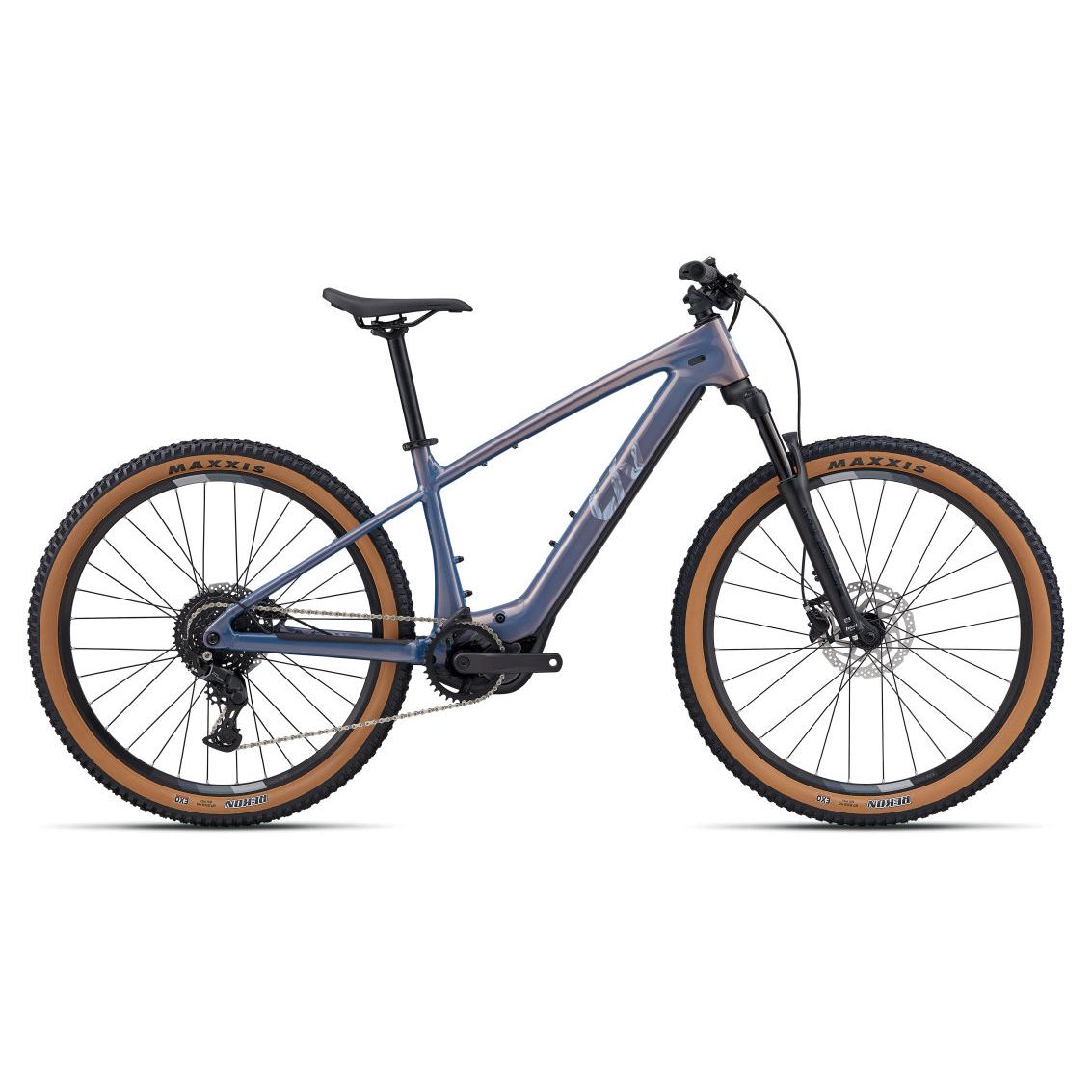

Liv Tempt E+ Electric Hardtail Mountain Bike

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorised as extreme, good and ideal. Extreme conditions typically occur with a heavier rider and/or load, headwinds, constant high speed, rough terrain, or big climbs. This table is specific to models limited to 25km/h; 32 km/h and 45 km/h models will experience a shorter range.

EnergyPak Smart 430 / SyncDrive Sport 2 range:

• Extreme: 57 km
• Good: 88 km
• Ideal: 115 km

HYBRID CYCLING TECHNOLOGY

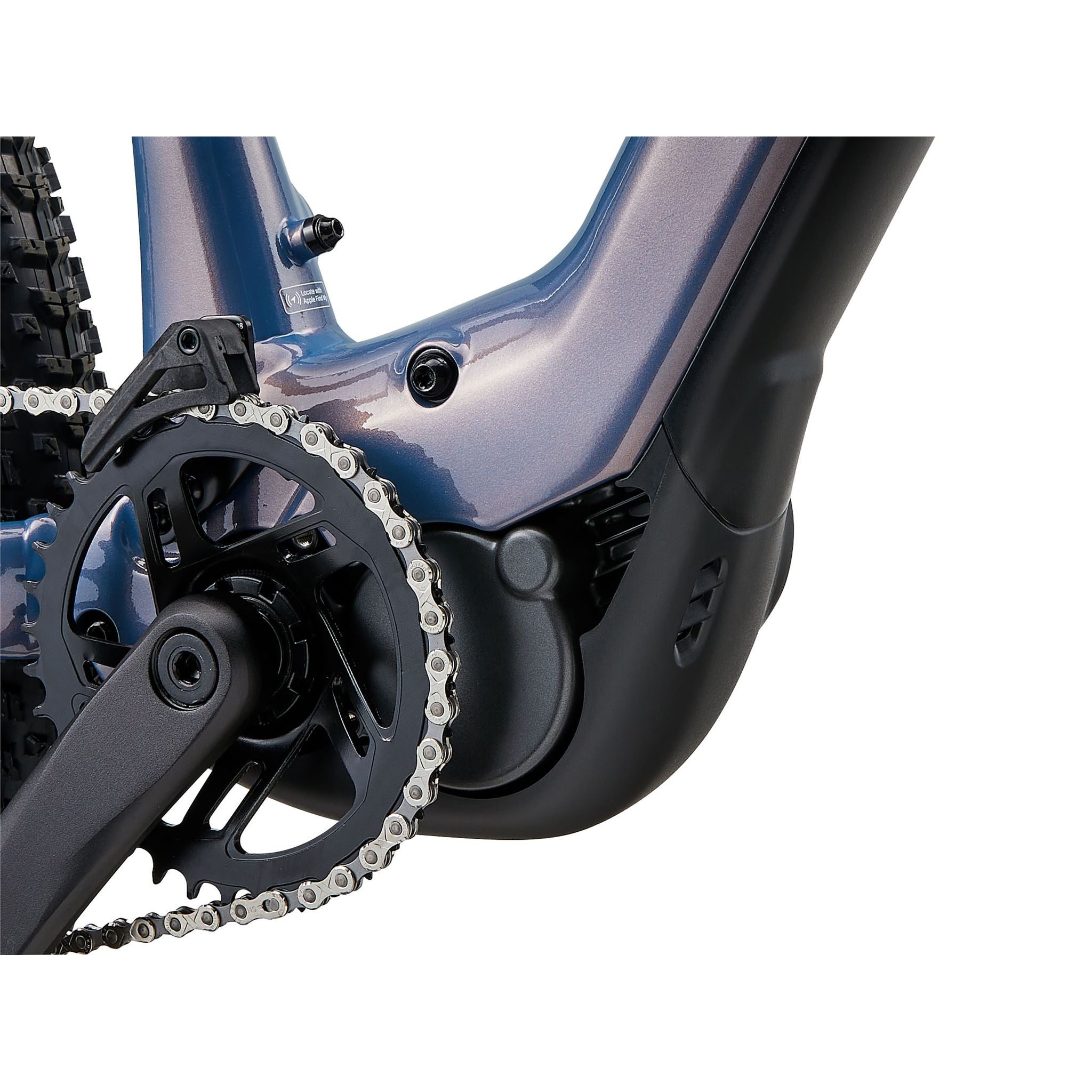

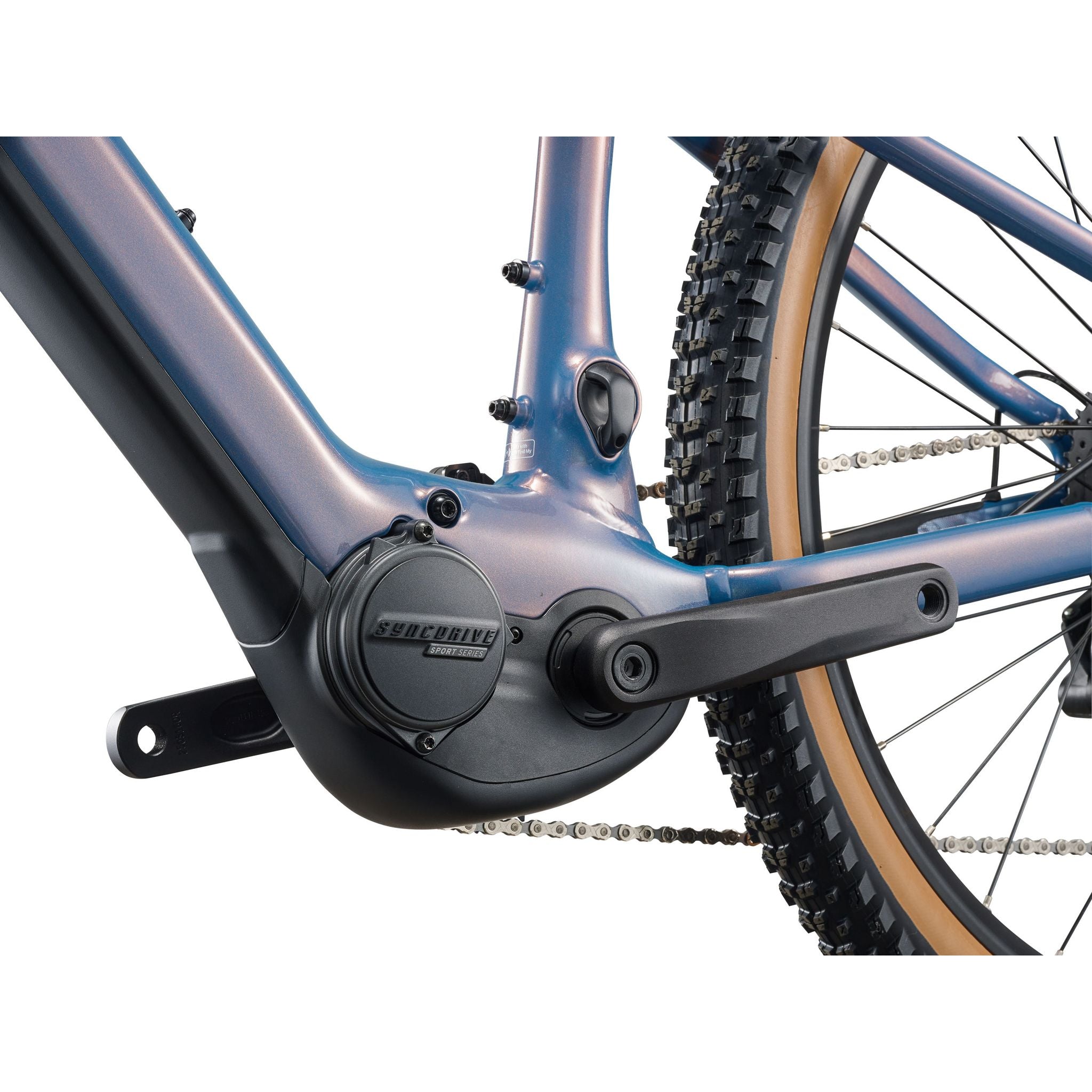

• MOTOR SyncDrive Sport 2, 75Nm, Powered by Yamaha
• CONTROLLER RideControl Dash 2, full colour LCD screen

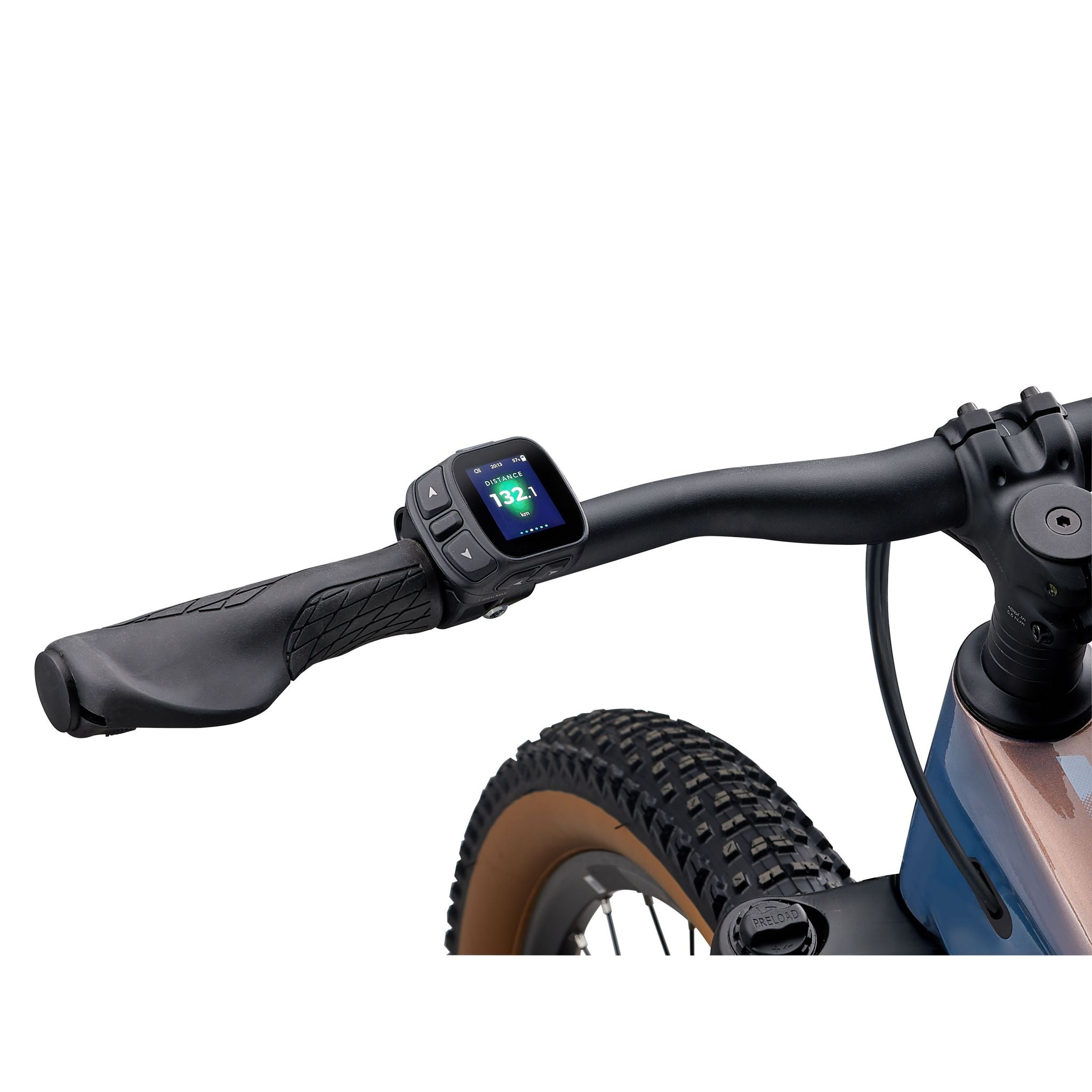

• DISPLAY RideControl Dash 2, full colour LCD screen

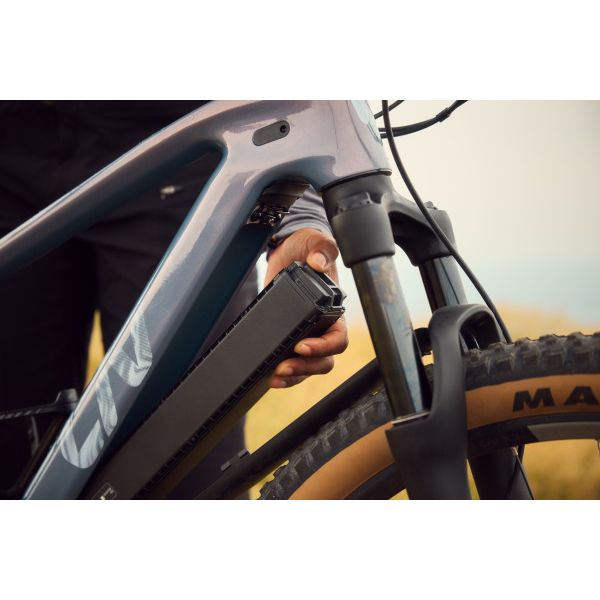

• BATTERY EnergyPak 430Wh, Giant EnergyPak Plus 200 range extender compatible
• CHARGER EnergyPak 4A fast charger
• CONNECTIVITY Giant RideControl App enabled, ANT+ wireless display signal with e-bike
  profile

FRAME

• SIZES 27.5": XS, S. 29": M, L
• COLORS Lunar Eclipse or Seafoam Green

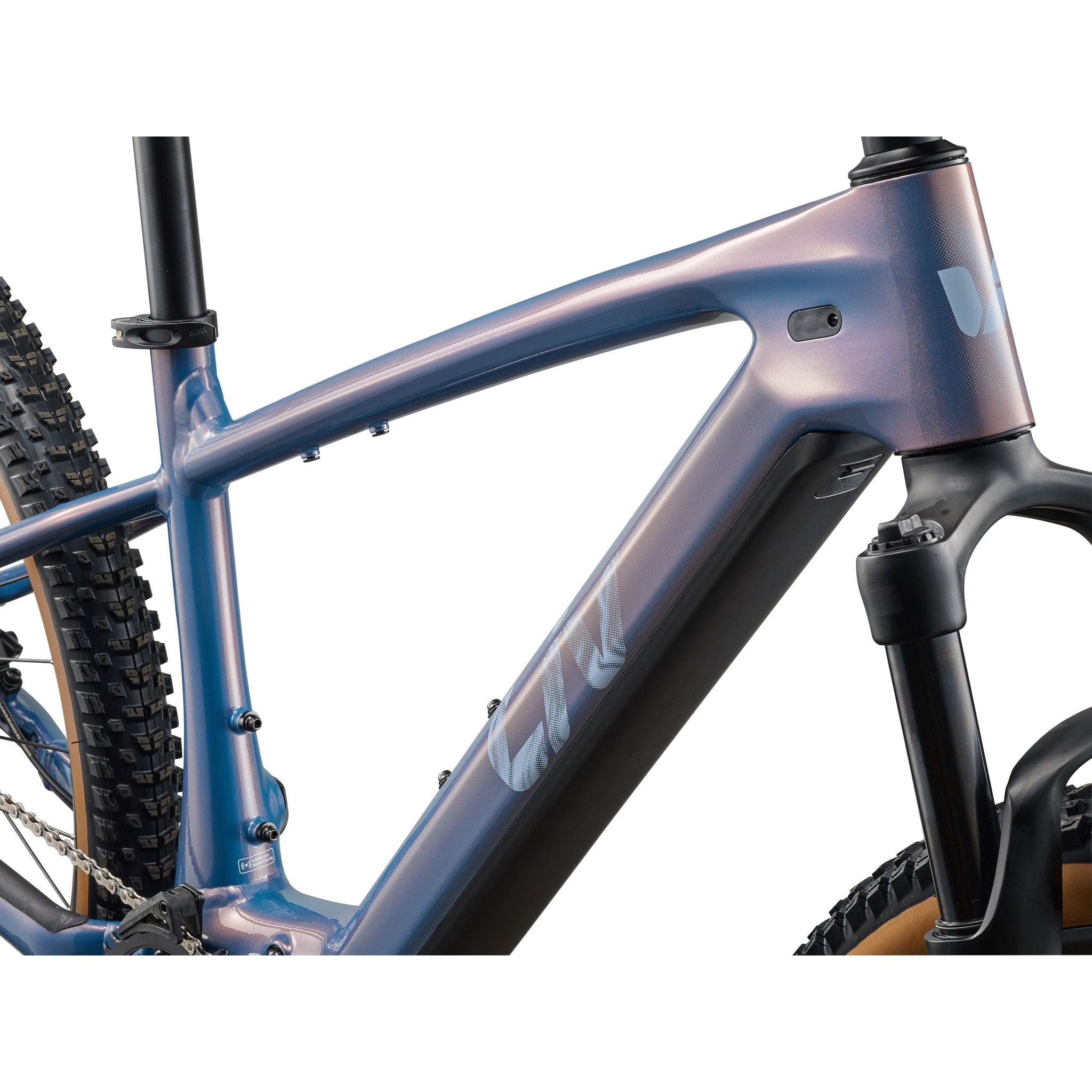

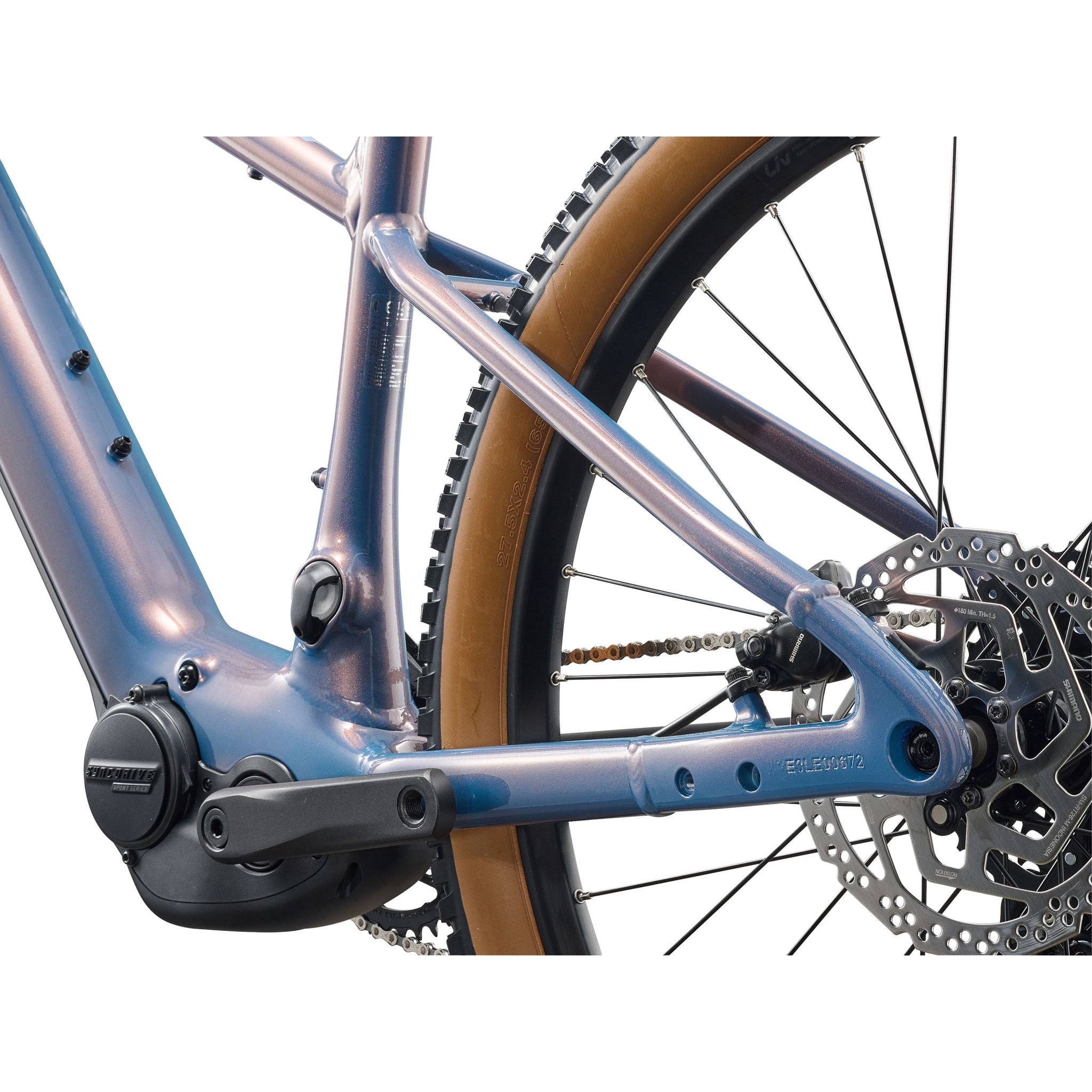

• FRAME ALUXX-Grade aluminium, disc

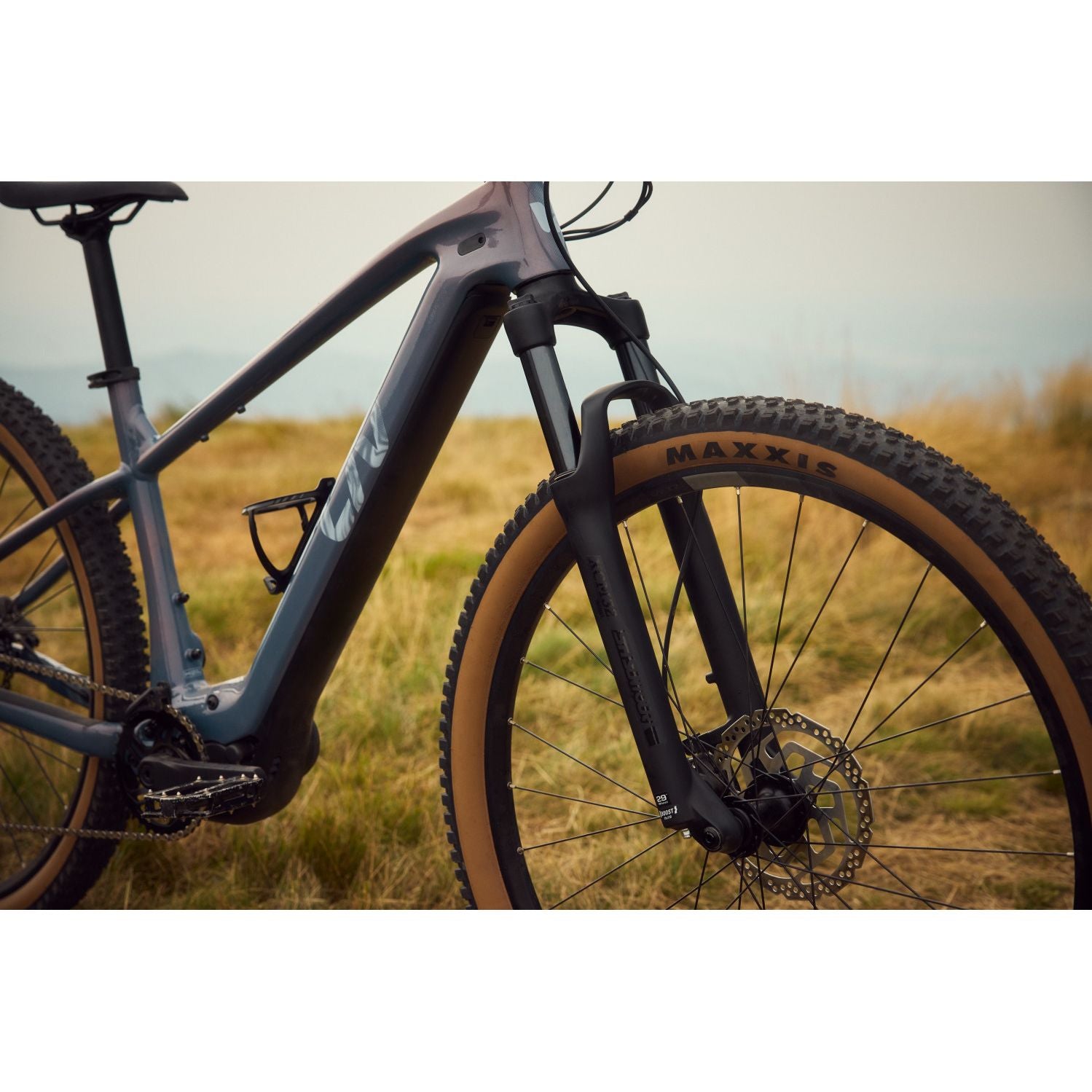

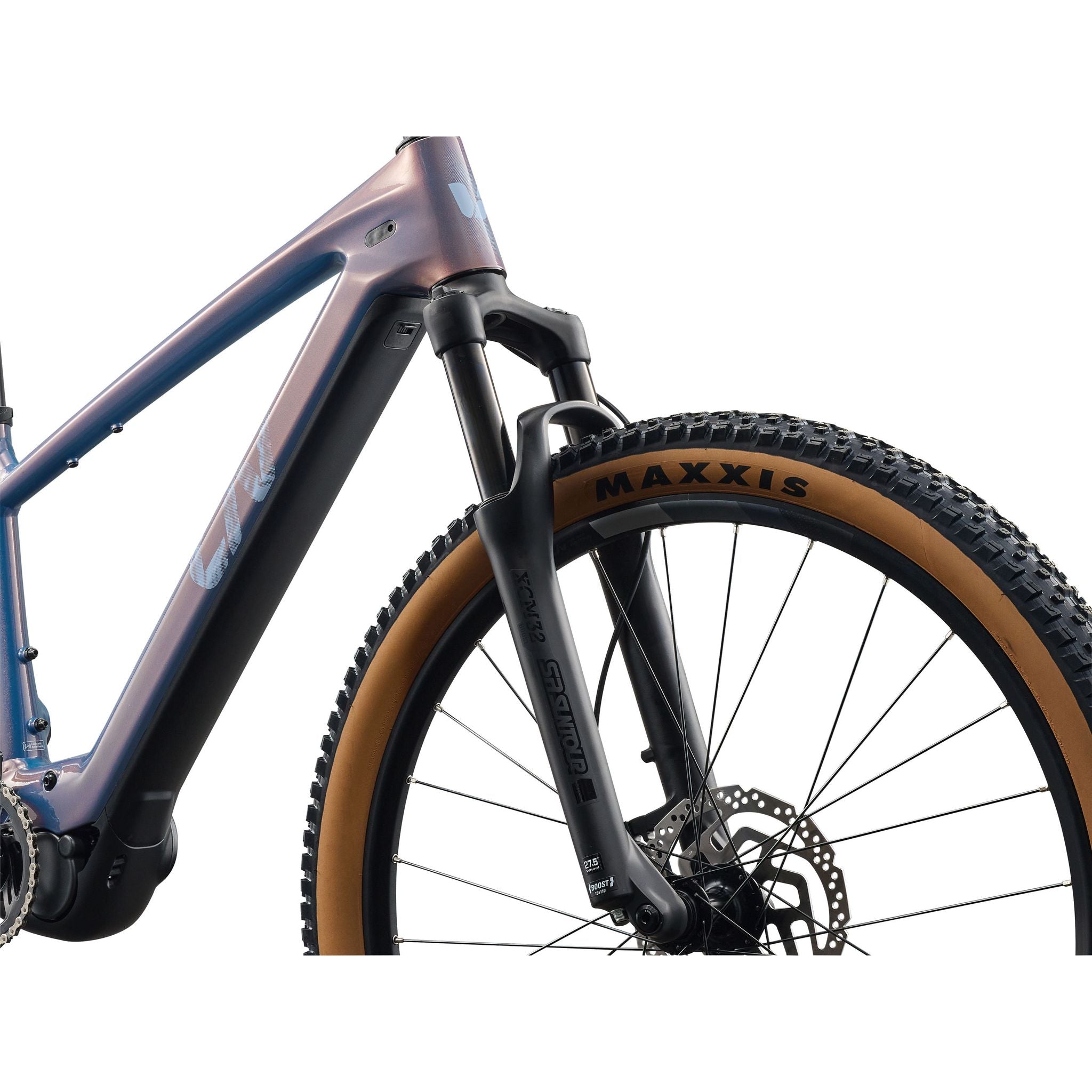

• FORK SR Suntour XCM 32 DS Coil, Boost, 100mm travel
• SHOCK n/a

COMPONENTS

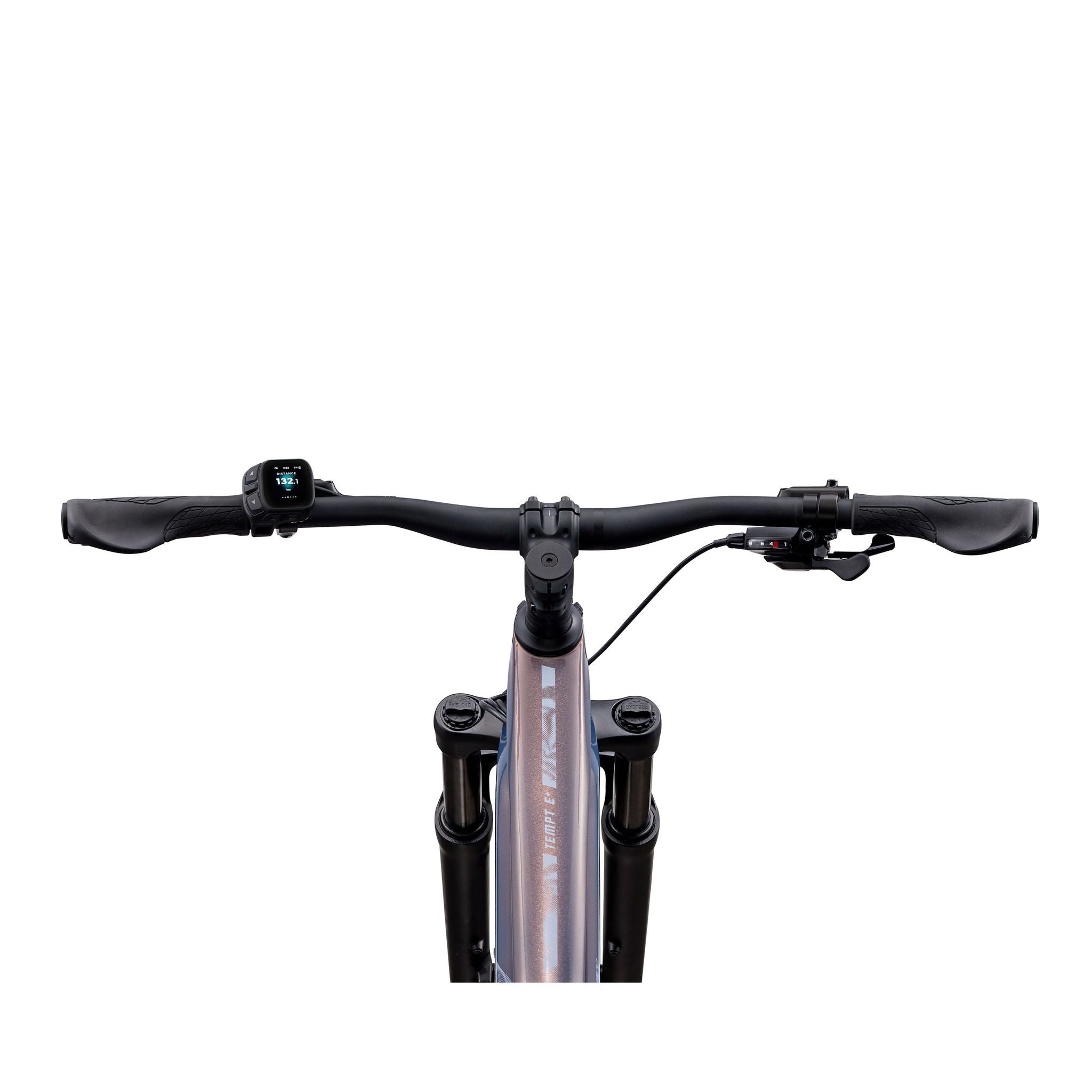

• HANDLEBAR Giant Connect TR Riser, 31.8mm
• GRIPS Giant Sole-O Grip
• STEM Giant Contact, alloy, 8-degree 50mm
• SEATPOST Giant 30.9mm, 2-bolt Micro Adjust, alloy

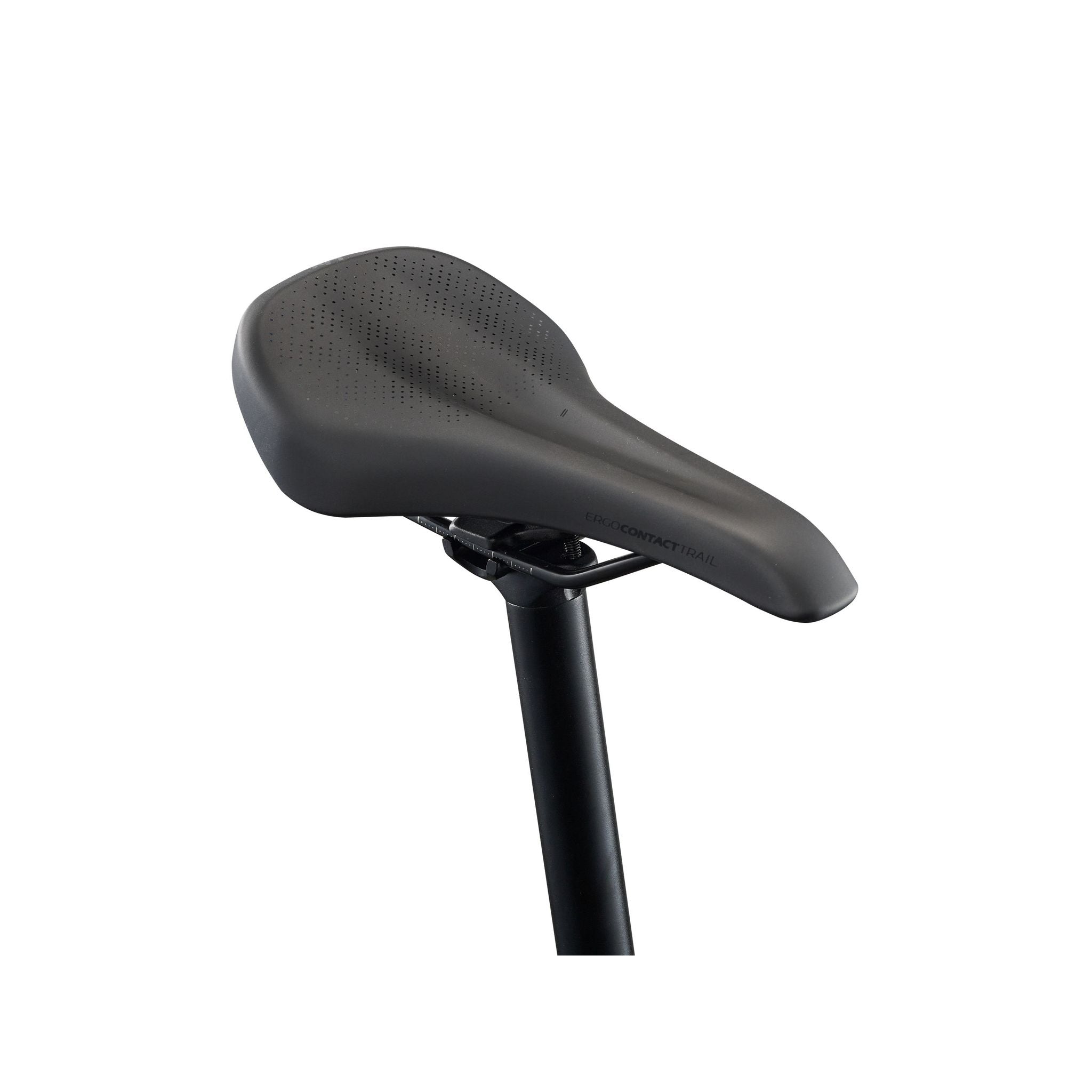

• SADDLE Liv Ergo Trail
• PEDALS Platform


DRIVETRAIN

• SHIFTERS Shimano Cues
• FRONT DERAILLEUR N/A

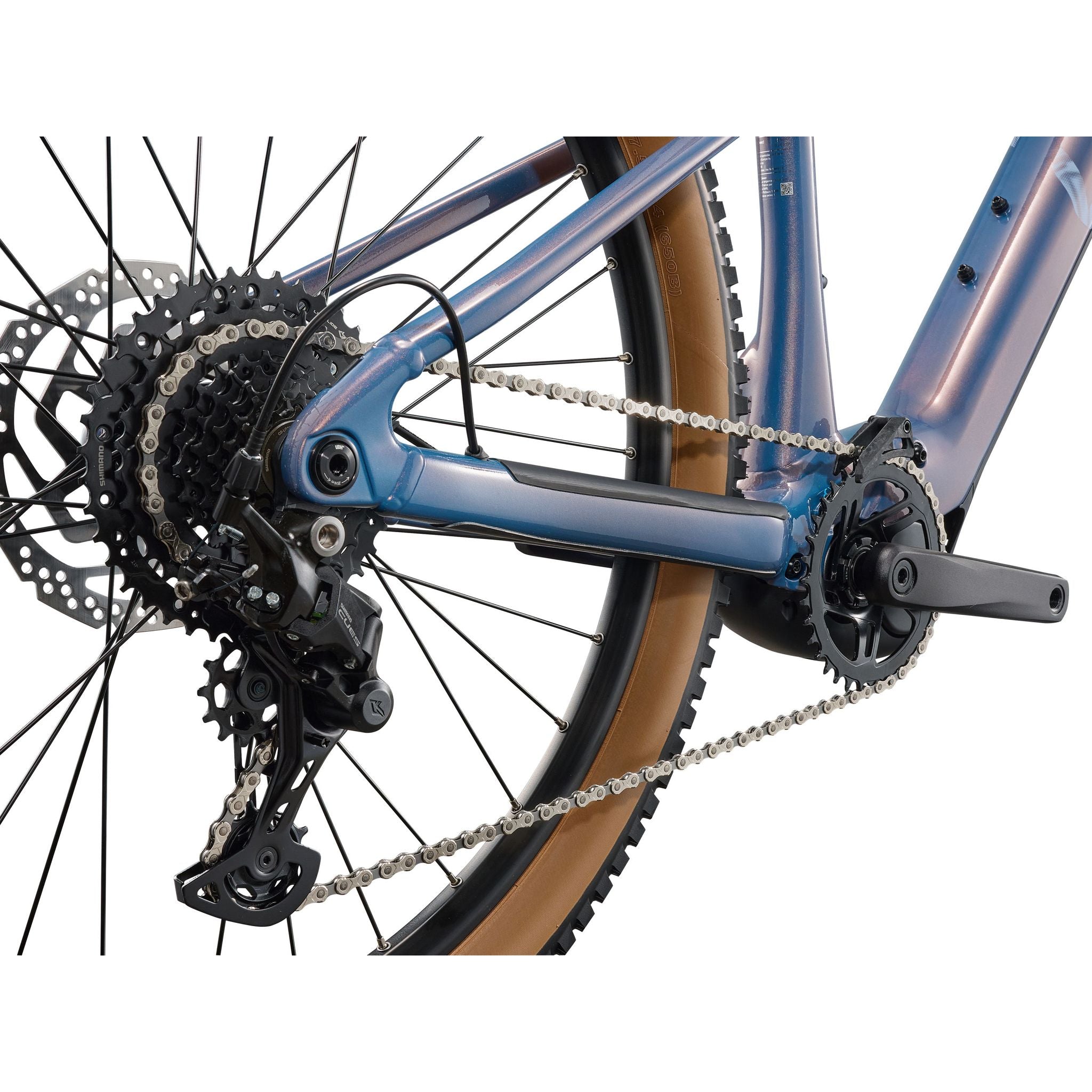

• REAR DERAILLEUR Shimano Cues, 9-speed
• BRAKES Shimano MT200, hydraulic disc, 180mm
• BRAKE LEVERS Shimano MT-200
• CASSETTE Shimano Cues, 11-41T, 9-speed
• CHAIN KMC eGlide, e-bike optimised
• CRANKSET Forged alloy, 36T, (XS/S) 160mm, (M/L) 165mm
• BOTTOM BRACKET N/A

WHEELS

• RIMS Giant alloy 27.5" or 29"
• HUBS Giant eTracker Boost alloy 6-bolt disc, 28H
• SPOKES Stainless steel
• TIRES Maxxis Rekon 27.5x2.4" or 29x2.4"

ACCESSORIES

• LIGHTING -
• CARRIER -


GEOMETRY

• FRAME: XS S M L
• Seat Tube Length (mm) 365 405 445 485
• Seat Post Insertion Depth (mm) 170 200 240 260
• Seat Tube Angle 78.0° 78.0° 74.0° 74.0°
• Top Tube Length (mm) 560 570 595 615
• Head Tube Length (mm) 110 115 105 115
• Head Tube Angle 68.0° 68.0° 68.0° 68.0°
• Fork Rake (mm) 44 44 46 46
• Trail (mm) 106 106 104
• Wheelbase (mm) 1151 1162 1139 1160
• Chain Stay Length (mm) 450 450 470 470
• Bottom Bracket Drop (mm) 45 45 60 60
• Stack (mm) 596 600 618 627
• Reach (mm) 433 442 417 435
• Stand Over Height (mm) 717 732 750
• Stem Length (mm) 50 50 50 60
• Crank Length (mm) 165 165 165
• Wheel Size 27.5+ 27.5+ 29" 29"
