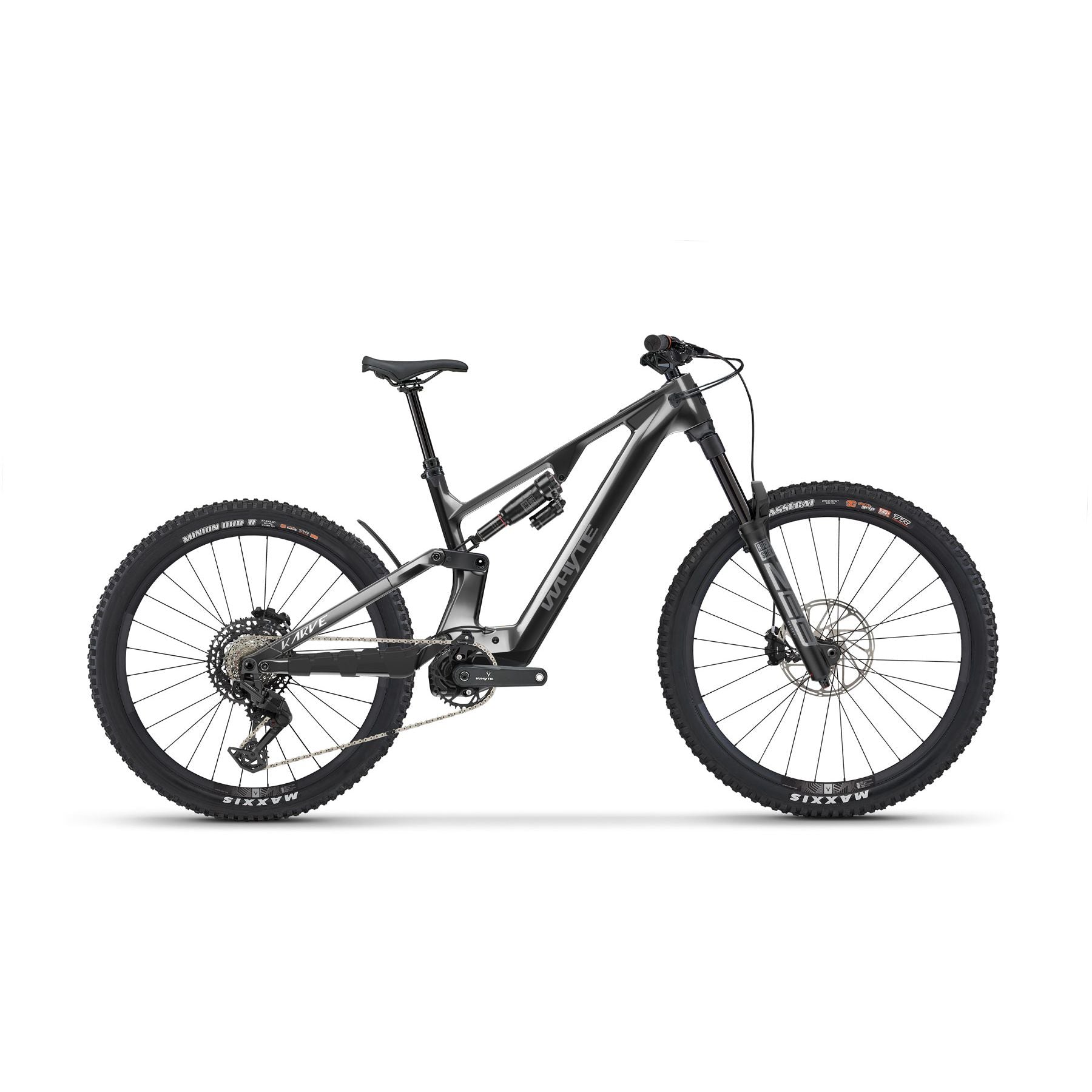

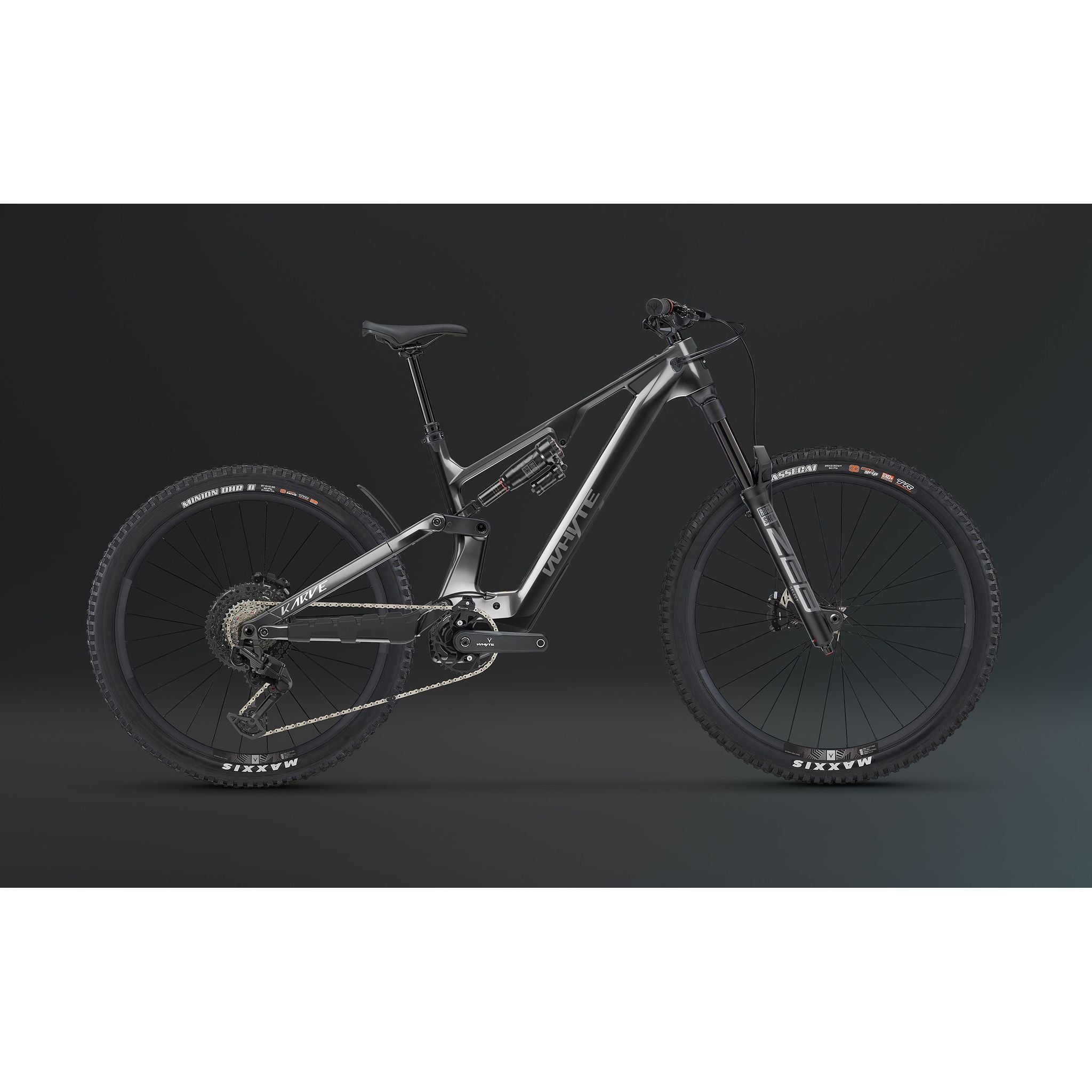

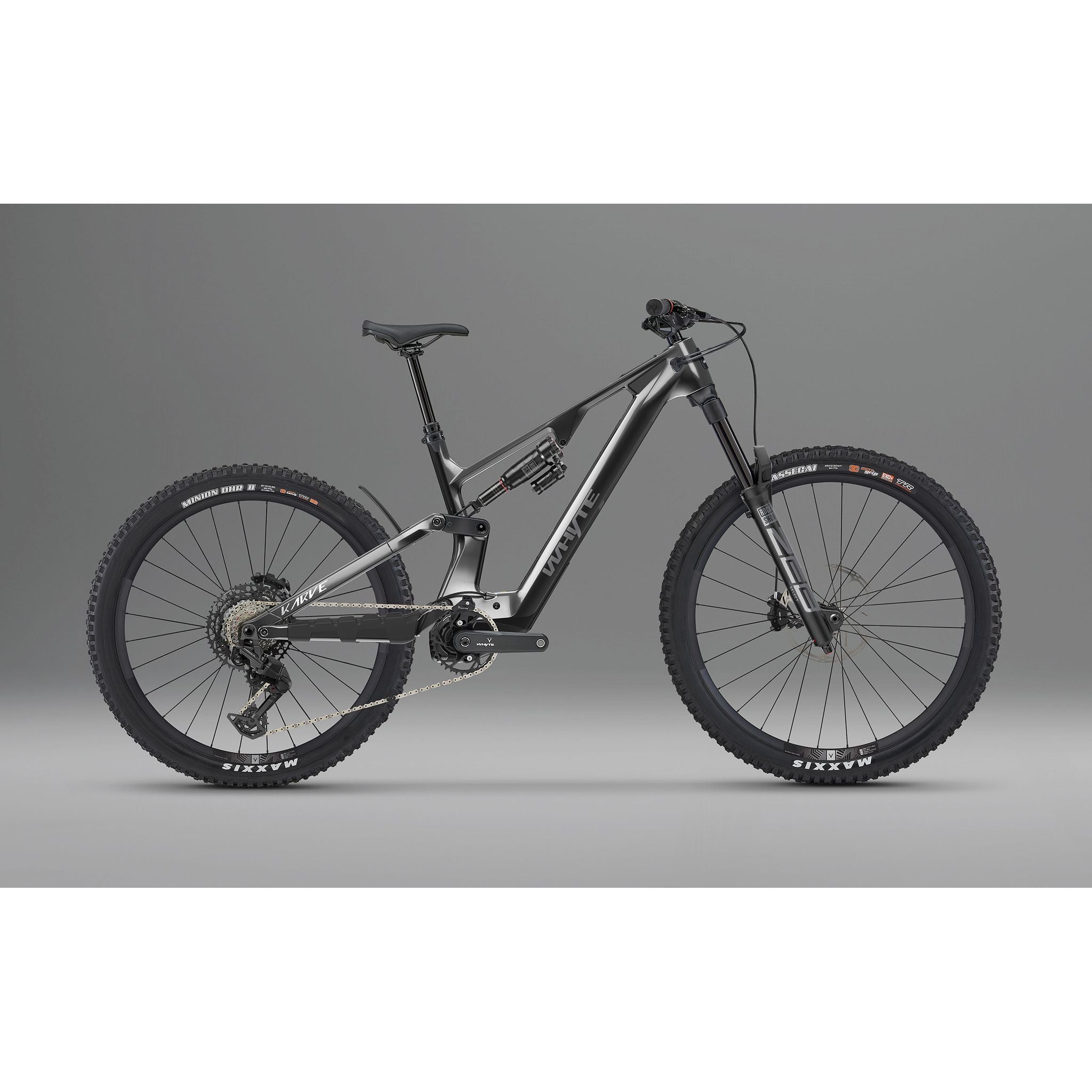

Whyte Karve EVO RS Full Suspension eMTB (Pre-Order)

Avinox motor, Touch Screen Toptube Display + 800Wh internal battery; Rockshox Zeb Select fork; Rockshox Super Deluxe Select shock; SRAM Maven Base brakes; SRAM Eagle 70 T-Type Mechanical.

Frame
Uni-directional carbon mainframe, tapered head tube, internal cable routing, 6061 Alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropouts

Fork
RockShox ZEB Select, 180mm travel, 44mm offset, Linear XL, Delta RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth

Rear shock
RockShox Super Deluxe Select RT, DebonAir, Fast Black coating, adjustable rebound, 230 x 62.5mm, custom tuned for Whyte

Headset
ZS56 upper / lower headset cups for 1 1/18in upper and 1.5in lower with sealed bearings

Rear hub
Alloy, e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, nine degree micro engagement four pawl, 32 hole

Front hub
Alloy, double sealed cartridge bearings, 12mm x 100mm thru-axle, 32 hole

Spokes
14g Stainless Black, brass nipples

Rims
Whyte eMTB Sleeved Rims, 30mm internal, Tubeless Ready

Tyres
Maxxis Assegai WT, TR, 29in x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead, front; Maxxis Minion DHR 2 WT, TR, 27.5in x 2.5in 120TPI, Double Down Casing, 3C MaxxTerra, Dual Compound, rear

Shift levers
SRAM Eagle 90, 12 speed

Front derailleur
N/A

Rear derailleur
SRAM Eagle 70 T-Type mechanical, 12 speed

Cassette
SRAM XS 1270, T-Type, 10-52T, 12 speed

Chain
SRAM Eagle 70

Crankset
Whyte 155mm ISIS arms, SRAM Direct mount 36T chainring, T-Type

Bottom bracket
N/A

Seatpost
TranzX +RAD 34.9mm, Adjustable, (150 drop (S), 170mm drop (M), 200mm drop (L&XL))

Seat
Whyte Custom

Bar
Whyte Custom 6061 alloy, 40mm rise, 35mm bar bore, 800mm wide

Stem
Whyte, 35mm Extension, 35mm Bar Bore

Grips
Whyte Enduro lock-on

Front brakes
SRAM Maven Base, four piston with sintered metal pads, 220mm 6 bolt Centreline rotors

Rear brakes
SRAM Maven Base, four piston with sintered metal pads, 200mm 6 bolt Centreline rotors

Brakes levers
SRAM Maven Base

Pedals
Fibre reinforced composite platform

eBike Motor
Avinox Drive Unit with 120Nm maximum torque, 1200W of peak power and 250W of nominal power. Features five power mode settings including Auto and Boost. AXS derailleur powered off motor and featuring SmoothShift.

eBike Display
Avinox DPC100 OLED display mounted within the top tube, paired with the discrete bar mounted wireless controller. Also connects to the Avinox Ride smartphone app to give you even more insight and control at your fingertips.

eBike Battery
Avinox 800Wh fixed battery, mounted into the frame by 2x bolts. Removeable for maintenance by removing motor.

eBike Battery Charger
Charger 4A (230V)

Shock Stroke & Sag
62.5mm/17.5mm

Reducer Bush Widths
25mm

Eye to Eye Length
230mm
