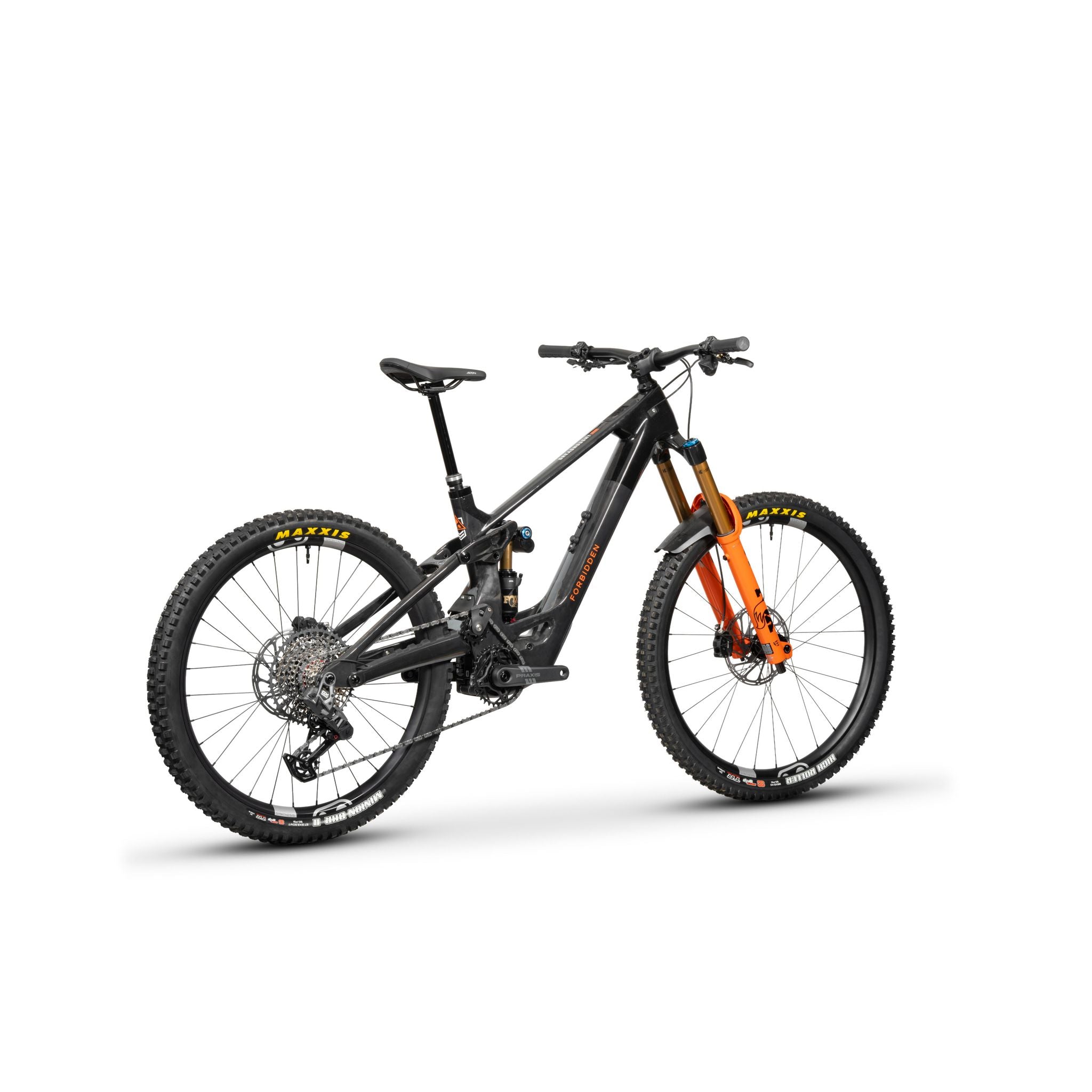

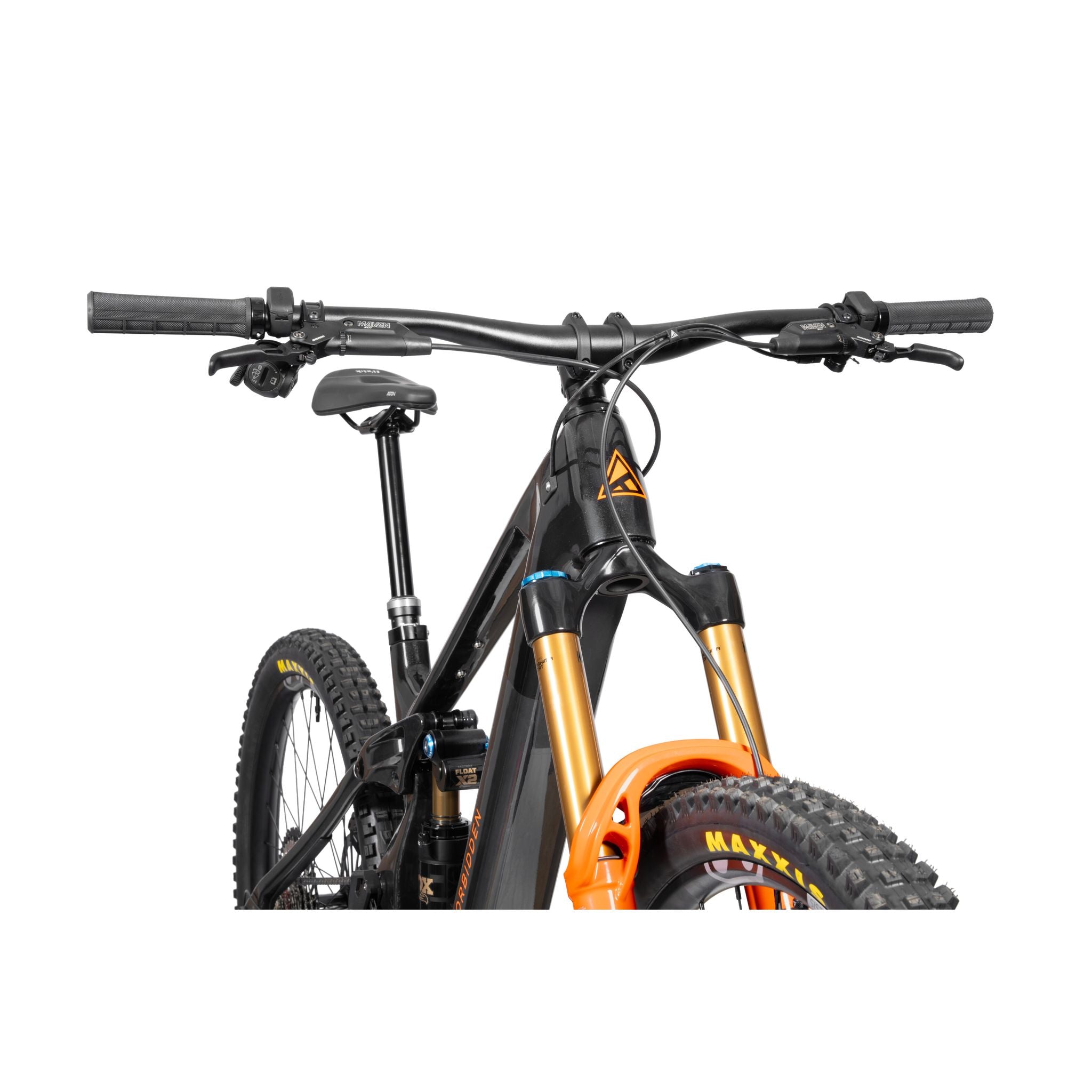

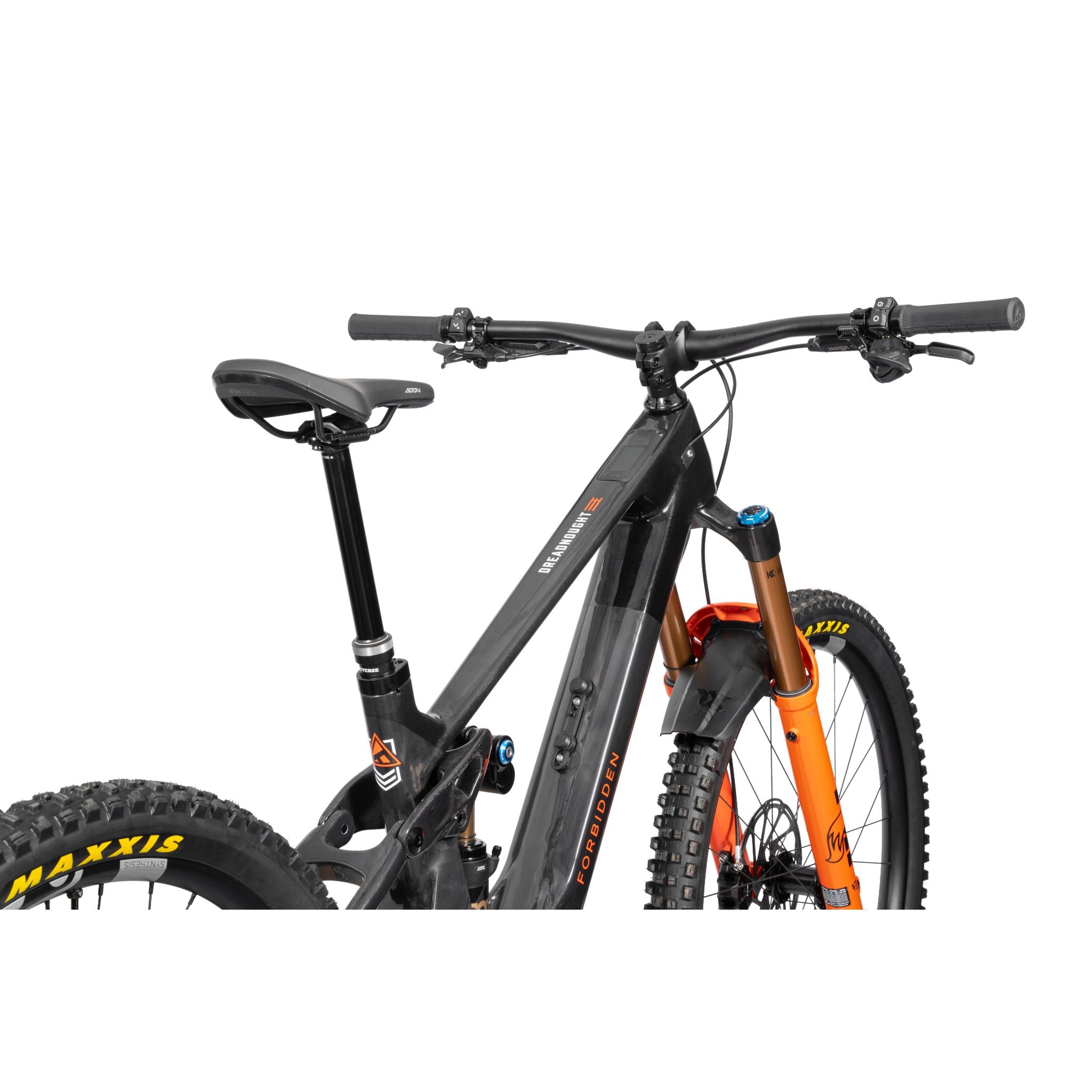

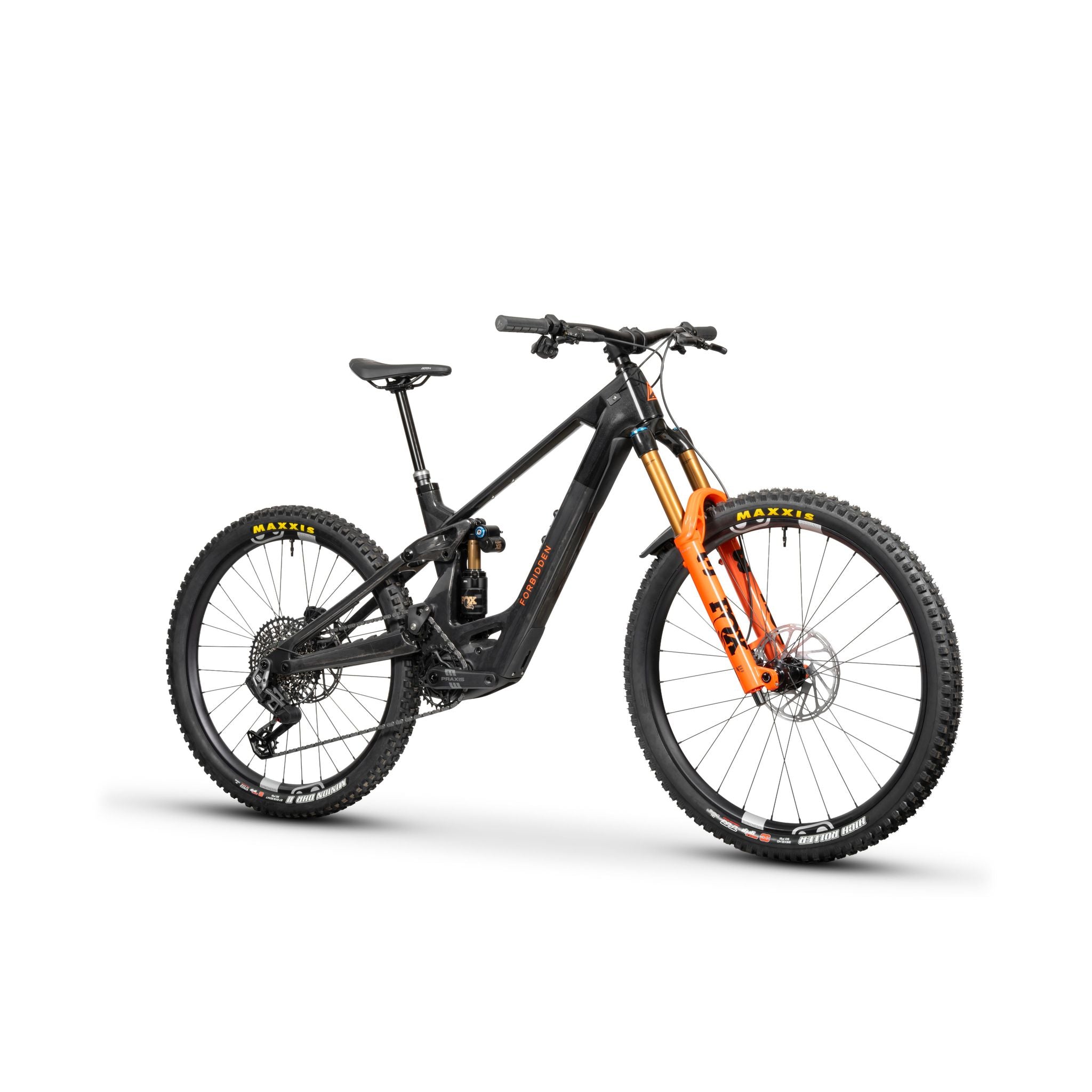

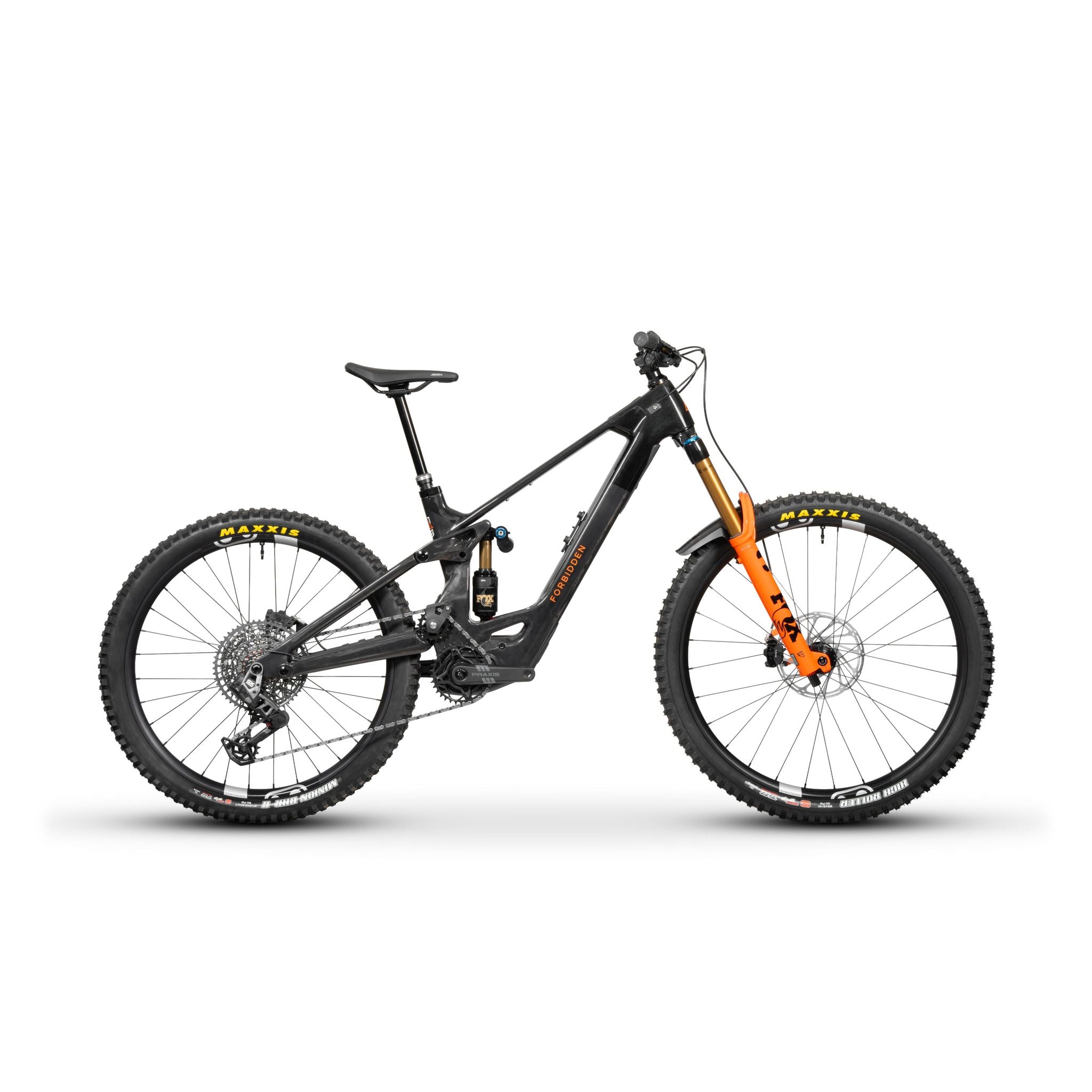

Forbidden Dreadnought E Tier 2 - 800wh Full Suspension eMTB

$19,289.99 NZD

1 in stock
Description

Introducing Dreadnought E. An e-MTB built from the ground up with a singular purpose – to charge through the most chaotic, rowdy lines you can find, and whisk you back to the top, asking for more. Big travel. Full power. Zero hesitation.

Featuring 170mm of rear travel paired with a 180mm fork, combined with a rearward, yet reserved axle path, Dreadnought E has the ability to plow when you drop your heels, but still offer pop and support when it’s needed to get off the ground or pump to generate that addictive speed.

Dreadnought E is spec’d with the all-new Avinox M2 and M2S drive systems. Tier 1 and Tier 2 run the Avinox M2S, a 2.6 kg unit delivering 130 Nm of torque (150 Nm Boost) and 1300 watts. Tier 3 and Tier 4 run the Avinox M2, weighing 2.65 kg, delivering 110 Nm of torque (125 Nm Boost) and 1100 watts. Both options can be paired with 600 Wh or 800 Wh batteries, so you can choose a lighter setup or maximum range depending on how deep the mission goes.

Dreadnought E isn’t here to play nice, it’s here to go further, hit harder, and redefine what a full-power, big-travel e-MTB is supposed to feel like.

Technical Specifications

Frame Dreadnought E Full Carbon
High-Modulus Carbon Fiber | Trifecta V2 High Pivot 4-Bar Suspension | One Ride Geometry | Enduro Max Bearings

Fork Fox 38 Factory
180mm Travel | Grip X2 | Float Glidecore | HSR/LSR, HSC/LSC Adjust | 44mm Offset | 15x110mm Thru-Axle | Gloss Orange

Rear Shock Fox Float X2 Air Factory
Evol | HSR/LSR, HSC/LSC | 2 Position Threshold Lever | Bearing Adapter Eyelets | CL60, RS50 LMM, Rezi B60, Bleed 0.9, MCU Short | 230x65mm

Headset FSA Orbit ZS
ZS44|ZS56 | Sealed Cartridge Bearings | 6000 Series Alloy Cups And Materials | Sealed Steel Crown Race

Grips Forbidden
128mm length | Single Sided Lock-On | Black

Handlebar OneUp Alloy
800mm Width | S1-S2:20mm / S3-S4:35mm Rise | 8° Backsweep 5° Upward | 35mm Bar Bore | 7075 Aluminum / Black

Stem OneUp Forged
42mm Length | 35mm Bar Clamp | Black | Forged 6061 Aluminum

Seatpost TranzX Reverse
31.6mm | Size Specific Travel S1:160mm / S2:180mm / S3:210mm / S4:240mm

Seat Post Remote TransX GLS
Aluminum Remote | Oversized Bearing | MatchMaker X Integrated Dropper Remote

Seat Post Clamp Forbidden
7075 CNC Aluminum | 34.9mm | Black Anodized

Saddle Fizik Terra Aidon X5

145mm Width | X5: Ride-Compliant Fiber Reinforced Nylon Shell And S-Alloy Rail | Black

Front Brake SRAM Maven - Silver
Stealth Body | SwingLink | Reach & Contact Adjustment | Organic Pads

Front Brake Rotor SRAM Centerline
6-Bolt | 2.0mm Thickness

Rear Brake SRAM Maven - Silver
Stealth Body | SwingLink | Reach & Contact Adjustment | Organic Pads

Rear Brake Rotor SRAM Centerline
6-Bolt | 2.0mm Thickness

Rear Shifter SRAM POD Rocker
With MMX Clamp | AXS Controller | Rocking Actuation

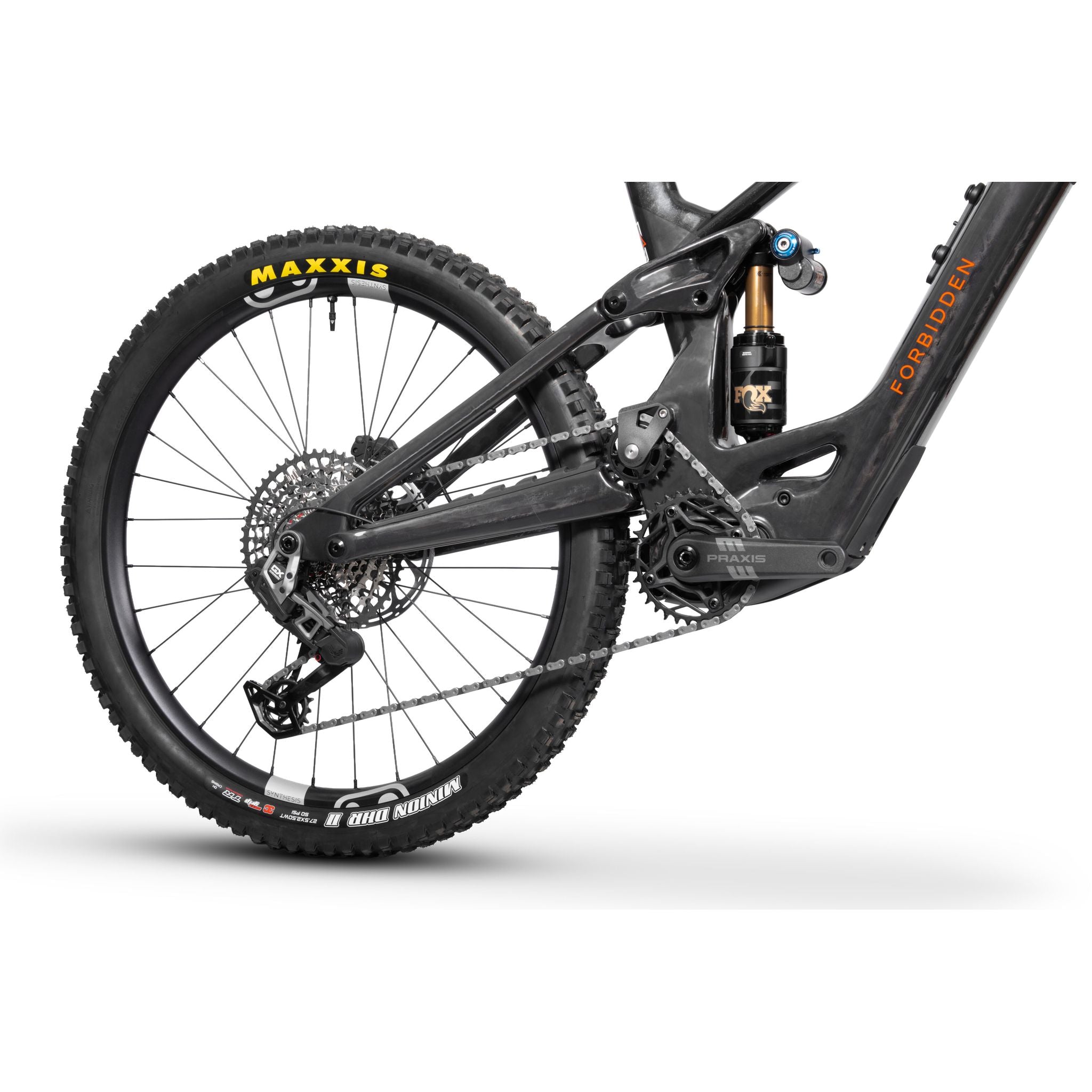

Rear Derailleur SRAM GX T-Type
Hangerless Interface | Overload Clutch | Replaceable Skid Plates

Cassette SRAM XS-1275
12speed | XD Fit | 10-12-14-16-18-21-24-28-32-38-44-52T

Chain SRAM GX T-Type
12speed | Links = S1:120 / S2:122 / S3:124 / S4:126

Crankset Praxis Alloy E-Cranks
150mm | SRAM 34T Chainring | 55mm Chainline | Black

Pedals not included

Upper Chain Guide Forbidden Race Guide

Motor Avinox M2S
Drive Unit: 130 Nm | 1300w Peak Power | Avinox DP100 Screen: 2-inch OLED Touch Screen Control Display | Avinox Wireless Controllers: Right and left sides

Battery Avinox 800Wh
Integrated Li-ion Battery: 800Wh

Front Hub Crankbrothers Ratchet
110x15mm | 28-Hole | 6-Bolt | Black Anodized

Front Axle Fox Kabolt
6mm Hex Fitment

Rear Hub Crankbrothers Ratchet
Ratchet Internals | XD Driver | 148x12mm | 32hole | 6-Bolt | Black Anodized Decal

Rear Axle SRAM Maxle Stealth
180x12mm | 5mm Hex Fitment

Spokes Sapim E-Light / Strong
Front: Sapim E-Light / Rear: Sapim Strong | Black ED Coated Stainless | Black Brass 14mm Nipples

Rims Crank Brothers Alloy 2.0
Front 31mm / Rear 29.5mm Internal Width | Tubeless Ready | Black with Grey Graphics

Front Tire Maxxis High Roller 3 3C, MaxxGrip, DH Casing
29 x 2.4 | 3C MaxxGrip Rubber Compound | 60tpi | Folding | Tubeless Ready | DH Casing

Rear Tire Maxxis DHRII 3C, MaxxGrip, DH Casing
27.5 x 2.5 | 3C MaxxGrip Rubber Compound | 120tpi | Folding | Tubeless Ready | DH Casing

Charger Avinox 168W Charger
Approx. 4 h 45 min (0–100%)approx. 3 h 3 min (0–75%)

Power Cord AXS Extension Cord

Fidlock TWIST Bike Base

Stans Sealant - 250ml


Included Frame Protection Film
Preinstalled in High Wear Areas. Full OE Integrated Kit Available Extra
