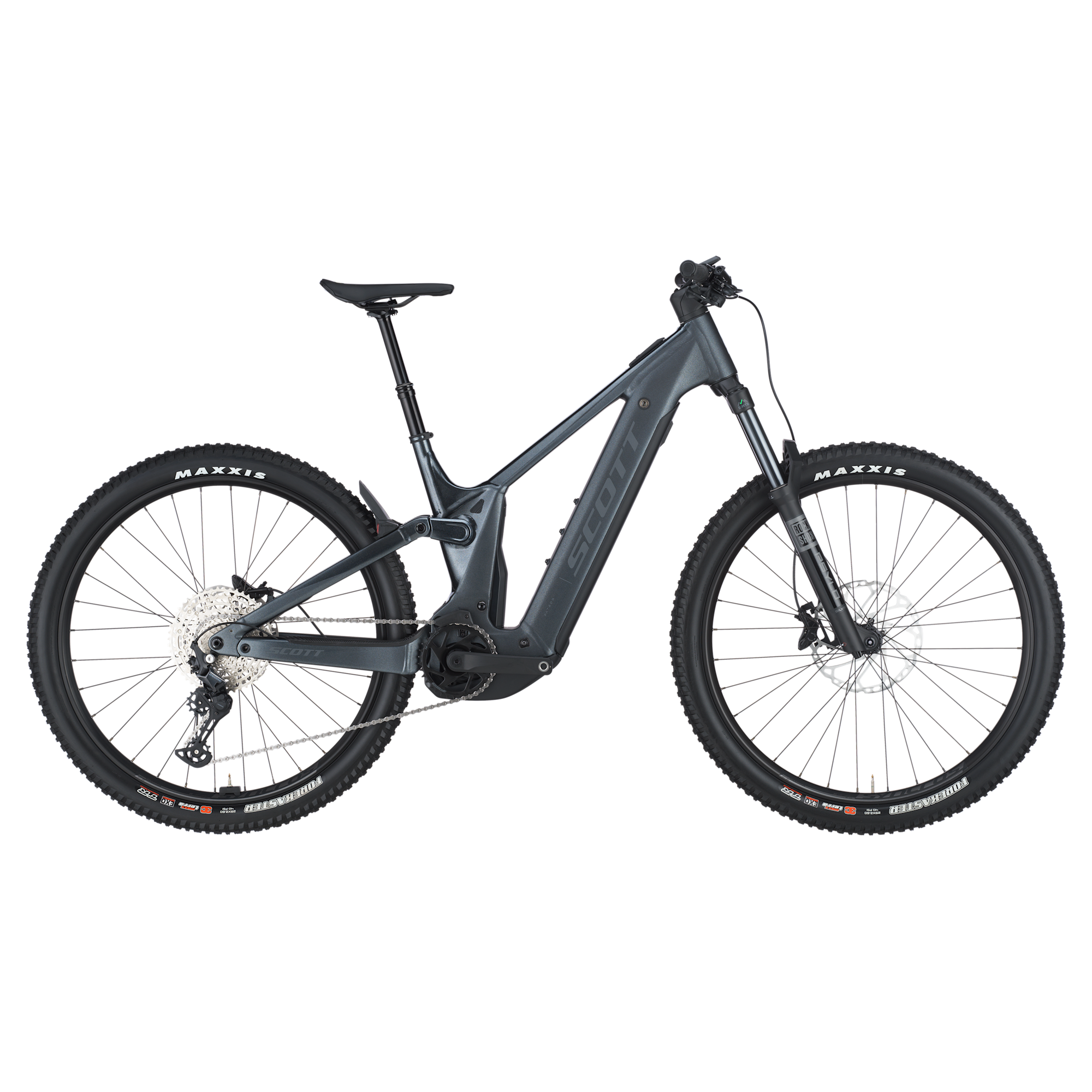

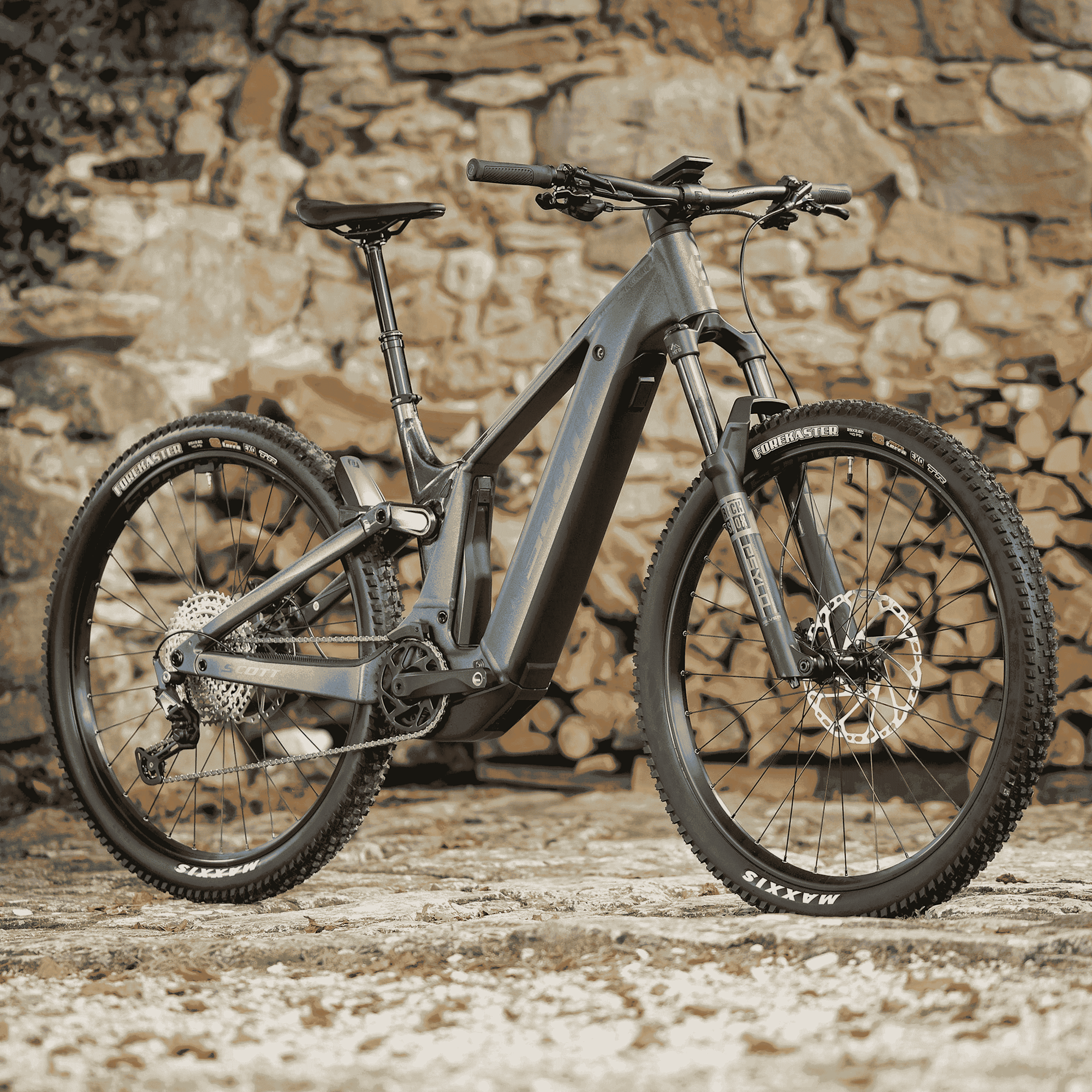

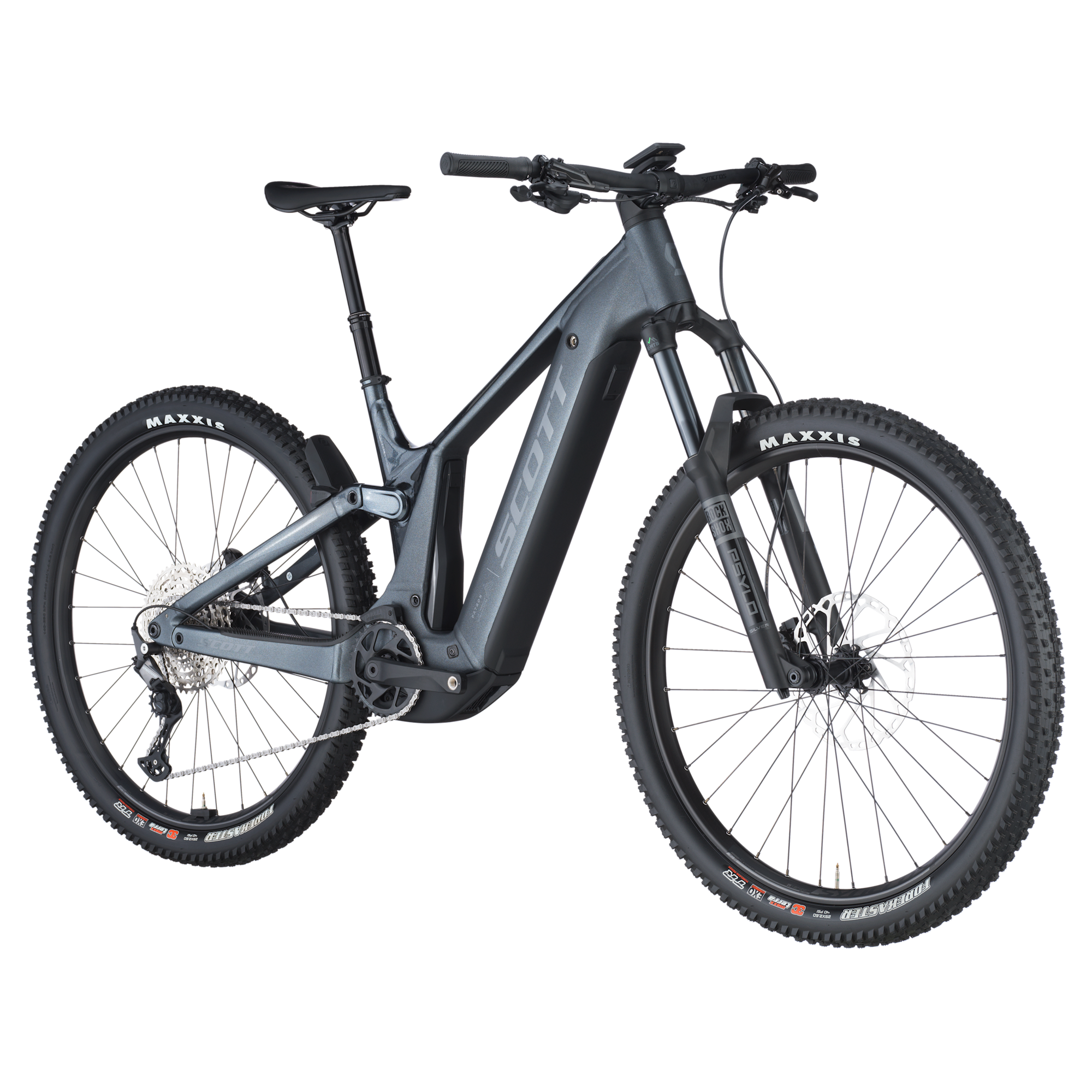

Scott Patron 920 Full-Suspension E-Mountain Bike

Motor & Battery
For the mountain biker looking to unlock new zones and ride more terrain than ever, the Patron eRIDE holsters the cutting edge of full-power motor and battery technology in a package built for singletrack domination. With the latest Bosch Performance CX drive unit paired with the 800Wh Powertube battery, the Patron is your ticket to freedom in the mountains.

Patented Integrated Shock Technology
A stellar day on the trails begins with stellar suspension design, and the Patron’s 150mm of integrated travel will keep you tracking the ground smoothly no matter the terrain. Integrating the shock has allowed us to achieve desired shock characteristics, while also granting us the space to ideally position elements such as the motor, the battery and a water bottle. Riding a range of varied terrain? The TracLoc remote on the handlebar alters suspension characteristics with just a oush of the thumb, allowing you to match your suspension to the trail ahead.

Frame Construction
The Patron eRIDE lineup features carbon and alloy models, both meticulously engineered to harness the unique charactersitics of each material. Subjected to the highest degree of testing and numerous iterations in the development phase, the Patron eRIDE exhibits the perfect blend of stiffness and strength and weight distribution to lead to an unmatched ride feel - especially when things get rough.

Accessories & Compatibilities
Featuring tailor made details such as integrated fender and LED rear lights, the Patron eRIDE has been developed to be a “just get on and ride” kind of bike. To take this a step further, the Patron is pre-wired and ready for you to link up a front light to the main battery if you desire. A range of Syncros accessories are also available for the Patron eRIDE such as a kickstand, a rear rack or an action camera mount.

Cable Integration
Fact: With E-bikes come cables. Thankfully, on the Patron eRIDE, these are all cleanly integrated into the frame to hide them from sight, protect them from the elements and ensure no unnecessary bends impede on their function.

• Frame: Alloy Frame

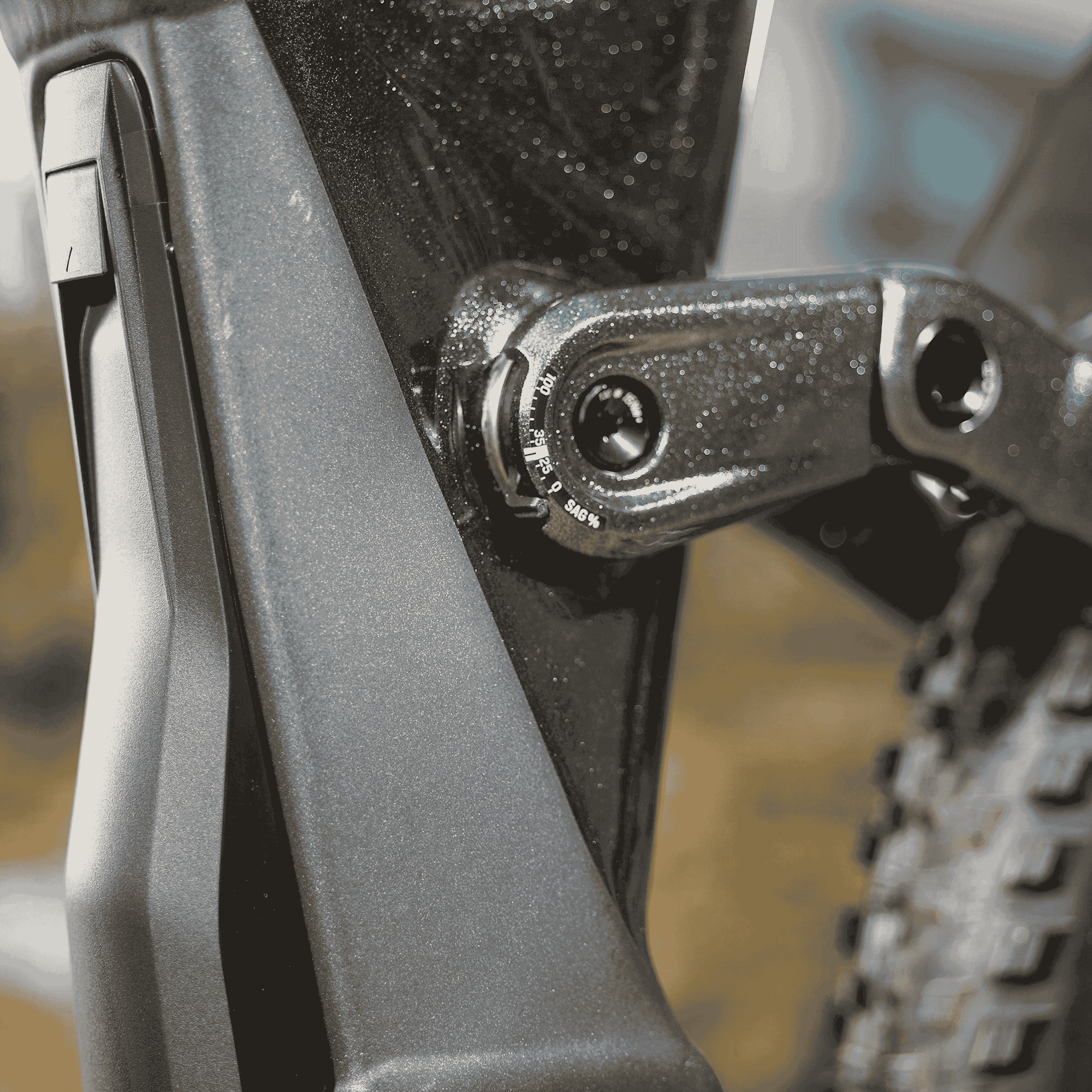

  Integrated Suspension Technology
  Virtual 4 Link kinematic / Adjustable head angle
  Syncros Cable Integration System
  Bosch Smart System / UDH Interface / 12x148mm with 55mm Chainline
  Bosch PowerMore Ready
• Travel: Front: 150mm / Rear: 150mm
• Fork: RockShox Psylo Silver RC Air / E-Bike / Comp & Reb Adj. / QR Axle 15x110mm axle
  44mm offset / tapered steerer / 150mm travel
• Rear Shock: X-Fusion NUDE 5 RLX Trunnion
  SCOTT custom w. travel / geo adj.
  3 modes: Lockout-Traction Control-Descend
  Reb. Adj.
  Travel 150-100-Lockout / T185X55mm
• Remote System: SCOTT TracLoc 2 Technology
  Suspension & Dropper Remote
  3 modes
• Drive Unit: Bosch Performance CX
  EU: 25kmh / INT: 20mph
• Battery: PowerTube 800Wh

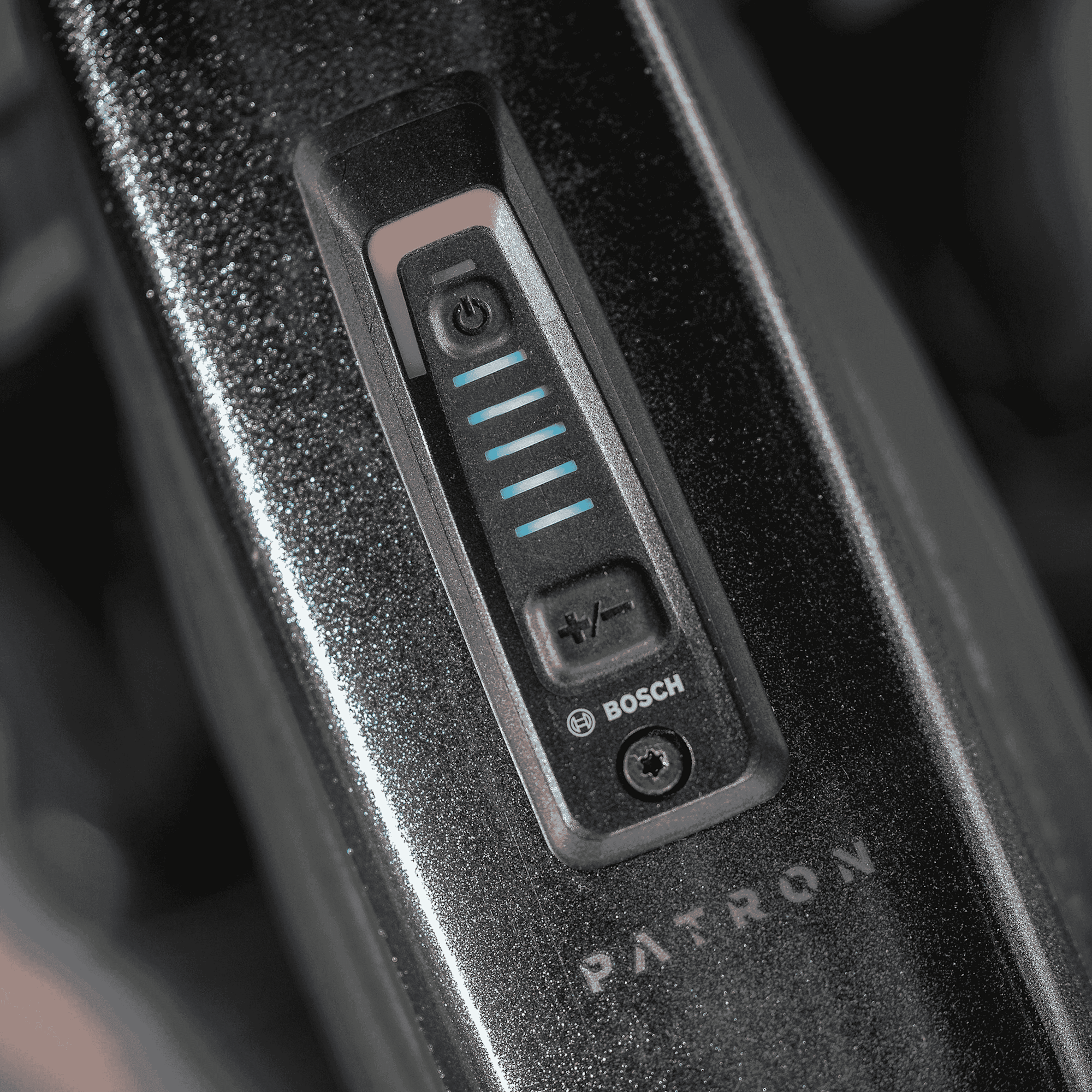

• Display: Bosch System Controller
  Mini Remote & Intuvia 100
• Charger: 4A Charger
• Rear Derailleur: Shimano Deore RD-M6100 SGS
  Shadow Plus / 12 Speed
• Shifter: Shimano Deore SL-M6100-IR / Rapidfire Plus
• Crankset: FSA Alloy
• Chainguide: e*thirteen / e*spec Slider
• Chainring: FSA 12 Speed 34T chainring
• Chain: Shimano CN-M6100
• Cassette: Shimano CS-M6100 / 10-51
• Brakes: Shimano MT520 4 Piston Disc
• Rotors: Front: SM-RT64 CL 220mm / Rear: SM-RT64 CL 203mm
• Handlebar: Syncros Hixon 2.0 Alloy 6061
  Size S & M 15mm rise / Size L & XL 25mm rise / back sweep 8° / 780mm
  Syncros Endurance lock-on grips
• H'stem: Syncros AM 2.0
  Syncros Cable Integration System
  4° rise / 6061 Alloy / 31.8mm / 1 1/8"
• Seatpost: Syncros Duncan Dropper Post 2.5
  31.6mm / S size 125mm / M size 150mm / L size 170mm / XL size 200mm
• Seat: Syncros Tofino-E 2.5 Regular
• Headset: Syncros - Acros Angle adjust & Cable Routing HS System / +-0.6° head angle adjustment
  ZS56/28.6 – ZS56/40 MTB
• Front Hub: Formula CL-811 / 15x110mm
• Rear Hub: Formula ECT-148M / Boost 148x12mm
• Spokes: Stainless Black
• Rims: Syncros MD30 / 32H / 30mm / Pin Joint
  Tubeless ready
• Front Tire: Maxxis Forekaster 29x2.6"
  120TPI Foldable Bead
  EXO / TR Tubeless ready
  3C Maxx Terra
• Rear Tire: Maxxis Forekaster 29x2.6"
  120TPI Foldable Bead
  EXO / TR Tubeless ready
  3C Maxx Terra
• Lights: Syncros integrated rear fender light
  Front Light Cable pre-installed
• Approx weight in KG: 25.8
• Approx weight in LBS: 56.88
• Max. System Weight:
  128kg
  The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
