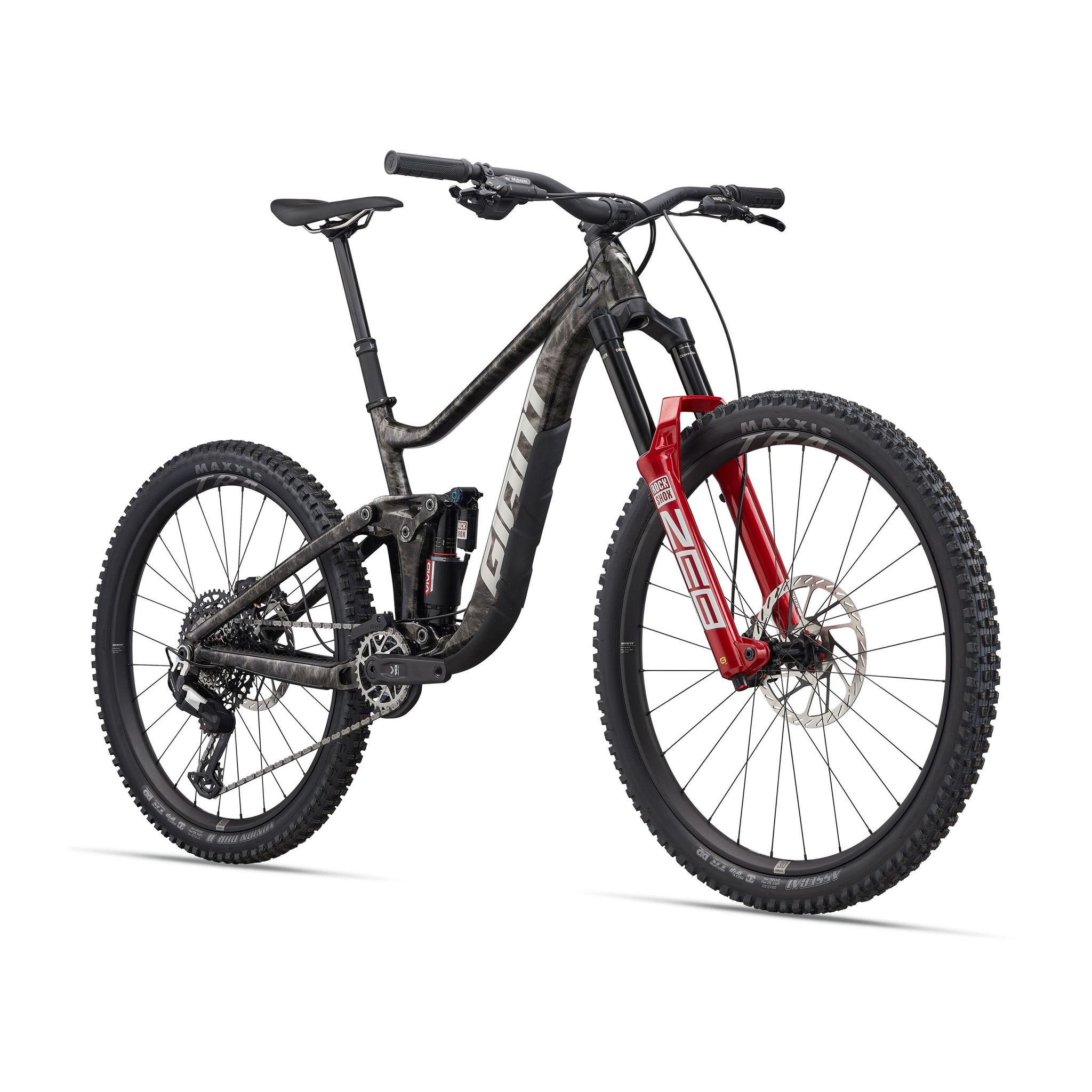

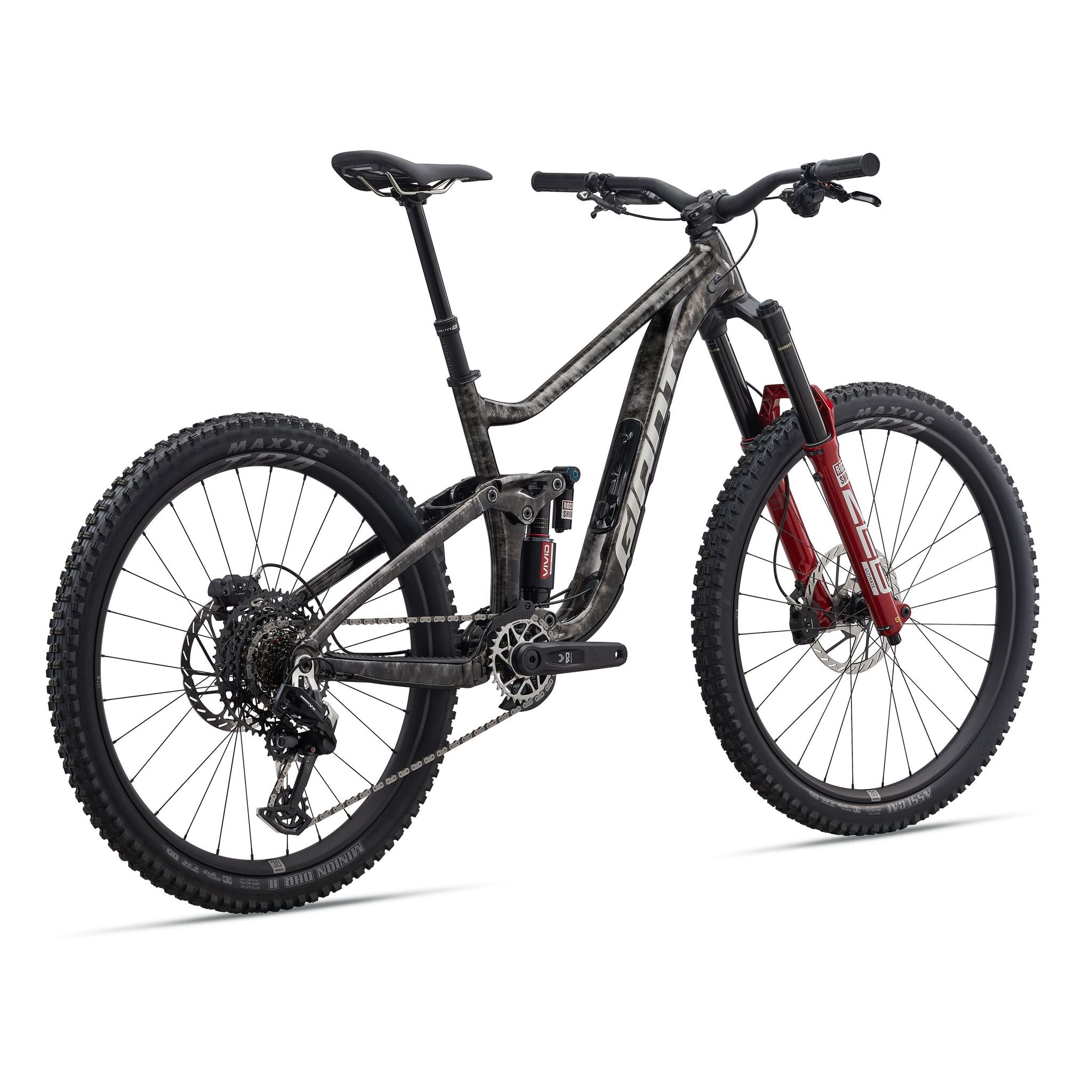

Giant Reign SE Full Suspension Mountain Bike

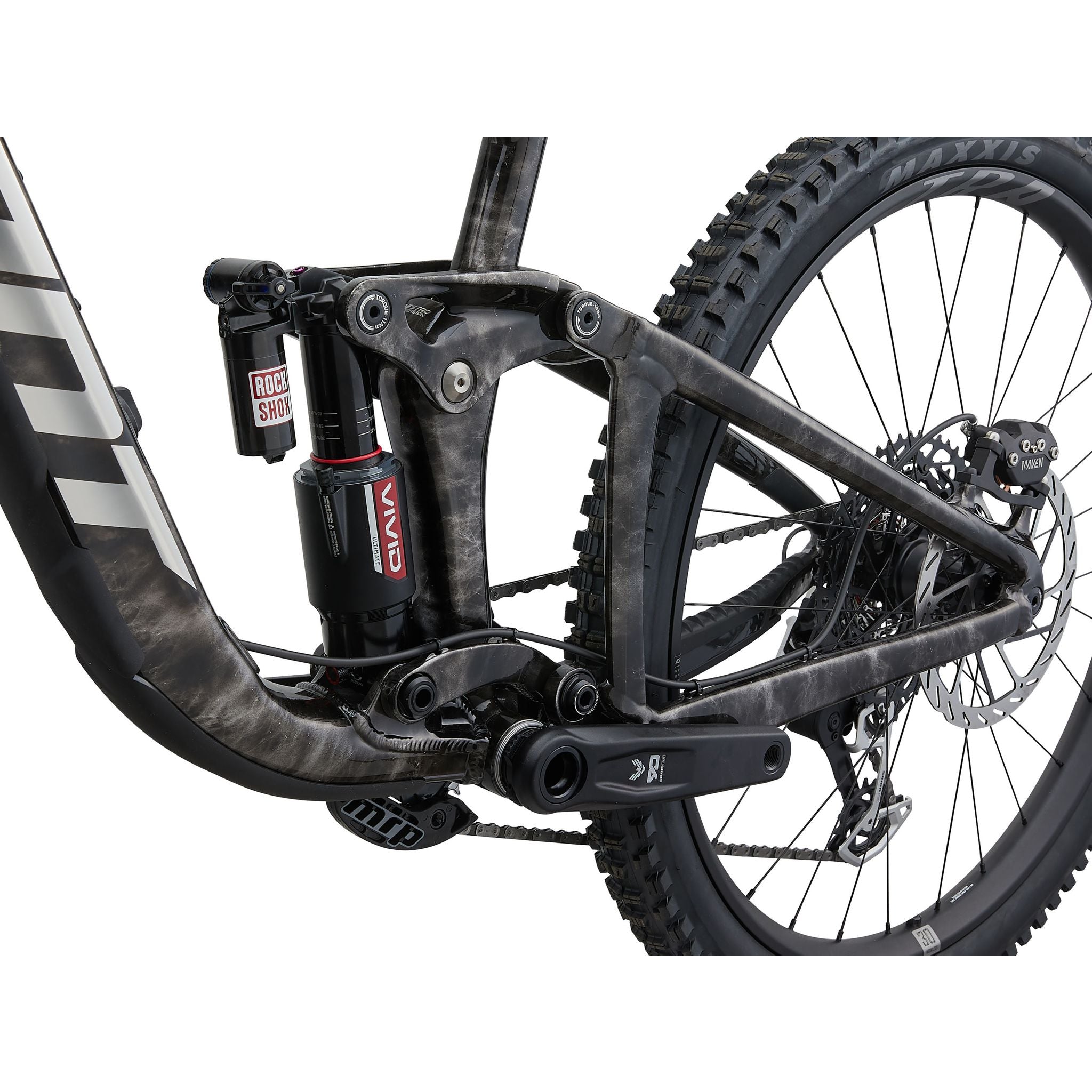

Maestro Suspension

Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.

Aluxx SL Aluminum

This state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. The frameset features unique welding technologies for a high-performance ride quality.

Advanced Forged Composite

A state-of-the-art high-pressure molding process is used to produce the carbon fiber upper rocker link that’s lighter, stiffer and stronger than aluminum.

Adjustable Enduro Geometry

A flip chip feature lets you adjust frame geometry depending on the terrain. You can select a 62.6 or 63-degree head angle and corresponding 77.4 or 77.8-degree seat tube angle, resulting in a 20 or 15mm bottom bracket drop (size medium) to fine-tune handling for varying trail conditions and riding style.

Boost Technology

Wider hub spacing (110mm front / 148mm rear) results in stiffer wheels for added control plus more tire clearance and an improved chainline for optimal drivetrain performance.

Trunnion Mount

New shock mount produces a lower leverage ratio for increased pedaling and braking efficiency, plus a lower center of gravity and shorter chainstays for improved handling, climbing and agility.

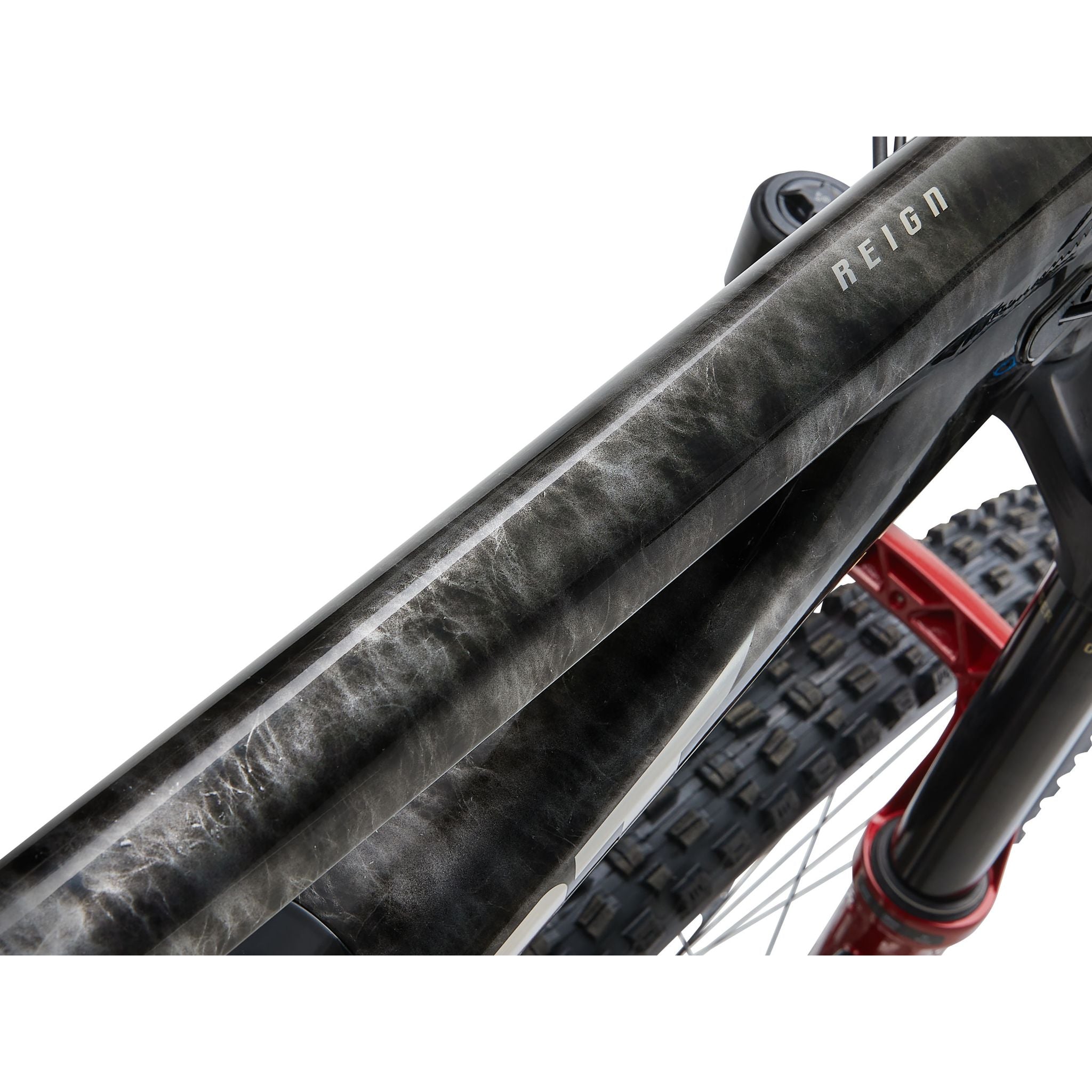

Megadrive

A massive down tube and oversized top tube work in unison to provide superior front end lateral and torsional steering precision. The precisely engineered, rectangular shaped down tube yields unprecedented steering and pedaling stiffness.

Powercore

A massively oversized bottom bracket area features a fully integrated, 92mm wide design. Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.

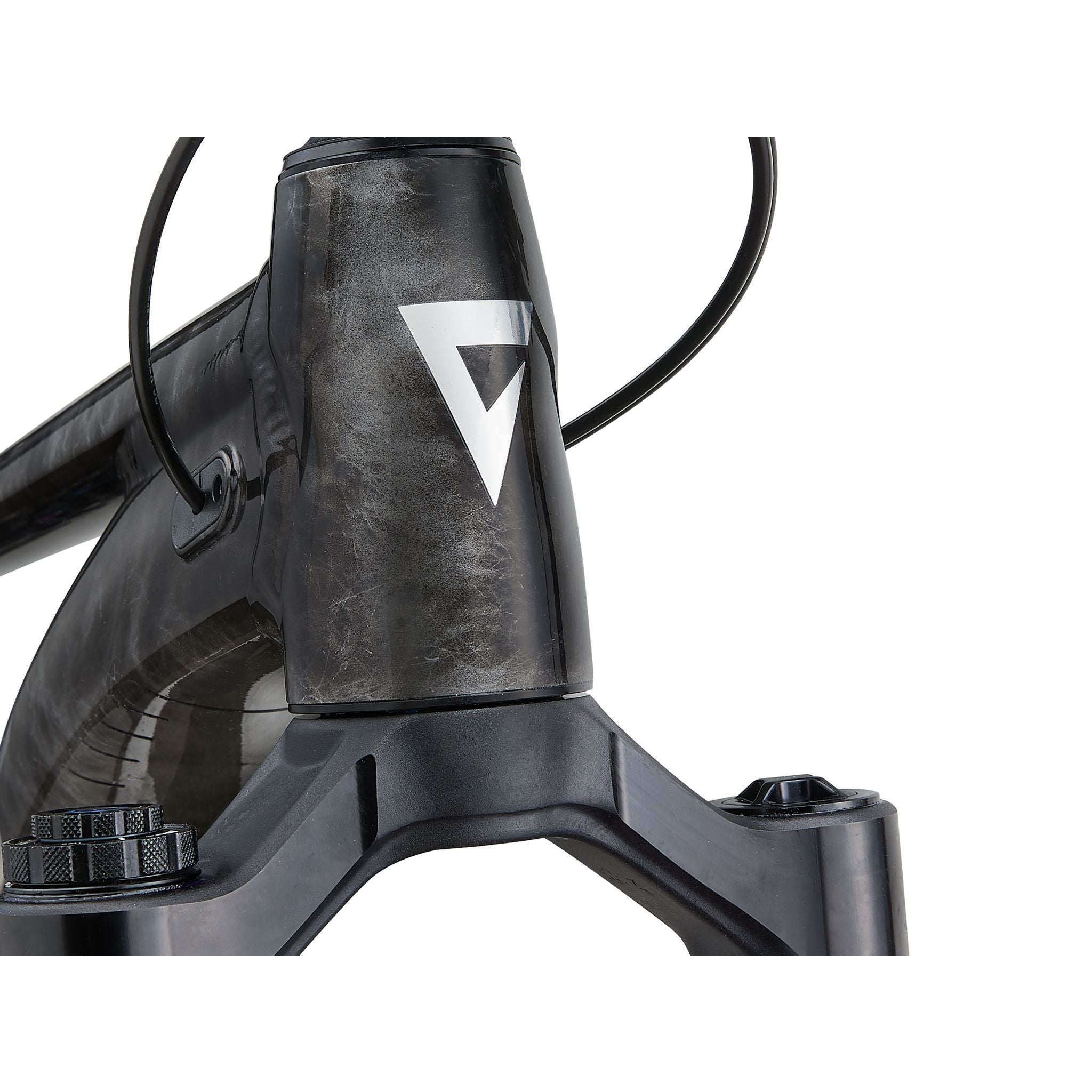

Overdrive

Giant’s proven oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/2” lower and 1 1/8” upper) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

Giant Tubeless System

Integrated Tubeless WheelSystem and tires delivers improved efficiency, comfort and control in the most user-friendly and reliable system.

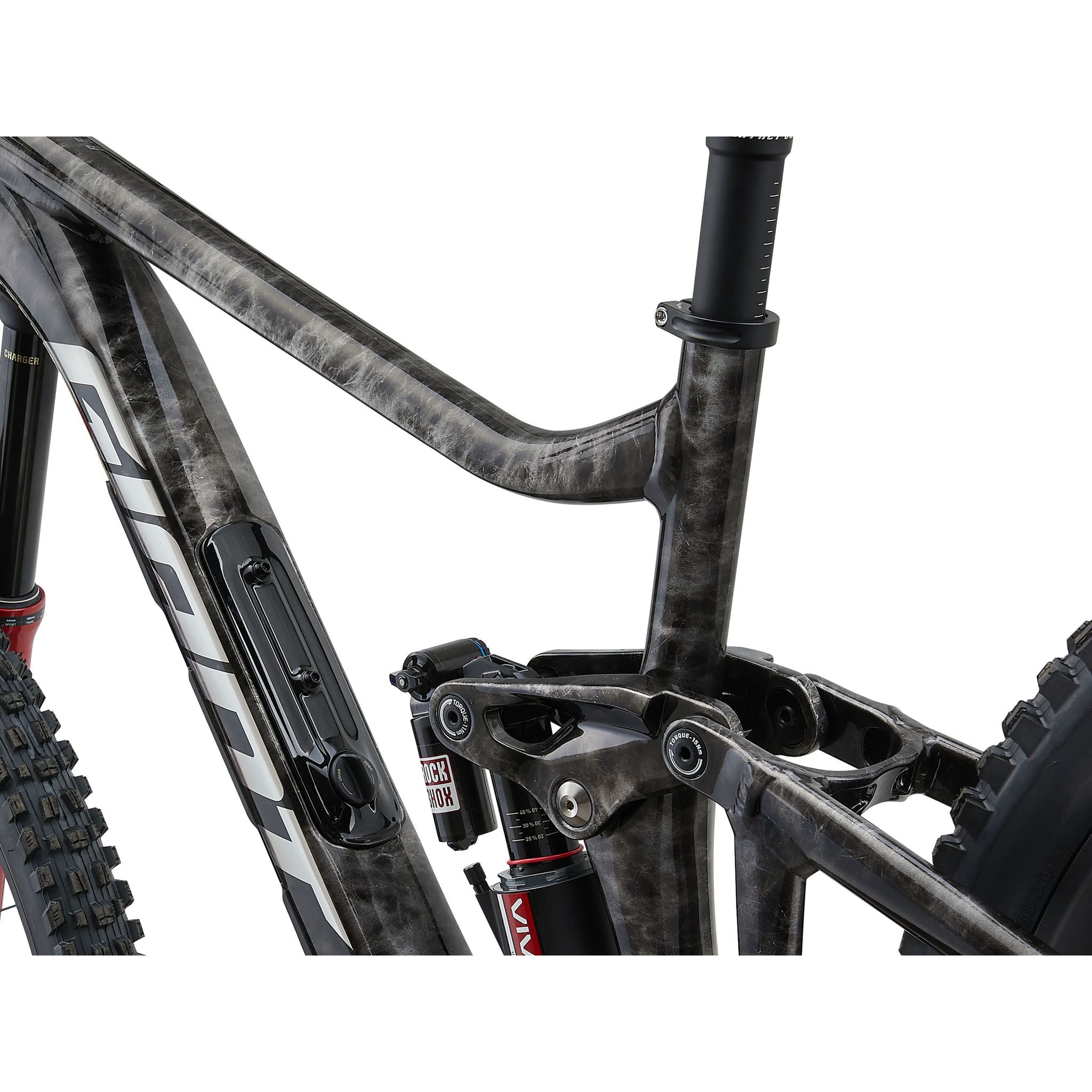

Integrated Frame Storage

Easily accessible compartment inside the down tube includes a water-resistant bag to protect tools, snacks or other essentials..

Frame - ALUXX SL-Grade Aluminium front and rear triangles, 165mm Maestro suspension, flip chip 2 position, 12x148mm thru-axle, 27.5 rear wheel, integrated downtube storage, 55mm Chainline

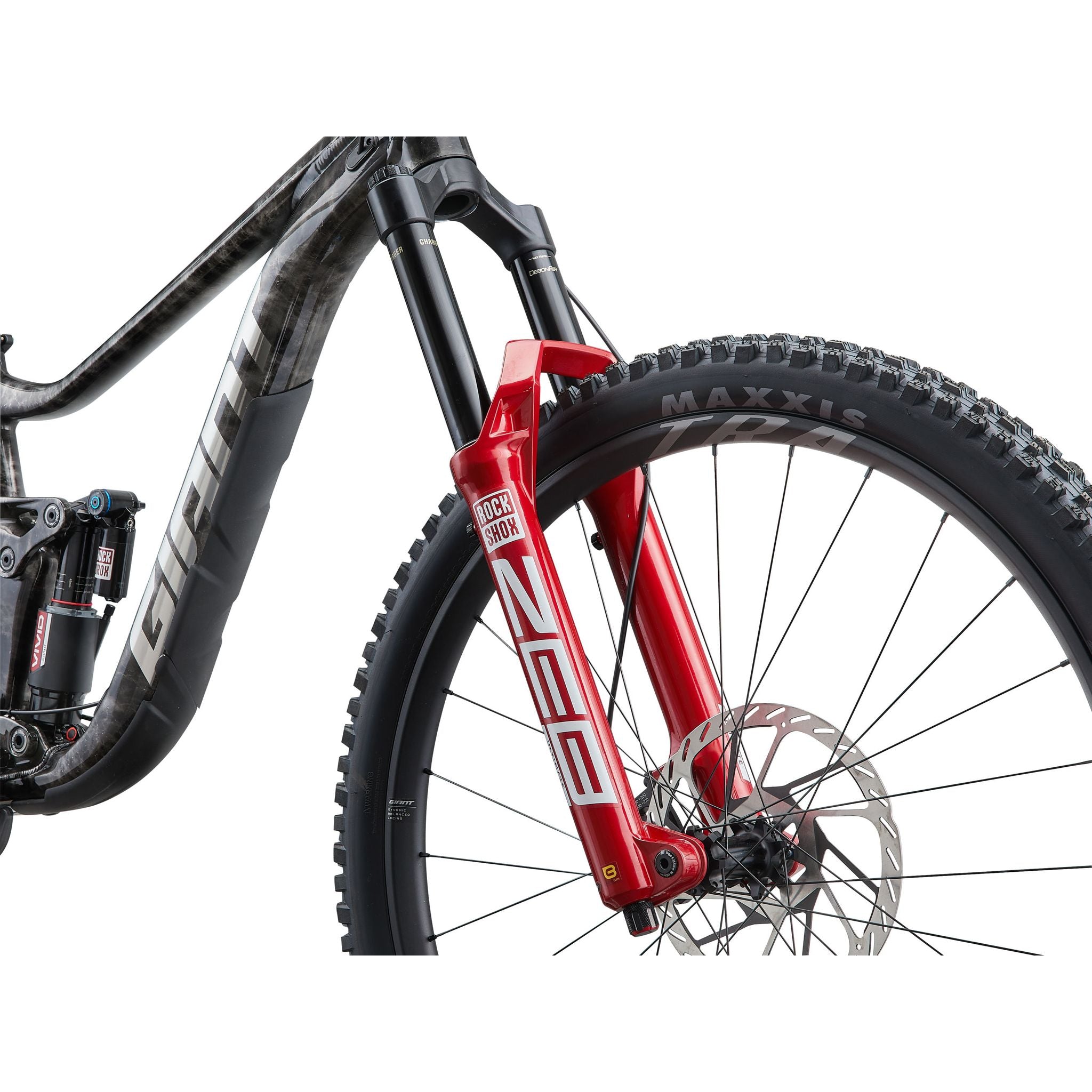

Fork - RockShox Zeb Ultimate Charger 3.1, 180mm,15x110 Maxle Stealth, custom tuned for Giant

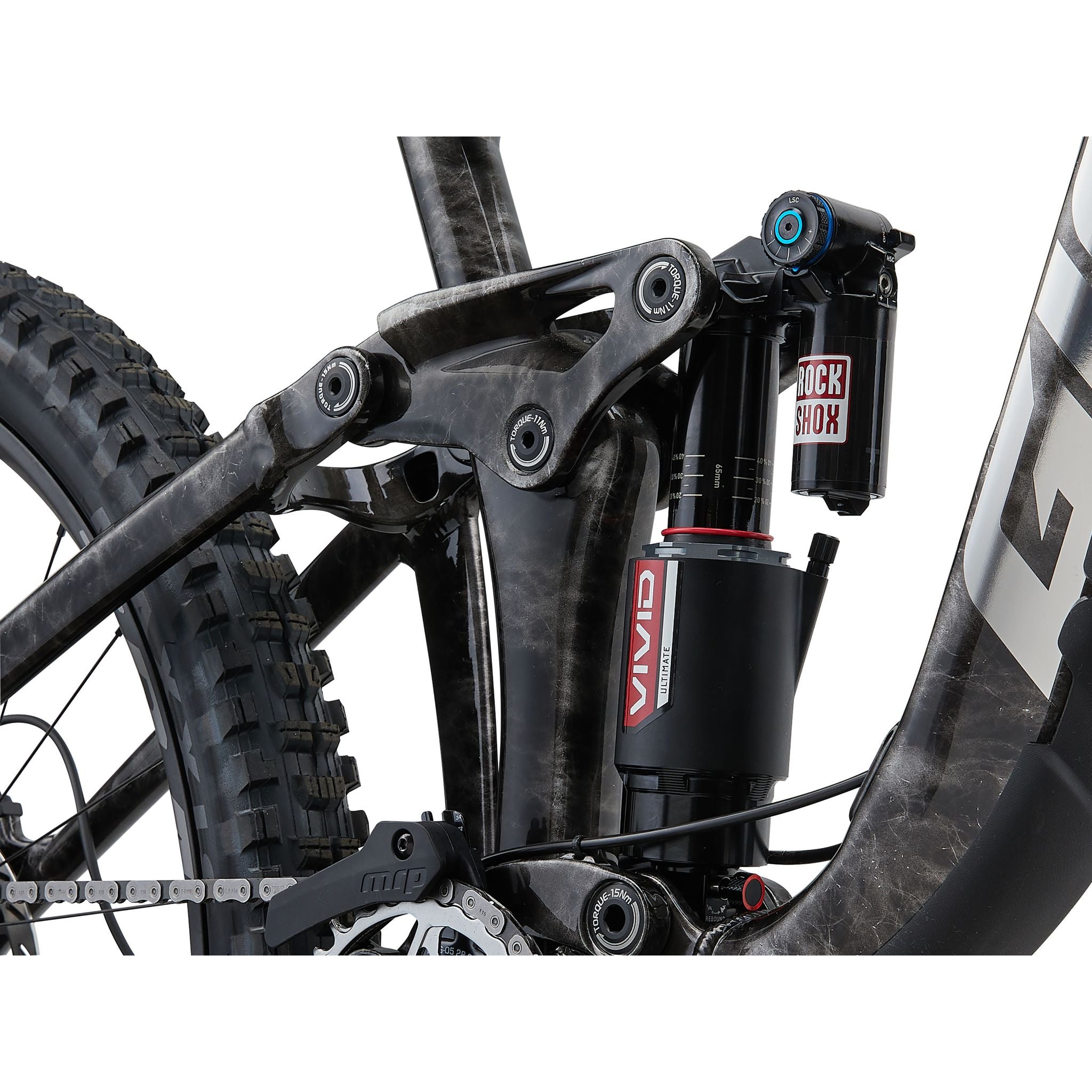

Shock - RockShox Vivid Ultimate, 2 position, custom tuned for Giant

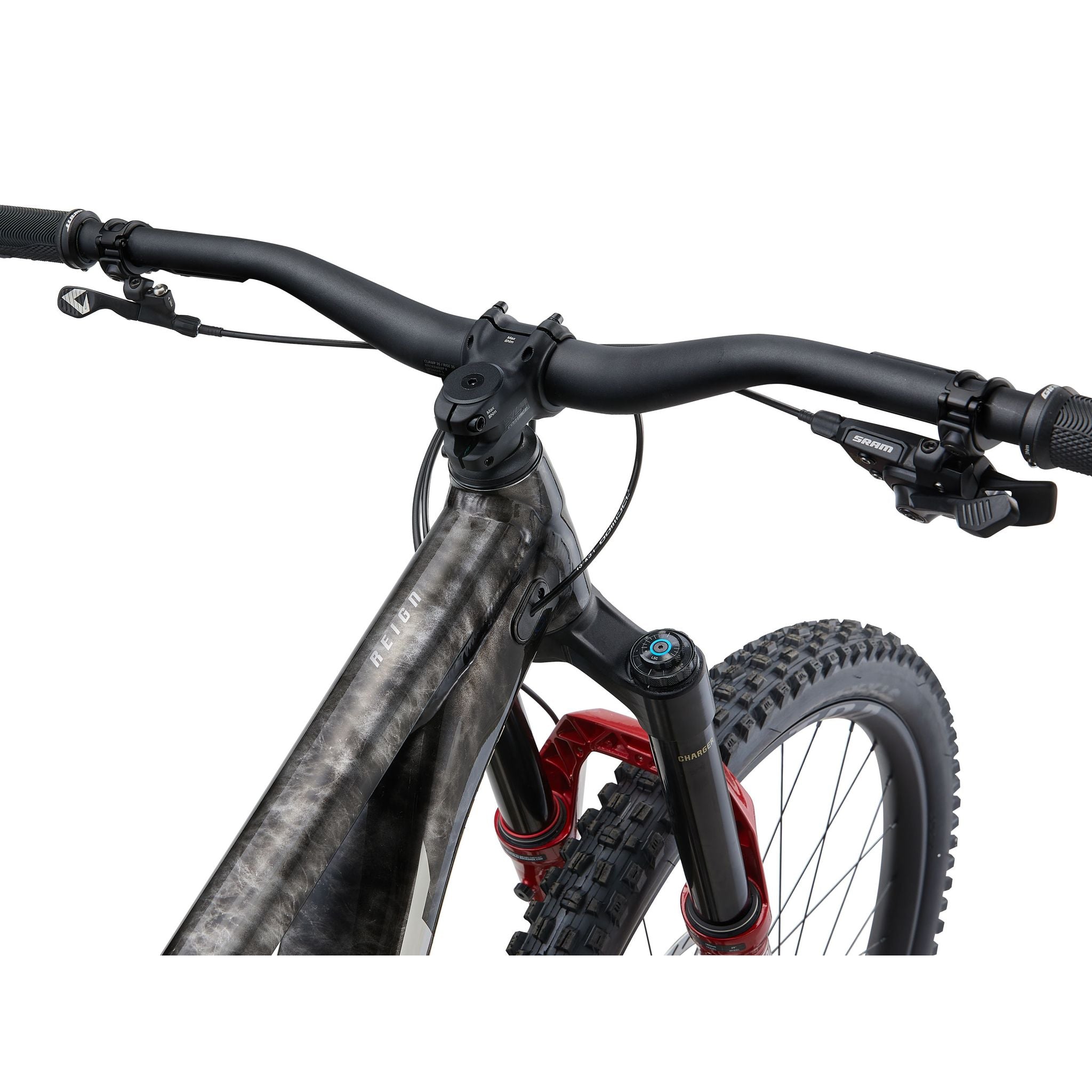

Handlebar - Giant Contact TR35, alloy, 35mm

Grips - Giant Tactal Pro Single lock-on

Stem - Giant Contact SL 35 M:40mm, L:40mm, XL:40mm

Seatpost - Giant Contact Switch AT dropper, adjustable travel, remote M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm

Saddle - Giant Romero SL

Pedals - N/A

Shifters - SRAM Eagle 90 1x12sp

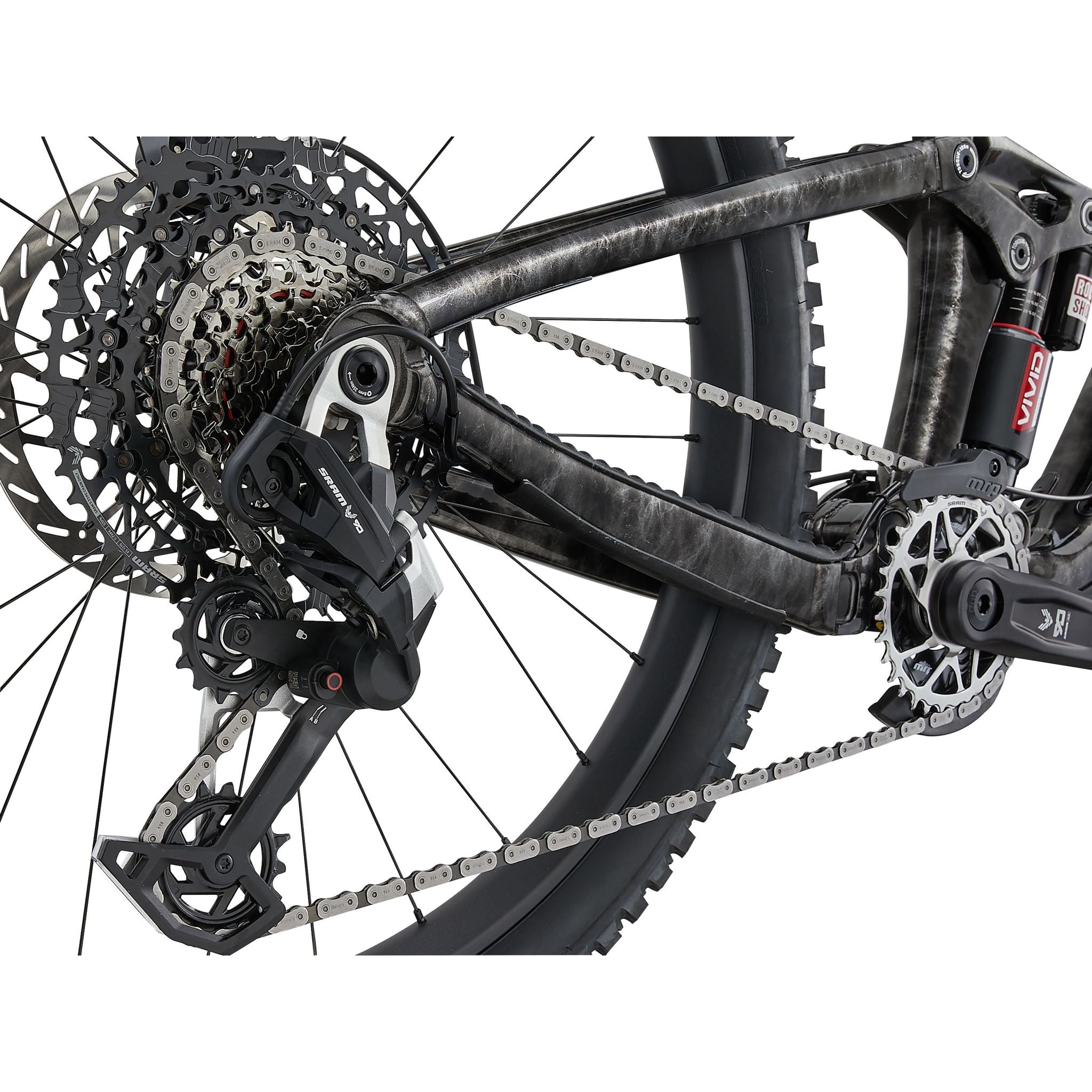

Rear Derailleur - SRAM Eagle 90 T-Type

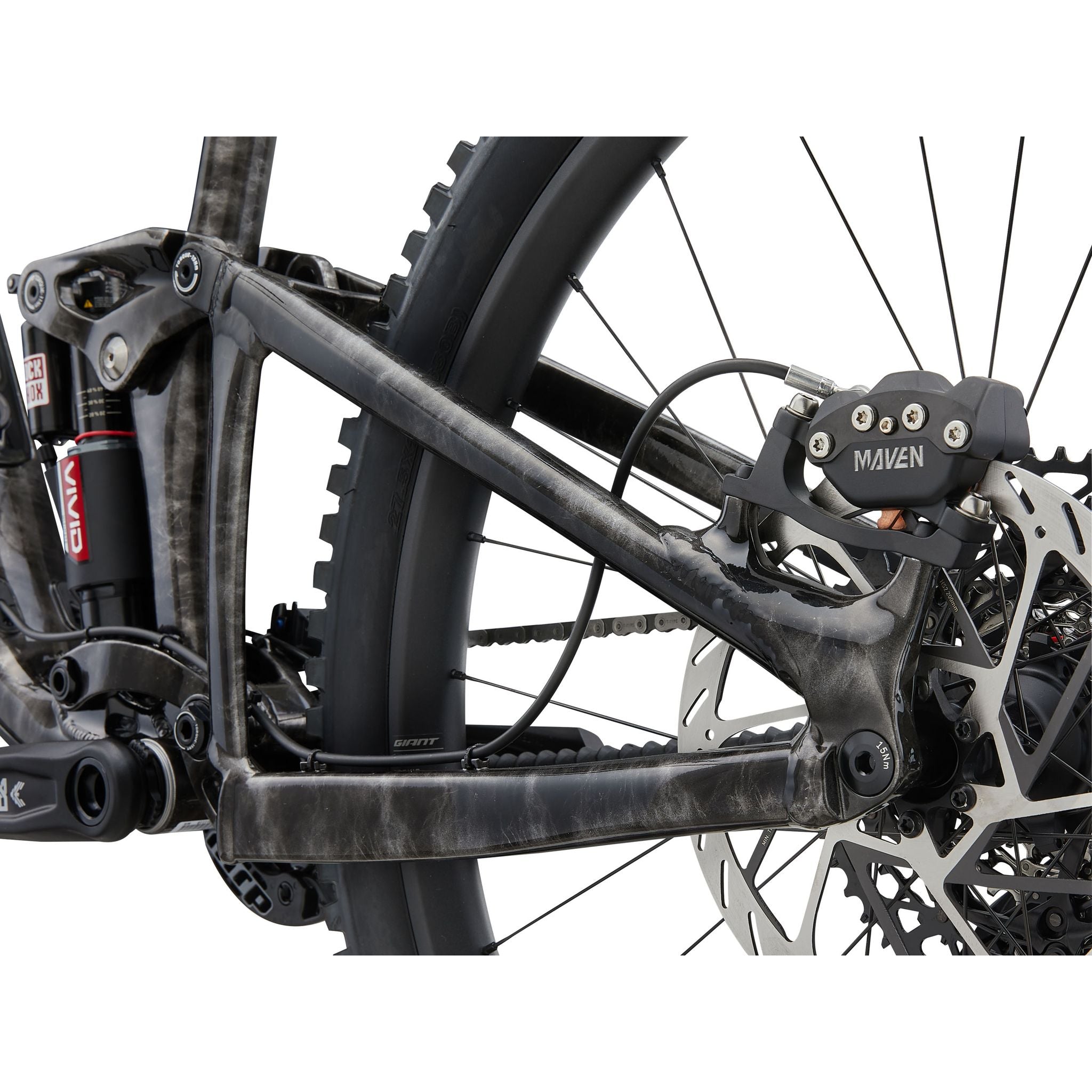

Brakes - SRAM Maven Silver, hydraulic, SRAM HS2 rotors [F]220mm, [R]200mm

Brake Levers - SRAM Maven Silver

Cassette - SRAM XS 1270, 10-52

Chain - SRAM 70 T-Type

Crankset - SRAM 90 T-Type , 32t, 55mm chainline, M:165mm, L:165mm, XL:165mm

Bottom Bracket - SRAM DUB, press fit

Rims - Giant TRA Hookless Tubeless ready Alloy Fr: 29", Rr: 27.5" 30mm inner width

Hubs - Giant TRA MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 SRAM XD Drive Body Pawl Driver (Pawl 36x2 T) Thru-axle [R]

Spokes - Sapim Laser

Tires - [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 27.5x2.4 WT, 3C MaxxTerra , EXO, TR tubeless

Extras - Tubeless prepared, 2.5" max tyre size, 36t max chainring size, MRP AMG chain guide
