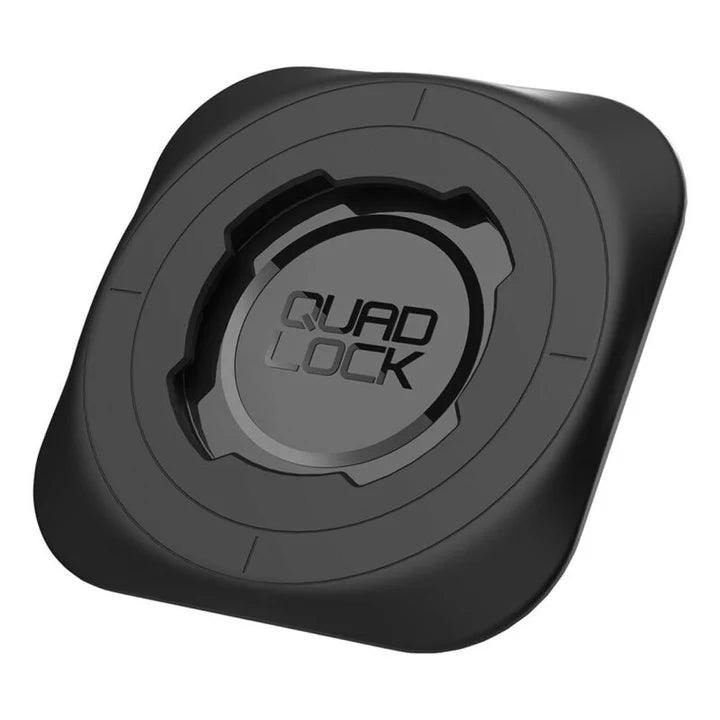

Quad Lock Mag Universal Adaptor

What's Included

• 1 x Quad Lock MAG™ Universal Adaptor
• Alcohol Prep Pad

Please Note: Use of the Universal Adaptor may interfere with Wireless Charging

MAG UNIVERSAL ADAPTOR

• 3M™ VHB adhesive

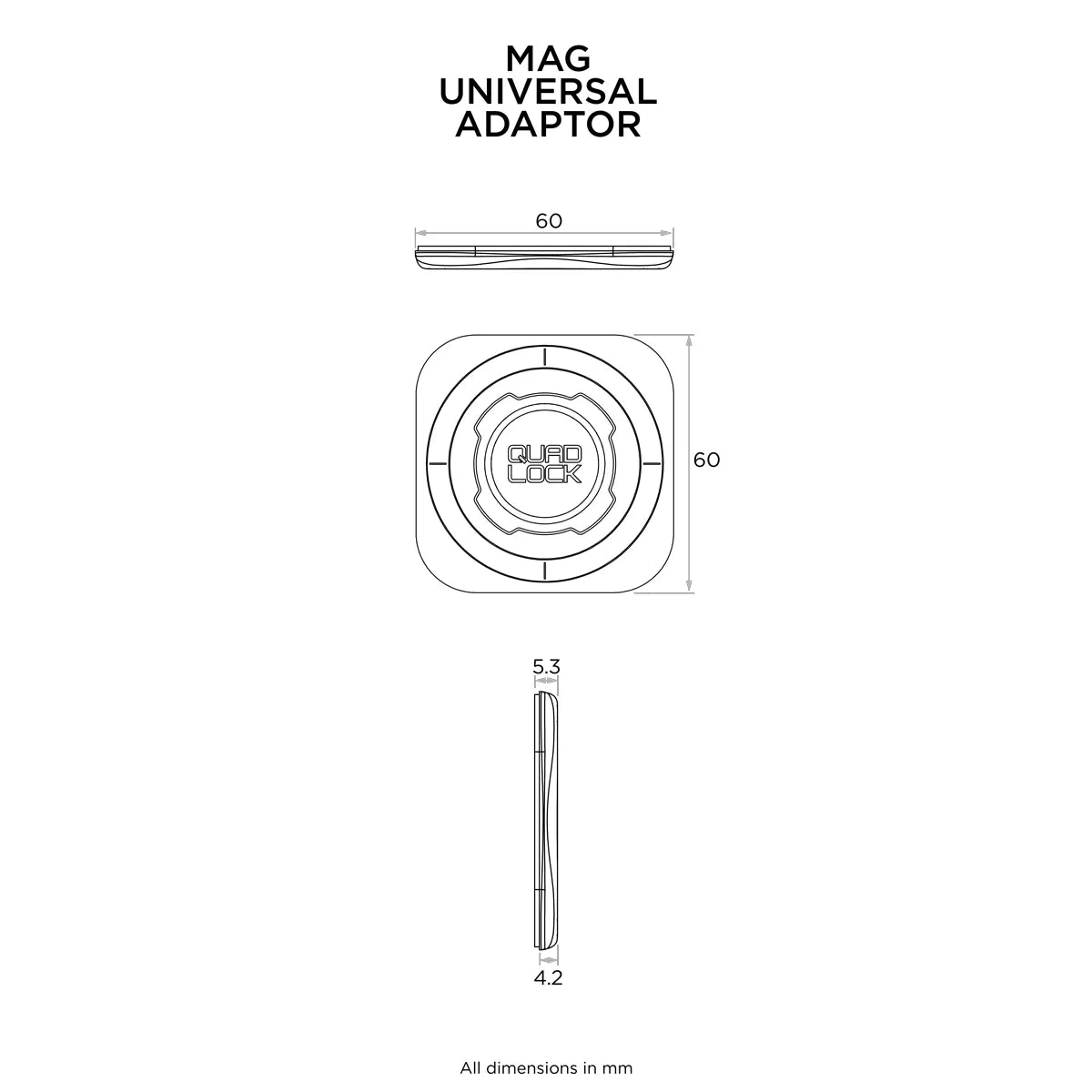

• Slim profile (5.3mm thick or 13/64”)
• 60mm (2-3/8”) wide and 60mm (2-3/8”) tall
• Durable and tough composite construction
• Adheres to flat and slightly curved surfaces
• Compatible with Quad Lock® twist, lock mounts, heads, and accessories
• Compatible with Quad Lock MAG™ head

The Quad Lock Universal Adaptor uses a 3M™ VHB 4952 Adhesive which will adhere to smooth, non-textured, non-porous surfaces such as:

• Plastics such as PC, ABS, PVC, Nylon, Acrylic
• Non-painted metals
• Un-coated glass

The adhesive will not bond to the following substrates:

• Rubber, TPU, TPE
• Leather
• Silicone
• Hydrophobic coated glass (Also known as anti-fingerprint glass, which is found on the back of most modern smartphones)
• Soft touch coating or paint
• Low surface energy plastics such as Polypropylene (PP), Polyethylene (PE), Acetal, HDPE
• Wood

We highly recommend using a case with the Universal Adaptor if your phone has a glass back.

Please ensure the substrate is thoroughly cleaned and dry before applying the Universal Adaptor.

The 3M™ VHB™ is a single use adhesive and is not reusable.
