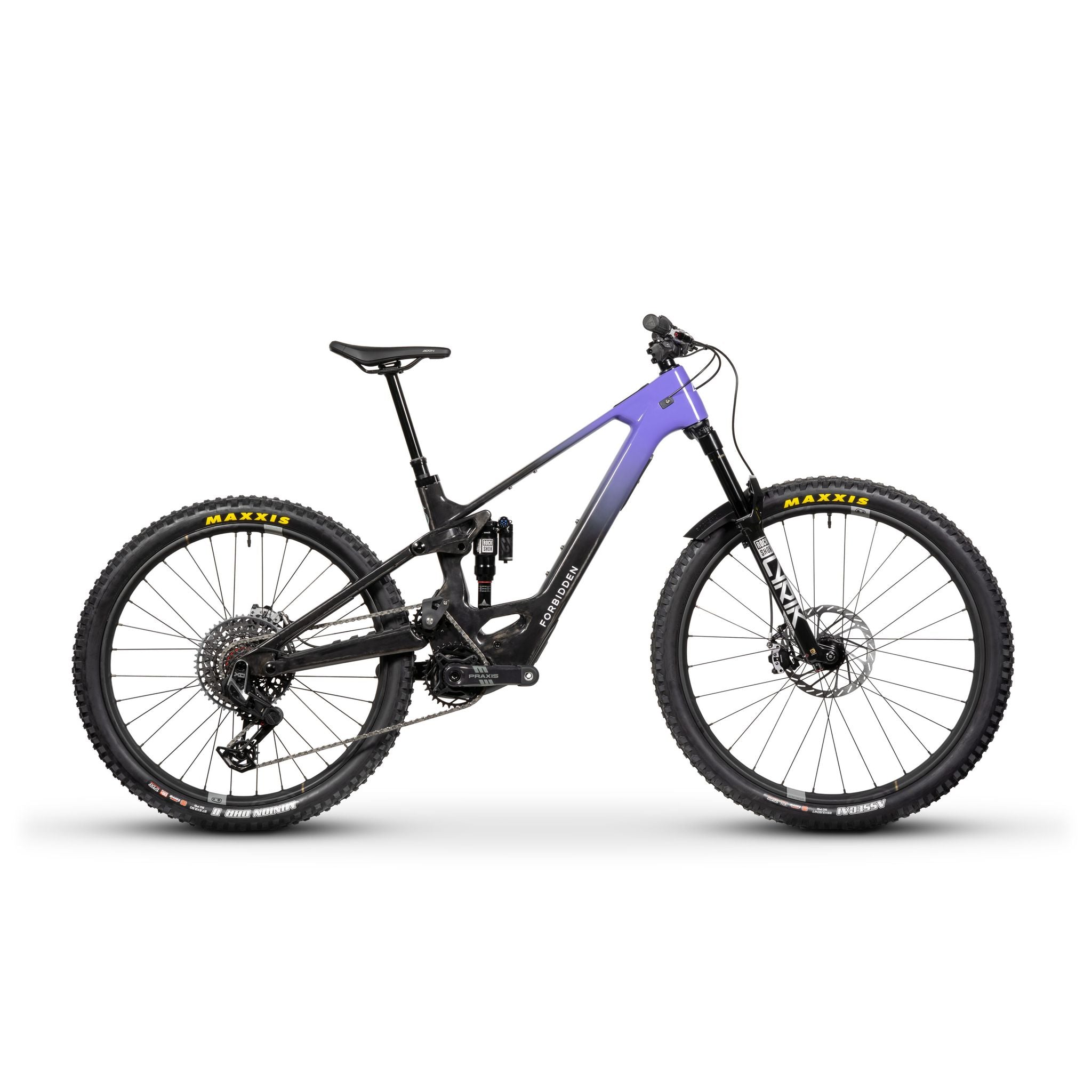

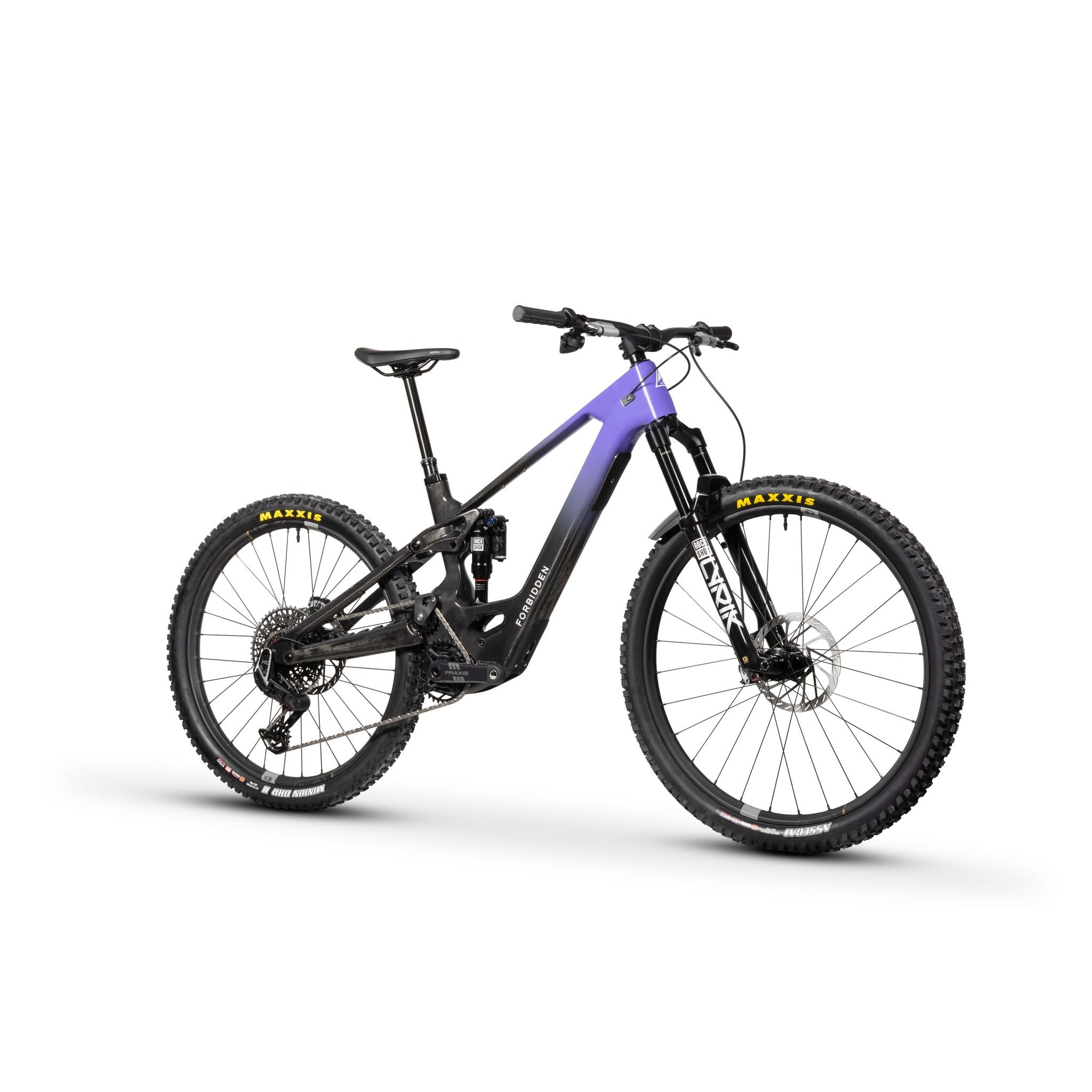

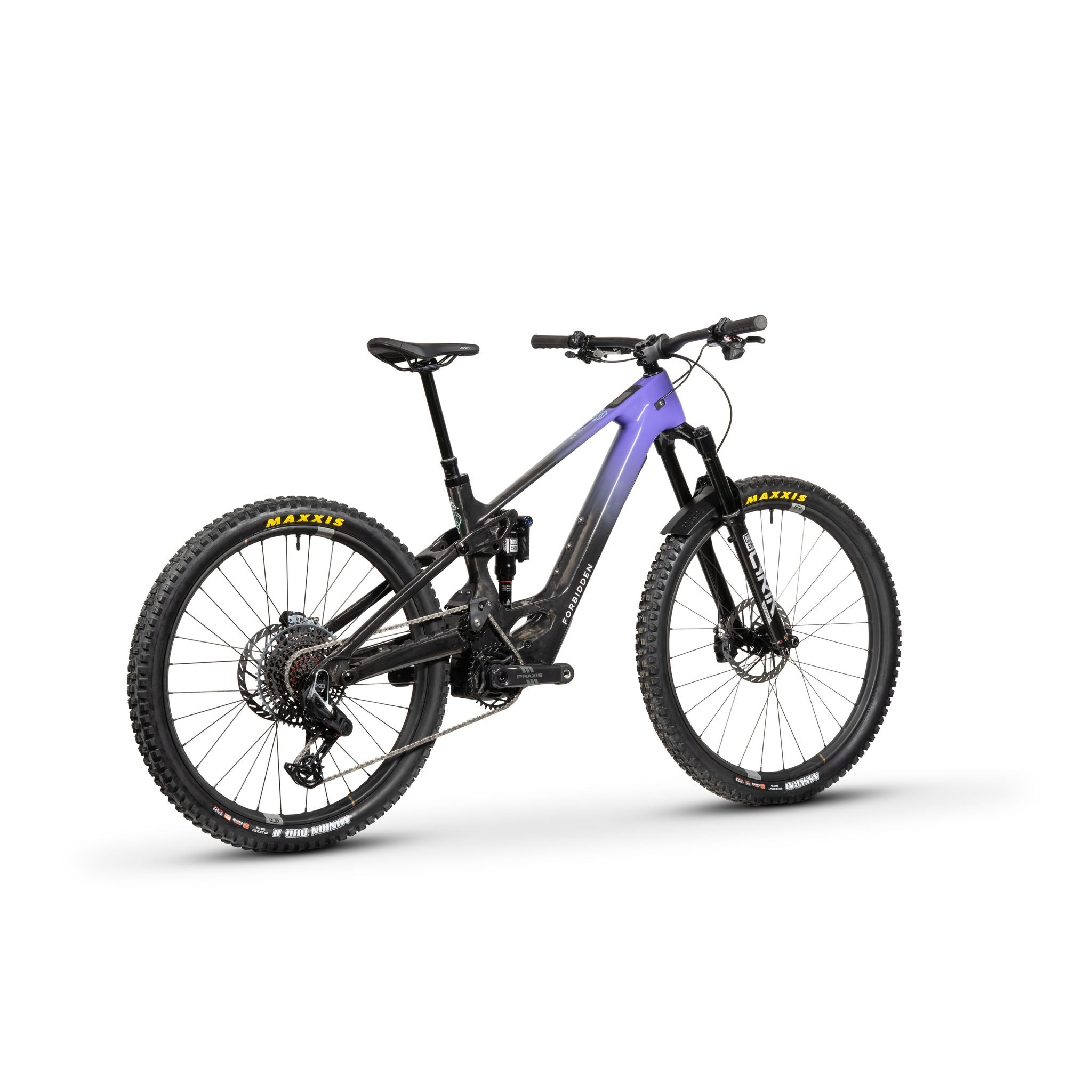

Forbidden Druid LitE 1 Full Suspension E-Mountain Bike

Trifecta V3 Platform

The latest iteration of our Trifecta platform elevates the spellbinding ride characteristics you expect from a Forbidden to a new level. We’ve fine-tuned the rearward axle path, idler position, and kinematics (the holy trinity of ride characteristics) to deliver the best e-MTB we’ve ever ridden.  The new platform also gives us more seat post insertion and allows us to neatly package the motor and battery.

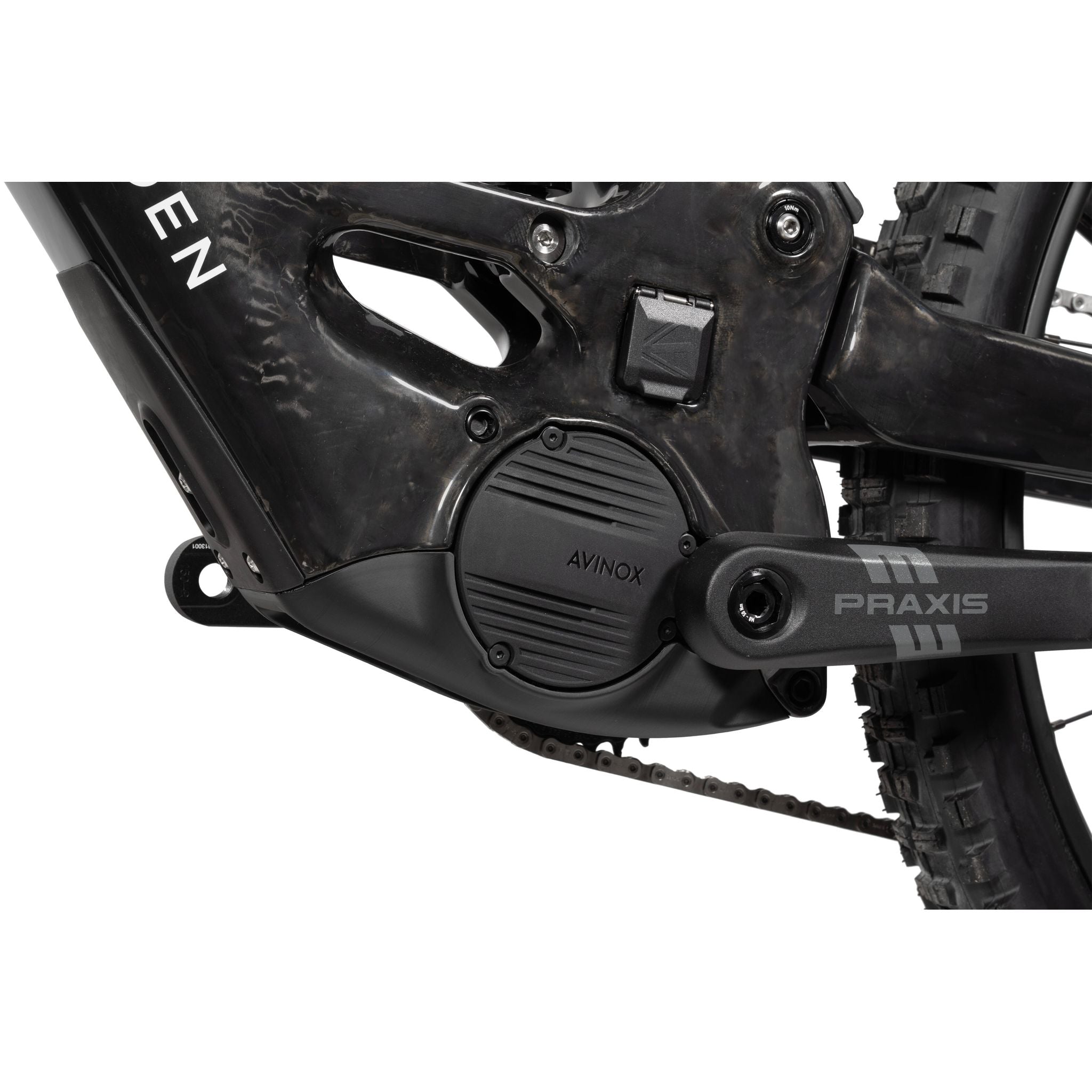

Avinox Drive System

A 2.52 kg (5.5 lbs) package that delivers 105 Nm of max continuous torque (120 Nm on boost), 800 W peak power (1,000 W on boost), and the ability to run 600 Wh (2.87 kg / 6.33 lbs) or 800 Wh (3.74 kg / 8.25 lbs) batteries. The batteries are lightweight and compact, which helps to keep overall bike weight low. They boast ultra-high energy density and large capacity, facilitating extended range and optimal power delivery.

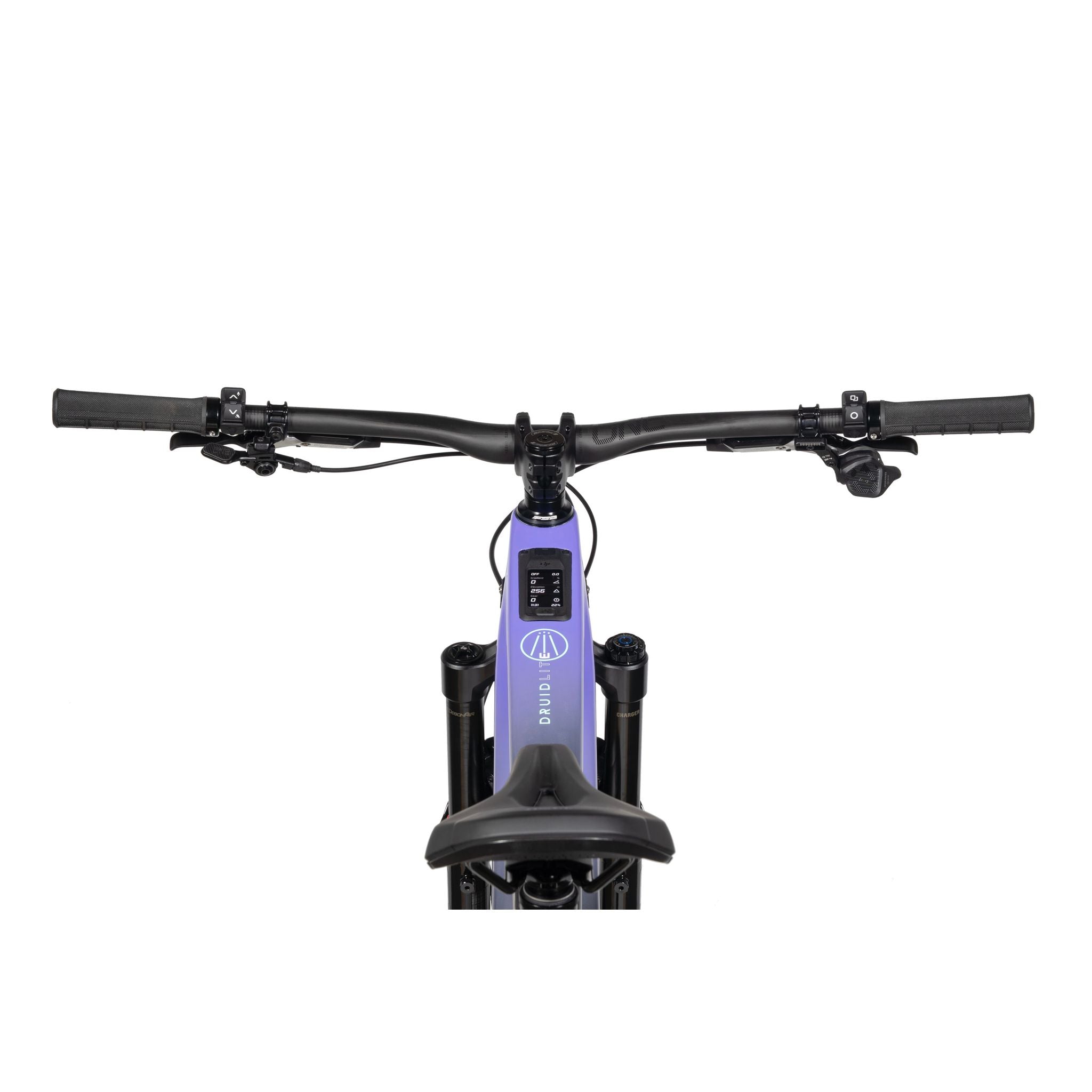

Touch Screen and Controls

Druid E features a 2-inch OLED full-colour Control Display as the interactive hub, enabling connectivity between the Avinox Drive Unit and your mobile device via the Avinox app. Tuneable assist modes, wireless handlebar controls, and an intuitive app set the Avinox system apart from the rest.

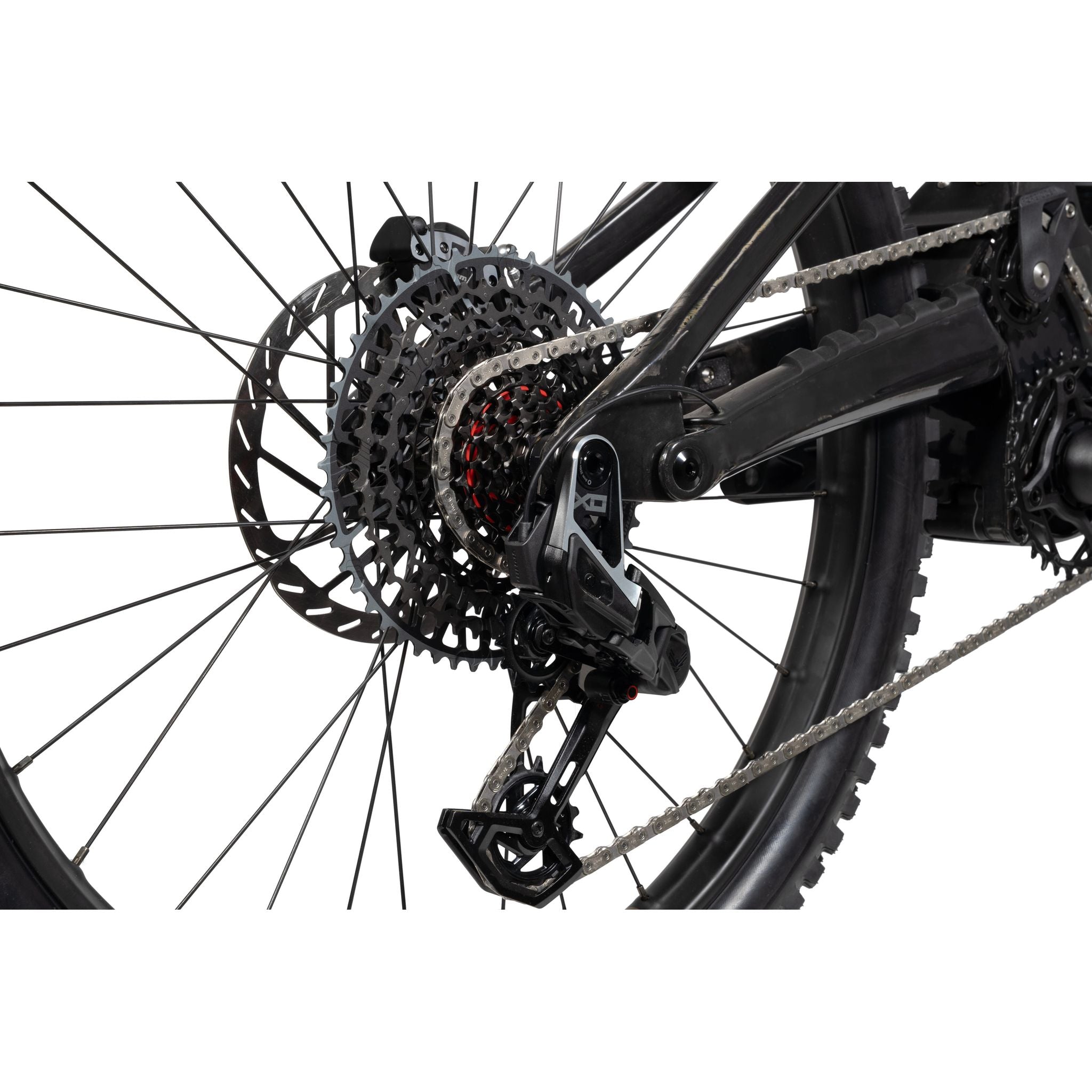

AXS Extension Cord Compatible

Druid E builds that are specced with AXS transmission come equipped with SRAM’s AXS Extension Cord. The SRAM AXS Extension Cord connects the AXS transmission to the bike’s battery, allowing you to power the drivetrain directly without the use of an AXS battery.

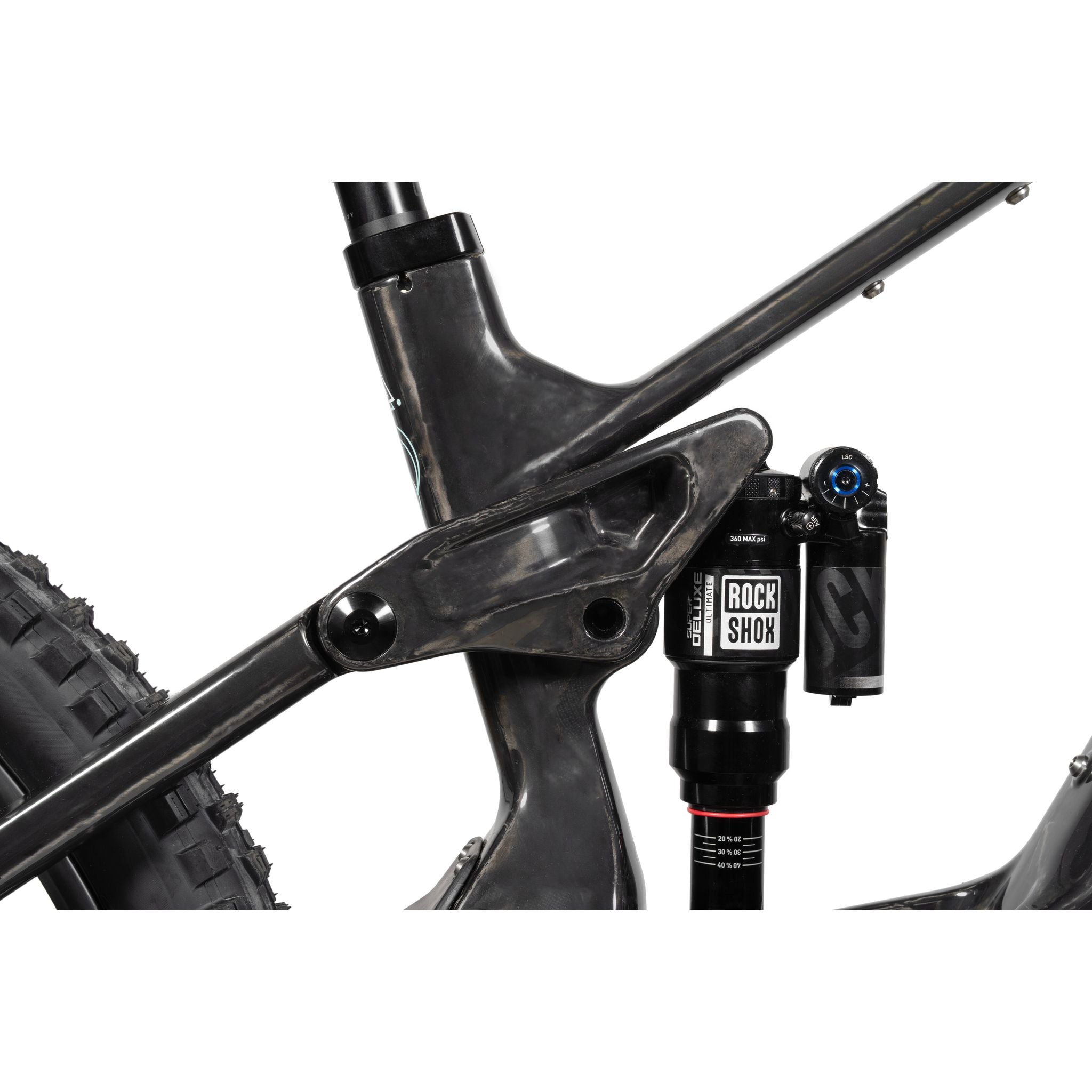

Carbon Rocker Link

The Trifecta V3 platform features a carbon rocker link. The carbon rocker link is light, stiff, reduces unsprung mass, isolates the shock from lateral forces, and gives the bike the right amount of progressivity. 8 x 30 mm bearing hardware, top and bottom, comes as standard on all shocks.

Idler Pulley

Druid E sports our e-bike-specific 18-tooth steel idler equipped with two Enduro solid lube bearings. These changes, along with a refined tooth profile, increase the idler’s longevity while ensuring compatibility with the latest drivetrains.

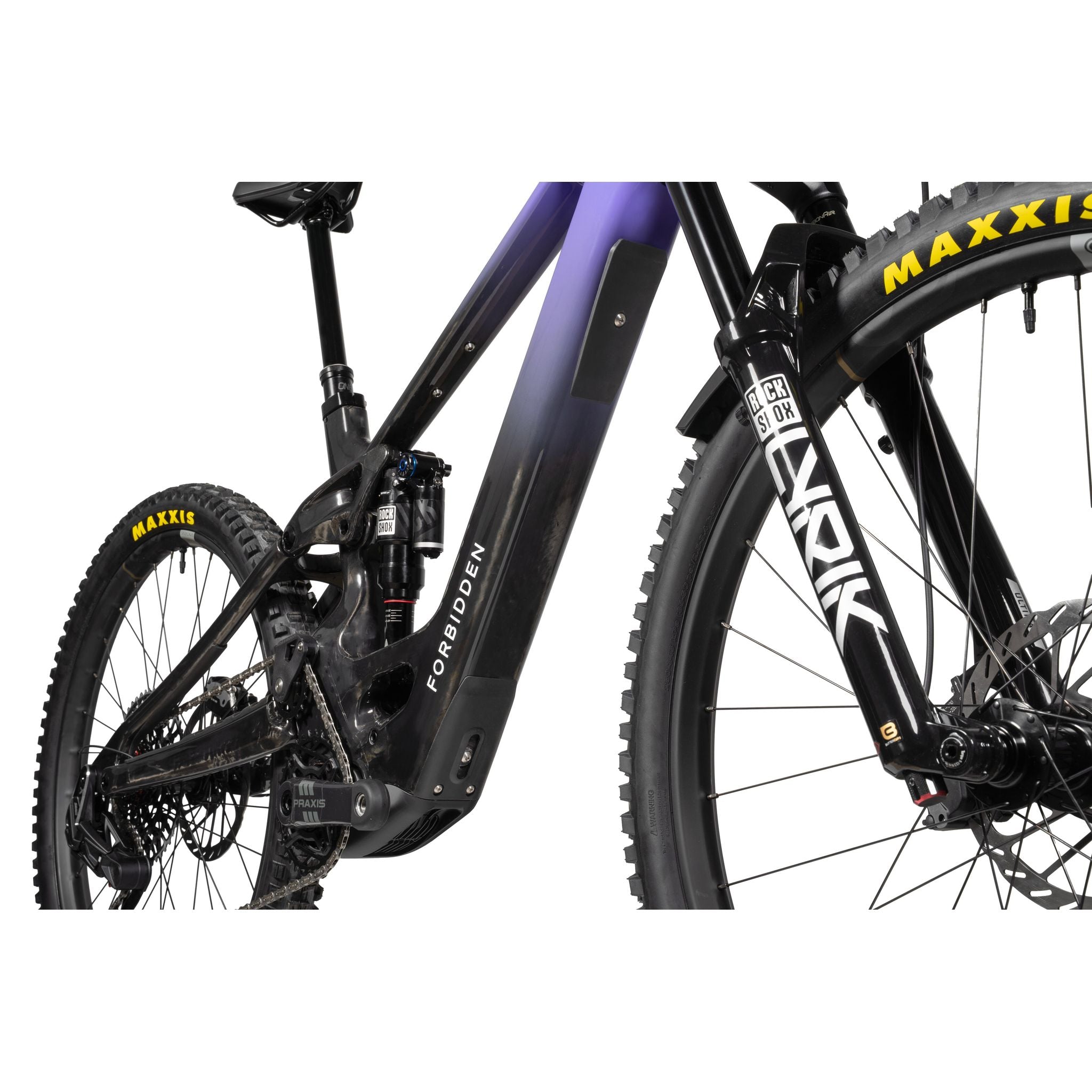

Custom Frame Protection

We developed a full complement of custom frame protection for Druid E. Chainstay, seatstay, downtube, and motor cover protection have all been developed and designed in-house specifically for this bike.

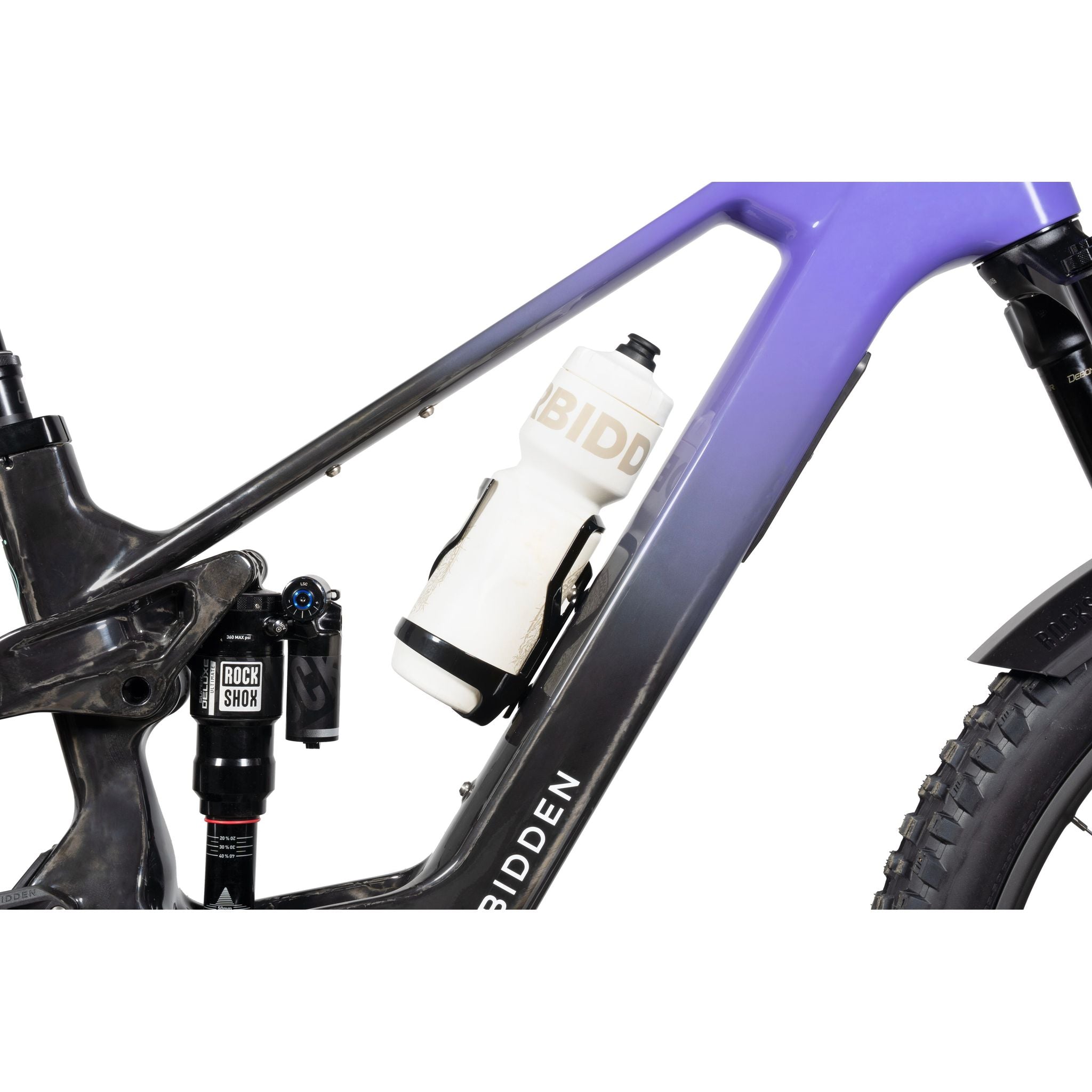

Waterbottle Fitment

Even our smallest Druid E frame size can fit a full-size 26oz water bottle, regardless of your rear shock reservoir. Remember, hydration is your friend, but sweaty backs most definitely are not.

• Frame Druid E Full Carbon - 140mm Travel

High-Modulus Carbon Fiber | Trifecta V3 High Pivot 4-Bar Suspension | One Ride Geometry | Enduro Max Bearings

• Fork RockShox Lyrik Ultimate

150mm Travel | Charger 3.1 RC2 W/ButterCup | Debonair + | Rebound, HSC/LSC Adjust | Pressure Relief Valves | 44mm Offset | Maxle Stealth Thru-Axle | Gloss Black

• Rear Shock RockShox Super Deluxe Ultimate

DebonAir+ | RC2T Damper | Rebound, HSC LSC Adjust | Threshold Lever | Bearing Adapter Eyelets | R55 C26 w/ Hydraulic Bottom Out | 210x50mm

• Headset FSA Orbit ZS Headset

SHIS: ZS44/28.6|ZS56/40 | Sealed Cartridge Bearings | 6000 Series Alloy Cups And Materials | Sealed Steel Crown Race

• Grips Forbidden

128mm length | Single Sided Lock-On | Black

• Handlebars OneUp Carbon

800mm Width | S1-S2:20mm / S3-S4:35mm Rise | 8° Backsweep 5° Upward | 35mm Bar Bore / Matte Carbon

• Stem OneUp

40mm Length | 35mm Bar Clamp | Black | Forged 6061 Aluminum

• Seat Post OneUp Dropper Post

31.6mm | Size Specific Travel S1:150mm / S2:180mm / S3:210mm / S4:240mm

• Seat Post Remote OneUp MMX UFT Lever

Aluminum Remote | Oversized Bearing | MatchMaker X Integrated Dropper Remote

• Seat Post Clamp Forbidden

7075 CNC Aluminum | 34.9mm | Black Anodized

• Saddle Fizik Terra Aidon X5

145mm Width | X5: Ride-Compliant Fiber Reinforced Nylon Shell And S-Alloy Rail | Black

• Front Brake SRAM Maven Ultimate 4-Piston

Stealth Body | SwingLink | Reach & Contact Adjustment | Organic Pads

• Front Brake Rotor SRAM HS2 - 200mm

6-Bolt | 2.0mm Thickness

• Rear Brake SRAM Maven Ultimate 4-Piston

Stealth Body | SwingLink | Reach & Contact Adjustment | Organic Pads

• Rear Brake Rotor SRAM HS2 - 200mm

6-Bolt | 2.0mm Thickness

• Rear Shifter SRAM Pod Rocker

With MMX Clamp | AXS Controller | Rocking Actuation

• Rear Derailleur SRAM X0 AXS T-Type 12speed

Hangerless Interface | Overload Clutch | Replaceable Skid Plates

• Cassette SRAM X0 T-Type 10-52T 12speed

12speed | XD Fit | 10-12-14-16-18-21-24-28-32-38-44-52T

• Chain SRAM GX Transmission Flattop - 12speed

12speed | Links = S1:120 / S2:122 / S3:124 / S4:126

• Crankset Praxis EC-Type 2 Carbon

155mm | SRAM 34T Chainring | 55mm Chainline | Gloss Carbon

• Pedals Not Included
• Upper Chain Guide Forbidden Race Guide
• Bottom Bracket Avinox

ISIS Interface

• Front Hub Crank Brothers

110x15mm | 28-Hole | 6-Bolt | Black Anodized

• Front Axle Maxle Stealth

Included With Fork

• Rear Hub Crank Brothers

Ratchet Internals | XD Driver | 148x12mm | 32hole | 6-Bolt | Black Anodized Decal

• Rear Axle SRAM 180 x 1.0mm Axle UDH
• Spokes Sapim CX Ray/Race

Front: CX Ray 2.0/0.9/2.2/2.0mm / Rear: Race 2.0/1.25/2.25/2.0mm | Aero | Black ED Coated Stainless | Black Brass 14mm Nipples

• Rims Crankbrothers Synthesis - E-Bike - Carbon

Front 31.5mm / Rear 29.5mm Internal Width | Tubeless Ready | Black with Grey Graphics

• Front Tire Maxxis Assegai - 3C MaxxTerra - EXO

29 x 2.5 | 3C MaxxTerra Rubber Compound | 60tpi | Folding | Tubeless Ready | EXO Casing

• Rear Tire Maxxis Minion DHR2 - 3C MaxxTerra - EXO+

27.5 x 2.5 | 3C MaxxTerra Rubber Compound | 120tpi | Folding | Tubeless Ready | EXO+ Casing

• Motor Avinox M1

Avinox M1 Drive Unit: 105 N·m | Avinox Screen: 2-inch OLED Control Display | Avinox Wireless Controllers: Right and left sides

• Battery Avinox

Avinox Integrated Li-ion Battery: 600Wh | Voltage 35.9 V | Protection Rating IP56 | Capacity 16.7 Ah
