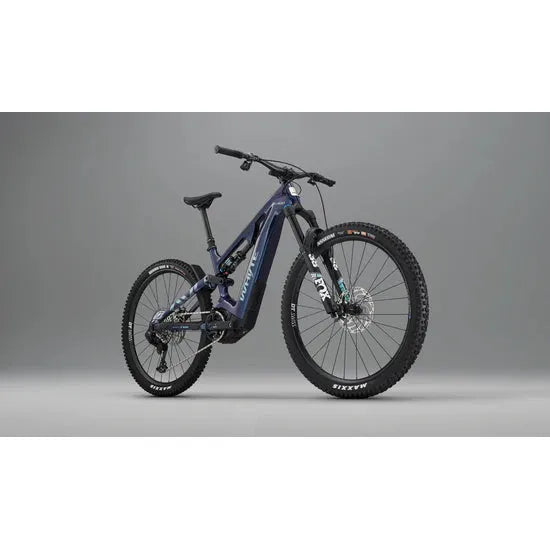

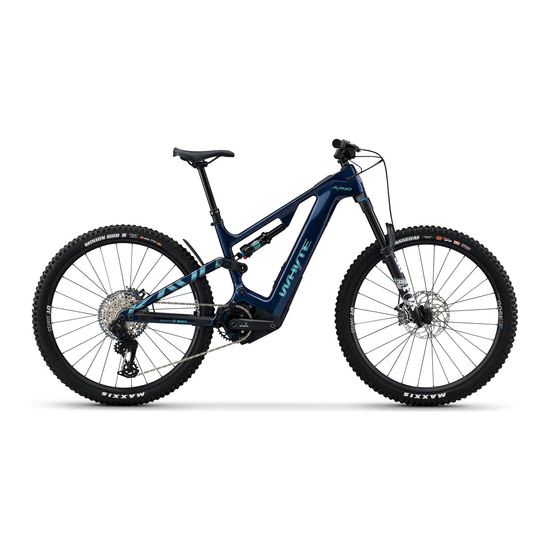

Whyte Kado RSX Full Suspension E-Mountain Bike

HIGHLIGHTS
– 160mm front + 150mm rear of custom-tuned suspension travel.
– Uni-directional full carbon fibre frame is light and reassuringly strong.
– Bosch's fifth generation Performance Line CX full-torque (85Nm), full-power (600W) motor.
– 800Wh removeable internal battery so you can ride further.
– 29in trail-smoothing wheels front and rear.
– Optimised low centre of gravity gives you exceptional, confidence-inspiring handling.

RIDES LIKE A DREAM
We’ve poured everything into Kado RSX to give you the best handling and ride performance possible: an optimised low centre of gravity to give you exceptional cornering agility and balanced handling on any terrain; custom-tuned suspension for the very best grip, feedback and control; confidence-inspiring geometry, and much more. All masterfully combined to help you realise your riding dreams.

CHARGE TIME: 50% in 2.3hrs from empty, and to 100% in 6.9hrs with 4A Charger.

THE RANGE TO ROAM

With an 800Wh internal battery as standard and compatibility with Bosch’s aftermarket 250Wh ‘PowerMore’ range extender (available separately; fits size M–XL frames), Kado RSX is ready to give you up to a 1050Wh of combined battery capacity. But more than that: Bosch’s latest, most efficient ‘PowerTube 800’ battery also gives you more range for less weight than its ‘PowerTube 750’ predecessor. All so you can ride as far – and as wide – as you wish.

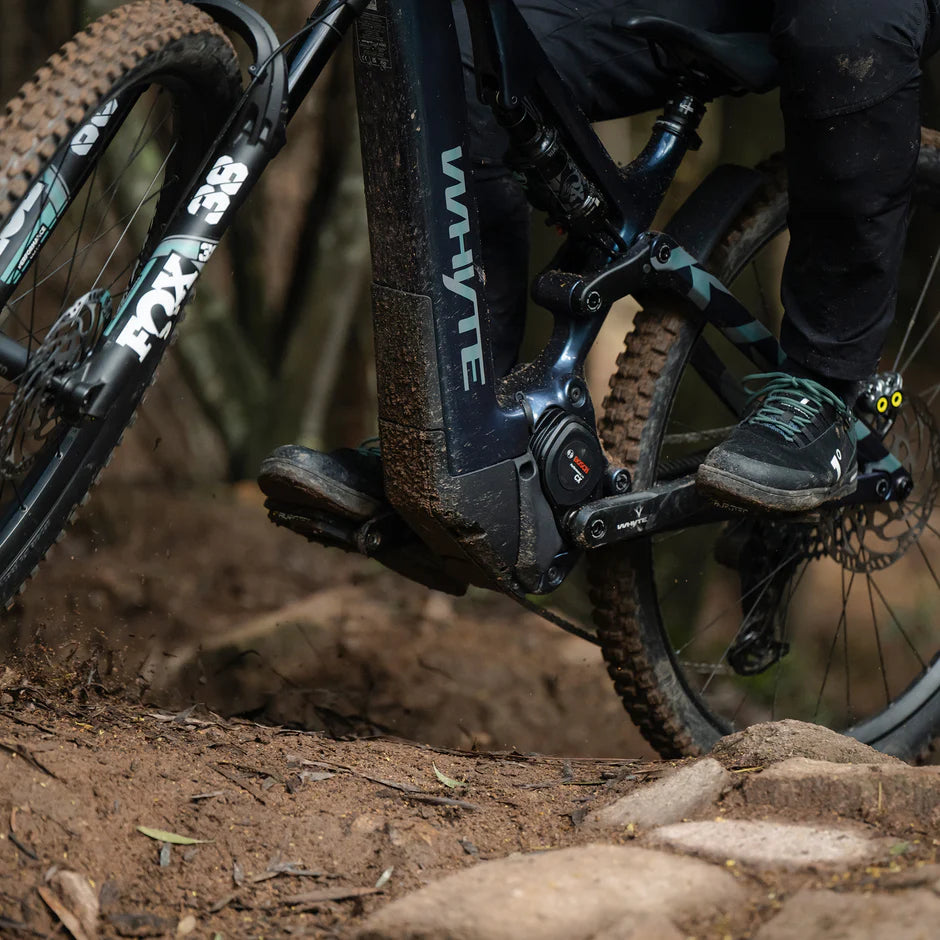

REFINED AND RELIABLE PERFORMANCE

Quieter and lighter than ever, the fifth generation Performance Line CX motor gives you Bosch’s most refined, reliable and efficient motor performance. 600W of peak, trail-usable power. 85Nm of torque. All tuneable to your tastes using the Bosch eBike Flow app., and ready to be boosted further via incoming software updates. Add in a further improved motor response and smart power delivery and you’ve the power and control to conquer any trail.

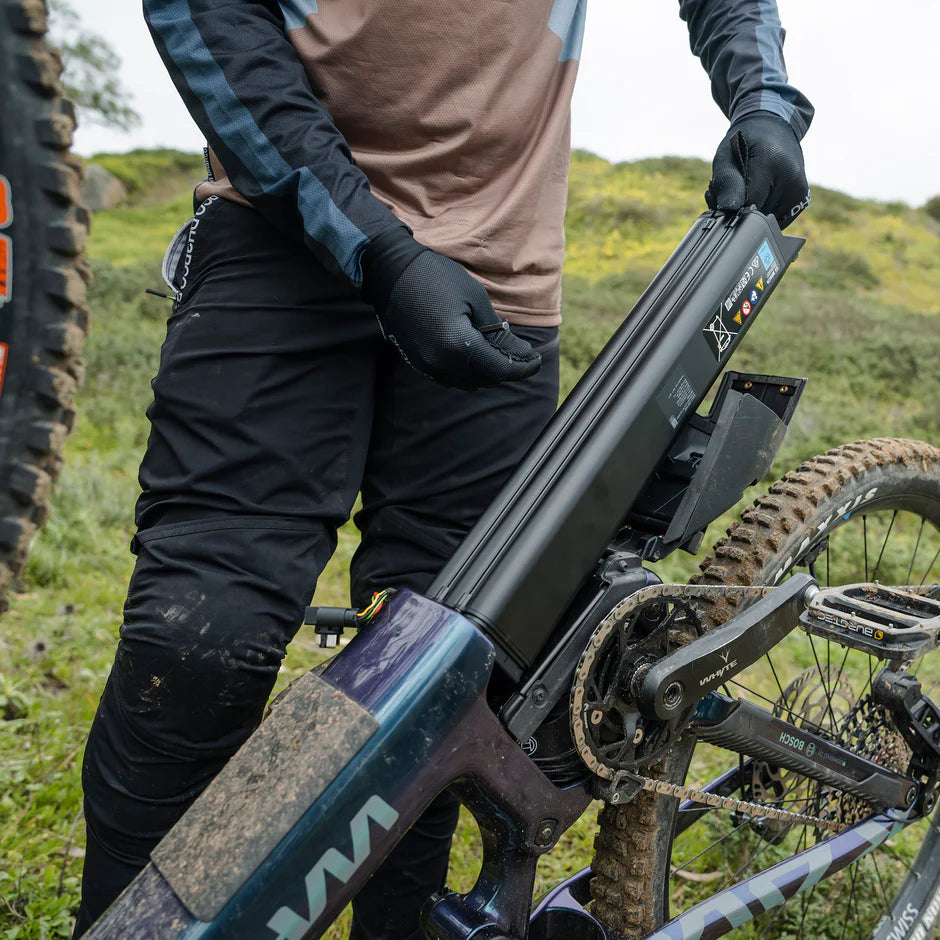

SLIDE IN,SLIDE OUT

Removing the Kado RSX’s internal battery is a dream for storage, battery swaps, or off-the-bike charging: just open the battery cover, undo the captive bolt, unclip the battery connector and slide the battery out. To replace, just do the reverse. Simple. Every Kado can also take both 600Wh and 800Wh batteries so if you decide to buy a spare so you can change the stock 800Wh battery out for a smaller capacity battery for shorter rides – or for racing – you can.

SPECIFICATIONS

COLOUR: Gloss midnight blue

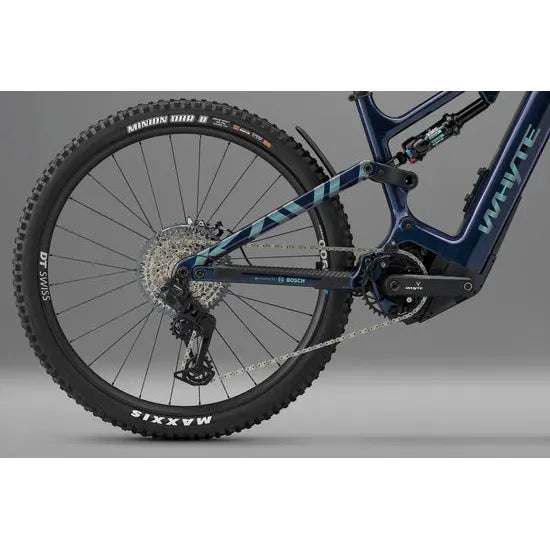

CASSETTE: SRAM XS 1275, T-Type, 10-52T, 12 speed

FRAME: Uni-directional carbon mainframe and rear triangle, tapered head tube, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts

CHAIN: SRAM GX T-Type, 12 speed

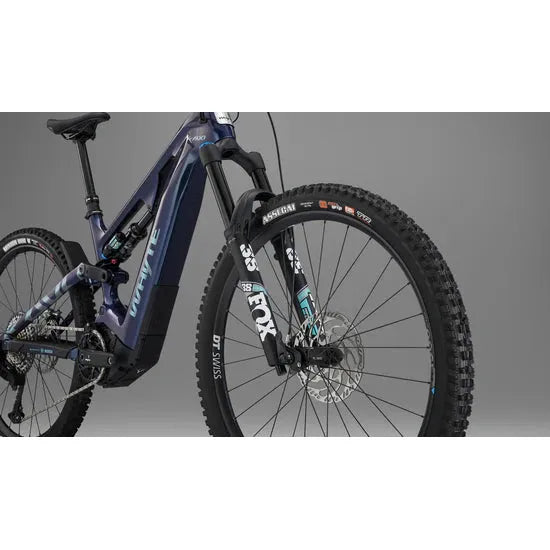

FORK: Fox Float 38 Performance Elite, 160mm travel, 44mm offset with Grip X2 damper, tapered steerer, 110mm x 15mm Boost, E-thru-axle

CRANKSET: Whyte 155mm ISIS arms, SRAM Direct mount 36T chainring, T-Type

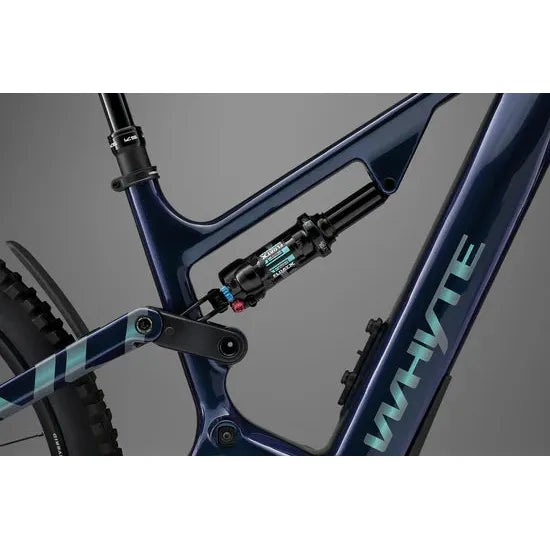

REAR SHOCK: Fox Float X Performance Elite DPS, EVOL LV, 230 x 57.5mm, custom tuned for Whyte

BOTTOM BRACKET: N/A

HEADSET: FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) cartridge bearings, with side entry internal routing

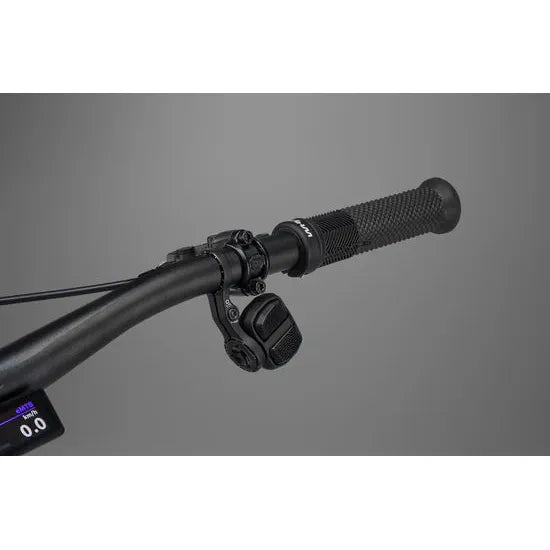

SEATPOST: KS Vantage, 34.9mm, external 30mm adjustment, with Southpaw remote lever (150 drop (S), 170mm drop (M), 200mm drop (L&XL))

REAR HUB: DT Swiss Hybrid H1900, 12mm x 148mm Boost spacing, SRAM XD steel driver, 6 Bolt

SADDLE: Whyte Custom

FRONT HUB: DT Swiss Hybrid H1900, 110mm x 15mm Boost, 6 bolt

HANDLEBAR: Race Face Turbine Alloy Bar 35mm, 800mm, 35mm rise

SPOKES: DT Swiss elemental

STEM: Whyte, 35mm Extension, 35mm Bar Bore

RIMS: DT Swiss Hybrid H1900GRIPSWhyte Enduro lock-on

TYRE: Maxxis Assegai WT, TR, 29in x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead, front; Maxxis Minion DHR 2 WT, TR, 29in x 2.4in 120TPI, Double Down Casing, 3C MaxxTerra, Dual Compound, rear

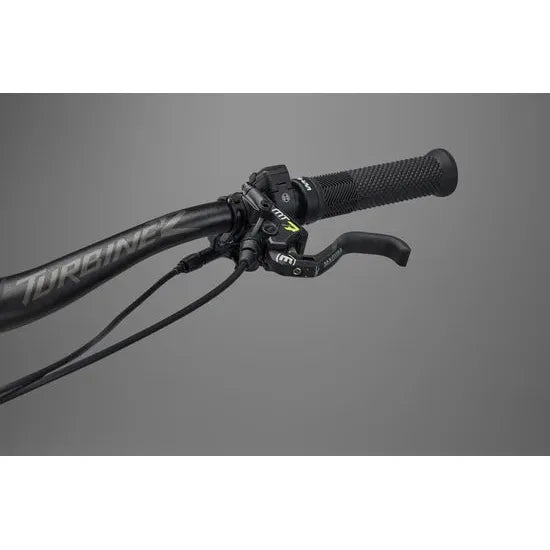

BRAKES FRONT: Magura MT7, 1 finger lever, 203mm MDRC 6 bolt rotors

SHIFT LEVERS: SRAM AXS Pod, right, MMX, 12 speed

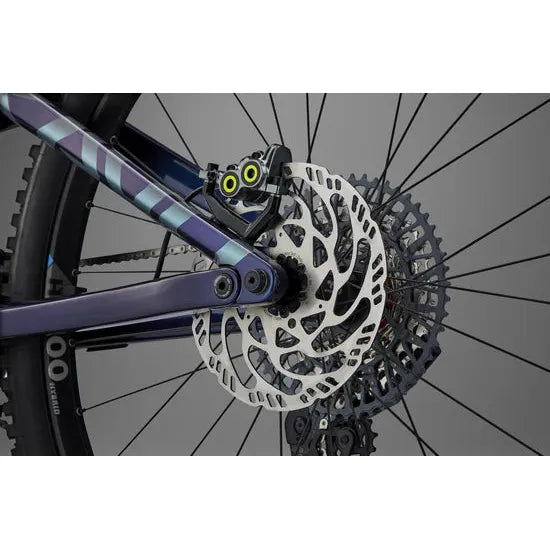

BRAKES REAR: Magura MT7, 1 finger lever, 203mm MDRC 6 bolt rotors

FRONT MECHN/ABRAKE LEVERS: Magura MT7

REAR MECH: SRAM S1000 AXS Eagle, 12 speed

PEDALS: Fibre reinforced composite platform

WEIGHT: 24.2Kg (size M, without pedals, with innertubes)

Although we've taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required.

E-BIKE SPECIFICATIONS

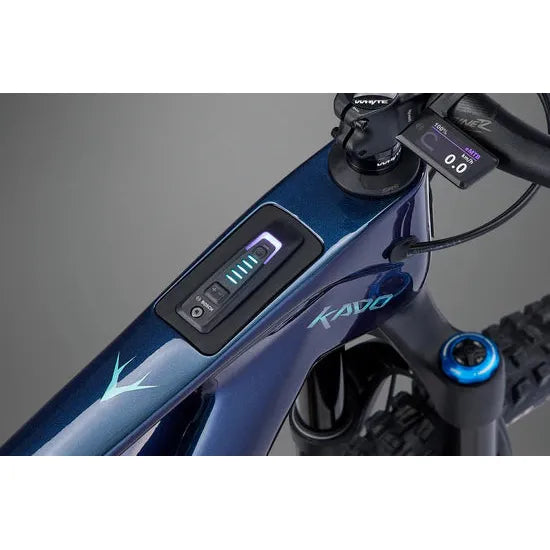

DRIVE UNITBosch Performance Line CX (Smart System) Drive Unit with 85Nm maximum torque, 600W of peak power and 250W of nominal power. Features four power mode settings including Tour+ and eMTB.BATTERYBosch PowerTube 800Wh, perfectly integrated into the frame with an intuitive lockable mechanism for easy removal. PowerMore compatible.DISPLAYBosch System controller mounted within the top tube, paired with the discrete bar mounted Mini Remote and Purion 400. Also connects to the Bosch eBike Flow smartphone app to give you even more insight and control at your fingertips.CHARGERCharger 4A (230V)

Please note: our custom motor covers are not currently compatible with the aftermarket Bosch eBike Alarm and Connect module to add bike tracking and alarm functionality to your Smart System bike
