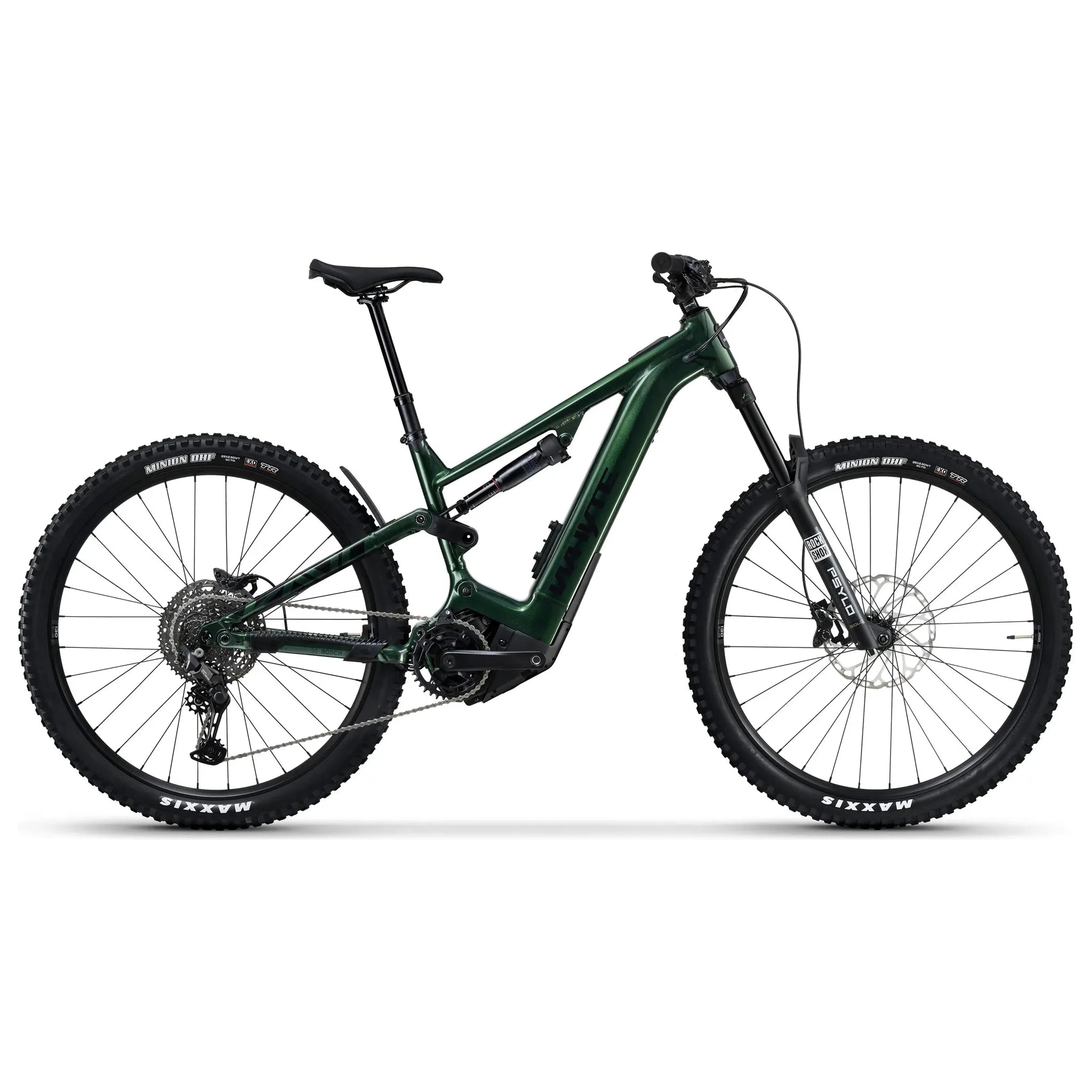

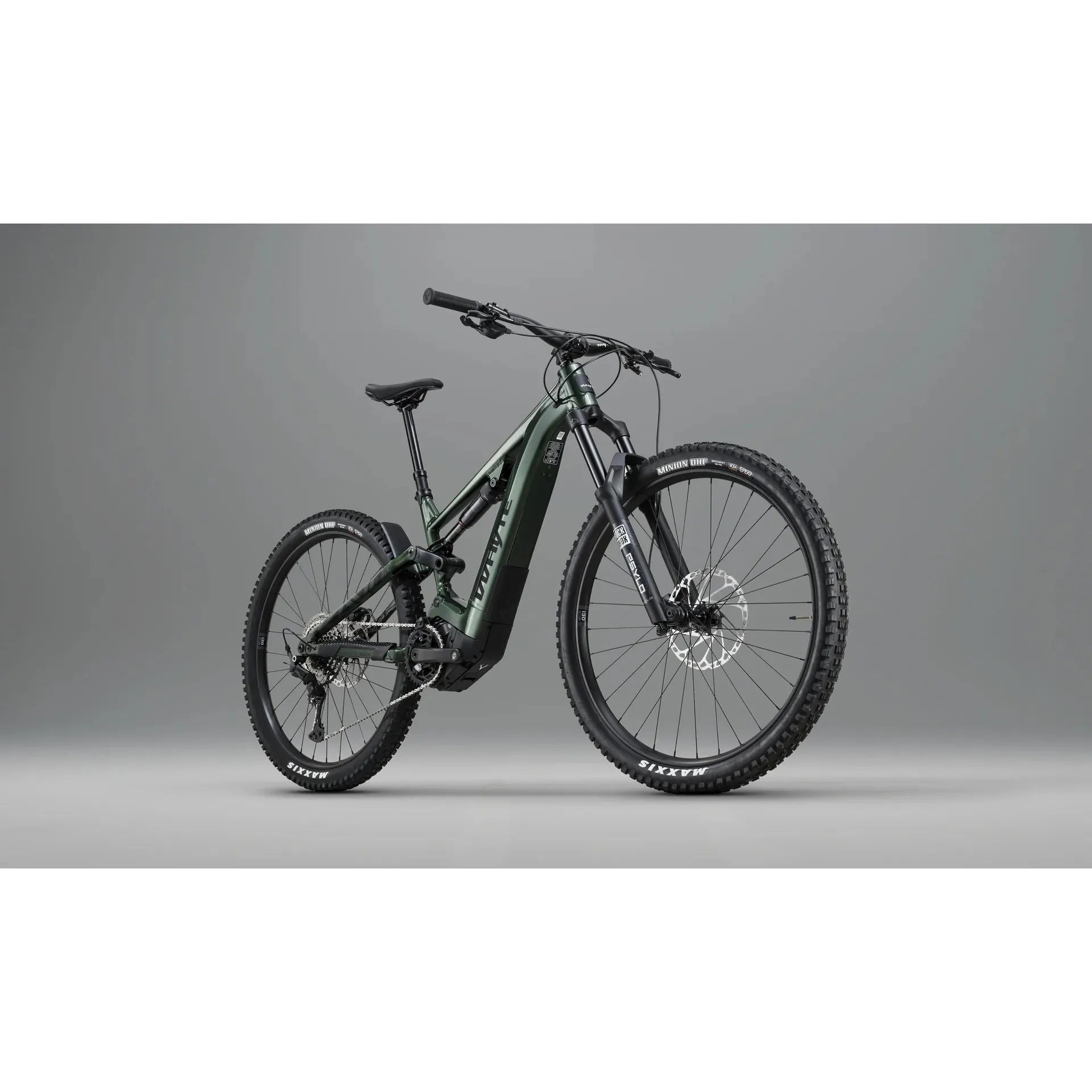

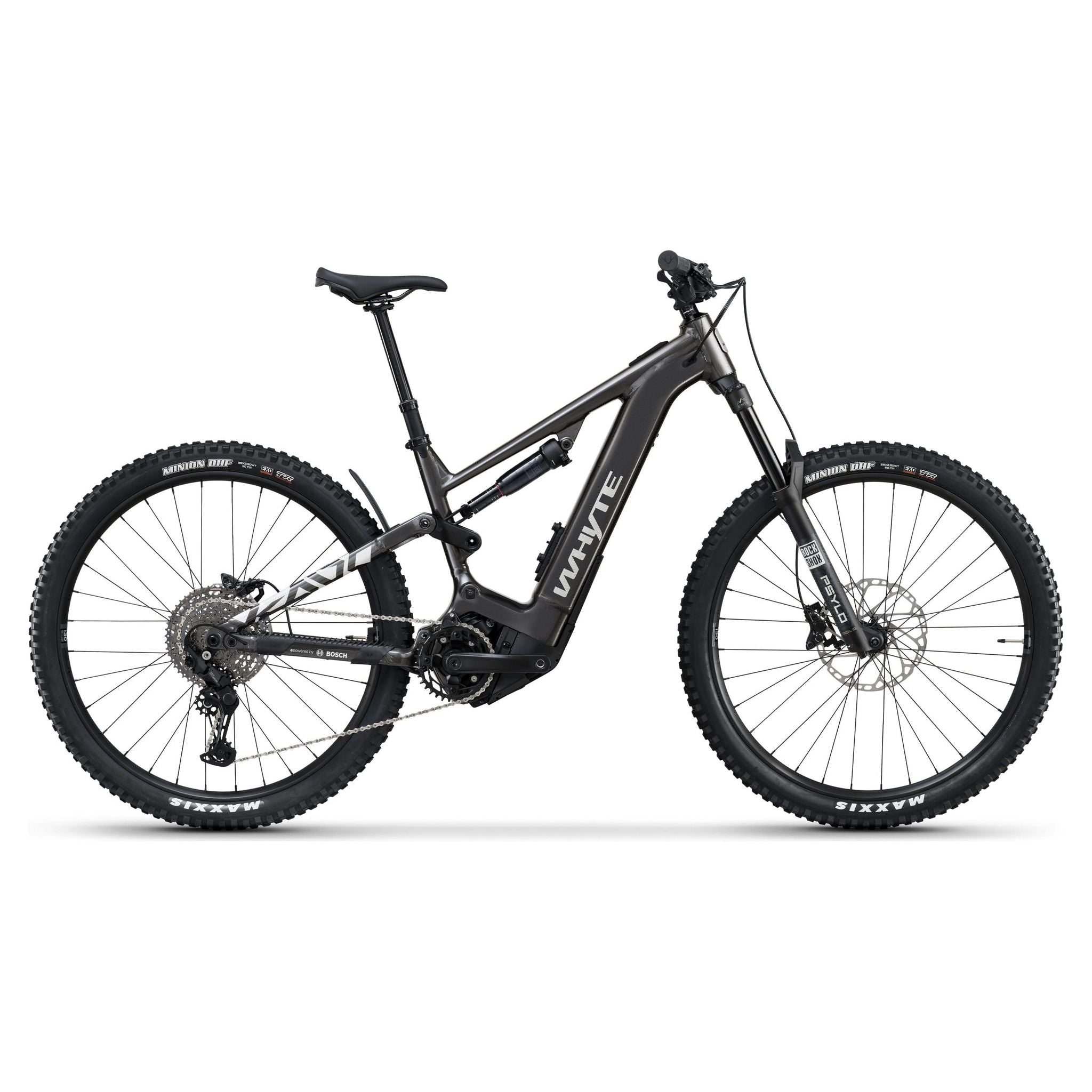

Whyte Kado S 600wh Full Suspension E-Mountain Bike

HIGHLIGHTS
– 160mm front + 150mm rear of custom-tuned suspension travel.
– Multi-butted 6061 T-6 aluminium hydroformed frame is built to last.
– Bosch's fifth generation Performance Line CX full-torque (85Nm), full-power (600W) motor.
– 600Wh slide-in internal battery gives you good range.
– 29in trail-smoothing wheels front and rear.
– Optimised low centre of gravity gives you exceptional, confidence-inspiring handling.

RIDES LIKE A DREAM
We’ve poured everything into Kado S to give you the best handling and ride performance possible: an optimised low centre of gravity to give you exceptional cornering agility and balanced handling on any terrain; custom-tuned suspension for the very best grip, feedback and control; confidence-inspiring geometry, and much more. All masterfully combined to help you realise your riding dreams.

CHARGE TIME: 50% in 3.8hrs from empty, and to 100% in 9.1hrs with 2A Charger.

THE RANGE TO ROAM

With a 600Wh internal battery as standard and compatibility with Bosch’s aftermarket 250Wh ‘PowerMore’ range extender (available separately; fits size M–XL frames), Kado S is ready to give you up to 850Wh of combined battery capacity. All so you can ride as far – and as wide – as you wish.

REFINED AND RELIABLE PERFORMANCE

Quieter and lighter than ever, the fifth generation Performance Line CX motor gives you Bosch’s most refined, reliable and efficient motor performance. 600W of peak, trail-usable power. 85Nm of torque. All tuneable to your tastes using the Bosch eBike Flow app., and ready to be boosted further via incoming software updates. Add in a further improved motor response and smart power delivery and you’ve the power and control to conquer any trail.

SLIDE IN, SLIDE OUT

Removing the Kado S’s internal battery is a dream for storage, battery swaps, or off-the-bike charging: just open the battery cover, undo the captive bolt, unclip the battery connector and slide the battery out. To replace, just do the reverse. Simple. Every Kado can also take both 600Wh and 800Wh batteries so if you decide to buy a spare so you can change the stock 600Wh battery out for a larger capacity battery for longer rides – or for racing – you can

SPECIFICATIONS

COLOUR: Gloss dark silver

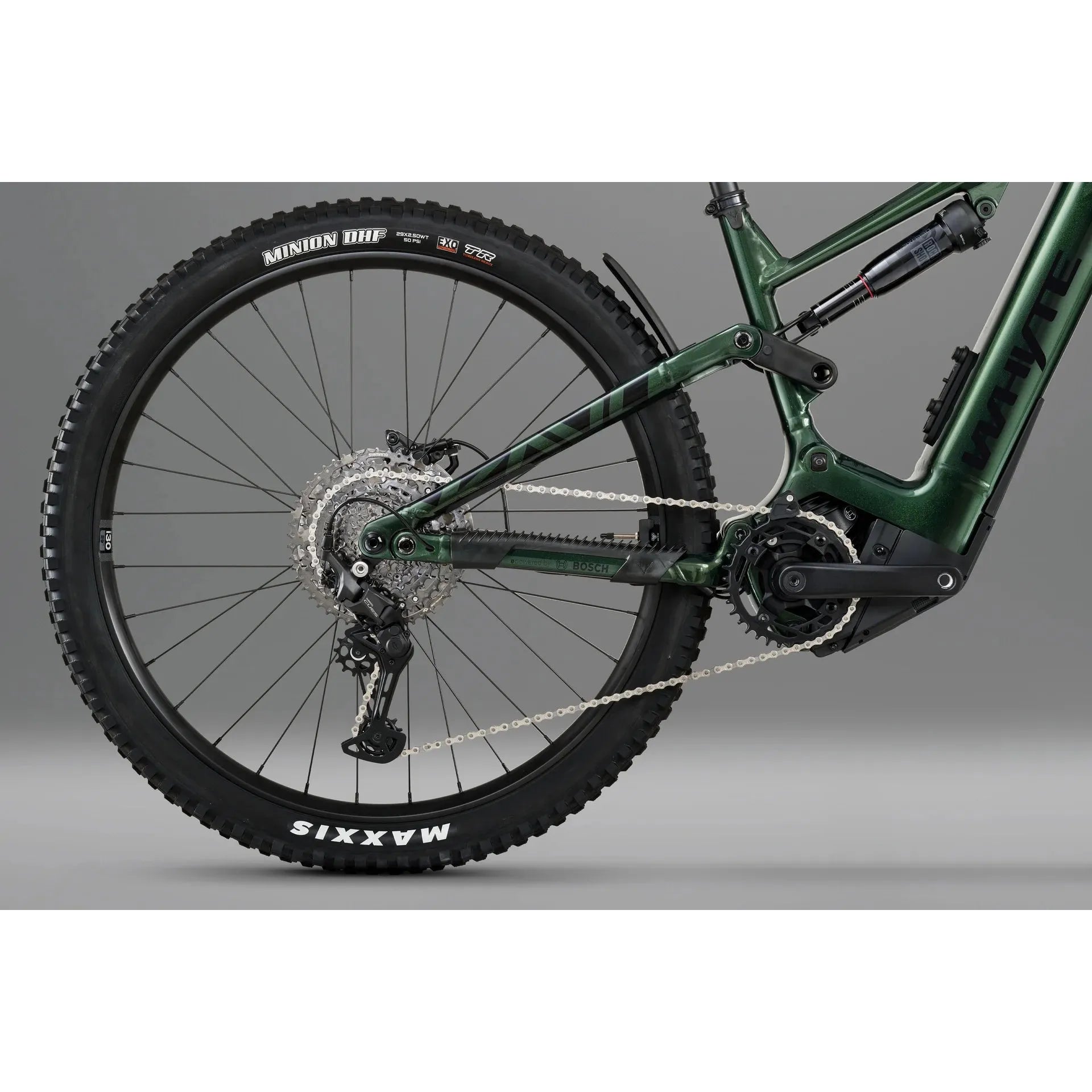

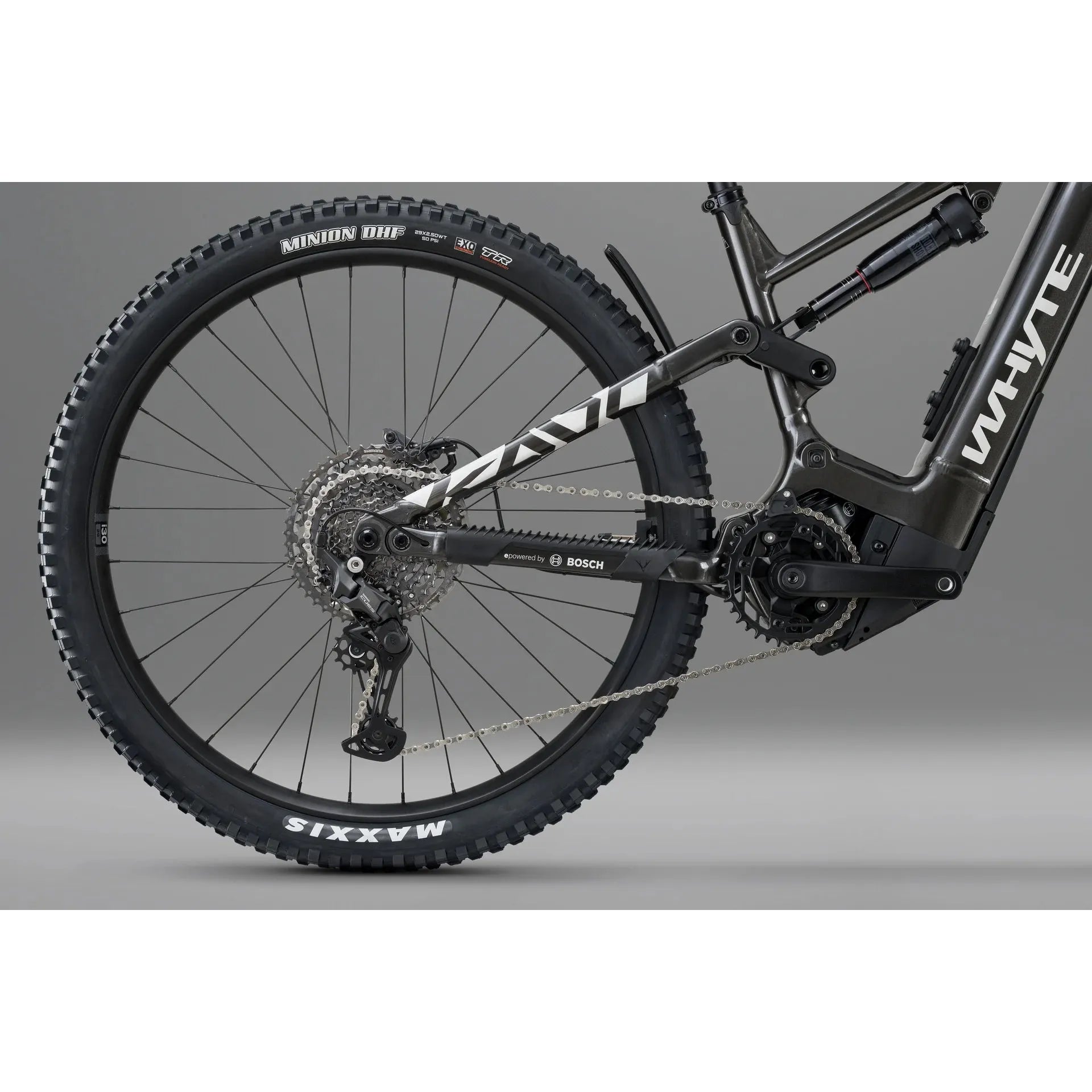

CASSETTE:Shimano CS-LG400, Cues 11 speed, 11-50T

FRAME: 6061 alloy, hydroformed T6 aluminium, multi-butted, custom drawn, tapered headtube, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts

CHAIN: KMC eGlide Sport, 11 speed Cues

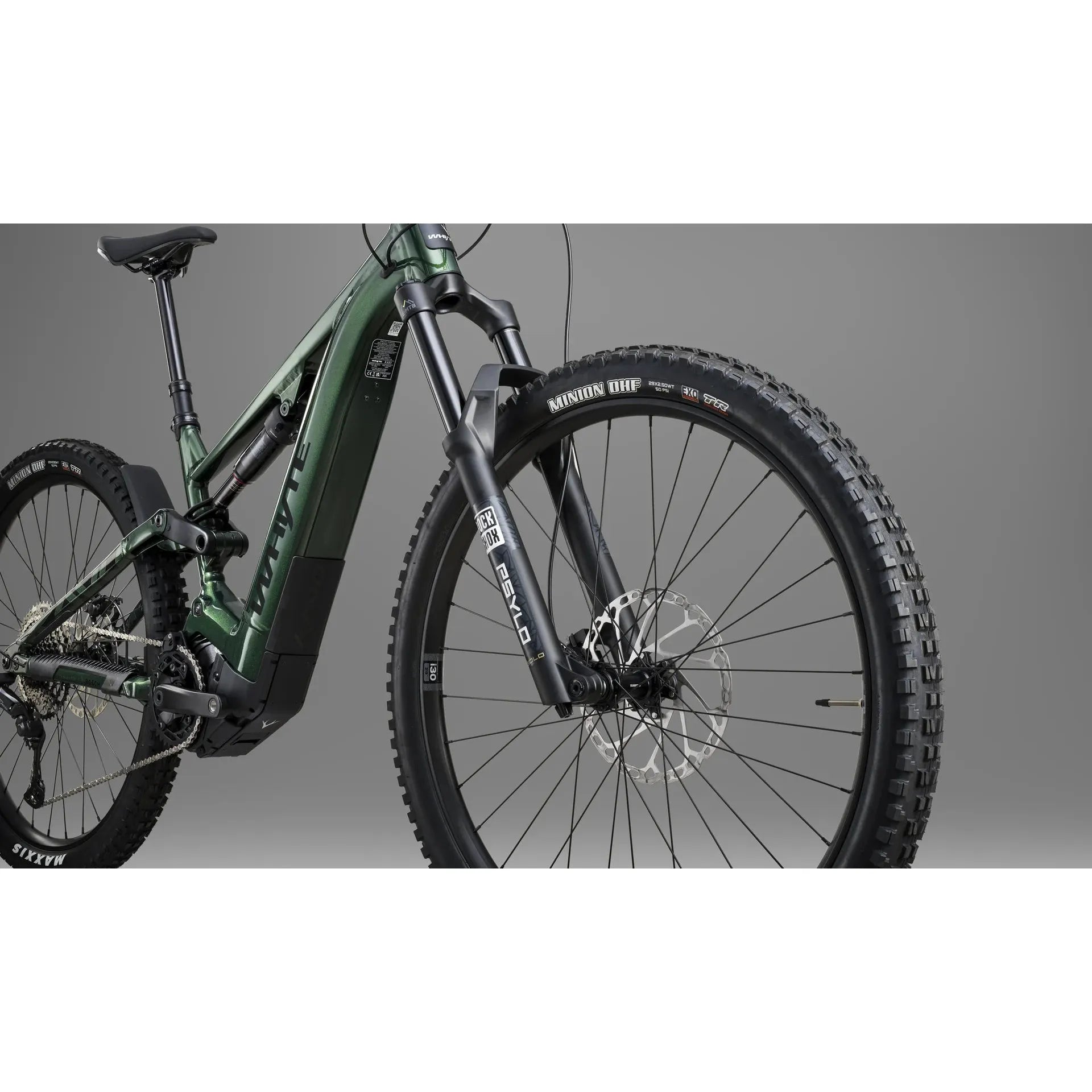

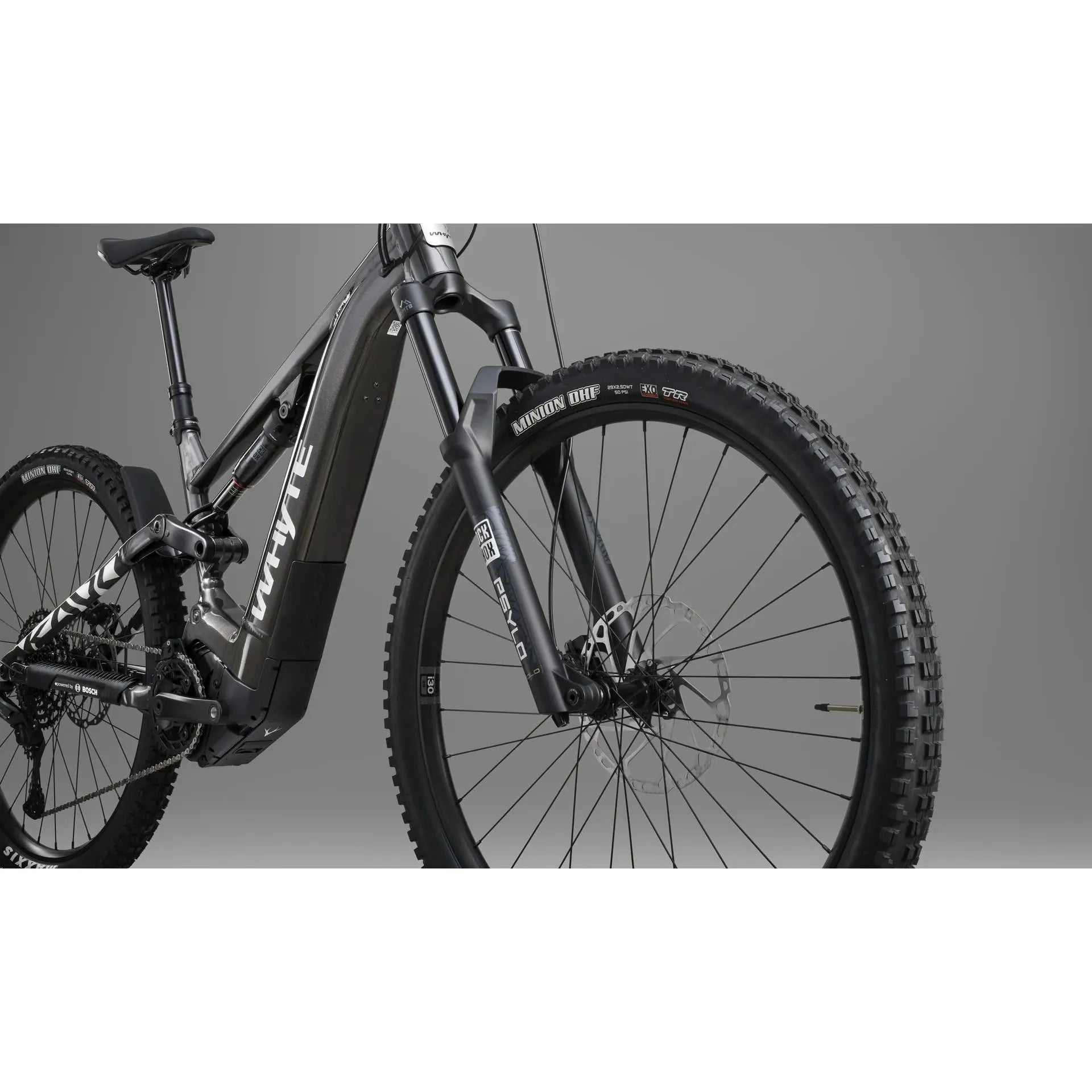

FORK: RockShox Psylo Gold, 160mm travel, DebonAir, Isolator RC Damper, Fast Black coating, tapered steerer, 110 x 15mm Boost

CRANKSET: Whyte 160mm ISIS arms, Direct mount 36T chainring, T-Type

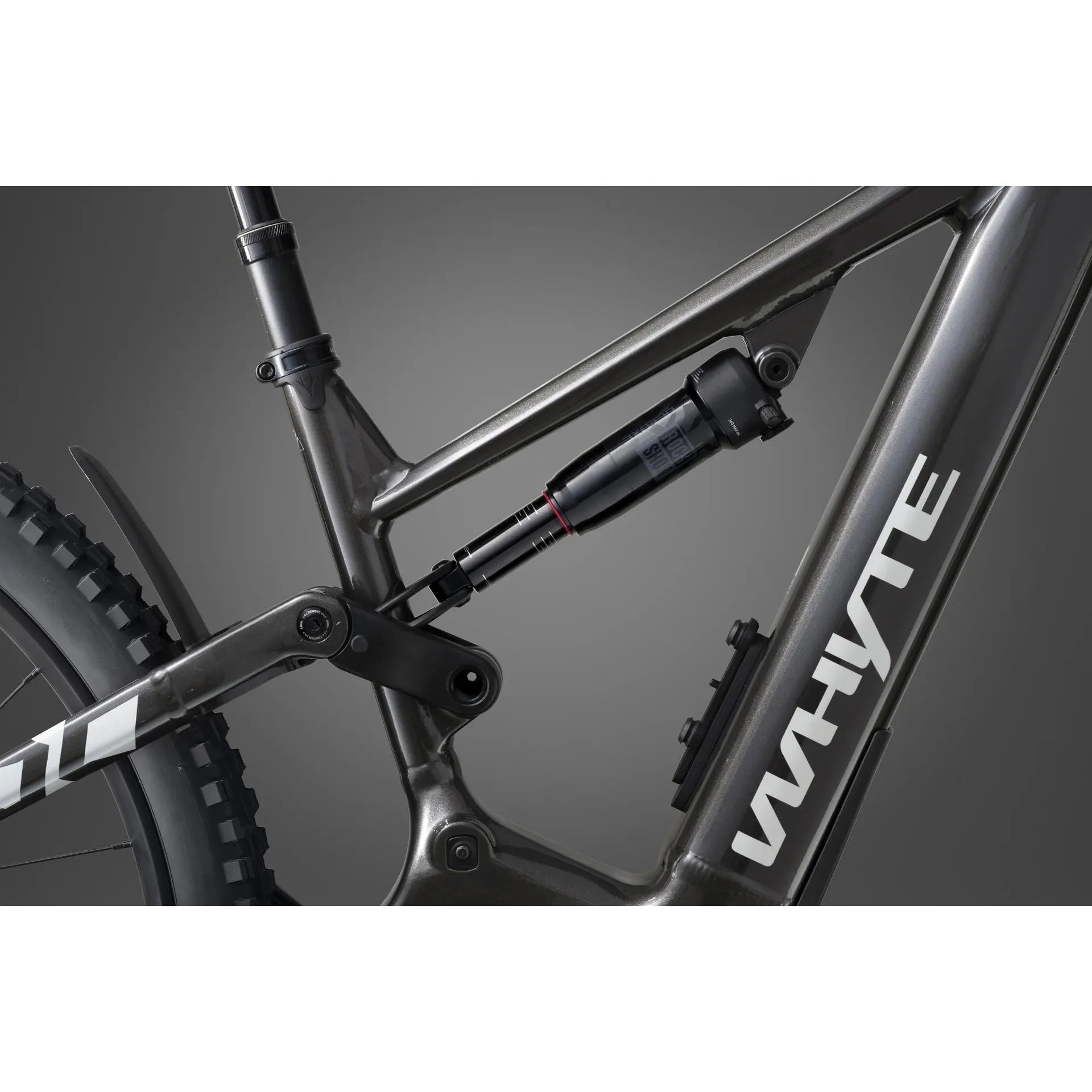

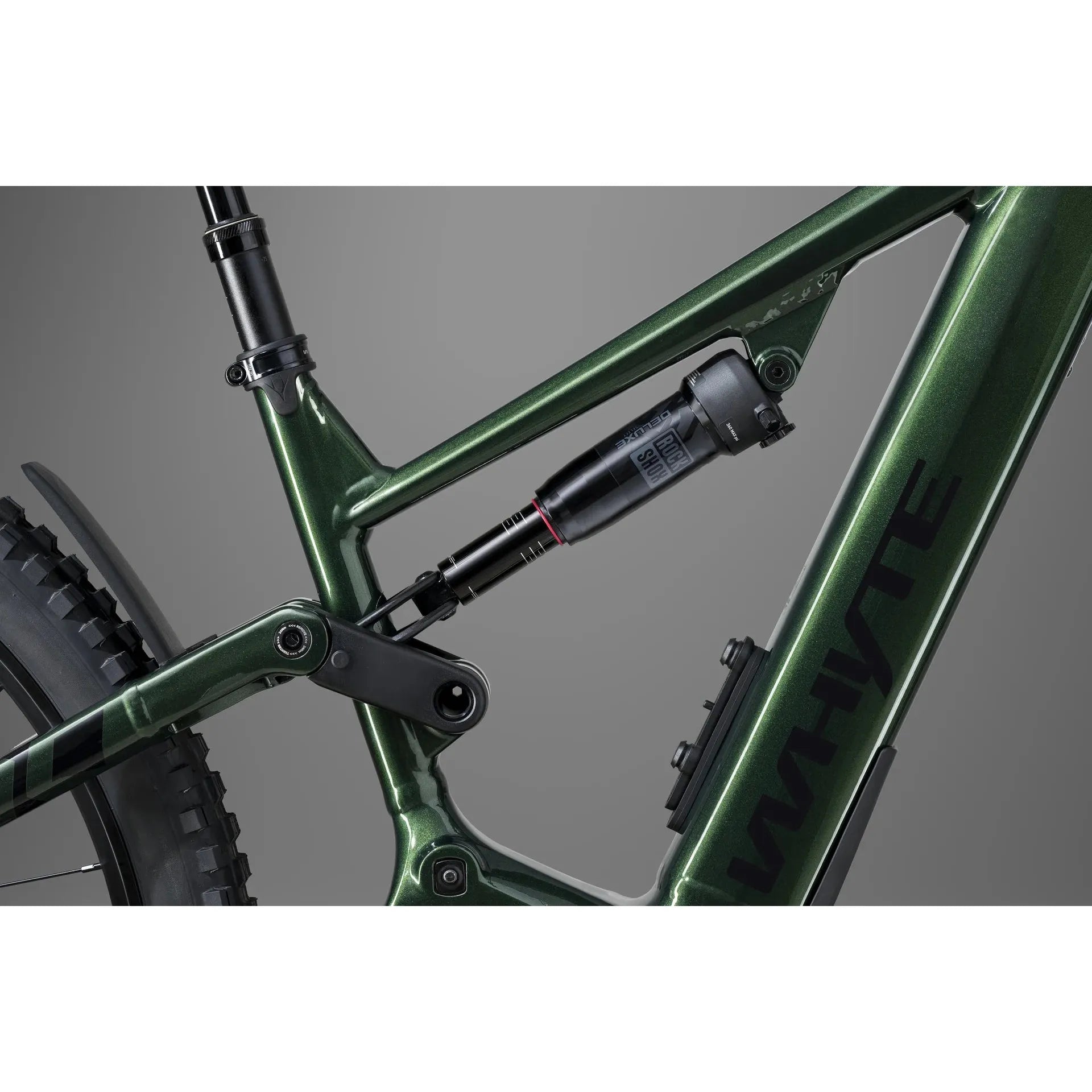

REAR SHOCK: RockShox Deluxe Select R, DebonAir, Fast Black coating, adjustable rebound, 230 x 57.5mm, custom tuned for Whyte

BOTTOM BRACKETN/A

HEADSET: Feimin FP-H886J 1-1/8in upper and 1.5in lower with sealed bearings

SEATPOST: TranzX +RAD 30.9mm, Adjustable, (150 drop (S), 170mm drop (M&L), 200mm drop (XL))

REAR HUB: Shimano FH-TC600, Centre Lock, 12mm x 148mm Boost spacing, HG Freehub, 32H

SADDLE: Whyte Custom

FRONT HUB: Shimano FH-TC500, Centre Lock, 15mm x 110mm Boost spacing, 32H

HANDLEBAR: Whyte Custom 6061 alloy, 30mm rise, 35mm bar bore, 800mm wide

SPOKES: Xin Da 14g Stainless Black, brass nipples

STEM: Whyte, 35mm Extension, 35mm Bar Bore

RIMS: WTB ST Tough, 30mm internal

GRIPS: Whyte Enduro lock-on

TYRE: Maxxis Minion DHF, EXO Casing, Wire bead 29 x 2.5in

BRAKES FRONT: Shimano M4100 four piston with sintered metal pads, 220mm Centre lock rotors

SHIFT LEVERS: Shimano SL-U6000, 11 speed Cues

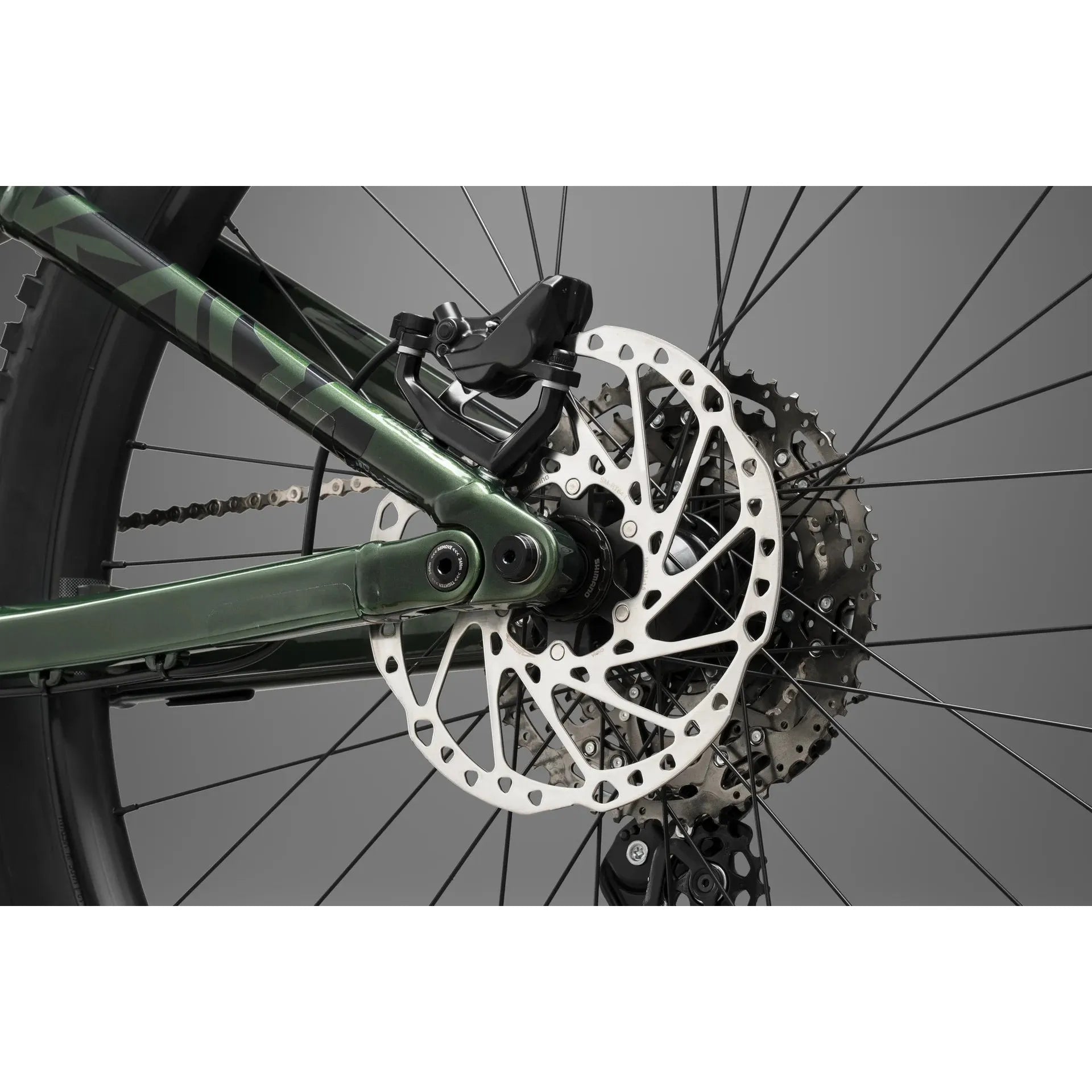

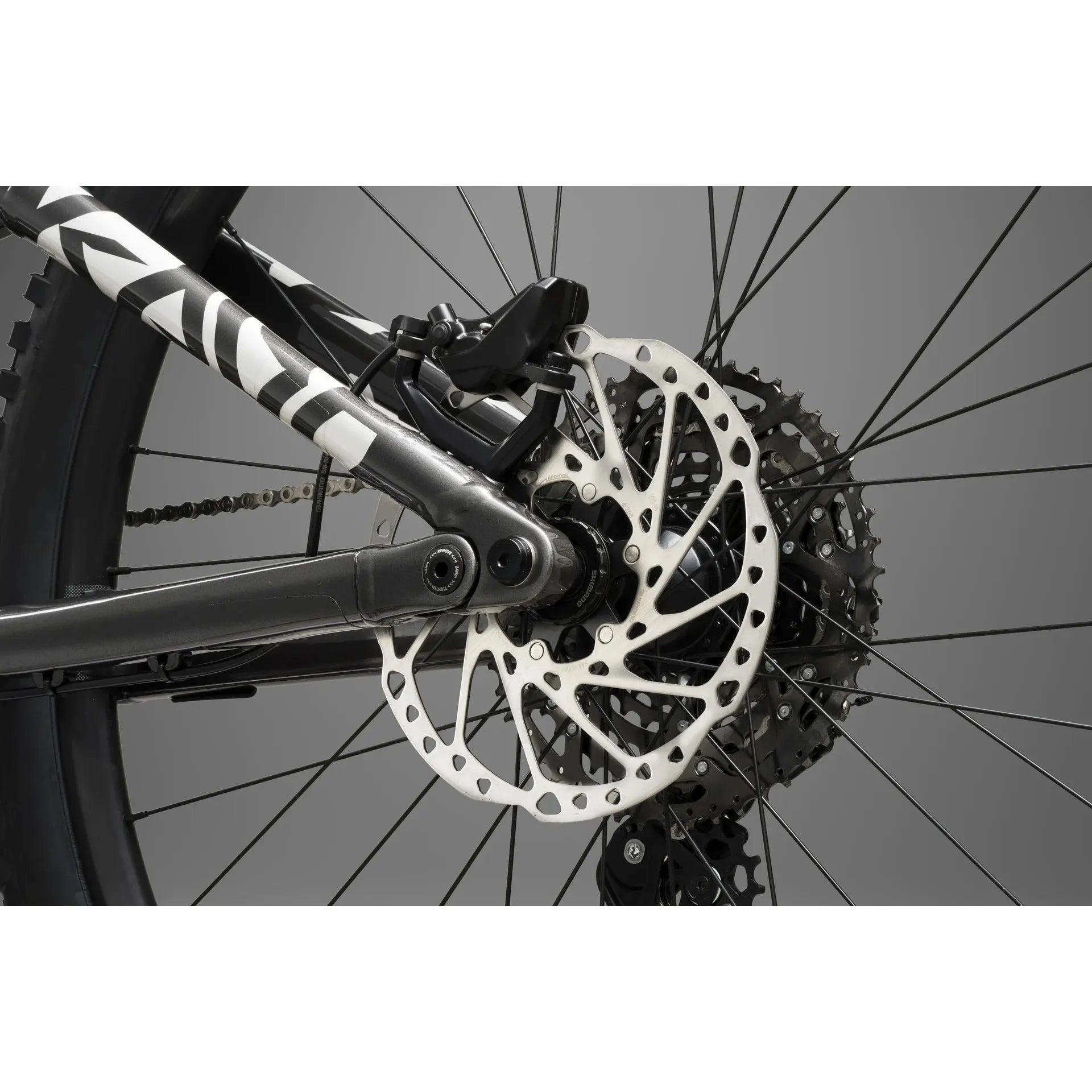

BRAKES REAR: Shimano M4100 four piston with sintered metal pads, 203mm Centre lock rotors

FRONT MECH: N/A

BRAKE LEVERS: Shimano M4100

REAR MECH: Shimano RD-U6000 GS, 11 speed Cues

PEDALS: Fibre reinforced composite platform

WEIGHT: 25.6Kg (size M, without pedals, with innertubes)

Although we've taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required.

E-BIKE SPECIFICATIONS

DRIVE UNIT: Bosch Performance Line CX (Smart System) Drive Unit with 85Nm maximum torque, 600W of peak power and 250W of nominal power. Features four power mode settings including Tour+ and e

MTB.BATTERY: Bosch PowerTube 600Wh, perfectly integrated into the frame with an intuitive lockable mechanism for easy removal. PowerMore compatible.

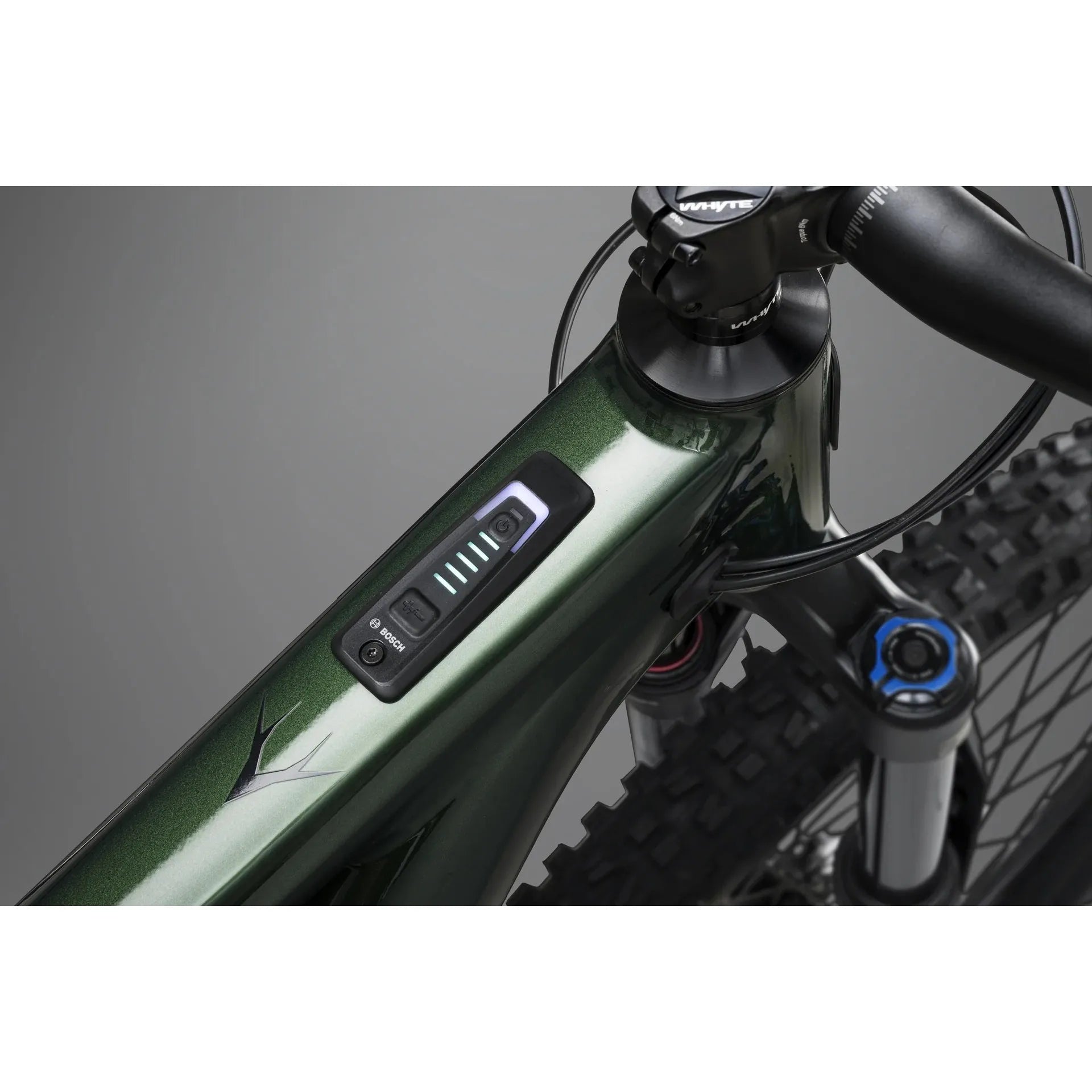

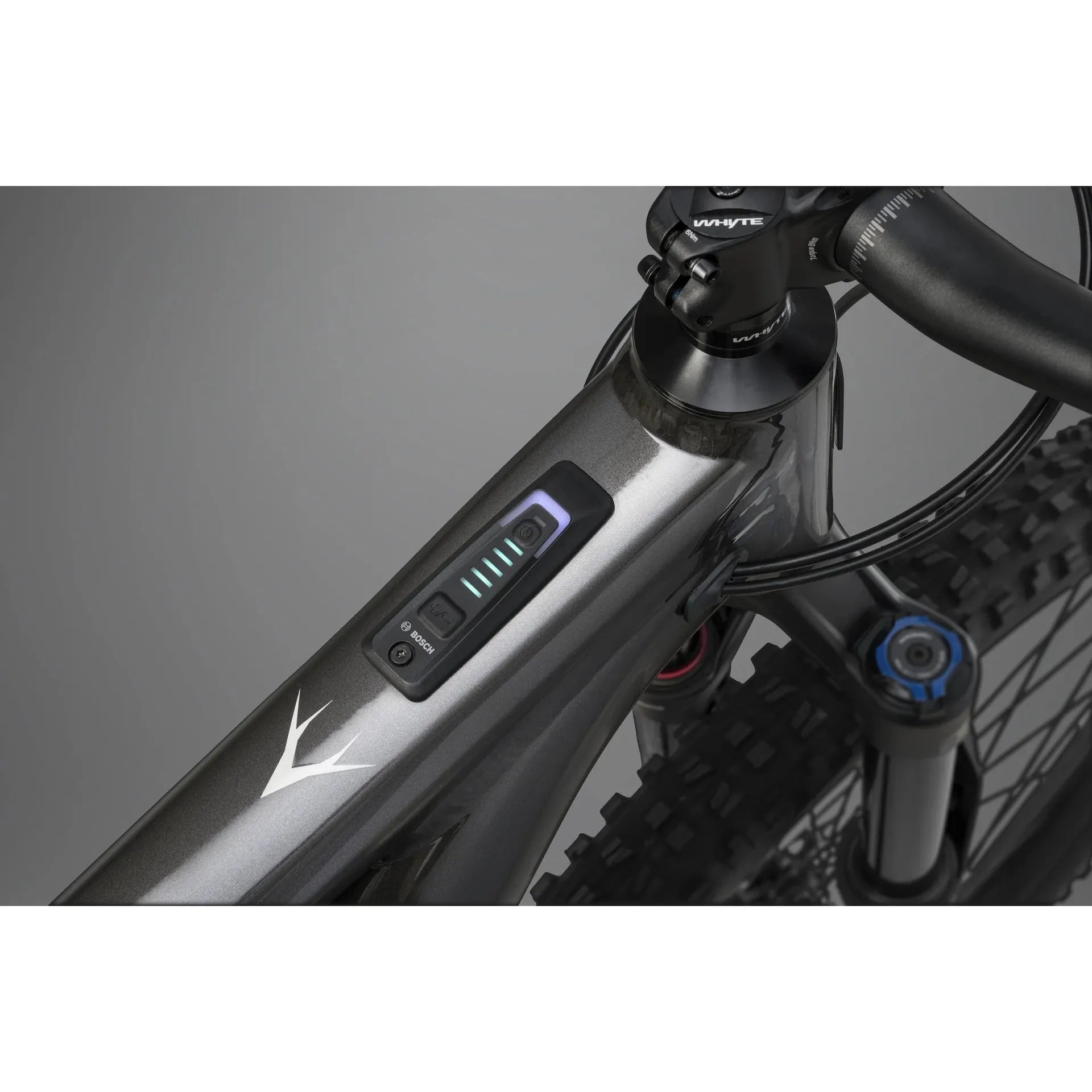

DISPLAY: Bosch System controller mounted within the top tube, paired with the discrete bar mounted Mini Remote. Also connects to the Bosch eBike Flow smartphone app to give you even more insight and control at your fingertips.

CHARGER: Charger 2A (230V)

Please note: our custom motor covers are not currently compatible with the aftermarket Bosch eBike Alarm and Connect module to add bike tracking and alarm functionality to your Smart System bike
