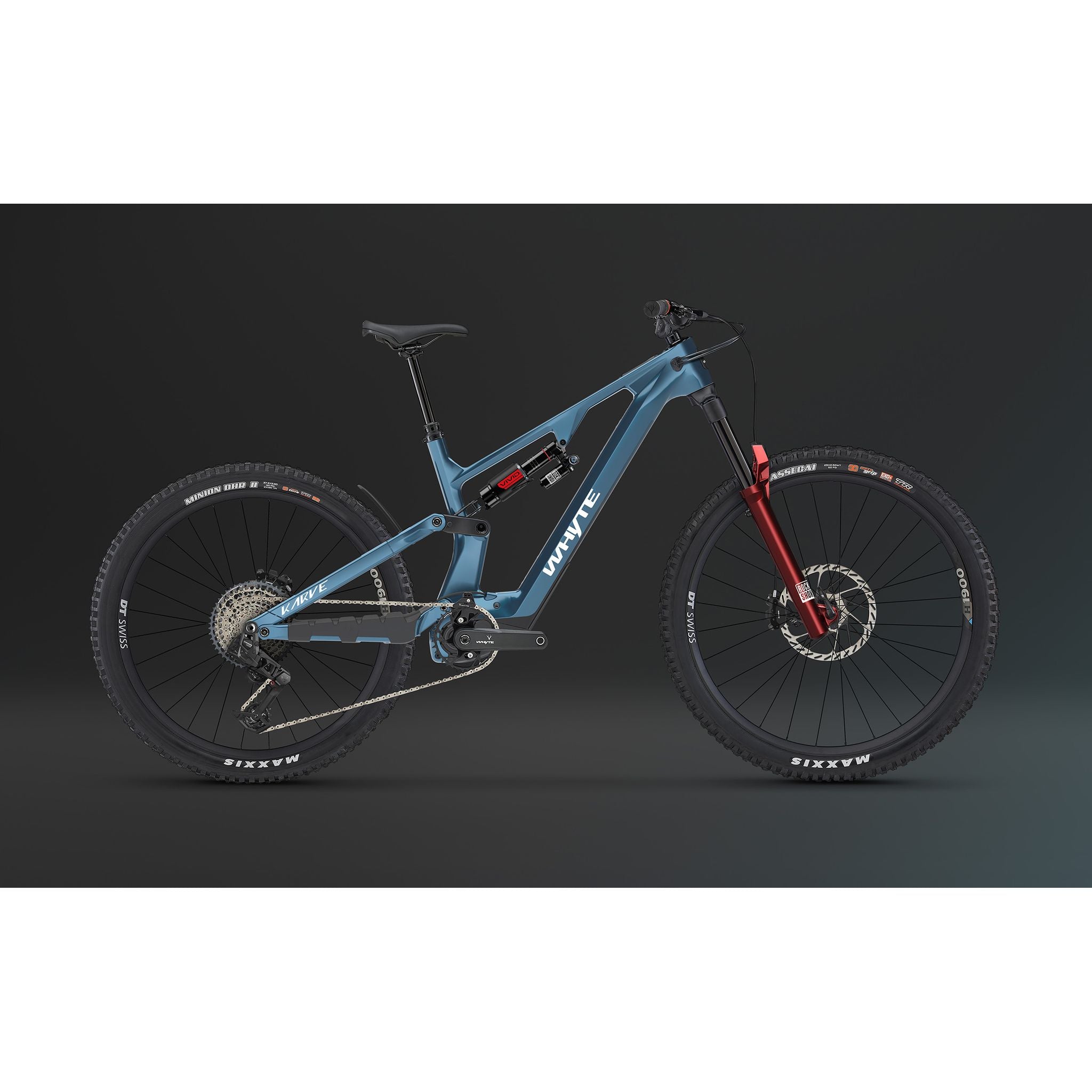

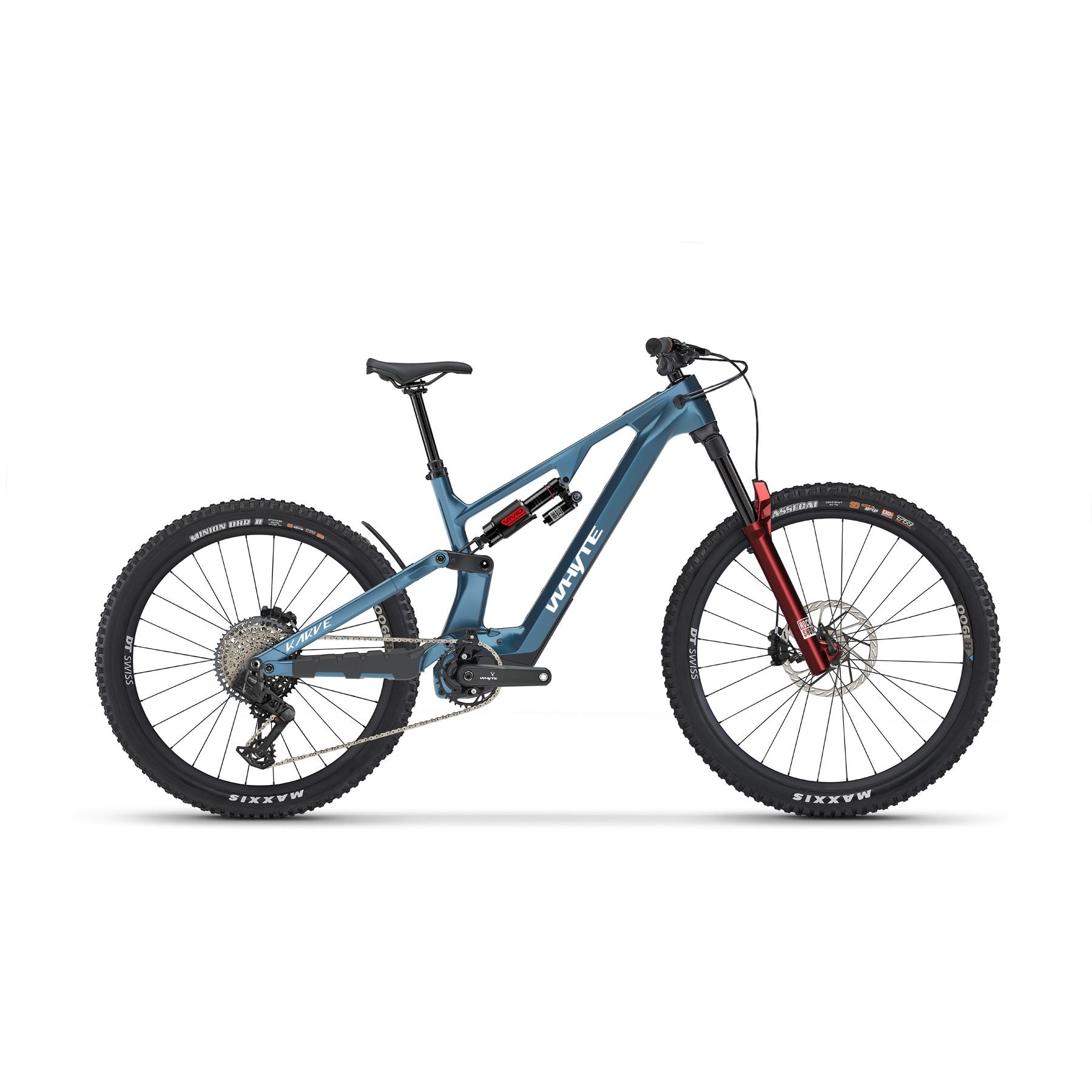

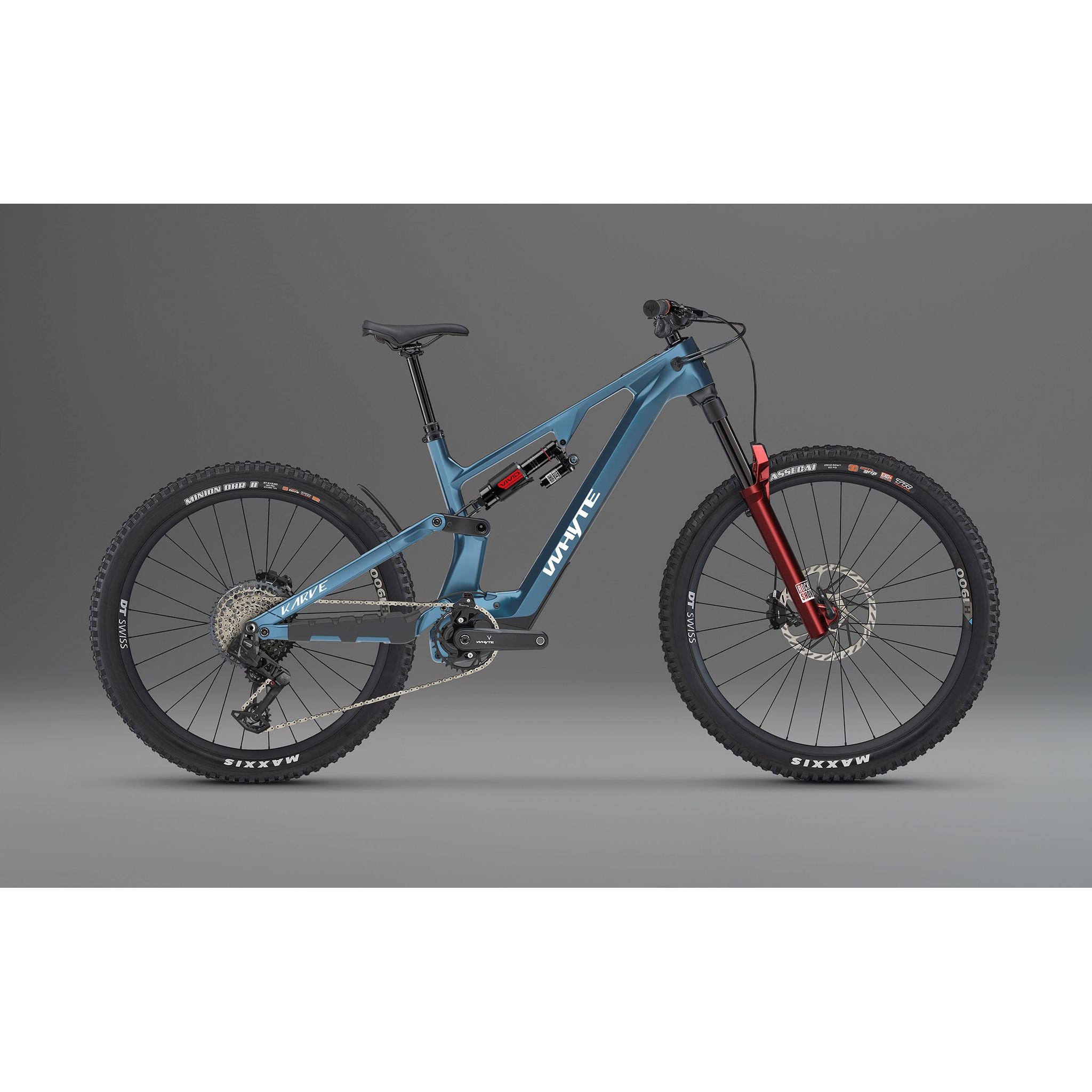

Whyte Karve EVO RSX Full Suspension eMTB (Pre-Order)

New in

Whyte Karve EVO RSX Full Suspension eMTB (Pre-Order)

Name: Whyte Karve EVO RSX Full Suspension eMTB (Pre-Order)
Brand: Whyte
SKU: AWEKAREVORSX2MV1-1
Price: 16999.0 NZD
Availability: InStock

$16,999.00 NZD

Size

M L

Color

Gloss blue

1 in stock

PRE-ORDER NOW - Whyte Karve EVO RSX

Expected arrival into New Zealand: 12th October 2026

The ultimate thrill ride
For the toughest tracks. The supreme self-shuttle machine. With the power of Avinox inside. Karve EVO is the chaos-crushing, climb-shrinking electric mountain bike (eMTB) for self-shuttled riding and big mountain terrain. If having the best time dropping in on the biggest terrain is why you ride, Karve EVO RSX is ready.

Highlights
– 180mm front and rear of Whyte custom-tuned suspension travel.
– Uni-directional carbon fibre (front) and alloy (rear) frame with geometry adjustment is light and strong
– Avinox M2S full-torque (up to 150Nm), full-power (1300W peak) motor with five assistance modes (auto, eco, trail, turbo + boost) + 12A fast charger.
– SRAM AXS Eagle 1x12 transmission + SRAM Maven Silver four-piston hydraulic brakes.
– Avinox DPC100 OLED top-tube touchscreen display delivers a wealth of customisable information at your fingertips.
– 800Wh internal battery so you can get more runs in.
– DT Swiss Hybrid MX wheels (29er front, 27.5in rear) for maximum confidence on even the steepest terrain + full 29er ready.
– Fitted with RideWrap frame protection kit from the factory (85% coverage).

Features

Avinox motor, Touch Screen Toptube Display + 800Wh internal battery; Rockshox Zeb Ultimate fork; Rockshox Vivid Ultimate shock; DT Swiss Hybrid HF1900 wheelset; SRAM S1000 T-Type AXS.

Technical Specifications

Frame
Uni-directional carbon mainframe and rear triangle, tapered head tube, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts

Fork
RockShox ZEB Ultimate, 180mm travel, 44mm offset, Linear XL, Charger 3.2 damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth

Rear shock
Rockshox Vivid Ultimate RC2T, 230 x 62.5mm, custom tuned for Whyte

Headset
ZS56 upper / lower headset cups for 1 1/18in upper and 1.5in lower with sealed bearings

Rear hub
DT Swiss Hybrid HF1900, 12mm x 148mm Boost spacing, SRAM XD steel driver, 6 Bolt

Front hub
DT Swiss elemental

Spokes
DT Swiss Hybrid HF1900

Rims
Whyte eMTB Sleeved Rims, 30mm internal, Tubeless Ready

Tyres
Maxxis Assegai WT, TR, 29in x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead, front; Maxxis Minion DHR 2 WT, TR, 27.5in x 2.5in 120TPI, Double Down Casing, 3C MaxxTerra, Dual Compound, rear

Shift levers
SRAM AXS Pod, right, MMX, 12 speed

Front derailleur
N/A

Rear derailleur
SRAM S1000 AXS Eagle, 12 speed

Cassette
SRAM XS 1275, T-Type, 10-52T, 12 speed

Chain
SRAM GX T-Type, 12 speed

Crankset
Whyte 155mm ISIS arms, SRAM Direct mount 36T chainring, T-Type

Bottom bracket
N/A

Seatpost
TranzX +RAD 34.9mm, Adjustable, (150 drop (S), 170mm drop (M), 200mm drop (L&XL))

Seat
Whyte Custom

Bar
Whyte Custom 6061 alloy, 40mm rise, 35mm bar bore, 800mm wide

Stem
Whyte, 35mm Extension, 35mm Bar Bore

Grips
Whyte Enduro lock-on

Front brakes
SRAM Maven Silver, four piston with sintered metal pads, 220mm 6 bolt HS2 rotors

Rear brakes
SRAM Maven Silver, four piston with sintered metal pads, 200mm 6 bolt HS2 rotors

Brakes levers
SRAM Maven Silver

Pedals
Fibre reinforced composite platform

eBike Motor
Avinox Drive Unit with 120Nm maximum torque, 1200W of peak power and 250W of nominal power. Features five power mode settings including Auto and Boost. AXS derailleur powered off motor and featuring SmoothShift.

eBike Display
Avinox DPC100 OLED display mounted within the top tube, paired with the discrete bar mounted wireless controller. Also connects to the Avinox Ride smartphone app to give you even more insight and control at your fingertips.

eBike Battery
Avinox 800Wh fixed battery, mounted into the frame by 2x bolts. Removeable for maintenance by removing motor.

eBike Battery Charger
Charger 4A (230V)

Shock Stroke & Sag
62.5mm/17.5mm

Reducer Bush Widths
25mm

Eye to Eye Length
230mm
