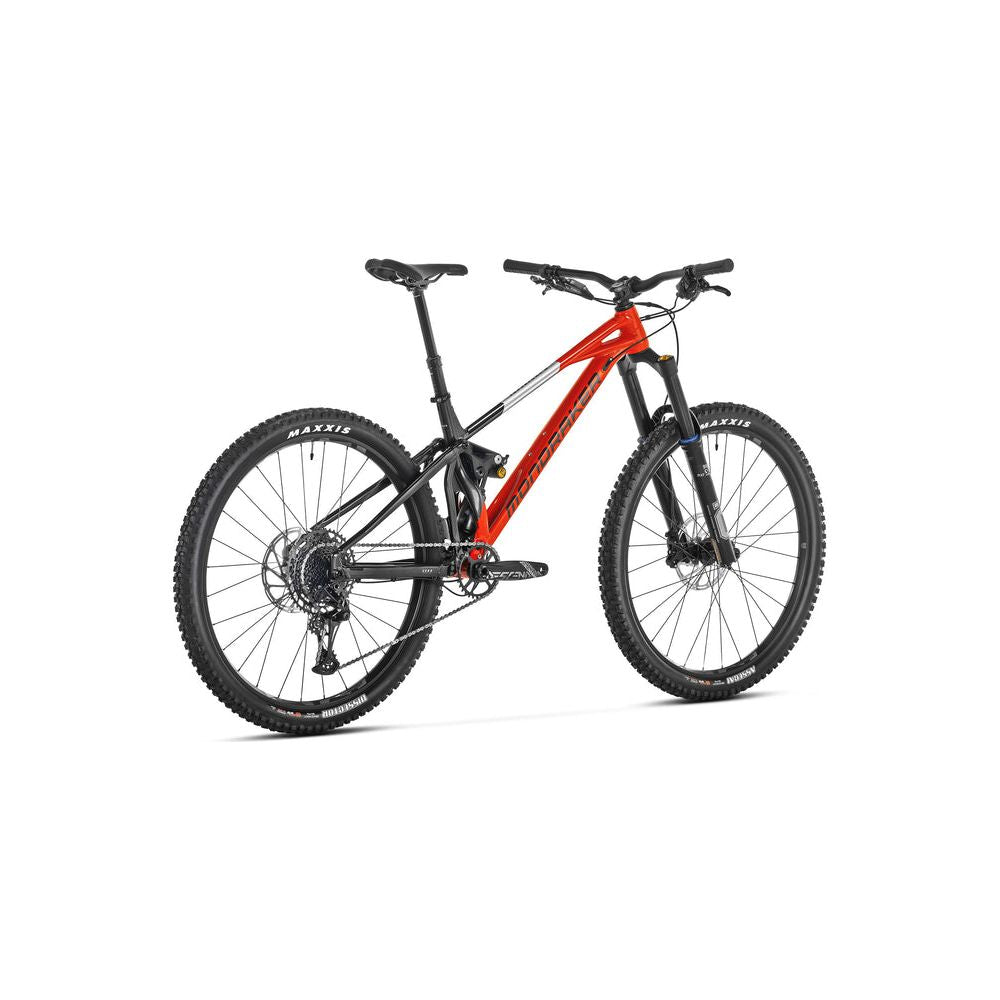

Mondraker Superfoxy R Mountain Bike

SIZES

• S: 380mm / M: 420mm / L: 470mm / XL: 510mm

REAR SHOCK

• Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings

FORK

• Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

SHOCK SETTINGS

• C20 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)

HEADSET

• Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

HANDLEBAR

• Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

SEATPOST

• Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

FRONT BRAKE

• Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

BRAKE LEVER

• Sram DB8, tool reach adjust, lever pivot bushings

SPOKES

• e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

REAR HUB

• e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub

REAR TYRE

• Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

RINGS

• 32T, CNC-machined alloy, X-SYNC 2

CHAIN

• Sram SX Eagle, 12s, Powerlock

SHIFT LEVERS

• Sram Trigger SX Eagle, 12s, X-Actuation 1:1

DERAILLEUR HANGER

• Mondraker M068

STEM

• Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

GRIPS

• Onoff Twin, 1lock-on, 135mm

SADDLE

• SDG BEL-AIR 3.0, LPU foam, steel rails

REAR BRAKE

• Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

RIMS

• e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

FRONT HUB

• e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

FRONT TYRE

• Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

CRANKSET

• Sram Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm CL 56´5

BOTTOM BRACKET

• Sram DUB BSA, sealed bearings, 73mm, superboost

REAR DERAILLEUR

• Sram NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

CASSETTE

• Sram PG-1230, 11-50T, 12s

WEIGHT

• 17.2 kg
