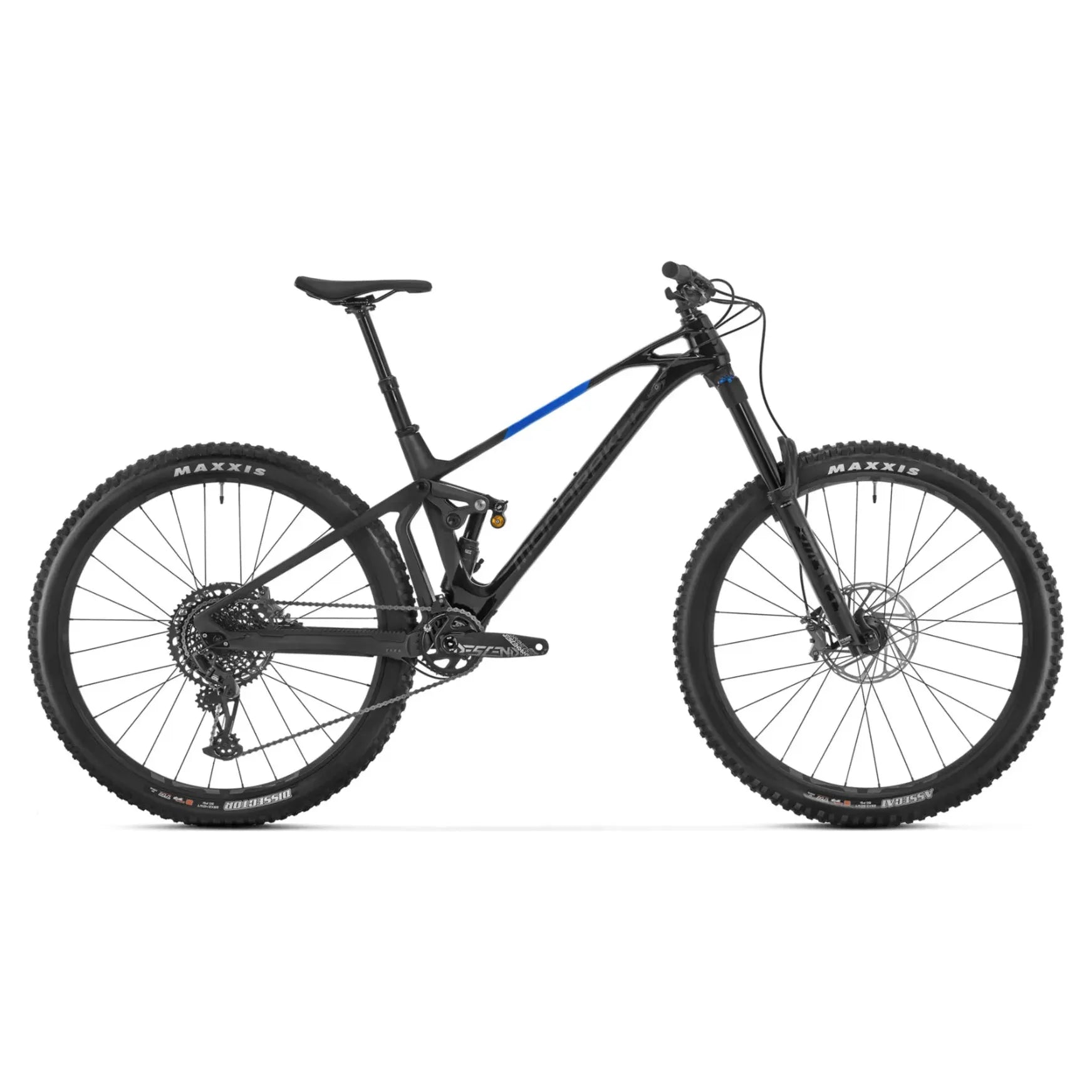

Mondraker Superfoxy Carbon R Bike

FRAME

• SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry kit

REAR SHOCK

• Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings

FORK

• Fox 38 29 Float FIT GRIP EVOL Performance, 170mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

STEM

• Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

GRIPS

• Onoff Desert, 1lock-on, 135mm

SADDLE

• SDG BEL-AIR 3.0, LPU foam, steel rails

REAR BRAKE

• Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

RIMS

• e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

FRONT HUB

• e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

FRONT TYRE

• Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

CRANKSET

• Sram Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm CL 56´5

BOTTOM BRACKET

• Sram DUB BSA, sealed bearings, 73mm, superboost

REAR DERAILLEUR

• Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

CASSETTE

• Sram XG-1275, 10-52T, 12s

SHOCK SETTINGS

• C20 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)

HEADSET

• Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º

HANDLEBAR

• Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

SEATPOST

• Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

FRONT BRAKE

• Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

BRAKE LEVER

• Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust

SPOKES

• e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

REAR HUB

• e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub

REAR TYRE

• Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

RINGS

• 32T, CNC-machined alloy, X-SYNC 2

CHAIN

• Sram NX Eagle, 12s, Powerlock

SHIFT LEVERS

• Sram Trigger GX Eagle, 12s, X-Actuation 1:1

DERAILLEUR HANGER

• Mondraker M071

WEIGHT

• 16.1 kg
