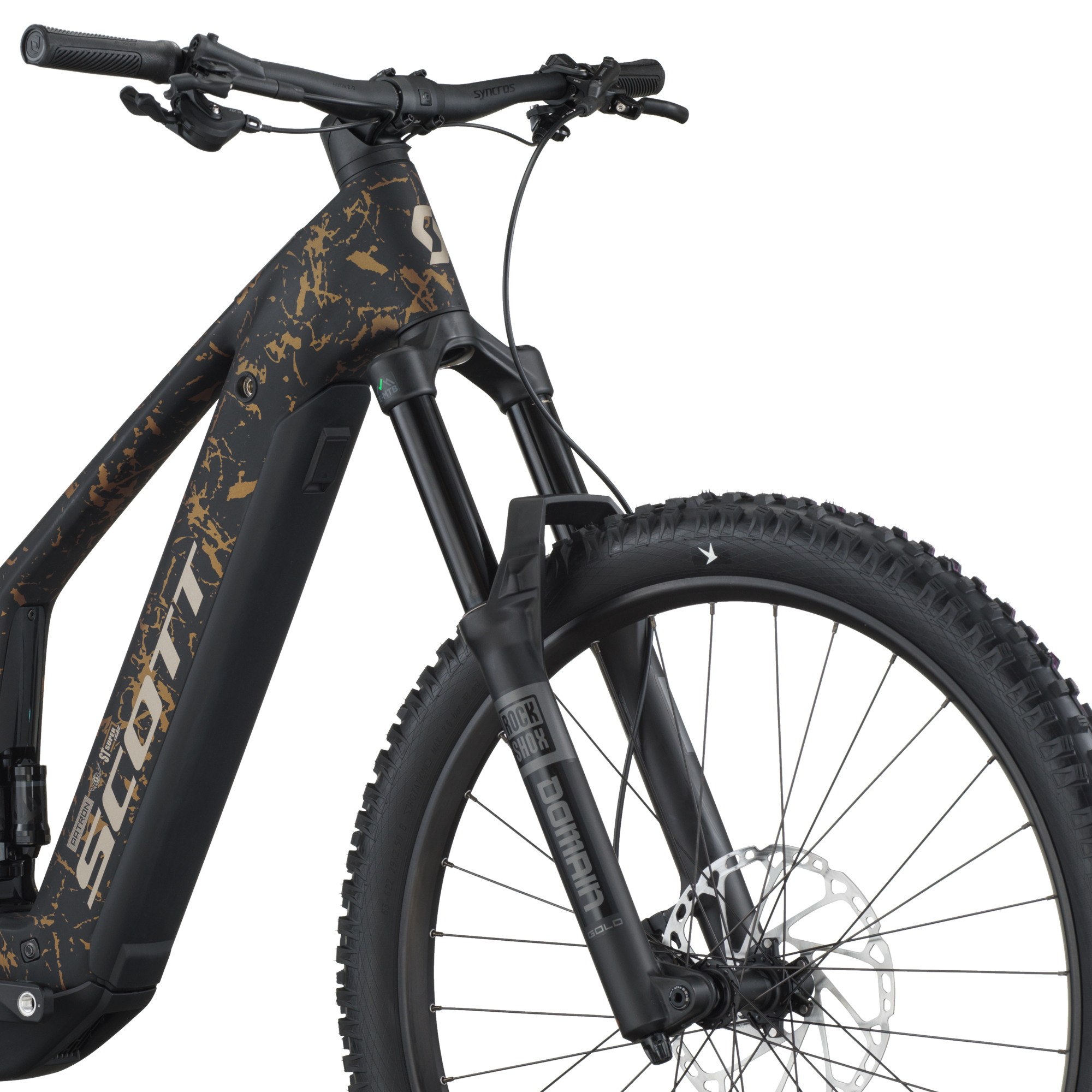

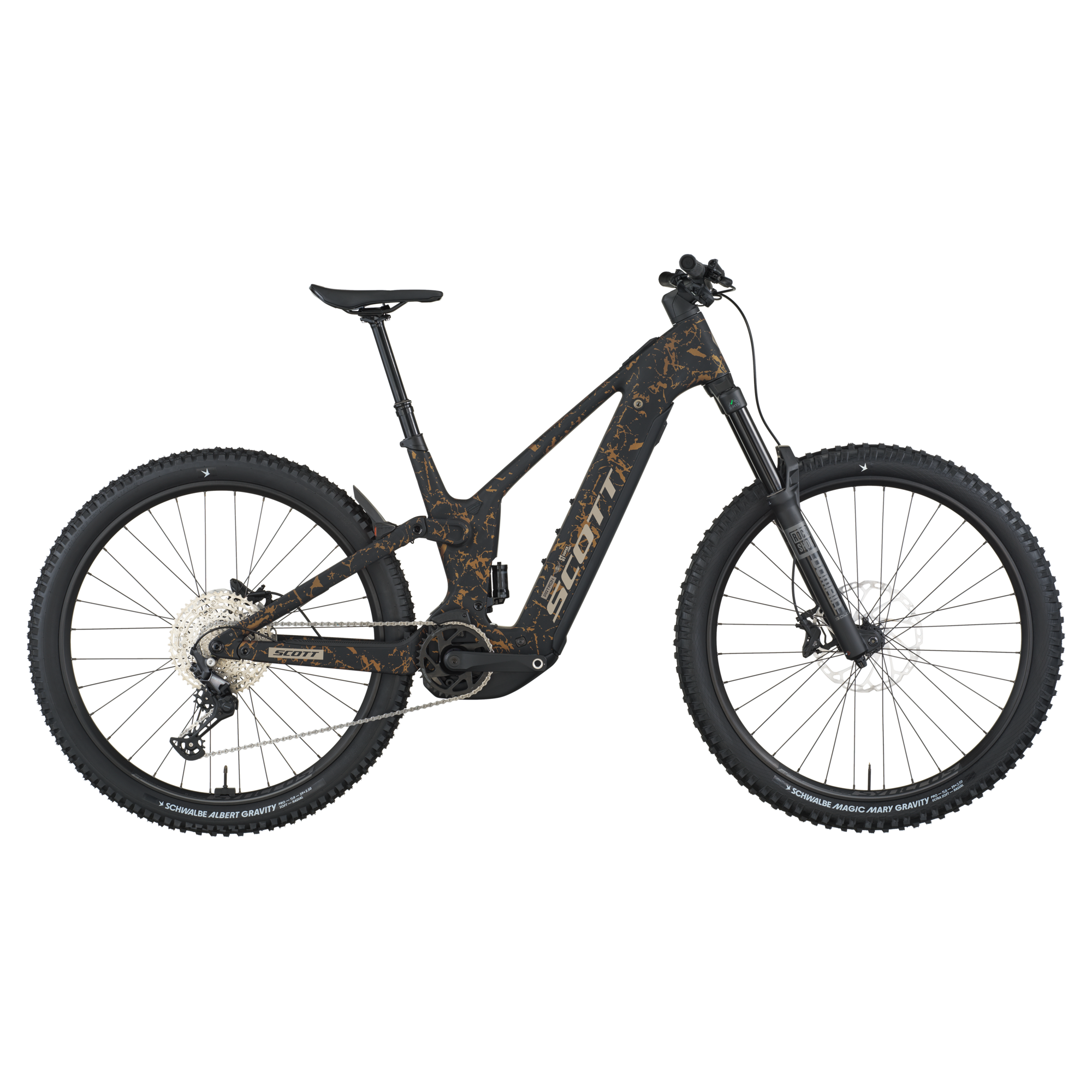

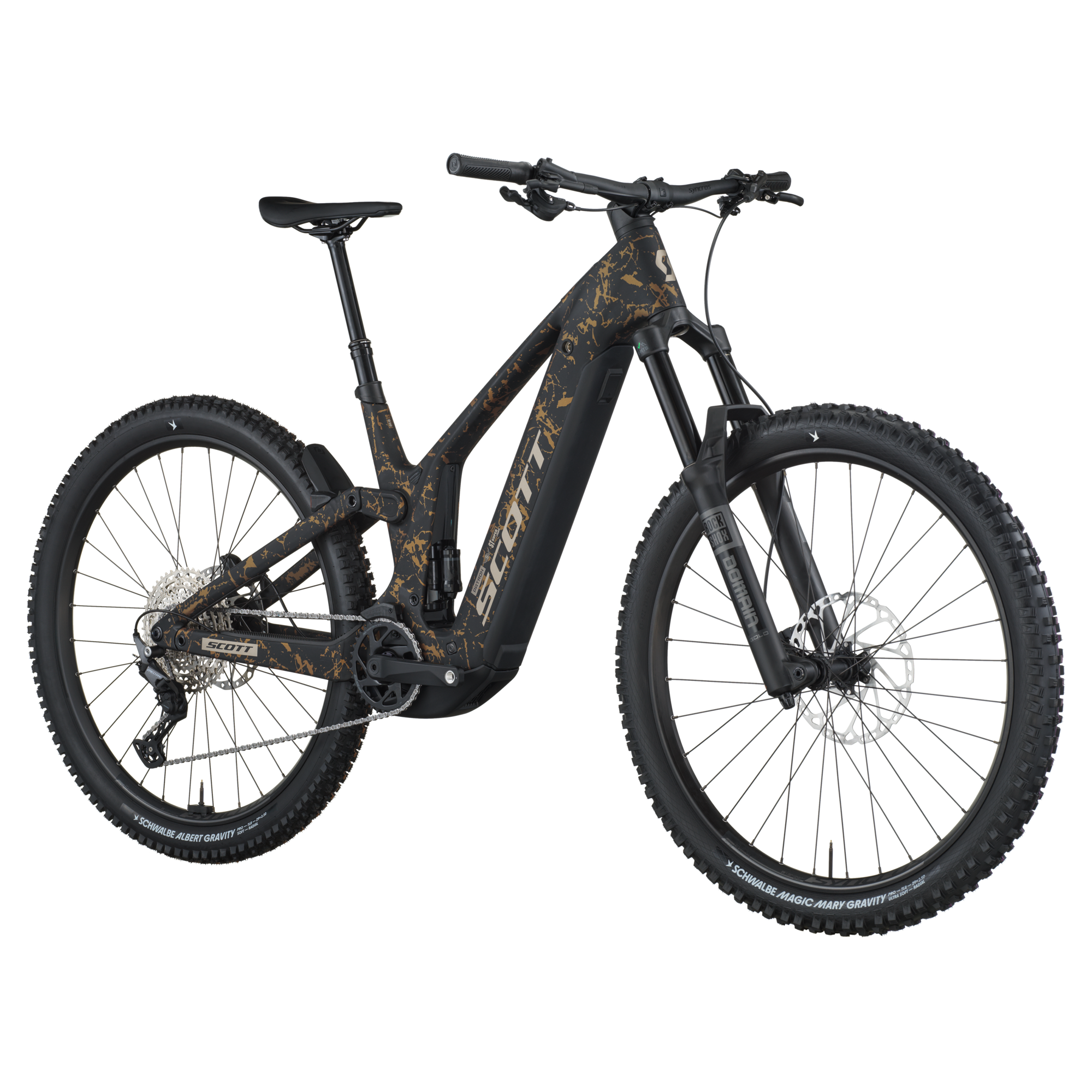

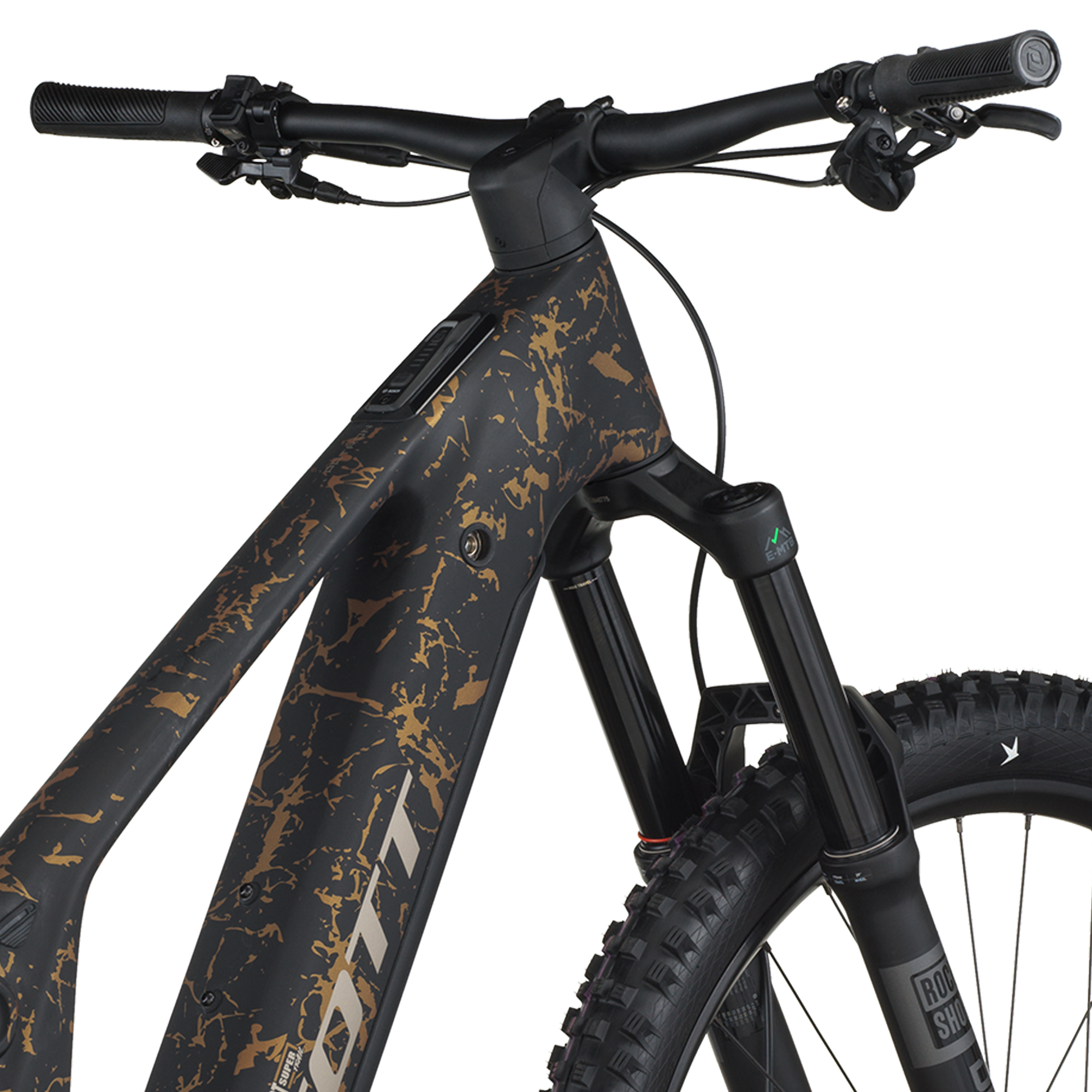

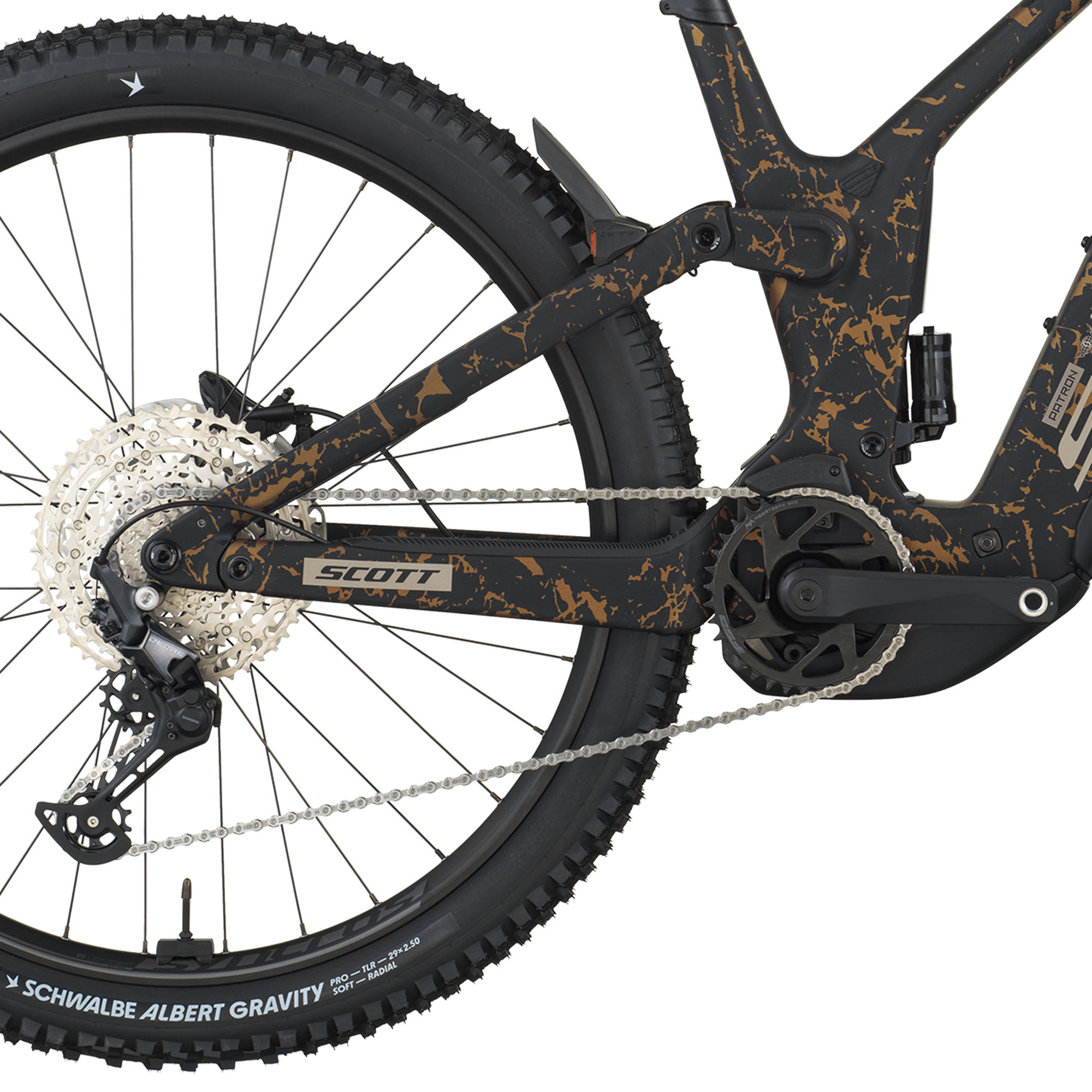

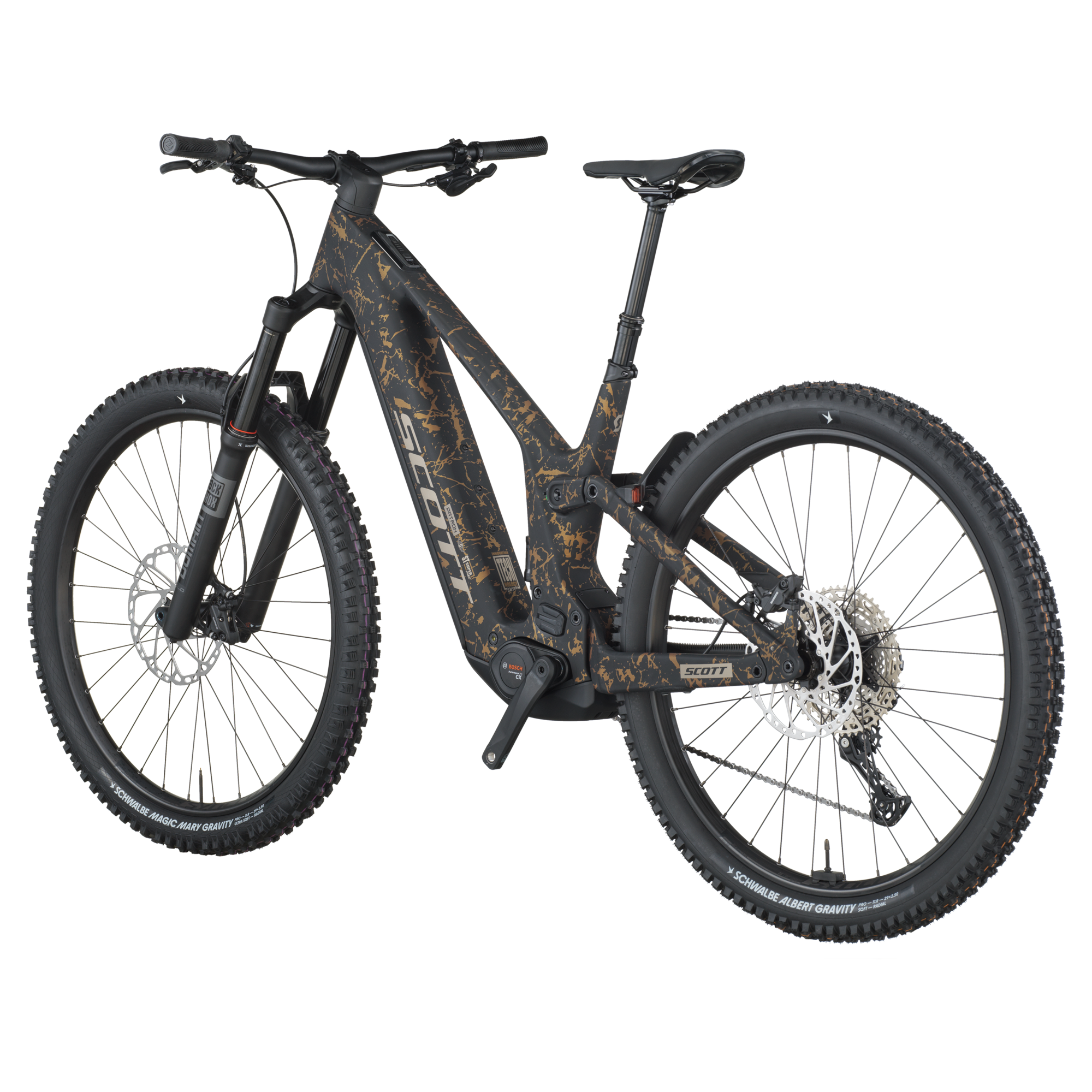

Scott Patron ST 910 Full-Suspension E-Mountain Bike

• Carbon Main Frame, Alloy Rear Triangle
• Bosch CX, 800Wh PowerTube, SmartSystem Engine System
• RS Domain R 170mm Fork
• RS SuperDeluxe, 150mm Shock
• Shimano Deore 12 Speed Drivetrain
• Shimano Deore 4 Piston Disc Brakes
• Schwalbe Foldable Tires
• Syncros Dropper Post and Parts

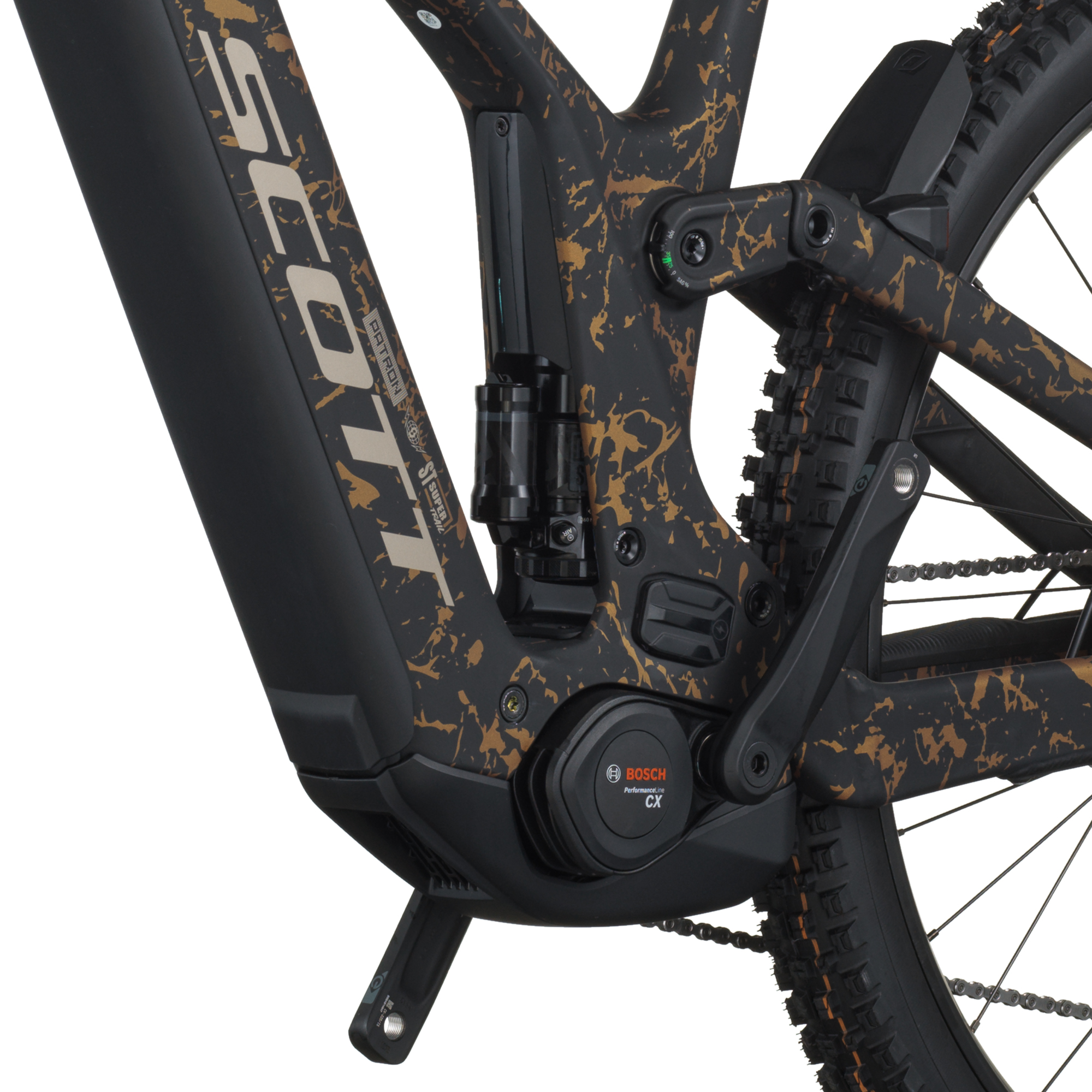

Motor & Battery
For the mountain biker looking to unlock new zones and ride more terrain than ever, the Patron eRIDE holsters the cutting edge of full-power motor and battery technology in a package built for singletrack domination. With the latest Bosch Performance CX drive unit paired with the 800Wh Powertube battery, the Patron is your ticket to freedom in the mountains.

Patented Integrated Shock Technology
A stellar day on the trails begins with stellar suspension design, and the Patron’s 150mm of integrated travel will keep you tracking the ground smoothly no matter the terrain. Integrating the shock has allowed us to achieve desired shock characteristics, while also granting us the space to ideally position elements such as the motor, the battery and a water bottle. Riding a range of varied terrain? The TracLoc remote on the handlebar alters suspension characteristics with just a oush of the thumb, allowing you to match your suspension to the trail ahead.

Frame Construction
The Patron eRIDE lineup features carbon and alloy models, both meticulously engineered to harness the unique charactersitics of each material. Subjected to the highest degree of testing and numerous iterations in the development phase, the Patron eRIDE exhibits the perfect blend of stiffness and strength and weight distribution to lead to an unmatched ride feel - especially when things get rough.

Accessories & Compatibilities
Featuring tailor made details such as integrated fender and LED rear lights, the Patron eRIDE has been developed to be a “just get on and ride” kind of bike. To take this a step further, the Patron is pre-wired and ready for you to link up a front light to the main battery if you desire. A range of Syncros accessories are also available for the Patron eRIDE such as a kickstand, a rear rack or an action camera mount.

Cable Integration
Fact: With E-bikes come cables. Thankfully, on the Patron eRIDE, these are all cleanly integrated into the frame to hide them from sight, protect them from the elements and ensure no unnecessary bends impede on their function.

• Frame: Bosch Smart System, UDH Interface, 12x148mm with 55mm Chainline
  Virtual 4 Link kinematic, Adjustable head angle
  Integrated Suspension Technology
  Syncros Cable Integration System
  Bosch PowerMore Ready
  Kickstand mount
  Carbon Main Frame, Alloy SST-CST
• Travel Front: 170mm, Rear: 150mm
• Fork: RockShox Domain R Air, E-Bike, Reb Adj., 15x110mm axle
  44mm offset, tapered steerer, 170mm travel
• Rear Shock: RockShox SuperDeluxe, DebonAir Linear, Trunnion, Reb Adj., T185X55mm
• Drive Unit: EU: 25kmh, INT: 20mph
  Bosch Performance Line CX (BDU384Y)
• Battery: PowerTube 800Wh
• Display: Bosch System Controller, Mini Remote
• Charger: 4A Charger
• Rear Derailleur: Shimano Deore RD-M6100 SGS
  Shadow Plus, 12 Speed
• Shifters: Shimano Deore SL-M6100-IR, Rapidfire Plus
• Crankset: FSA Alloy
• Chainguide: e*thirteen, e*spec Slider
• Chainring: FSA 12 Speed 36T chainring
• Chain: Shimano CN-M6100
• Cassette: Shimano CS-M6100, 10-51
• Brakes: Shimano Deore M6120 4-Piston Disc
• Rotor Front: SM-RT64 CL 220mm, Rear: SM-RT64 CL 203mm
• Handlebar: Syncros Hixon 2.0 Alloy 6061
  Size S & M 15mm rise, Size L & XL 25mm rise, back sweep 8°, 780mm
  Syncros Endurance lock-on grips
• H'stem: Syncros AM 2.0
  Syncros Cable Integration System
  4° rise, 6061 Alloy, 31.8mm, 1 1/8"
• Seatpost: Syncros Duncan Dropper Post 2.5, 31.6mm
  S size 125mm, M size 150mm, L size 170mm, XL size 200mm
• Seat: Syncros Tofino-E 2.5 Regular
• Headset: Syncros - Acros Angle adjust & Cable Routing HS System, +-0.6° head angle adjustment
  ZS56/28.6 – ZS56/40 MTB
• Front Hub: Formula CL-811, 15x110mm
• Rear Hub: Formula ECT-148M, Boost 148x12mm
• Spokes: Stainless Black
• Rims: Syncros MD30, 32H, 30mm, Pin Joint
  Tubeless ready
• Front Tire: Schwalbe Magic Mary 29x2.5", Gravity, Radial, Ultra Soft, Tubeless ready
  120TPI Foldable Bead
• Rear Tire: Schwalbe Albert 29x2.5", Gravity, Radial, Soft, Tubeless ready
  120TPI Foldable Bead
• Lights: Syncros integrated rear fender light
  Front Light Cable pre-installed
• Extras: Kickstand mount
• Approx weight in KG: 25.3
• Approx weight in LBS: 55.78
• Max. System Weight: 130kg
  The overall weight includes the bike, the rider, the equipment, and possible additional luggage.

*See all geometry information by clicking the size chart on this product page.
