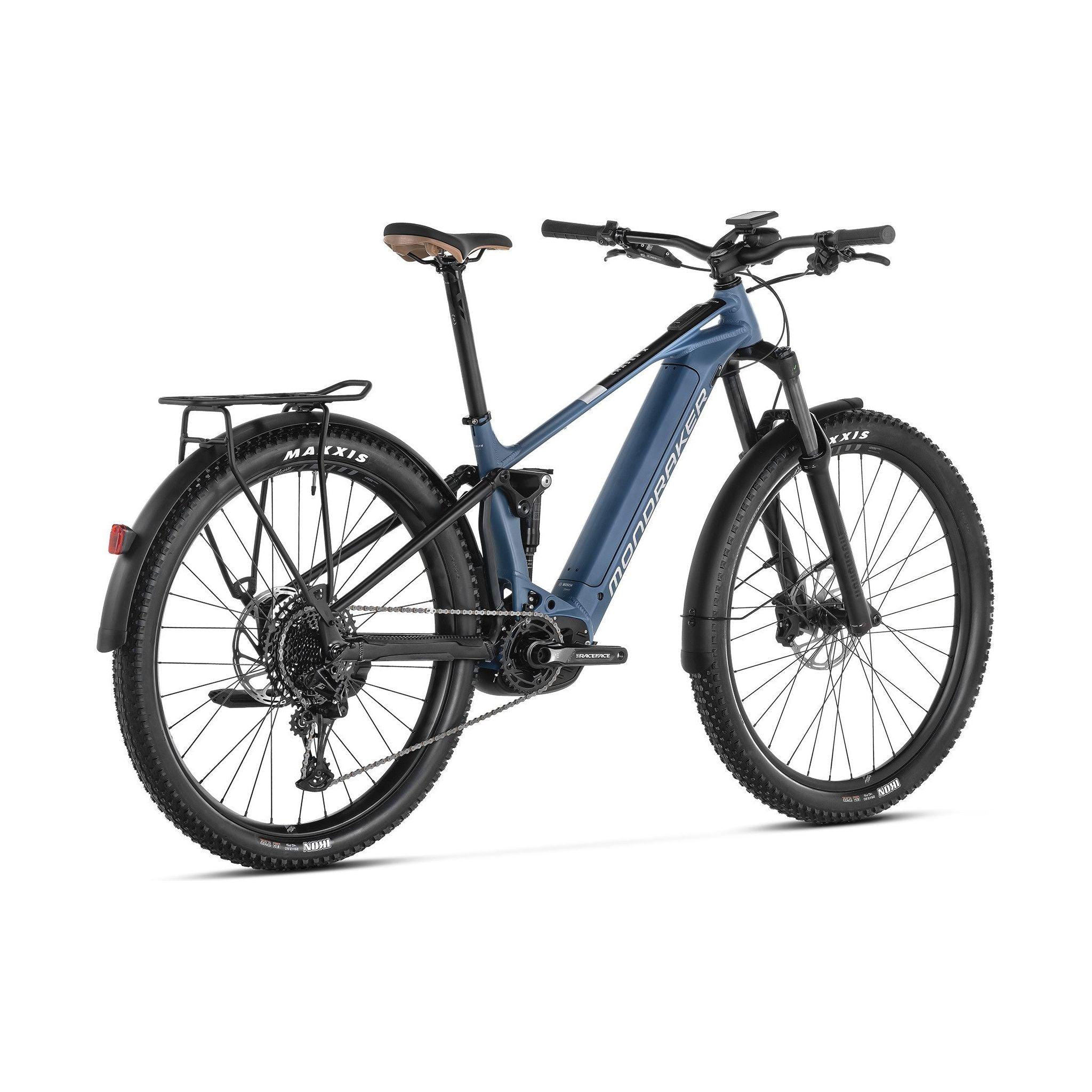

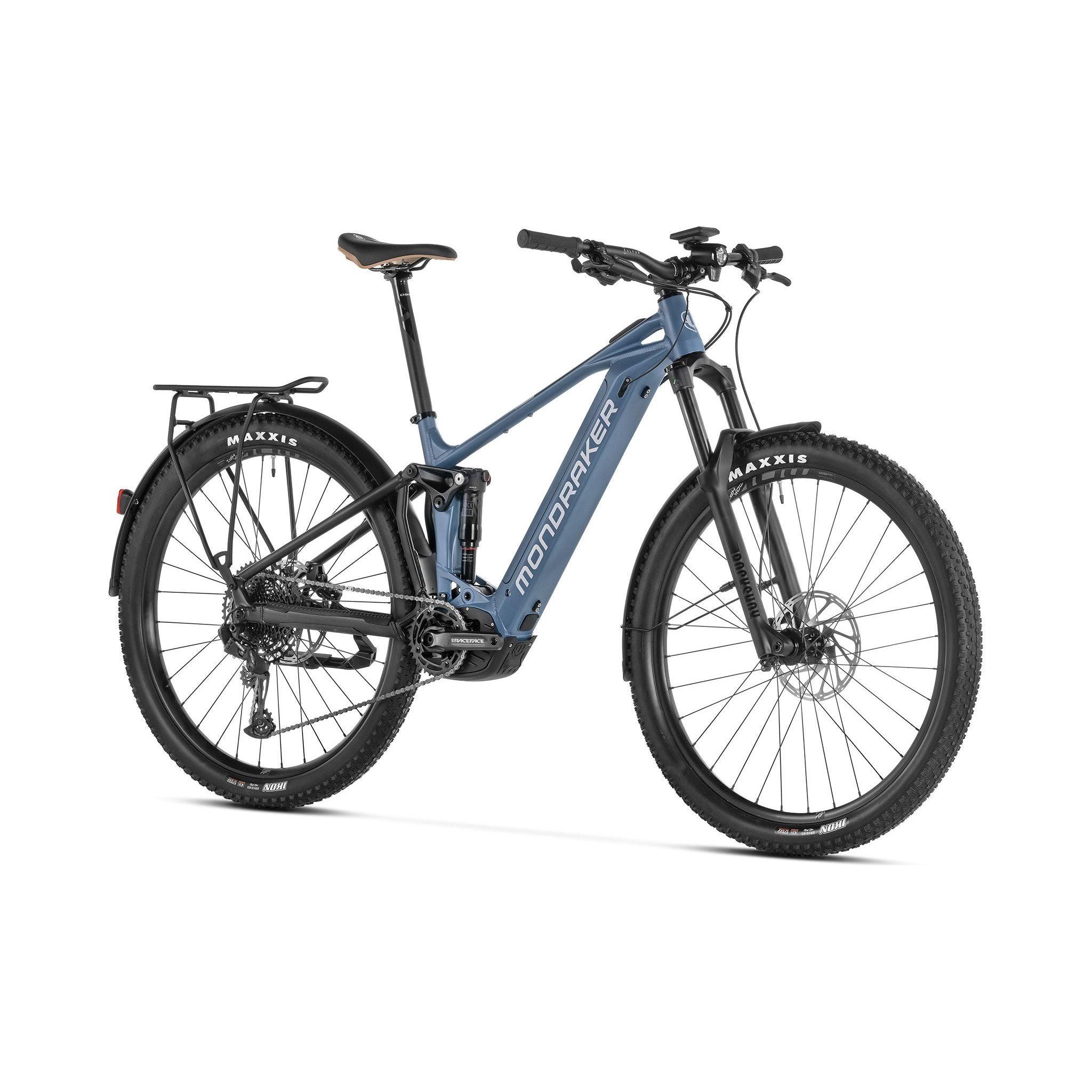

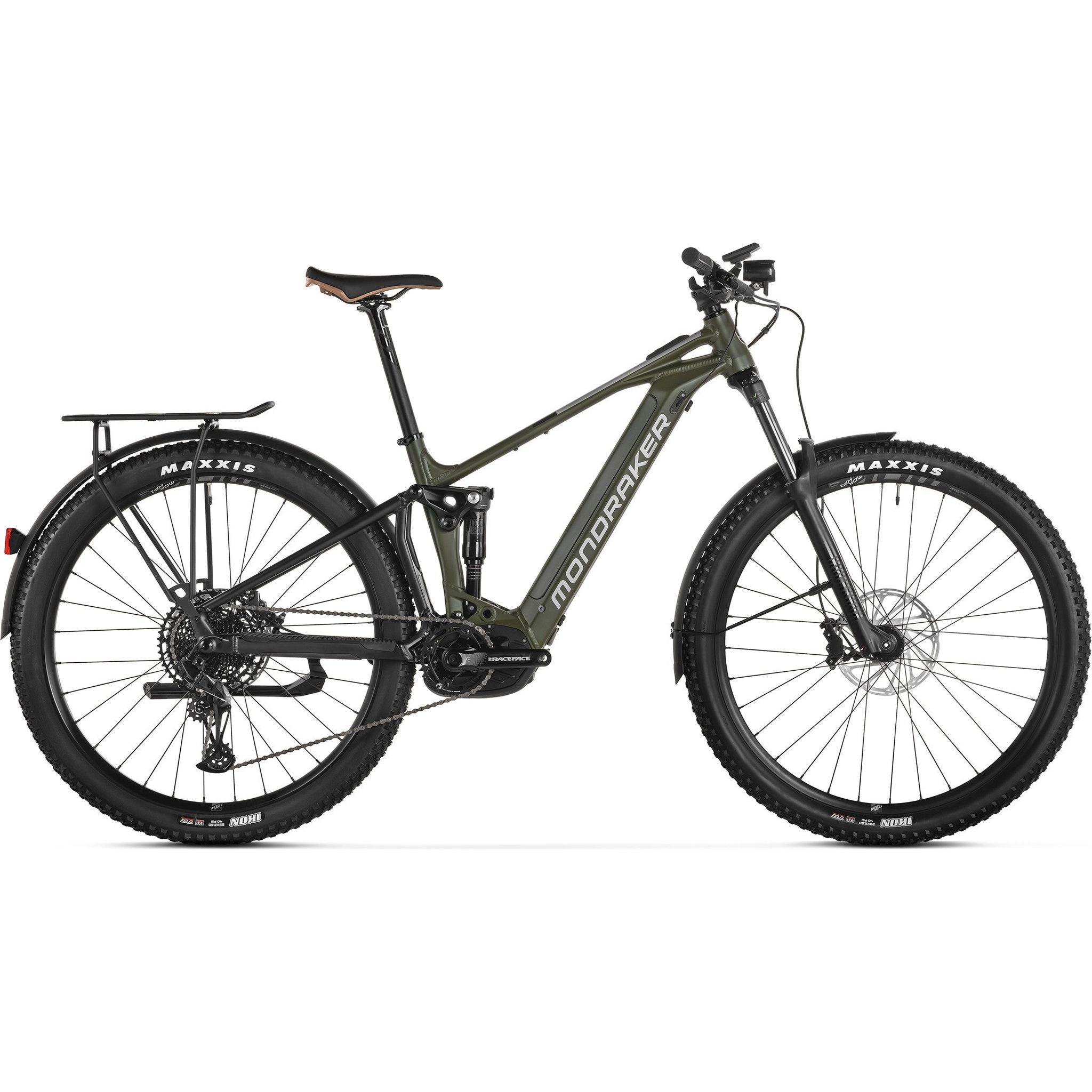

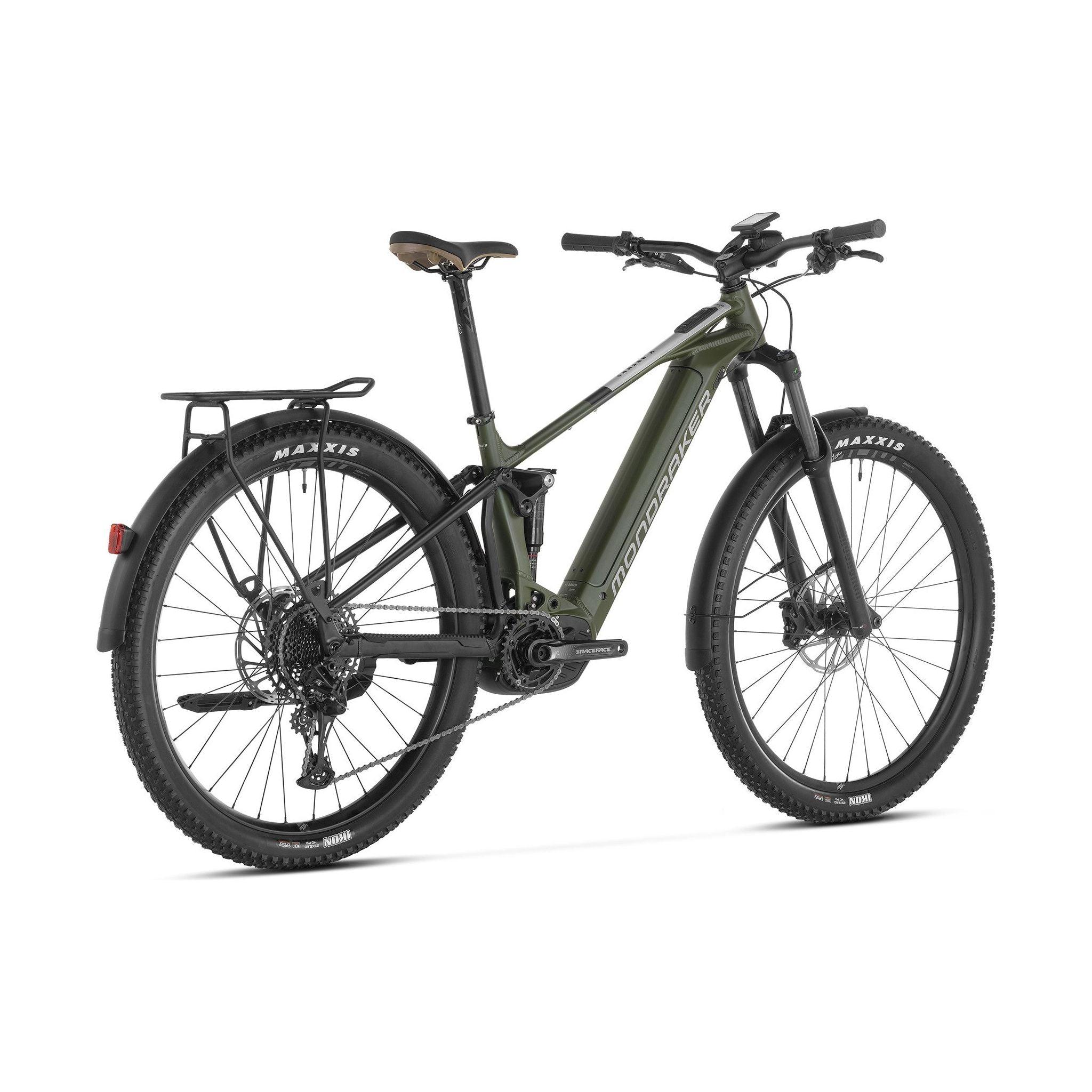

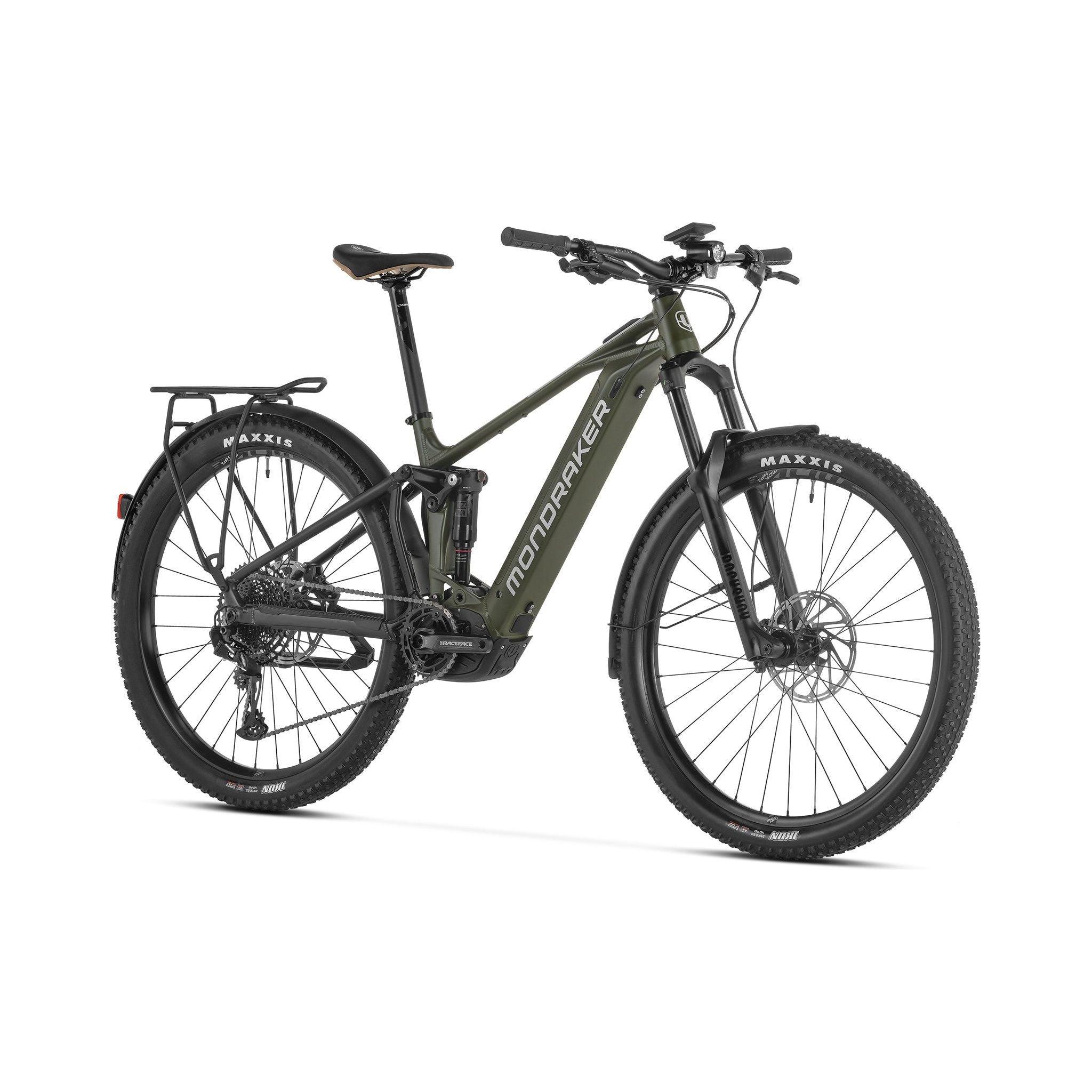

Mondraker Chaser X E-Mountain Bike 29"

Name: Mondraker Chaser X E-Mountain Bike 29"
Brand: Mondraker
SKU: 8435392881616
Price: 5997.5 NZD
Availability: OutOfStock

$5,997.50 NZD $11,995.00

Colour

Denim Blue / Black / Racing Silver Army Green / Black / Racing Silver

Size

S M L XL

1 in stock

Quantity

Description

The Mondraker Chaser X E-Mountain Bike is a high-performance electric mountain bike designed for tackling rugged trails with ease. Its lightweight aluminum frame and integrated electric motor provide powerful assistance for conquering steep climbs and navigating challenging terrain. With advanced suspension, responsive brakes, and premium components, the Chaser X could very well be your only steed, as it's capable of commuting on a daily basis, as well as going on off-road excursions on the weekends. From a technical standpoint, the Chaser X is decked out in all sorts of MTB-focused goodies.

WeightÂ 26,5 kg

Â

Features

Lightweight and durable aluminum frame
Integrated electric motor for powerful assistance
Advanced suspension system for exceptional traction and control
Responsive brakes for reliable stopping power
Premium components for top-tier performance
Sleek and aggressive design
Ideal for tackling rugged trails and steep climbs

Technical Specifications

Frame Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 140mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard
Sizes S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock RockShox Deluxe Select R DebonAir, 205x60mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings: Light compression, Linear rebound, 1 Token
Fork: RockShox Recon Silver RL 29, 150mm, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Headset: Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem: MDK Urban 35mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar: Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips Onoff Twin, 1lock-on, 135mm
SeatpostOnoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm
Saddle MDK urban
Front brake Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever Sram DB8, tool reach adjust, lever pivot bushings
Rims MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes
Spokes CN round stainless steel
Front hub Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
Rear hub Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts, HG freehub
Front tire Maxxis Ikon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Rear tire Maxxis Ikon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Crankset Race Face Aeffect ebike, 165mm
Rings Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Pedals Urban pedal resin black
Chain Sram SX Eagle, 12s, Powerlock
Rear derrailleur Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Casette Sram PG-1210, 11-50T, 12s
Derailleur hanger Mondraker M068
Others Front light: 50LUX output DC 6-12V, waterproof Alloy cage. Rear Light: Fender Mount, w/ Reflective, e-bike version, 6-12V. Fenders: Alloy black MDK custom fenders. Rack: Alloy MDK rear Rack, Max loading 25kg. Kickstand: Massload KSA18-40
Weight 26,5 kg
Display Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller
Motor: Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM
Battery: Bosch Powertube 625Wh
