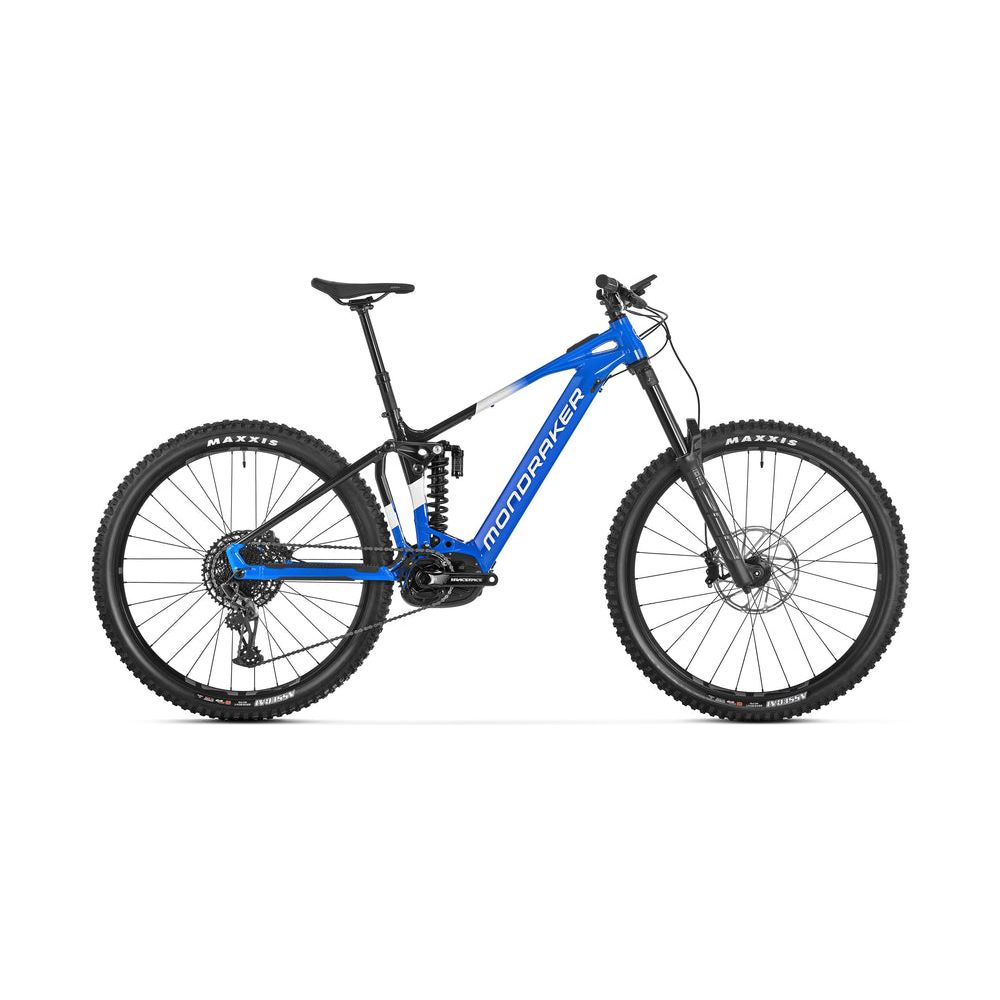

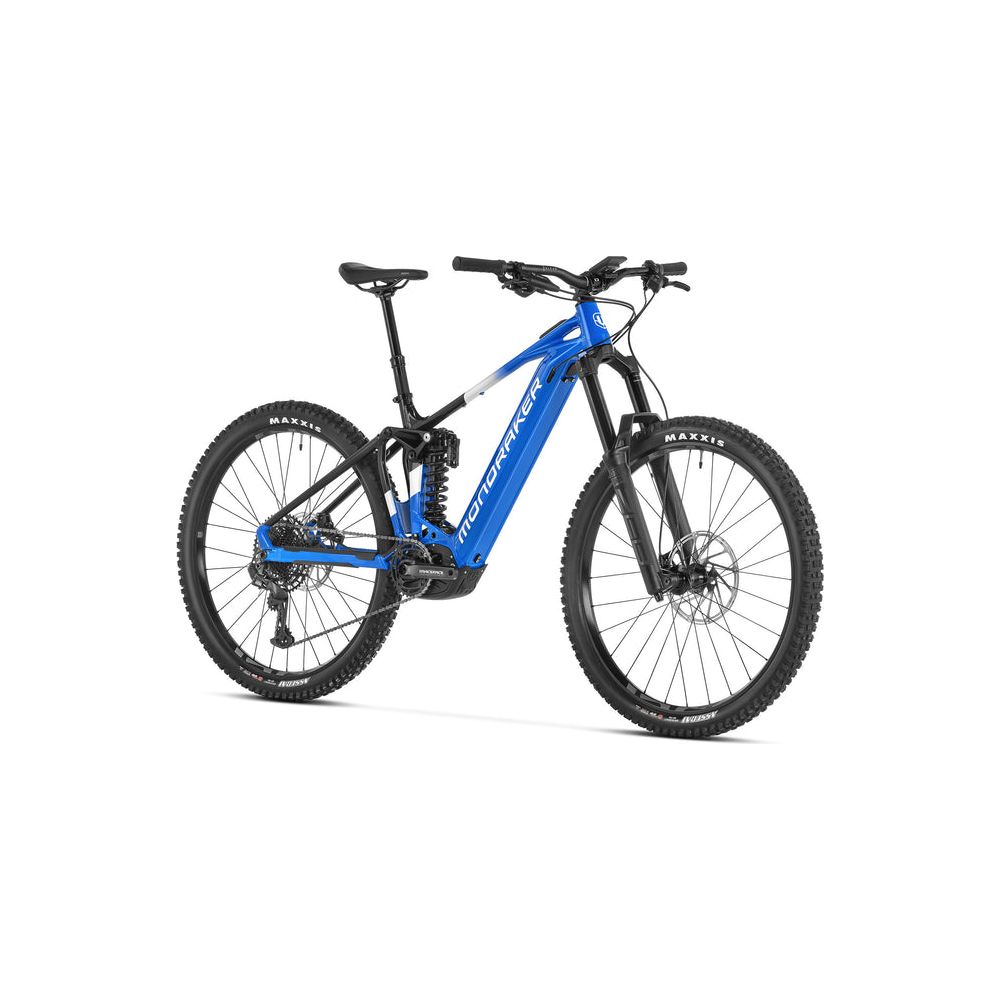

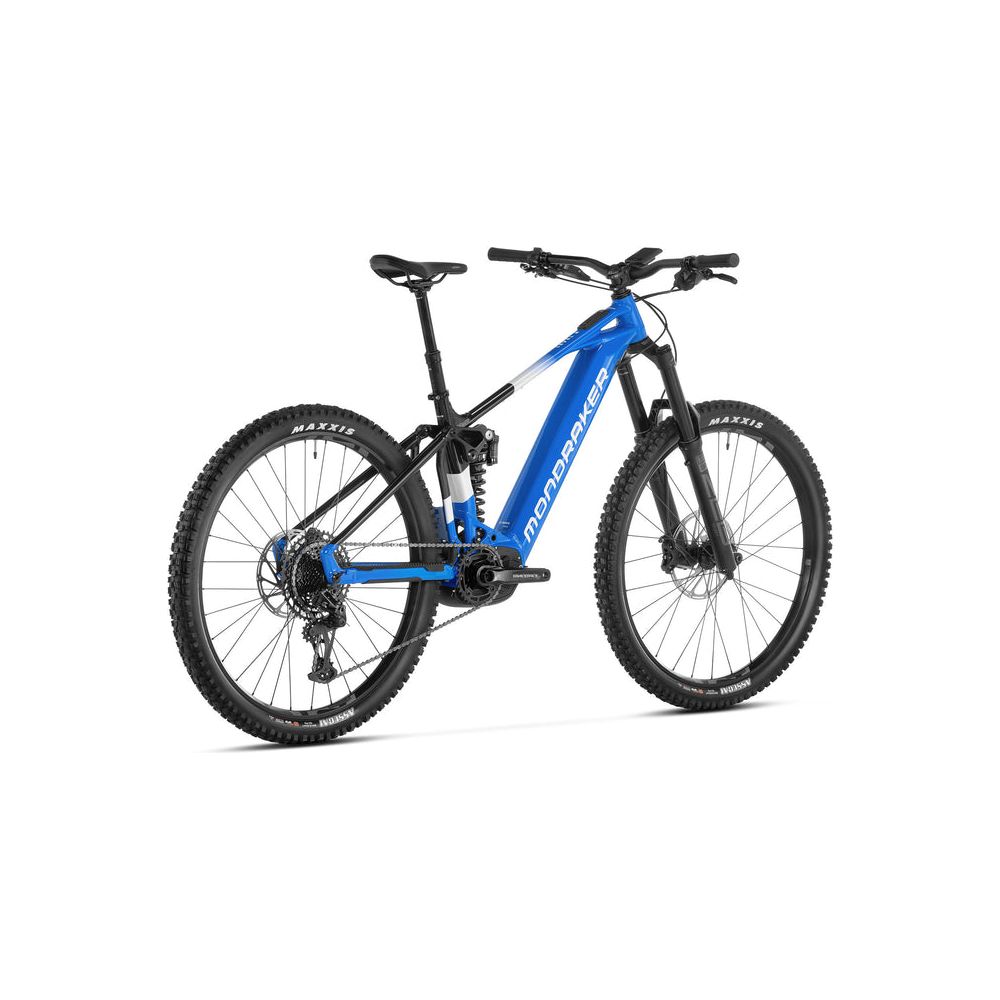

Mondraker Level R eBike

Frame

• Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers

Rear shock

• RockShox Super Deluxe coil Select R, 225x75mm. Settings: external bottom out, low-speed rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings

Fork

• RockShox ZEB Select Charger RC 29, 180mm, e-bike approved, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, low-speed rebound, air preload

Stem

• Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Grips

• Onoff Twin, 1lock-on, 135mm

Saddle

• FIZIK Terra Aidon X5 145mm

Rear brake

• Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Rims

• e*thirteen E*Spec, IW30 Hookless, 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F / 32R spokes

Front hub

• e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Front tire

• Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Crankset

• Race Face Aeffect ebike, 165mm

Chain

• Sram SX Eagle, 12s, Powerlock

Shift levers

• Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click

Derailleur hanger

• Mondraker M068

Display

• Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller

Battery

• Bosch Powertube 750Wh

Shock settings

• Medium compression, Linear rebound. Spring rate: S size 300 lbs, M size 300 lbs, L size 350 lbs, XL size 400 lbs

Headset

• Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

Handlebar

• Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Seatpost

• Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

Front brake

• Sram DB8, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Brake lever

• Sram DB8, tool reach adjust, lever pivot bushings

Spokes

• e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers

Rear hub

• e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub

Rear tire

• Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Rings

• Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

Rear derrailleur

• Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Casette

• Sram PG-1210, 11-50T, 12s

Weight: 26,7 kg

Motor: Bosch Performance Line CX Cruise 25 km/h) GEN4 SMART SYSTEM

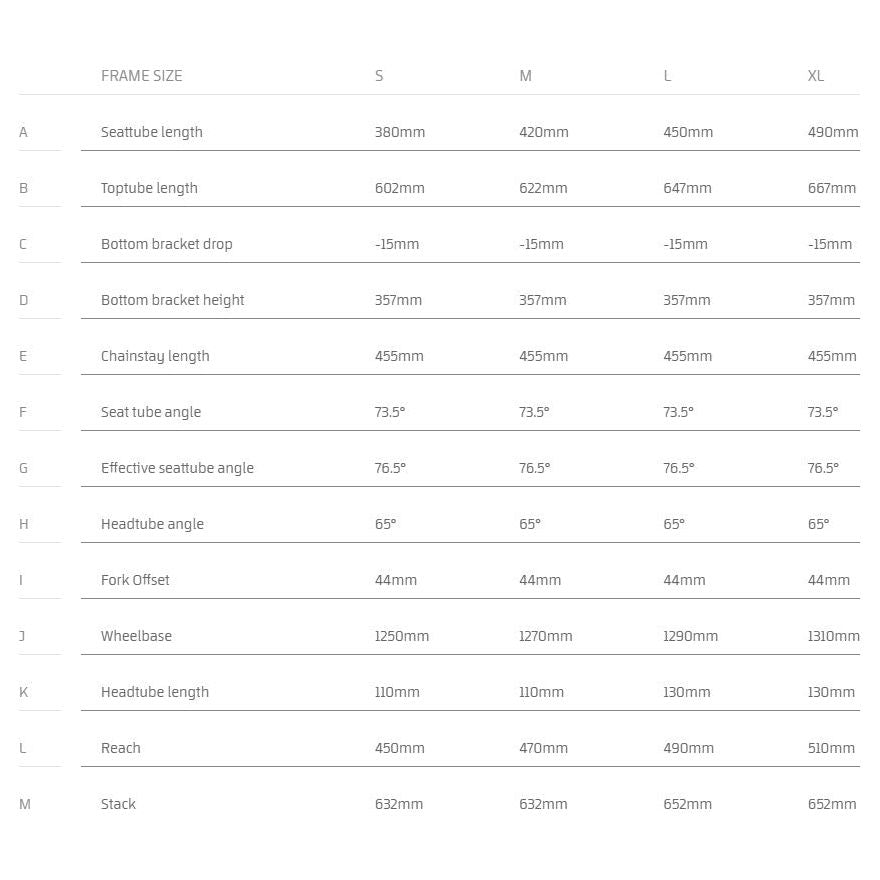

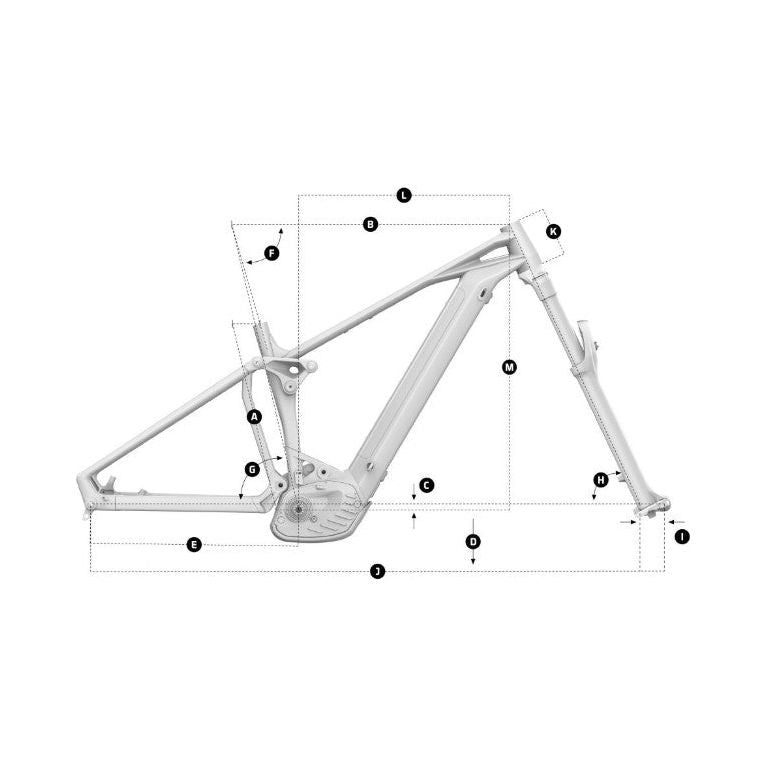

Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 490mm
