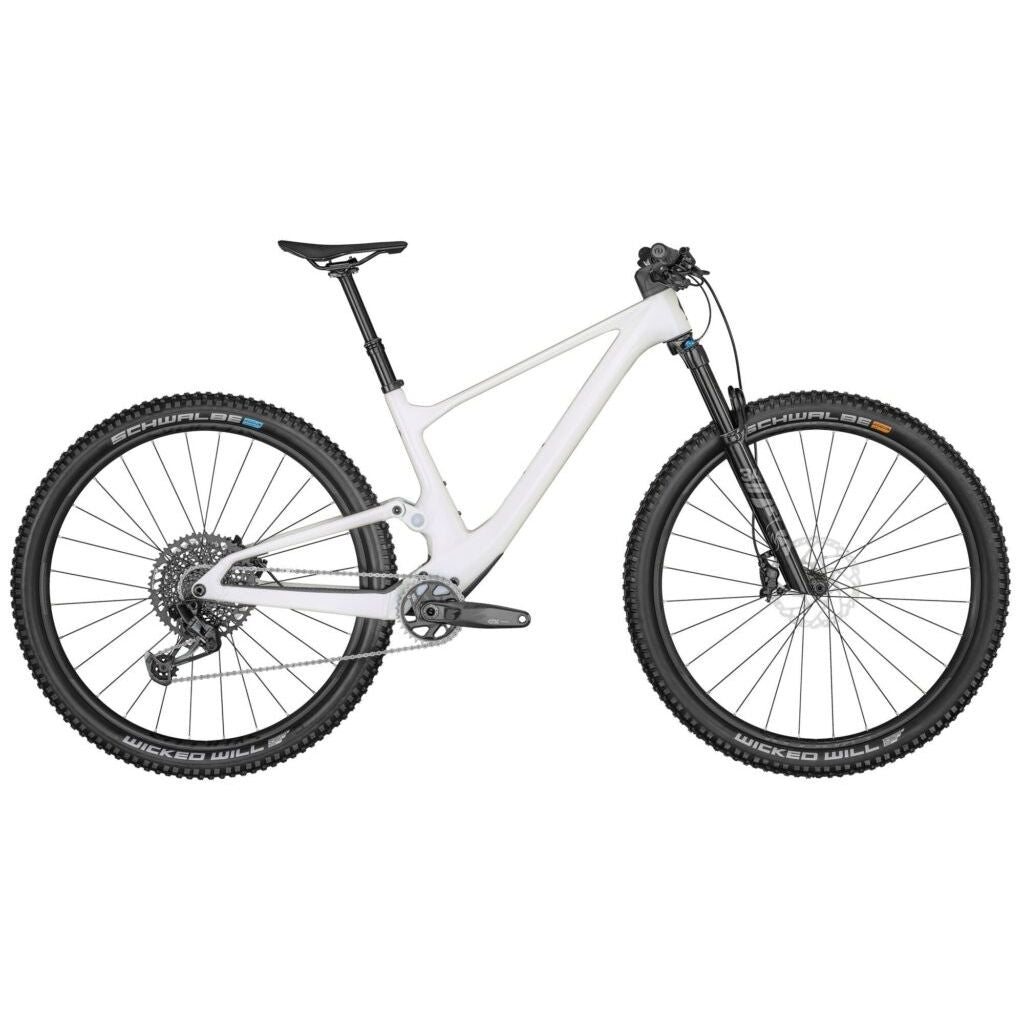

Scott Spark 920 Mountain Bike

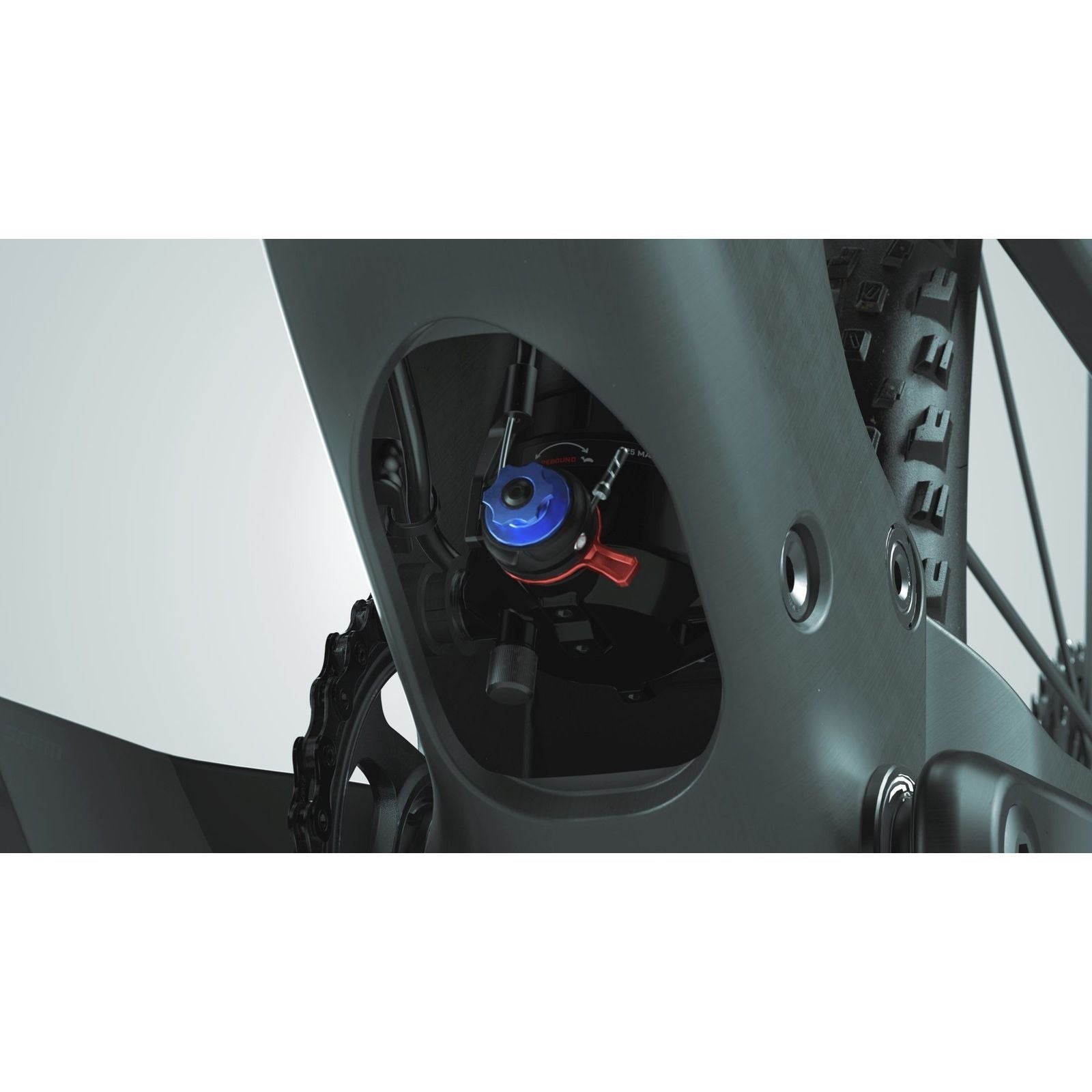

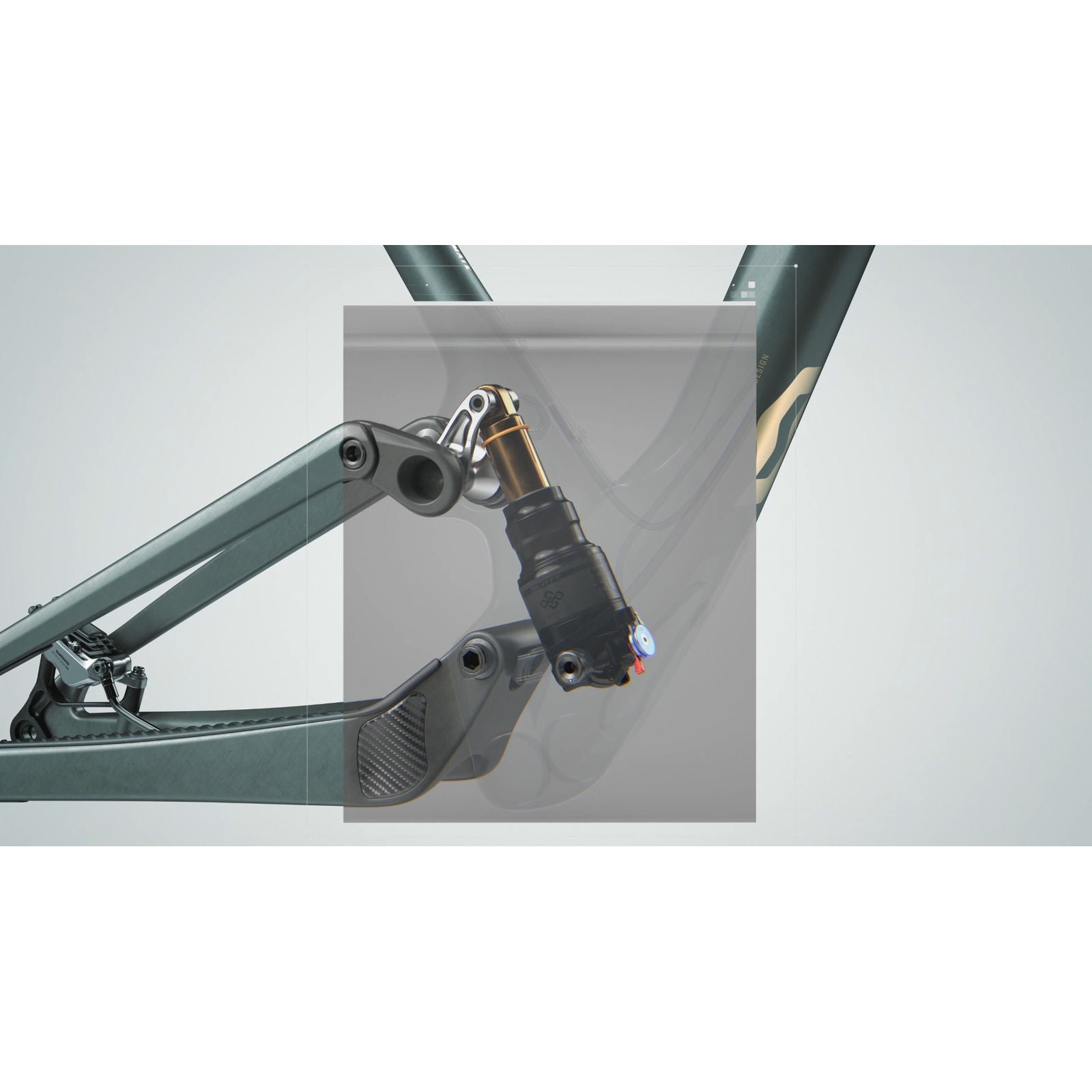

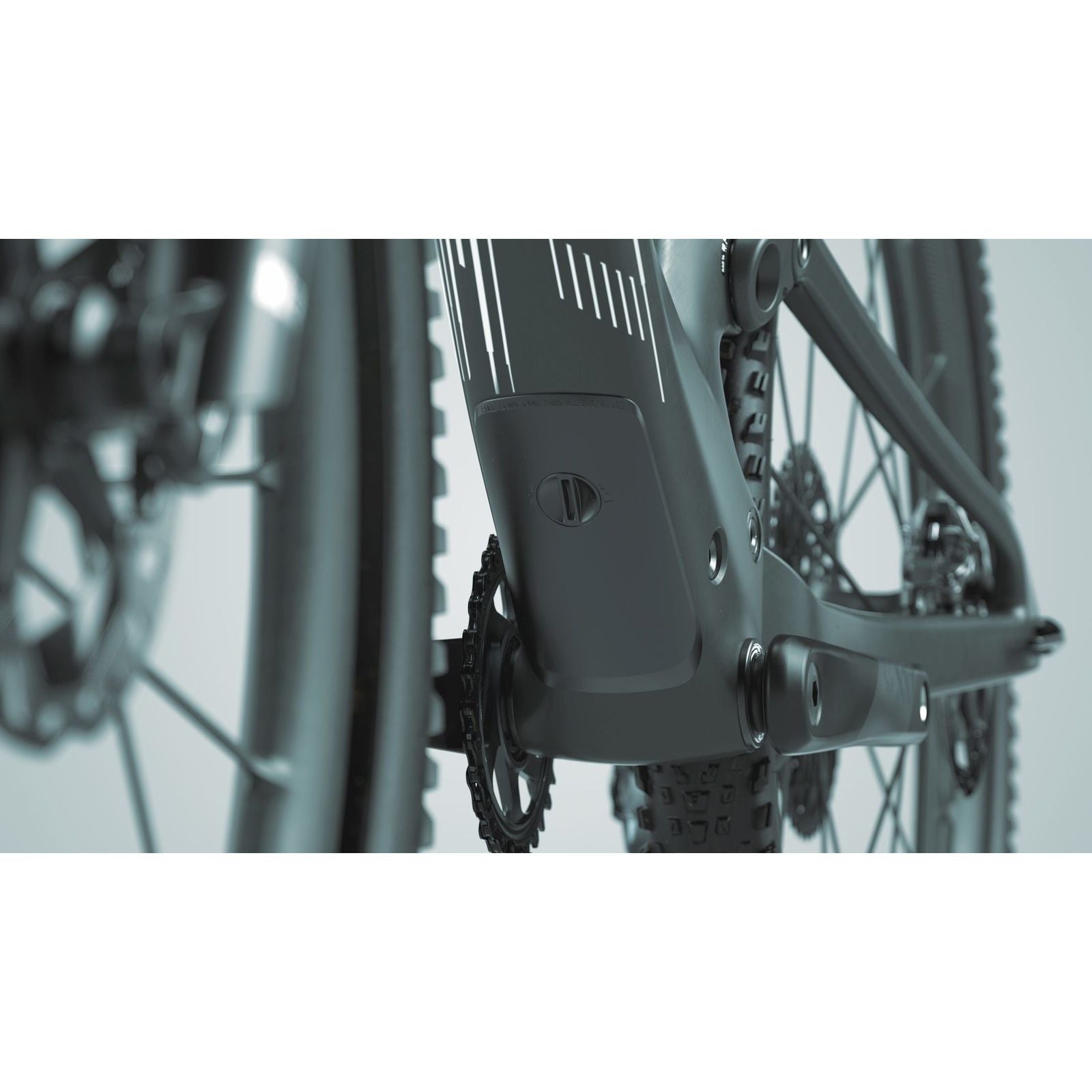

• Integrated Suspension Technology (rear shock located within frame, accessible via lower hatch)
• Single Pivot/Flex Stays rear suspension design

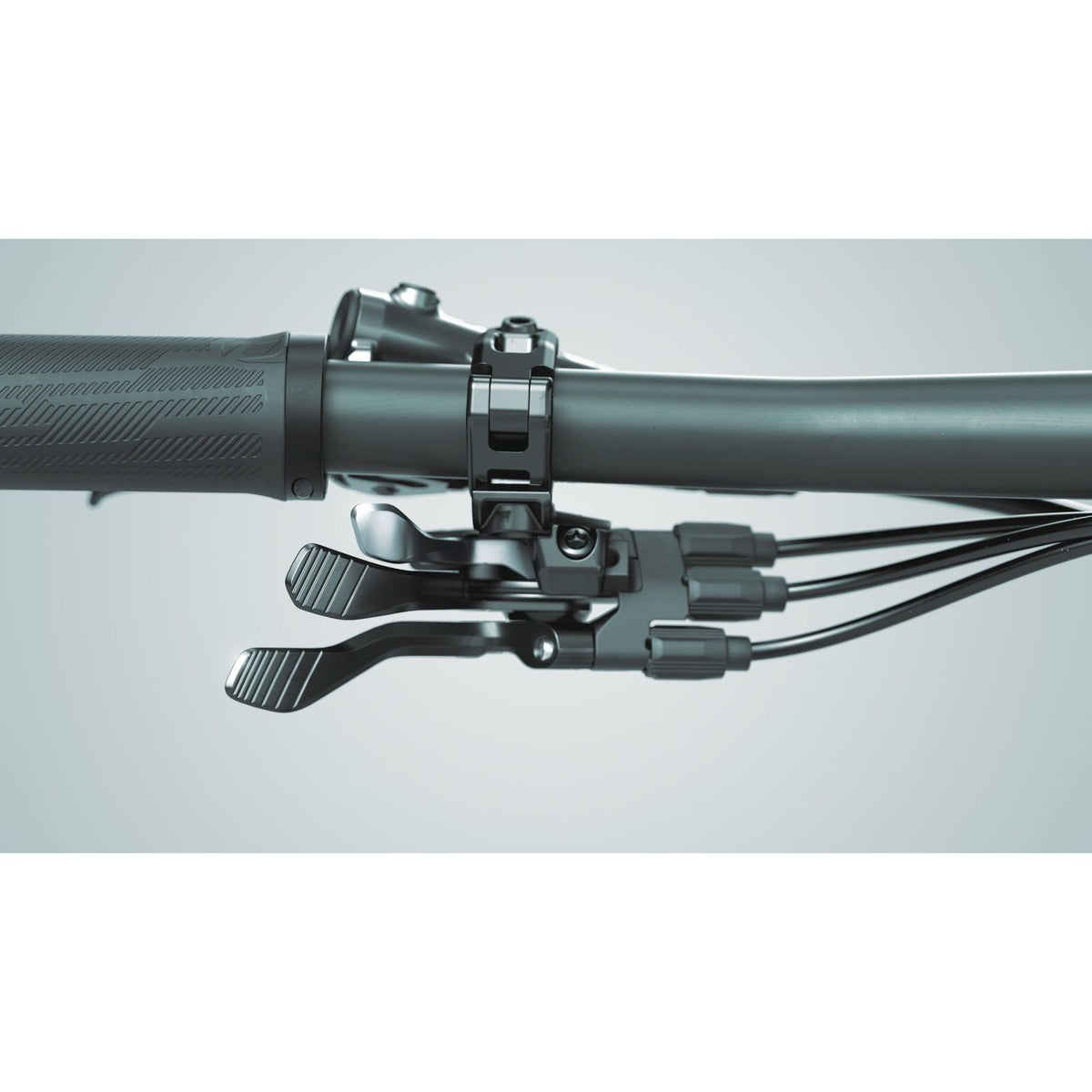

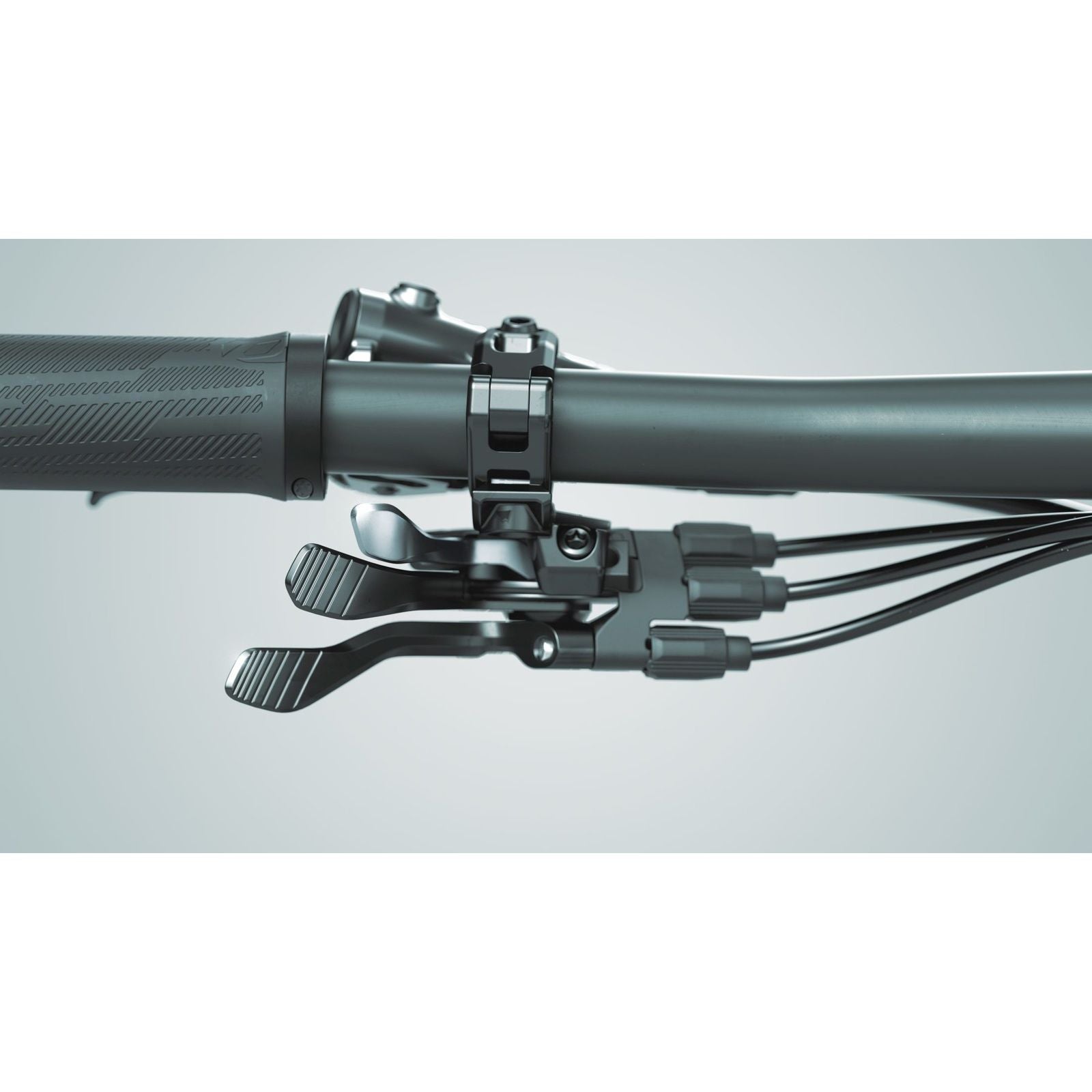

• Scott TwinLoc 2 system provides three suspension modes (Lockout, Traction Control, Descend) for shock and fork via handlebar-mounted remote
• Rear travel by mode: Lockout 0mm; Traction Control 80mm; Descend 120mm
• Head angle adjustable (+/- 6°) by rotation of headset cups
• Internal cable routing, with rear cables/hose routed through stem/headset
• Integrated sag meter at rocker link pivot
• Port in non-drive-side seat tube to view rear travel o-ring on shock
• SRAM UDH (Universal Derailleur Hanger)
• Includes Syncros rear axle; removable lever with 6mm allen, T30, and T25 tools

• Frame

HMF carbon front triangle, 6011 alloy swingarm, molded chainstay protection

• Fork

FOX FLOAT 34 Performance, GRIP damper, 3-mode adjust via Scott TwinLoc 2 (Lockout, Traction Control, Descend), rebound adjust, 44mm offset, 130mm

• Shock

FOX FLOAT DPS NUDE 5T, EVOL, 3-mode adjust via Scott TwinLoc 2 (Lockout, Traction Control, Descend), rebound adjust, trunnion mount, 165mm x 45mm

• Hubs

Syncros Silverton 2.5 wheelset, 110x15mm Boost front, 148x12mm Boost rear with XD driver

• Wheels

Syncros Silverton 2.5-30, 30mm width, 28 hole, tubeless ready

• Wheel Size

29"

• Spokes

Syncros Silverton 2.5 wheelset

• Tires

Schwalbe Wicked Will, EVO, Super Race, Addix Speed Soft (front), Addix Speed Grip (rear), TLE, 29" x 2.4"

• Chain

437.5mm, None, SRAM GX Eagle, 32 tooth, SRAM NX Eagle, 12-speed

• Crank

SRAM GX Eagle DUB, Length: 170mm (SM), 175mm (MD/LG/XL)

• Bottom Bracket

331.5mm (43.5mm drop), SRAM DUB, 92mm PressFit

• Rear Derailleur

SRAM GX Eagle, 12-speed

• Shifters

SRAM GX Eagle, 12-speed

• Brakeset

Shimano SLX M7120, 4-piston, Shimano RT66 6-bolt 180mm rotors, Shimano SLX M7120

• Handlebar

Syncros Fraser 1.5 DC, double-butted 7075 alloy, mini rise, 760mm width, 8° backsweep, 31.8mm clamp diameter

• Saddle

Syncros Tofino 2.0 Regular, CrMo rails

• Seatpost

Syncros Duncan 2.0 dropper, remote integrated with Scott TwinLoc 2 lever, 31.6mm, Single bolt, 31.6mm, Single bolt
Drop: 125mm (SM/MD), 150mm (LG/XL)

• Stem

Syncros Fraser 1.5 DC, 7050 alloy, Cable Integration System, 0° rise, 31.8mm bar clamp, Length: 50mm (SM), 60mm (MD/LG), 70mm (XL)

• Grips

Syncros Pro, lock-on

• Headset

Syncros/ACROS angle-adjust and cable routing HS System; +/- 0.6° head angle adjustment; ZS56/28.6 - ZS56/40 MTB
