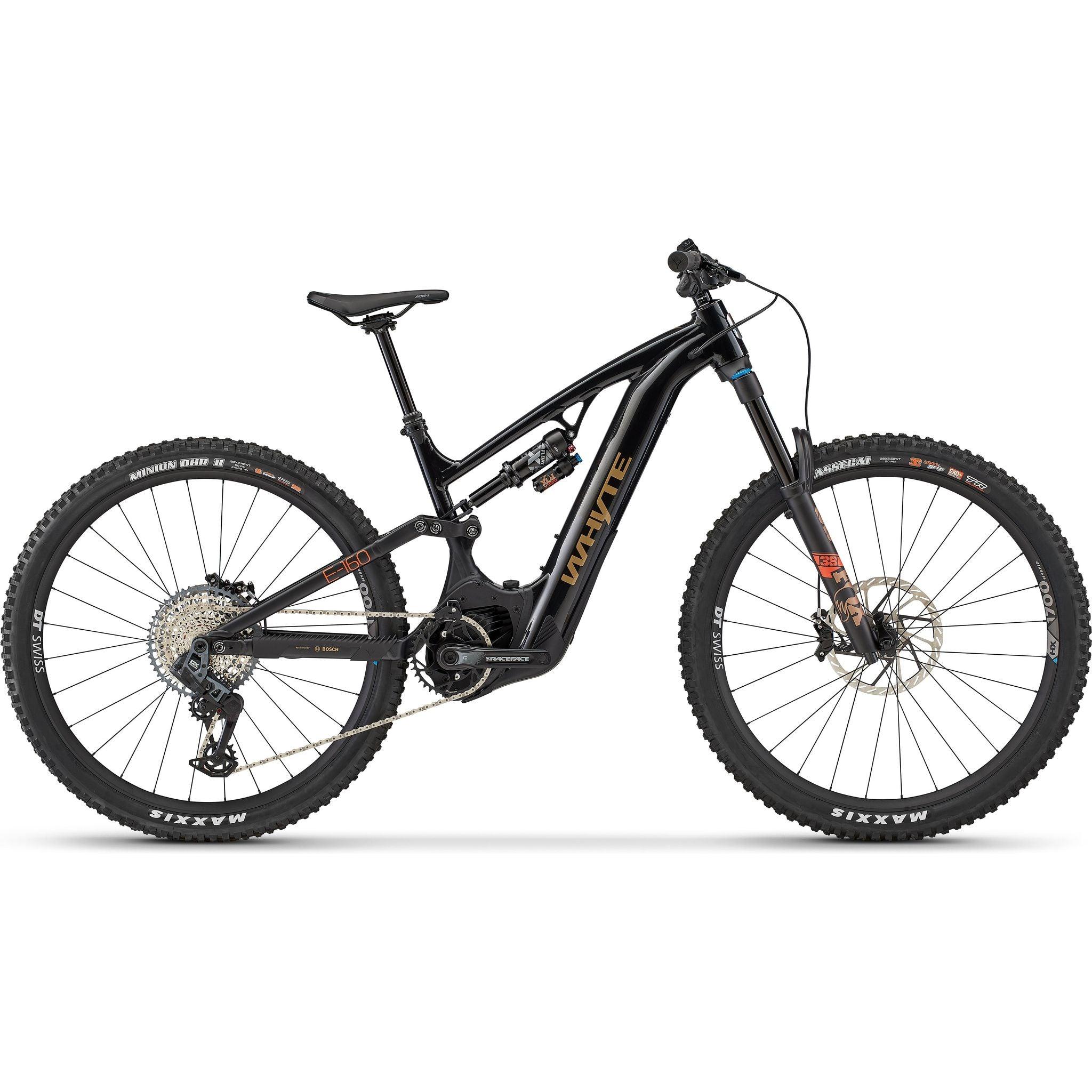

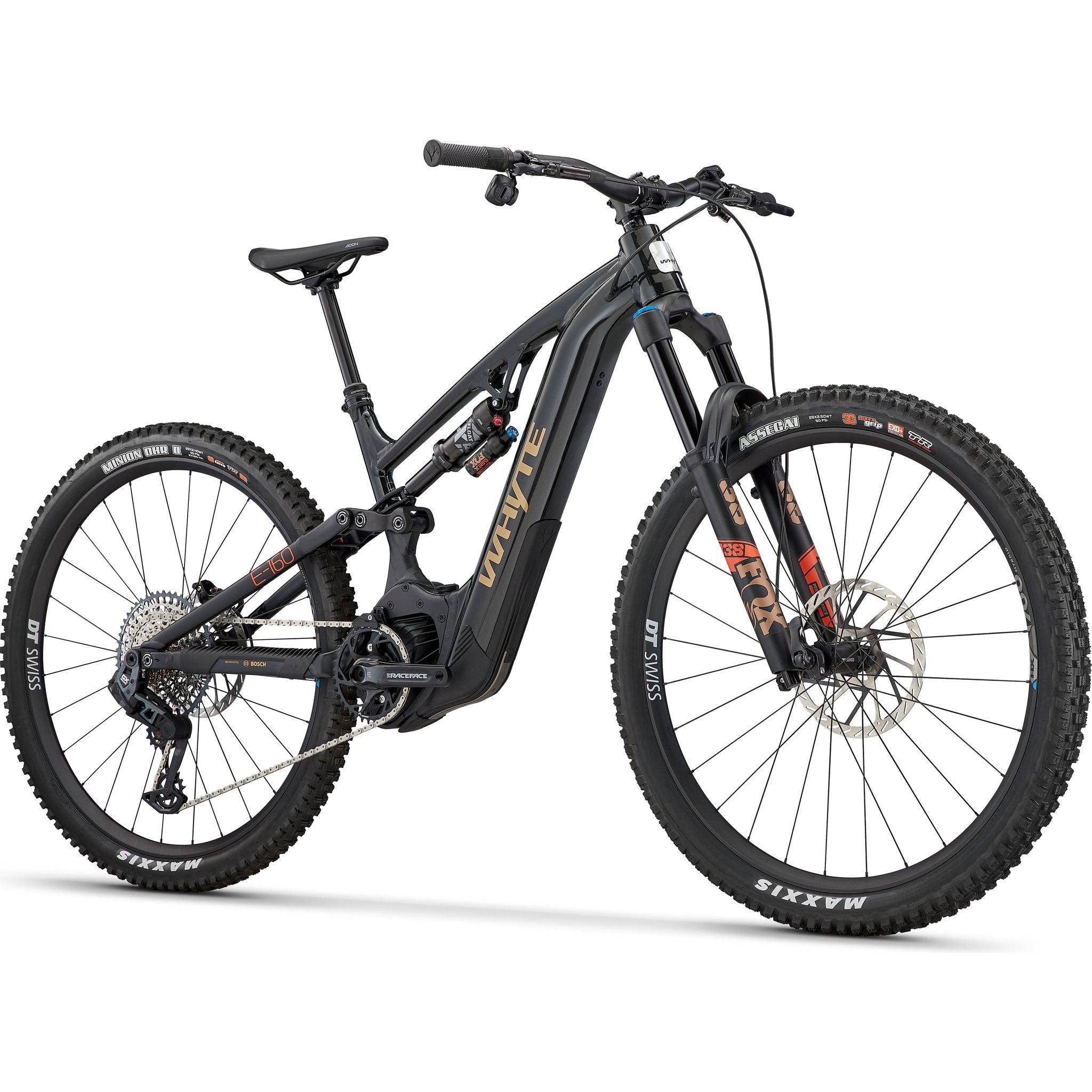

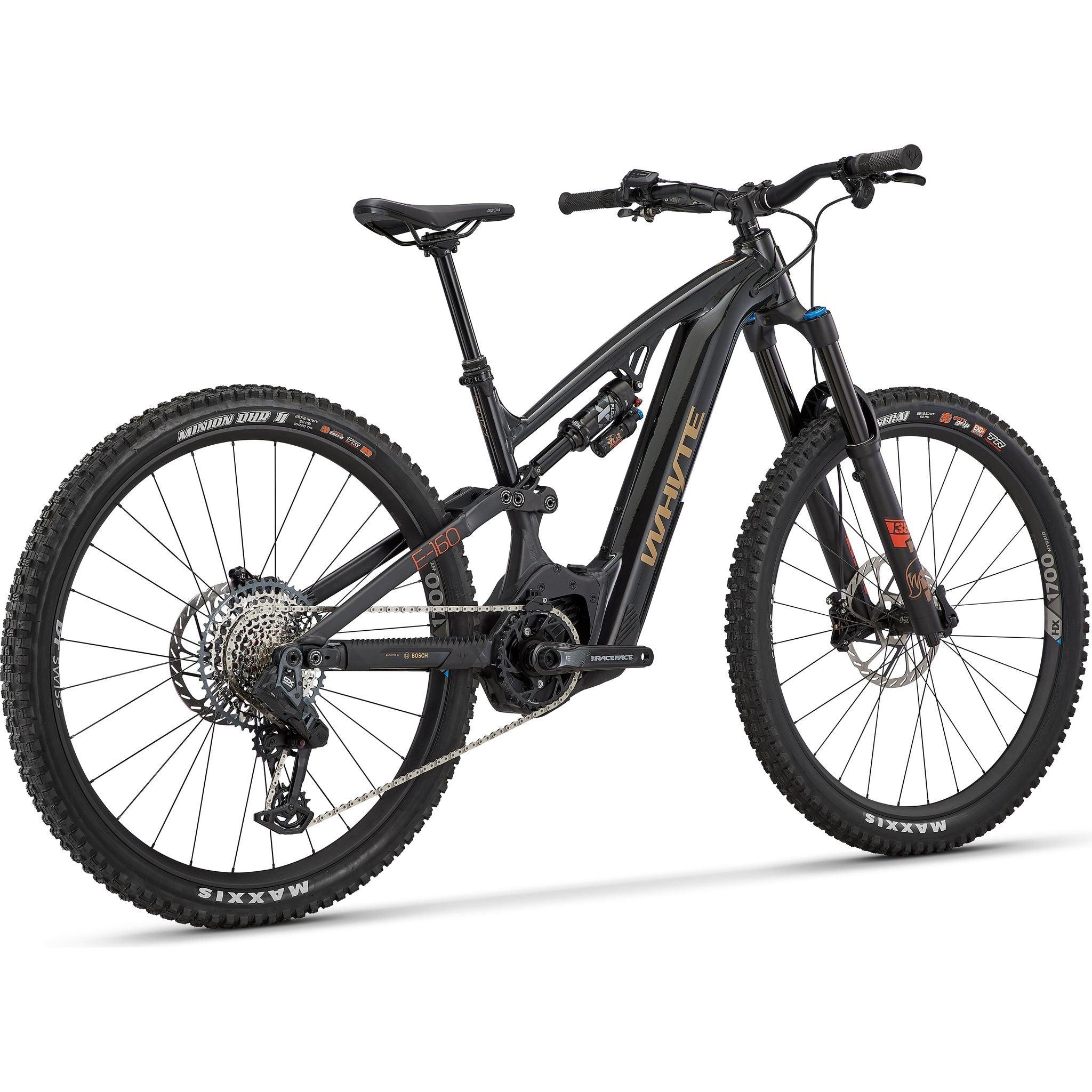

Whyte E-160 RSX Full Suspension Mountain Bike

• Optimised low centre of gravity gives you exceptional handling.
• 160mm front + 155mm rear suspension travel is capable for everything.
• Multi-butted 6061 T-6 aluminium hydroformed frame is built to last.
• Bosch Performance CX 85Nm motor (600W peak power) for class-leading performance and reliability.
• 750Wh battery gives you the range to ride further for longer in between charges.
• 29er wheels front and rear for balanced handling.

Confidence by design
This bike is designed with our holistic Whyte Total Geometry approach to deliver you the most extraordinary confidence-inspiring ride, every ride.

Ready to smash your PB
When you feel good, you ride your best. So for the E-160 RSX we’ve dressed the bike with the finest, trail-proven parts for perfect grip, feedback, and control to help do just that: SRAM GX T-Type AXS 1x12 wireless electronic gearing, DT Swiss wheels, Maxxis tyres, Whyte custom-tuned Fox Performance Elite suspension, SRAM Code RSX brakes, Crankbrothers Highline dropper post, and more – all combined and tuned with the singular focus of inspiring your best, every ride.

Confidence on any terrain
Our Total Geometry approach gives the E-160 RSX a generous reach, reassuring head angle and short offset fork, making it the most confidence-inspiring, nimble e-bike we’ve ever made. We’ve also given the E-160 RSX a rock-bottom centre of gravity by optimising the distribution of the battery and motor mass within the chassis. So you can expect exceptional cornering agility and a planted feel on even the choppiest terrain. You can also adjust the bike's geometry using its Shape.It Link ‘flip-chip’ (switchable from the stock 'High' setting to 'Low' to slacken the bike out by 0.6 degrees and lower the bottom bracket by 8mm) for even more gravity-focused handling.

Engineered for life
We’ve engineered the E-160 RSX not just to perform today but for every day you want to ride it – for years to come. Everything from making the day-to-day tasks simple and easy – like hassle-free battery installation/removal and in-the-bike-charging – to standing behind you for the long haul with the best rider support out there, four-year extended frame warranty and our lifetime warranty on bearings for total peace of mind. Because when a bike is this good you’ll want to ride it as much as possible.

Smartly connected
With the Bosch Smart System – which links up the E-160 RSX’s bar-mounted LED Remote, battery and motor via the companion 'eBike Flow' app – you can have even more information at your fingertips to manage, tailor and personalise your bike just how you want: tune the motor support levels; keep track of your bike’s performance and battery consumption; plan and navigate routes; keep your software up to date. And much, much more.

Bike classification grading: 4 Enduro
This bike is intended for all-mountain and enduro use over rough terrain, where loss of contact between the wheels and surface is common, up to speeds of 40km/h.

• Weight 26.3kg (size M)

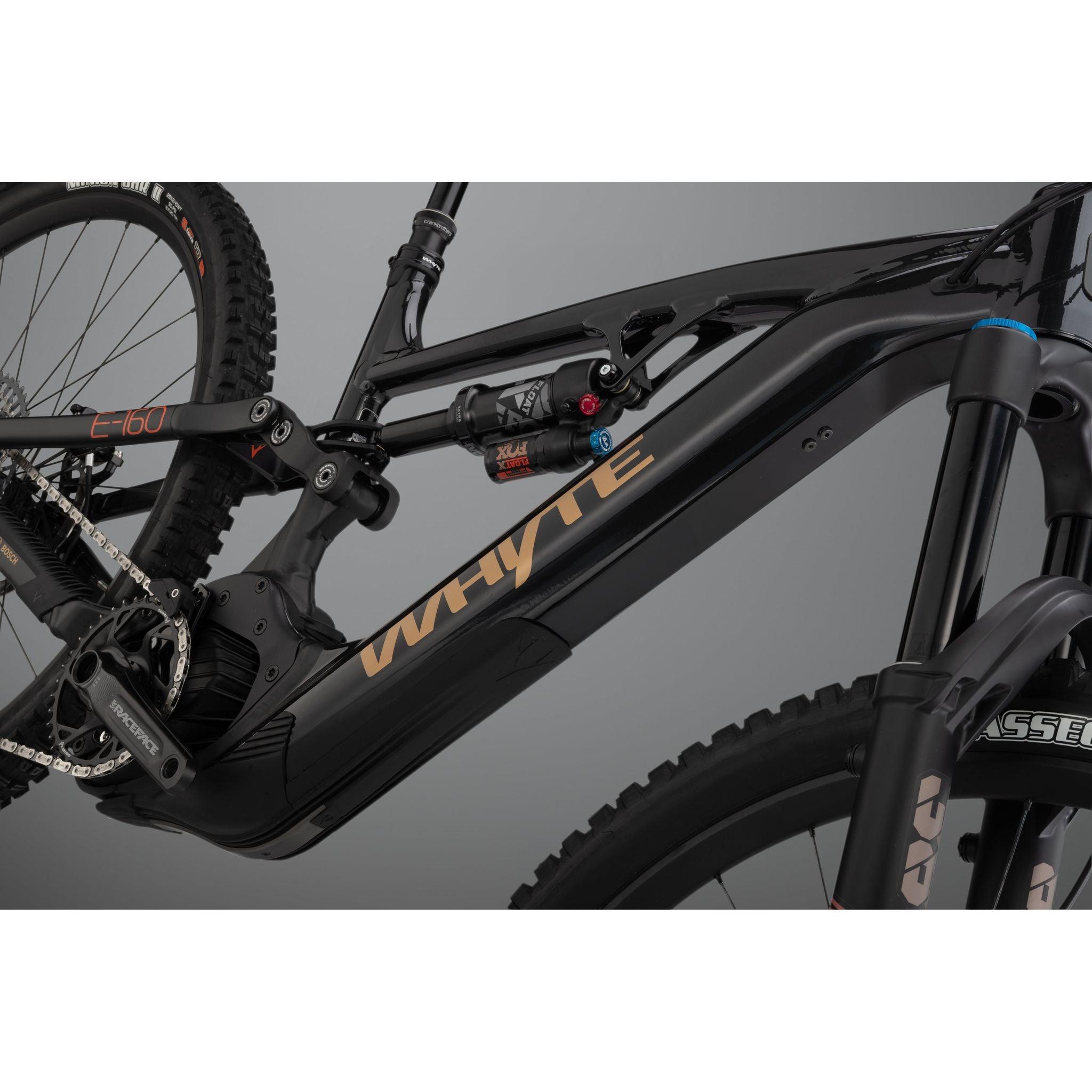

• Frame 6061 alloy, hydroformed T6 aluminium, multi-butted, custom drawn, tapered headtube, internal cable routing, Shape.it Link and 12mm x 148mm Boost dropouts

• Fork Fox Float 38 Performance Elite 29in, 160mm travel, 44mm offset with Grip 2 damper, tapered steerer, 110mm x 15mm Boost, E-thru-axle

• Rear Shock Fox Float X Performance Elite DPS, EVOL LV, custom tuned for Whyte

• Headset FSA No. 55/35 Orbit 1.5 ZS, 1.8in lower and 1 1/8in upper sealed cartridge bearings

• Rear Hub DT Swiss 350, 24T hardened steel ratchet, six bolt, 12mm x 148mm Boost spacing

• Front Hub DT Swiss 350, 15mm x 110mm Boost spacing, six bolt

• Spokes DT Swiss Hybrid straight pull

• Rims DT HX 1700 alloy, hooked 30mm internal width

• Tyre Maxxis Assigai WT, TR, 29in x 2.5in 120TPI, EXO+ casing, 3C Maxx Grip, Dual Compound, front; Maxxis Minion DHR II WT, TR, 29in x 2.4in 120TPI, Double Down, 3C Maxx Terra, Dual Compound, folding bead, rear

• Shift Levers SRAM AXS Pod, two button MMX, 12 speed

• Rear Mech SRAM GX T-Type AXS, 12 speed

• Cassette SRAM XS-1275 Eagle, 10-52T, 12 speed

• Chain SRAM GX T-Type Eagle, 12 speed

• Crankset Race Face A-Effect, 165mm, ISIS with X-SYNC 2, Direct Mount 36T chainring for Bosch Performance Line CX, black

• Seatpost Crank Brothers HighLine 3, 30.9mm (sizes M/L 150mm travel; size XL 170mm travel), Highline ball socket remote lever

• Saddle Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail

• Handlebar Whyte Custom 6061 alloy, 30mm rise, 35mm bar bore, 800mm wide

• Stem Whyte Enduro, 35mm extension, 35mm bar bore

• Grips Whyte Enduro lock-on

• Brakes Front SRAM Code RSC, four piston hydraulic with sintered metal pads, 220mm diameter disc rotor

• Brakes Rear SRAM Code RSC, four piston hydraulic with sintered metal pads, 200mm diameter disc rotor

• Brakes Levers SRAM Code RSC, MMX

• eBike Motor Bosch Performance Line CX (Smart System) Drive Unit with 85Nm maximum torque, 600W of peak power and 250W of nominal power. Features four power mode settings including Tour+, that allows you to focus on riding whilst being economic on power usage, and eMT

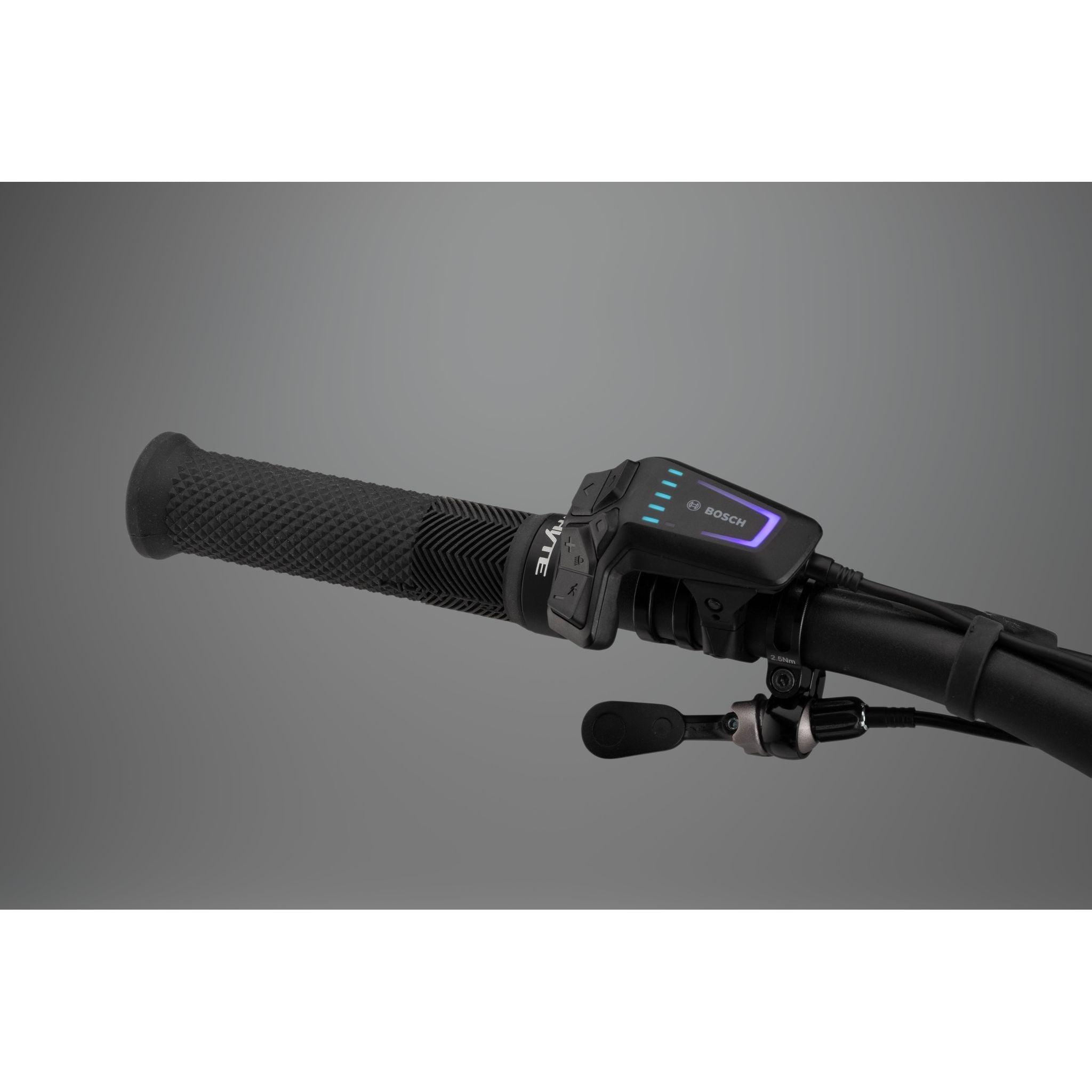

• eBike Display Bosch LED Remote allows for easy mode use and key charge and power mode visibility as you ride, and also connects to Bosch's eBike Flow smatphone app to give you even more insight and control at your finger tips.

• eBike Battery Bosch PowerTube 750Wh internal, perfectly integrated into the frame with an intuitive lockable mechanism for easy removal. Reaches full charge in less than six hours, and just over two hours for half charge. Supplied with Bosch's 4A Compact Charger.

• eBike Battery Charger Charger 4A (230V)

• Shock Stroke & Sag 57.5mm/16mm

• Reducer Bush Widths 25mm

• Eye to Eye Length 230mm

Please note: our custom motor covers are not currently compatible with the aftermarket Bosch eBike Alarm and Connect module to add bike tracking and alarm functionality to your Smart System bike.
