Whyte E-180 S Full Suspension Mountain Bike

• Optimised low centre of gravity gives you untouchable gravity handling.
• 180mm front + 170mm rear of trail-dominating suspension travel.
• Multi-butted 6061 T-6 aluminium hydroformed frame is built to last.
• Bosch Performance CX 85Nm motor (600W peak power) for class-leading performance and
  reliability.
• 750Wh battery gives you the range to get more runs in between charges.
• MX wheels (29er front, 27.5in rear) so you can tackle everything full-gas – no matter how rowdy or steep.

Confidence by design
This bike is designed with our holistic Whyte Total Geometry approach to deliver you the most extraordinary confidence-inspiring ride, every ride.

Performance that punches above its pricetag
To give you the best performance possible for when you’re pushing hard on the biggest terrain but without breaking the bank, we've equipped the E-180 S with 'sorted right from the box' parts selection headlined by RockShox's capable ZEB fork and Whyte custom-tuned Super Deluxe Select R rear shock; wireless electronic shifting across the 1x12 tranmission from SRAM's GX Eagle AXS; reliable and controllable braking power on even the longest, roughest descents with SRAM Code R four-piston hydraulic disc brakes (220mm front rotor; 200mm rear), and much more.

Engineered so you can commit
The E-180 S's frameset maximises the advantage of our unique tilted motor and super low-slung battery arrangement, which brings the bike’s centre of gravity as low as possible, to deliver you ultra-stable, dynamically centred and confident handling at any speed and on any terrain while short 155mm cranks deliver maximum pedal control and ground clearance. Our innovative in-tube battery frame design is also far stronger and stiffer than open tube frames, surviving near-metric ton slam loads in testing so you can feel totally safe full sending on the hill.

Switchable geometry
Our confidence-inspiring Total Geometry system coupled with the MX wheel set-up ensures the E-180 S ‘plays and slays’ on the tightest, steepest tracks but still has your back when you’re flat out through boulder fields with handling that’s agile and alive for maximum fun. Our Shape.It link ‘flip-chip’ also allows you to change the geometry of the bike: switch it from the stock high to the low position to slacken the bike out by 0.6 degrees and lower the bottom bracket (BB) by 8mm for the most gravity-focused handling, or keep it in the high position for better all-mountain pedalling and handling. And all without affecting the suspension kinematics.

Smartly connected
With the Bosch Smart System – which links up the E-180 S’s bar-mounted LED Remote, battery and motor via the companion 'eBike Flow' app – you can have even more information at your fingertips to manage, tailor and personalise your bike just how you want: tune the motor support levels; keep track of your bike’s performance and battery consumption; keep your software up to date. And much, much more.

Bike classification grading: 4 Enduro
This bike is intended for all-mountain and enduro use over rough terrain, where loss of contact between the wheels and surface is common, up to speeds of 40km/h.

• Weight 26.4kg (size M)

• Frame 6061 alloy, hydroformed T6 aluminium, multi-butted, custom drawn, tapered headtube, internal cable routing, Shape.it Link and 12mm x 148mm Boost dropouts

• Fork RockShox ZEB, 180mm Travel, 44mm Offset, DebonAir+, Rush RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle Ultimate

• Rear Shock RockShox Super Deluxe Select R, DebonAir, Fast Black coating, adjustable rebound

• Headset FSA No. 55R/35 Orbit 1.5 ZS, 1.8in lower and 1 1/8in upper sealed cartridge bearings

• Rear Hub Alloy, e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, nine degree micro engagement four pawl, 32 hole

• Front Hub Alloy, double sealed cartridge bearings, 15mm x 110mm Boost spacing, 31mm torque caps, 32 hole

• Spokes DT Swiss New Champion 2.0mm, black stainless, brass nipples

• Rims DT Swiss Hybrid 30, sleeved joint, 32 Hole

• Tyre Maxxis Assigai WT, TR, 29in x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead, front; Maxxis Assigai WT, TR, 27.5in x 2.5in 120TPI, Double Down Casing, 3C MaxxGrip, Dual Compound, rear

• Shift Levers SRAM GX AXS Eagle, two button, MMX, 12 speed

• Rear Mech SRAM GX AXS Eagle, 12 speed

• Cassette SRAM PG-1210 Eagle, 11-50T, 12 speed

• Chain SRAM GX Eagle, 12 speed

• Crankset Whyte, forged alloy, 155mm, direct mount 36T chainring

• Seatpost Whyte drop.it II Adjust 30.9mm (sizes M/L 140-170mm travel; size XL 170-200mm travel), MMX Paddle remote lever

• Saddle Whyte Custom

• Handlebar Whyte Custom 6061 alloy, 30mm rise, 35mm bar bore, 800mm wide

• Stem Whyte Enduro, 35mm extension, 35mm bar bore

• Grips Whyte Enduro lock-on

• Brakes Front SRAM Code R, four piston hydraulic with sintered metal pads, 220mm diameter disc rotor

• Brakes Rear SRAM Code R, four piston hydraulic with sintered metal pads, 200mm diameter disc rotor

• Brakes Levers SRAM Code R, MMX

• eBike Motor Bosch Performance Line CX (Smart System) Drive Unit with 85Nm maximum torque, 600W of peak power and 250W of nominal power. Features four power mode settings including Tour+, that allows you to focus on riding whilst being economic on power usage, and eMT

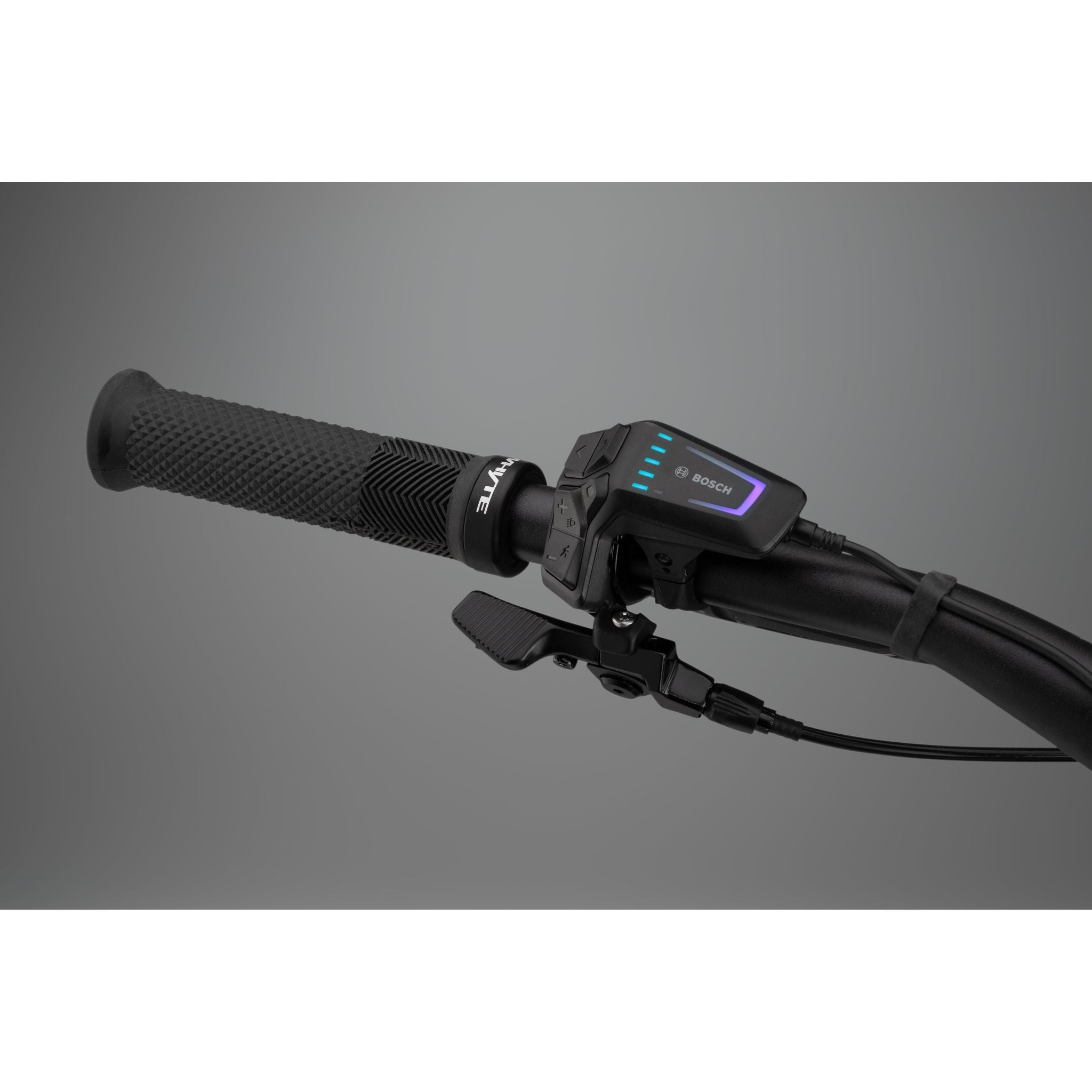

• eBike Display Bosch LED Remote allows for easy mode use and key charge and power mode visibility as you ride, and also connects to Bosch's eBike Flow smatphone app to give you even more insight and control at your finger tips.

• eBike Battery Bosch PowerTube 750Wh internal, perfectly integrated into the frame with an intuitive lockable mechanism for easy removal. Reaches full charge in less than six hours, and just over two hours for half charge. Supplied with Bosch's 4A Compact Charger.

• eBike Battery Charger Charger 4A (230V)

• Shock Stroke & Sag 65mm/16mm

• Reducer Bush Widths 25mm

• Eye to Eye Length 230mm

Please note: our custom motor covers are not currently compatible with the aftermarket Bosch eBike Alarm and Connect module to add bike tracking and alarm functionality to your Smart System bike.
