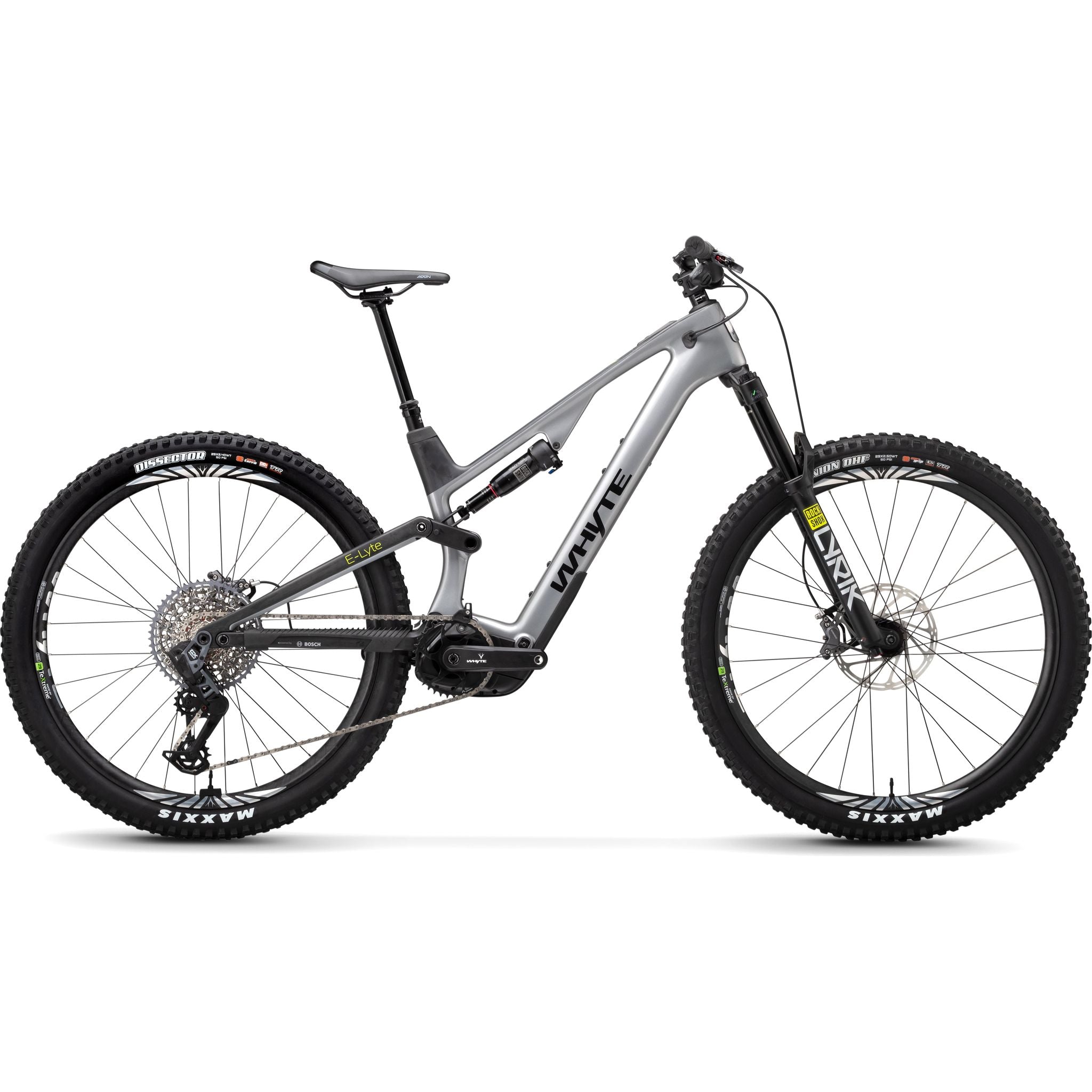

Whyte E-Lyte 150 RSX Full Suspension Mountain Bike

• 150mm front + 142mm rear of custom-tuned suspension travel.
• Uni-directional carbon fibre frame is light and reassuringly strong.
• Bosch Performance Line SX lightweight, mid-torque (55Nm), full power (600W) motor.
• 400Wh internal battery.
• 29er wheels front and rear for balanced handling.

Confidence by design
This bike is designed with our holistic Whyte Total Geometry approach to deliver you the most extraordinary confidence-inspiring ride, every ride.

Pitch perfect parts

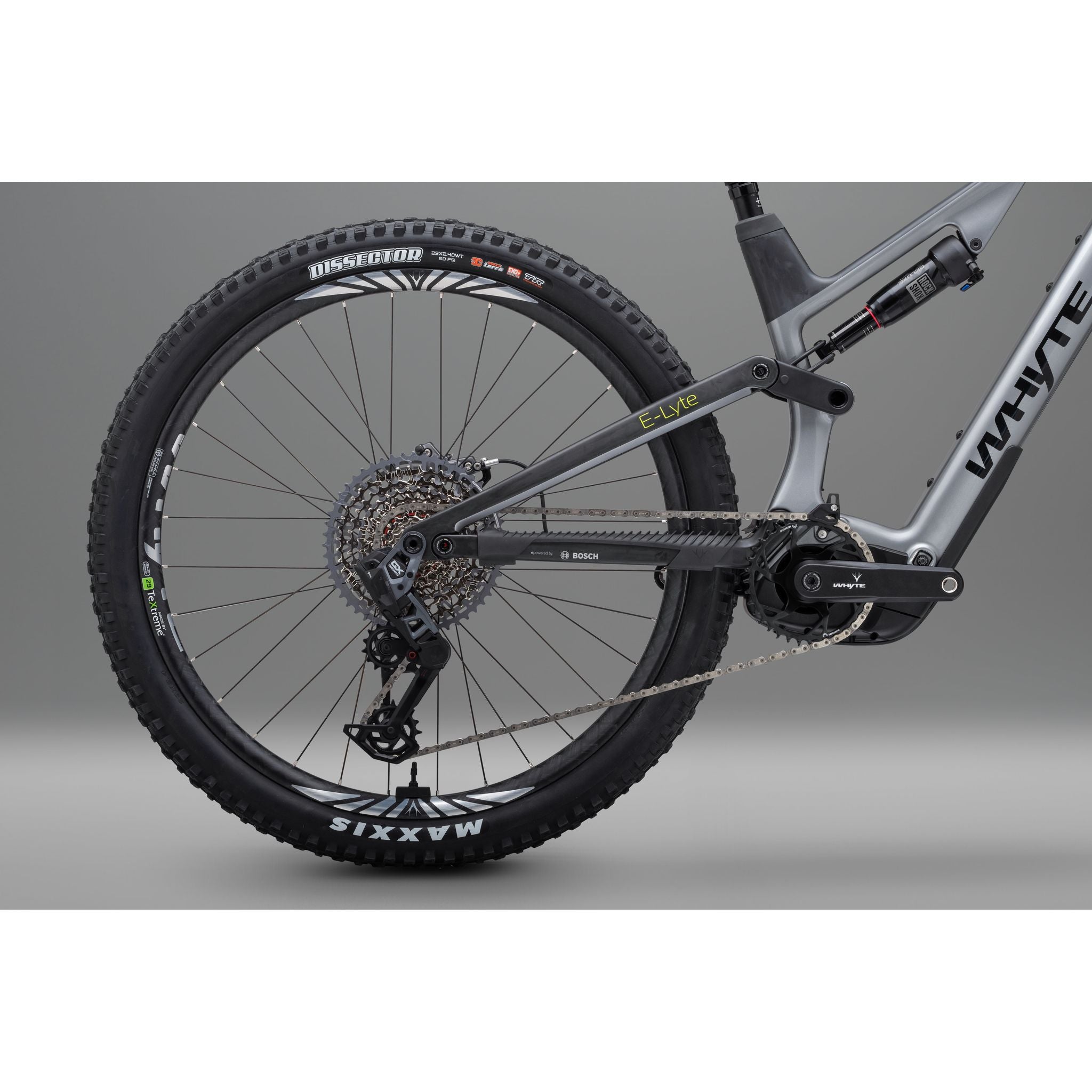

The E-Lyte 150 RSX is dressed in a curated parts list of trail-proven, real-world kit that will serve you brilliantly both now and for the long haul: SRAM GX T-Type AXS 1x12 wireless electronic gearing, Maxxis tyres, feedback-rich SRAM Code Bronze four-piston brakes, and more. Our own custom-tuned suspension from RockShox has also been meticulously tuned to deliver you outstanding, ground-hugging grip with the support you need to right from your first pedal stroke.

Beautifully light, reassuringly strong
The beating heart of the E-Lyte 150 RSX is an all-new, lightweight yet strong carbon fibre chassis that carefully packages Bosch's light and powerful Performance Line SX mid-torque (55Nm), full power (600W) motor – and the 400Wh internal battery – seamlessly so you can fly under the radar as stealthily as you'll fly down the trails. We've also carefully positioned the lower 750ml water bottle mount – which also mounts the aftermarket Bosch PowerMore range extender (sold seperately) – as low in the frame as possible to optimise the bike's centre of gravity and deliver an exceptional handling bike.

Your bike, your way

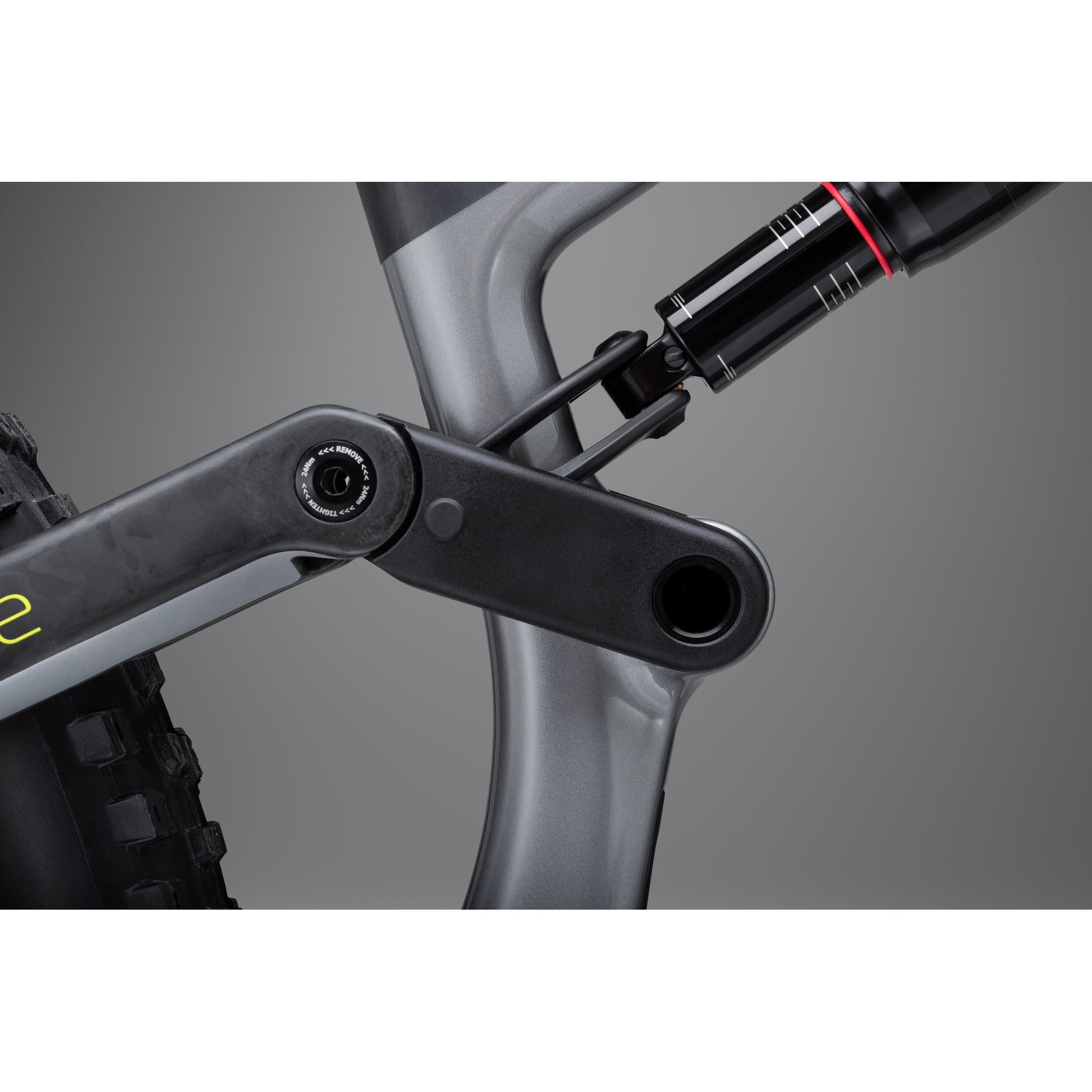

We’ve engineered the E-Lyte 150 RSX to give you the option to set it up and ride it as you want. Want to run a bottle, or even two? The frame has two bottle positions: a lower for a full 750ml bottle (using the included bottle cage adaptor), and a higher Fidlock position for a smaller 400ml bottle (on sizes M-XL). Or you can use the Fidlock mounts for tool or tube mounting (all sizes). Want to slacken the geometry out? The ‘Shape.it Link V2’ geometry adjustment lets you change between the stock high to its low setting for a lower, slacker geometry for more downhill grins. Want to pedal further? Keep it in its higher, more all-day ride-friendly position. Want more battery? The E-Lyte 150 RSX is compatible with Bosch’s 250Wh PowerMore range extender (sold seperately) – that mounts in the lower bottle boss position – to give you a total battery capacity of 650Wh for bigger days on the hills.

Engineered for the best – and worst – conditions

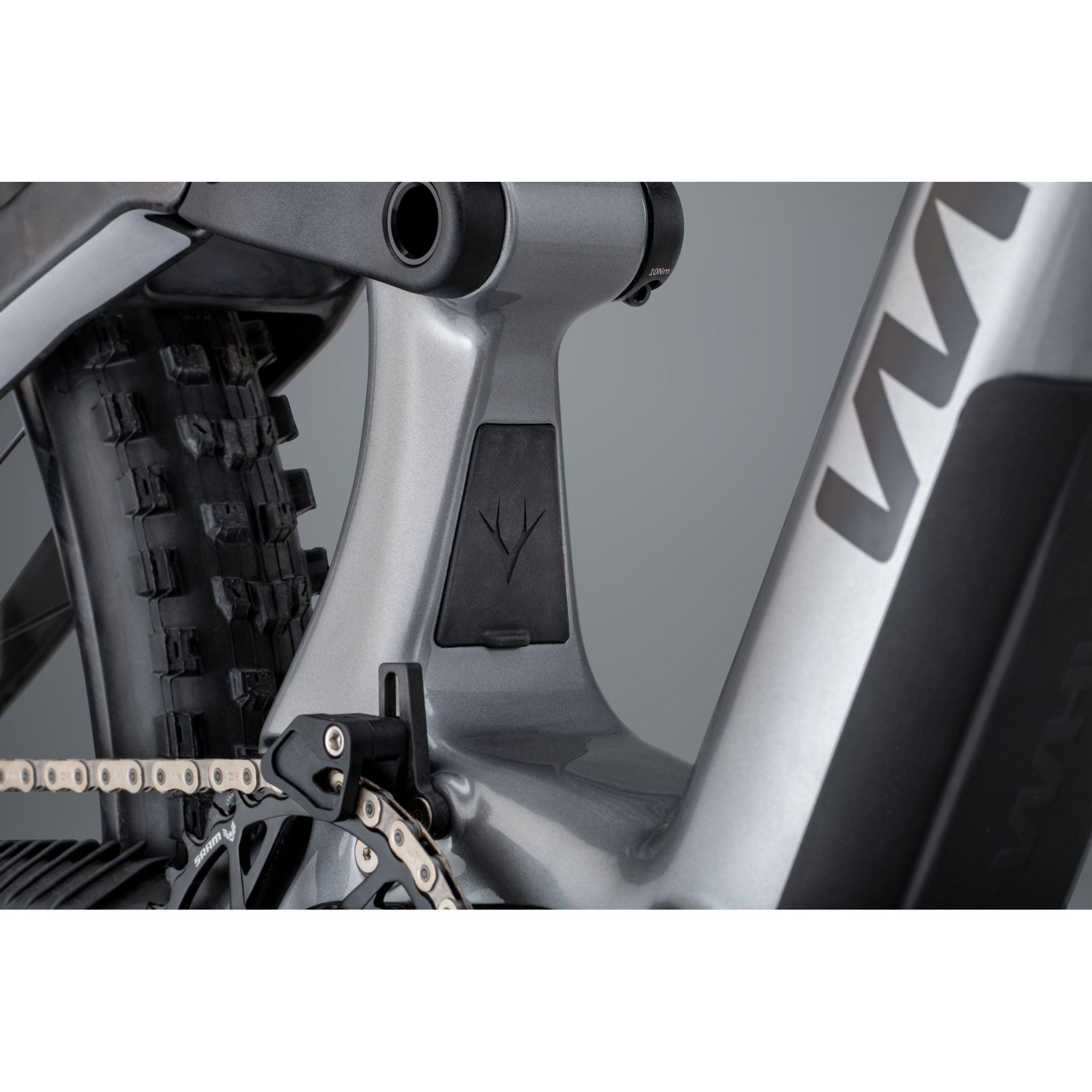

We’ve designed, tested and proven every E-Lyte in our native UK, riding all year round through the best and the worst weathers, and have added a whole host of touches that will keep you riding sweeter and for longer. Things such as: a fully weather-sealed seat-clamp gaiter, and sealed cable and hose ports to keep the water out; positioning the charge port at the base and to the front of the seat tube out of the firing line of the rear wheel spray; clearance for up to 2.5in tyres between the seat and chainstays to prevent mud and gunk slowing you down; Phosphate-coated and marine grease packed pivot bearings to maximise pivot bearing service life; as well as frame protection on the lower downtube and chainstay to keep the frame in great shape, and much more.

Bike classification grading: 4 Enduro
This bike is intended for all-mountain and enduro use over rough terrain, where loss of contact between the wheels and surface is common, up to speeds of 40km/h.

• Weight 18.9kg (size M)

• Frame Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts

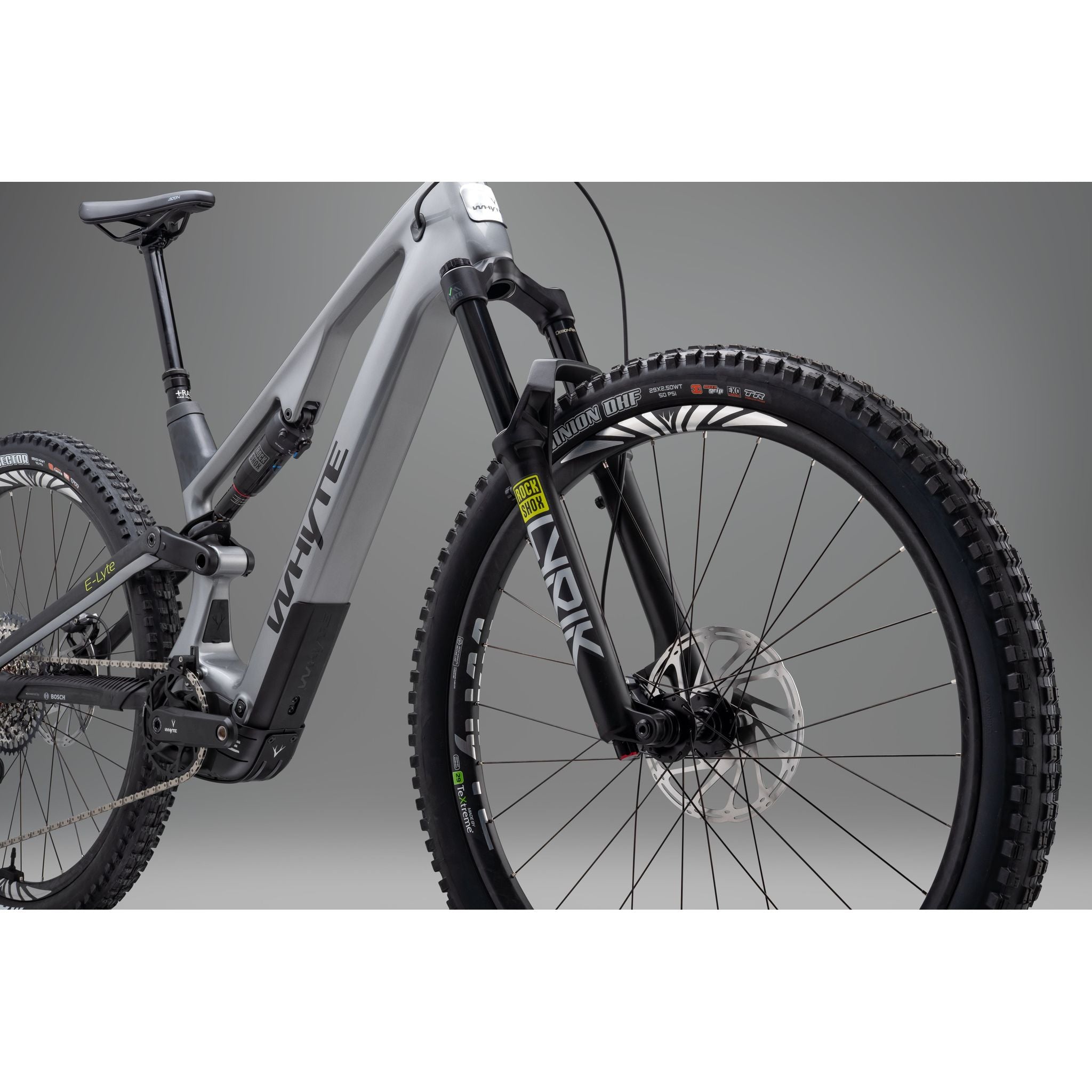

• Fork RockShox Lyrik Select+ 29in, 150mm travel, 44mm offset, DebonAir+, Charger 3 RC2 damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost

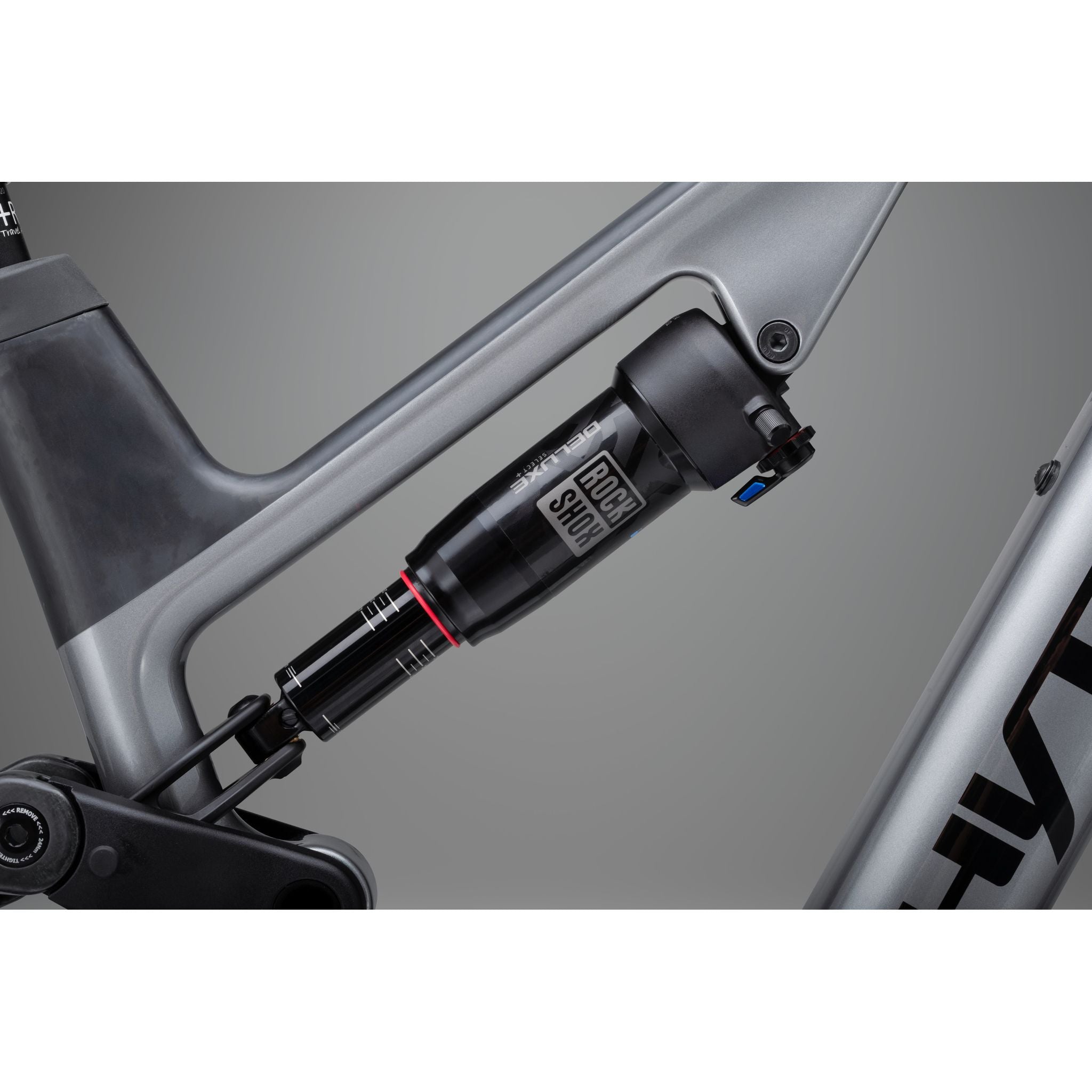

• Rear Shock RockShox Deluxe Select + RT, DebonAir, Fast Black coating, adjustable rebound and two position compression adjustment

• Headset FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) catridge bearings, with side entry internal routing

• Rear Hub Alloy, light assist e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost tspacing, 32 hole

• Front Hub Alloy, double sealed cartridge bearings, 15mm x 110mm Boost spacing, 28 hole

• Spokes DT Swiss New Champion 2.0mm, black stainless, brass nipples

• Rims Whyte TeXtreme Innegra infused, carbon Trail rims, 28 hole front, 32 hole rear

• Tyre Maxxis Minion DHF, EXO TR MaxxGripp 29in x 2.5in front; Maxxis Dissector, EXO+ TR MaxxTerra 29in x 2.4in, rear

• Shift Levers SRAM AXS Pod, right, MMX, 12 speed

• Rear Mech SRAM GX T-Type AXS, 12 speed

• Cassette SRAM XS 1275, T-Type, 10-52T, 12 speed

• Chain SRAM GX T-Type, 12 speed

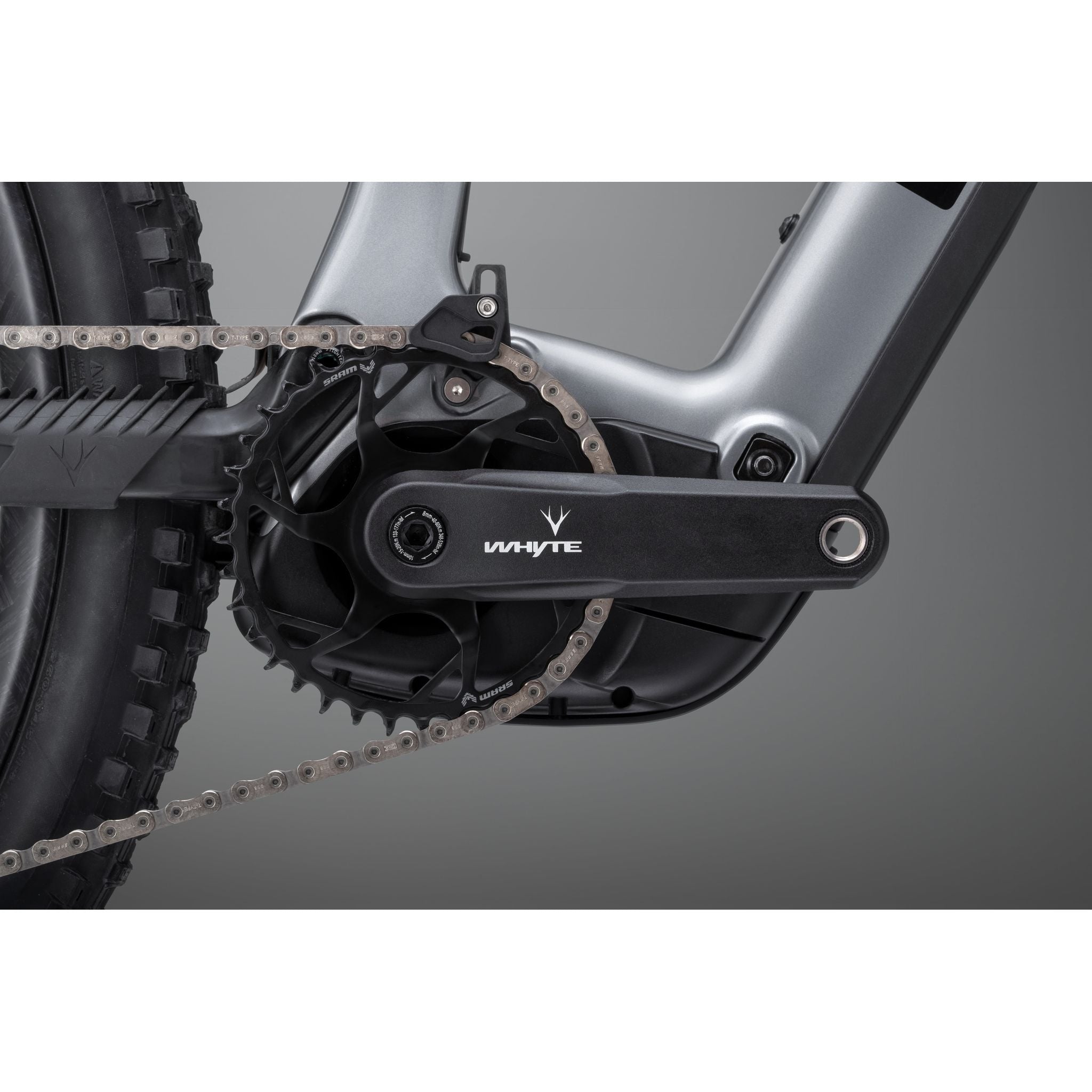

• Crankset Whyte 155mm ISIS arms, GX Gen4 direct mount 36T chainring, T-Type

• Seatpost Whyte drop.it II Adjust, 30.9mm (sizes S/M 140-170mm travel; sizes L/XL 170-200mm travel), MMX Paddle remote lever

• Saddle Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail

• Handlebar Whyte Custom 6061 alloy, 20mm rise, 35mm bar bore, 800mm wide

• Stem Whyte Trail full CNC, 32mm extension, 35mm bar bore

• Grips Whyte Enduro lock-on

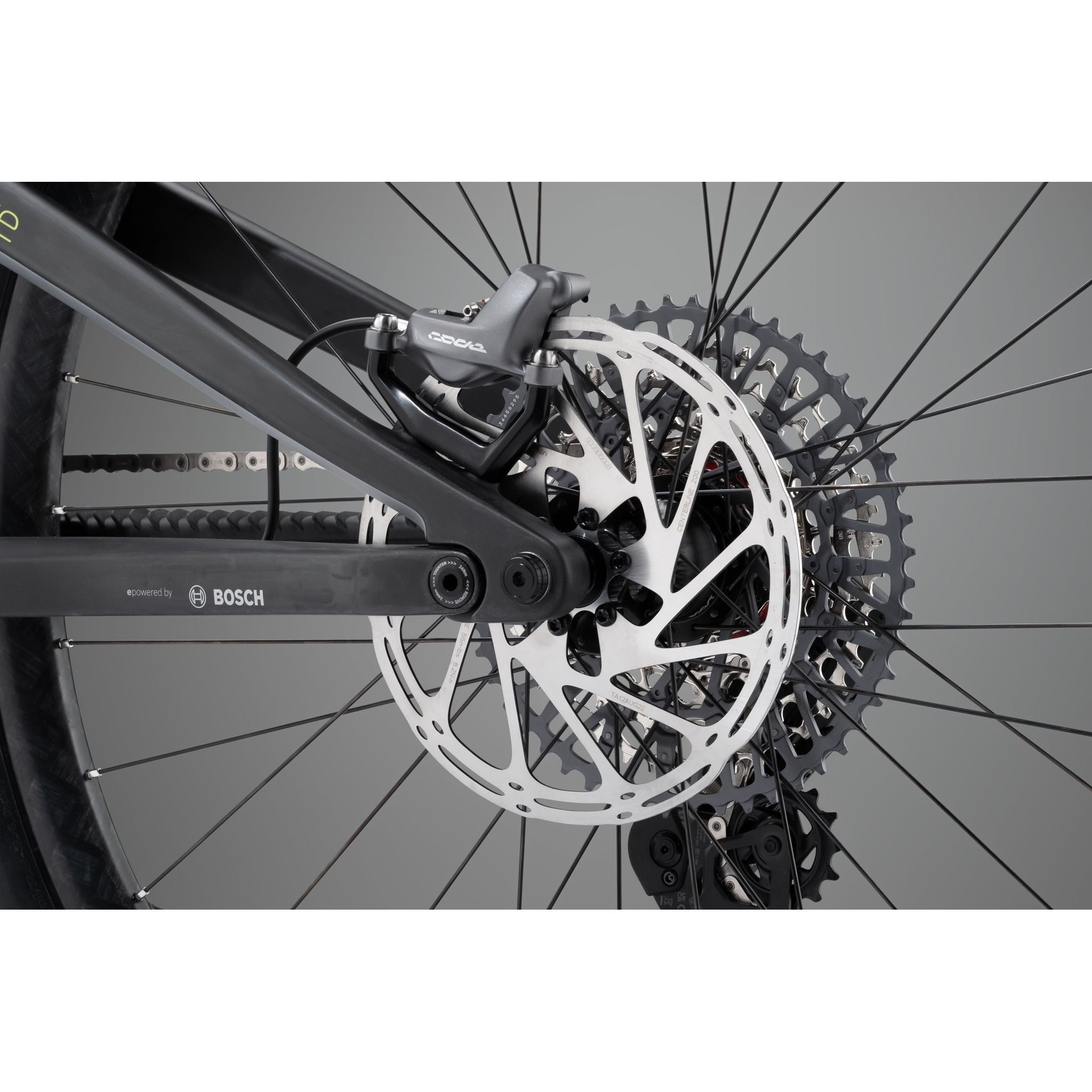

• Brakes Front SRAM Code Bronze Stealth, four piston hydraulic, 200mm diameter disc rotor

• Brakes Rear SRAM Code Bronze Stealth, four piston hydraulic, 200mm diameter disc rotor

• Brakes Levers SRAM Code Bronze Stealth

• Pedals Fibre reinforced composite platform

• eBike Motor Bosch Performance Line SX drive unit, 55Nm maximum torque and 600W of peak power. Features four power settings including Tour+, that allows you to focus on riding whilst being economic on power usage, and eMTB mode which automatically adjusts the power se

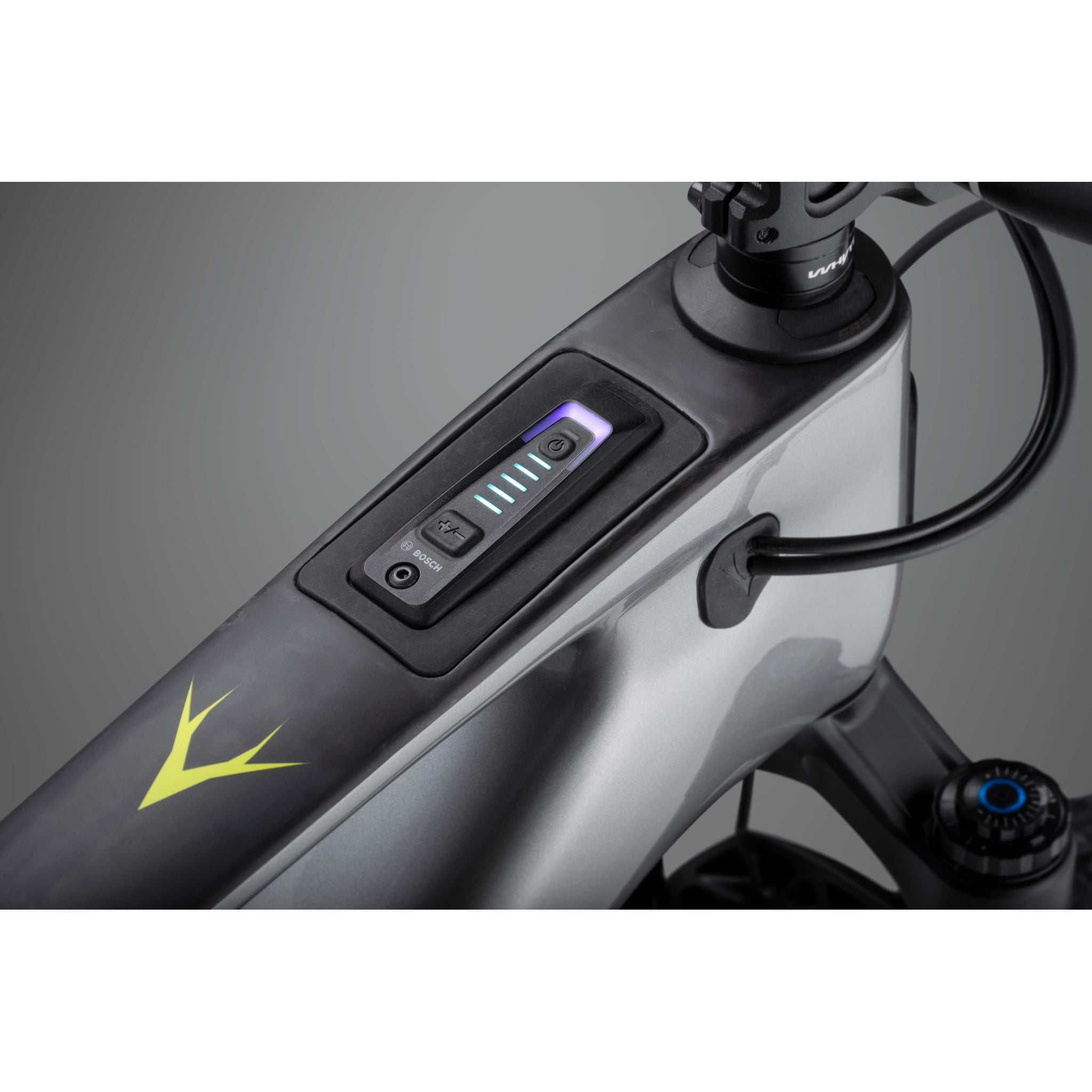

• eBike Display Bosch System controller mounted in top tube, paired with the discrete bar mounted Mini Remote. Also connects to Bosch's eBike Flow smatphone app to give you even more insight and control at your finger tips.

• eBike Battery Bosch Compact PowerTube 400Wh, integrated within the downtube of the frame at the lowest point for stability and control. Compatible with the PowerMore 250Wh range extender (purchased seperately).

• eBike Battery Charger Charger 4A (230V)

• Shock Stroke & Sag 50mm/14mm

• Reducer Bush Widths 25mm

• Eye to Eye Length 210mm

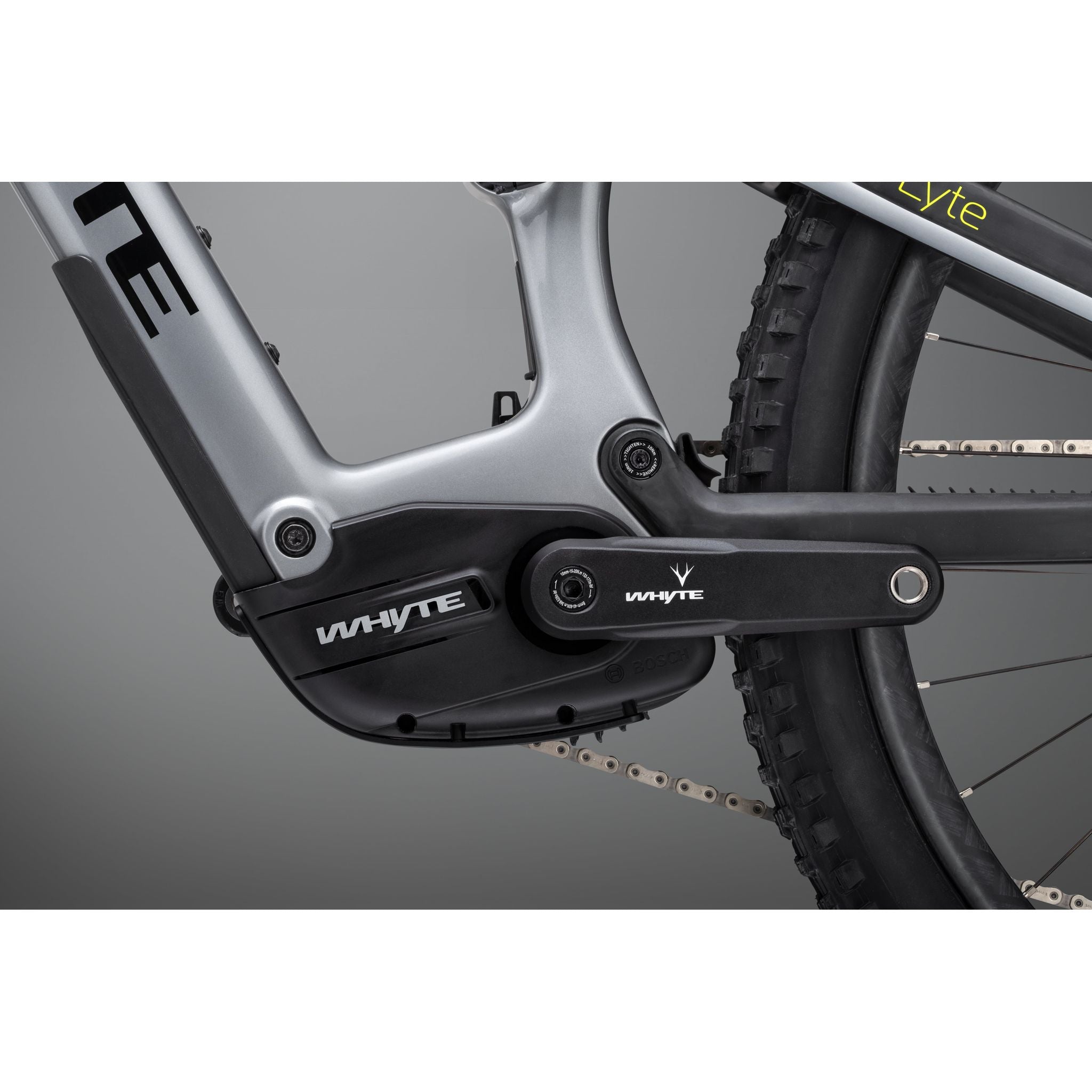

Please note: our custom motor covers are not currently compatible with the aftermarket Bosch eBike Alarm and Connect module to add bike tracking and alarm functionality to your Smart System bike.
