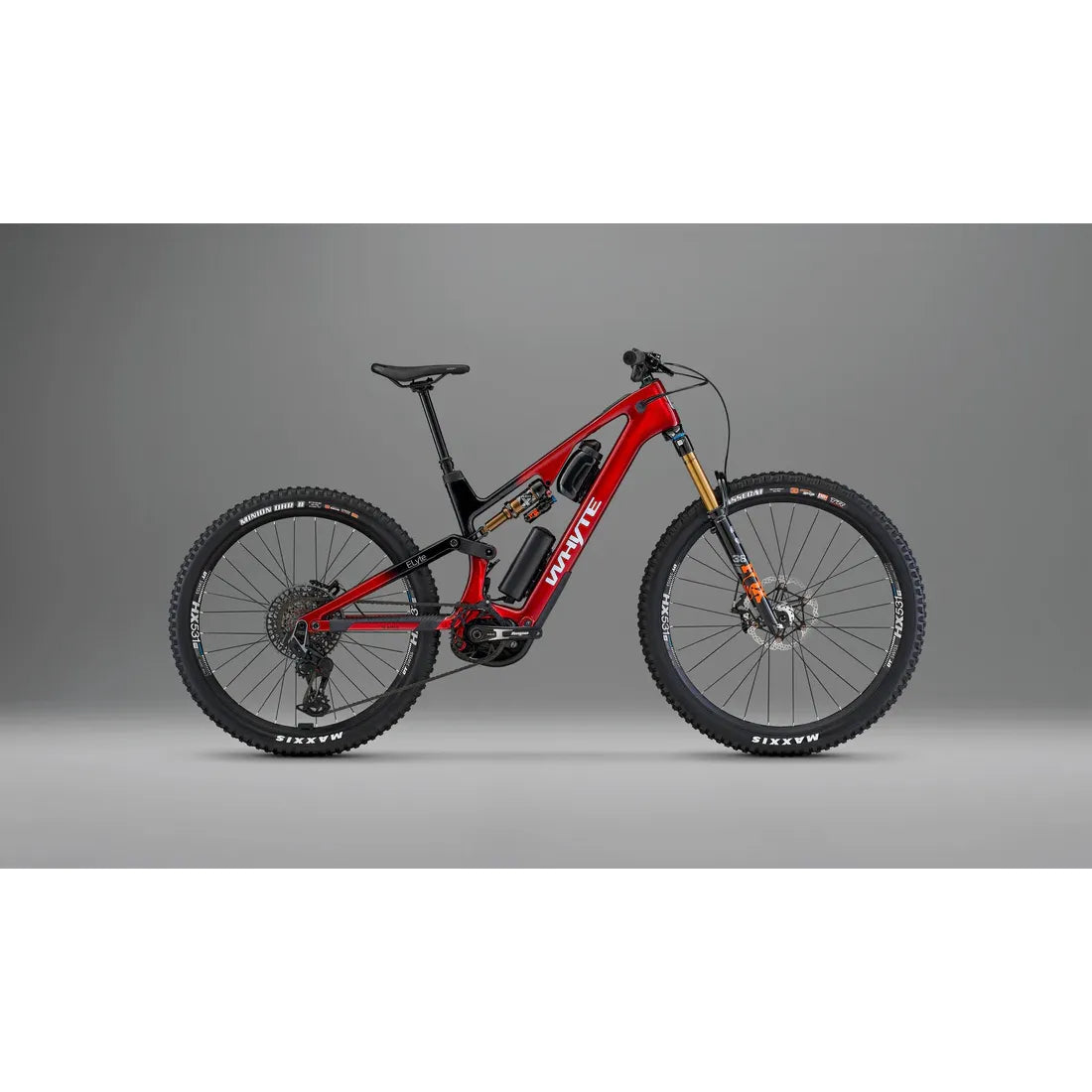

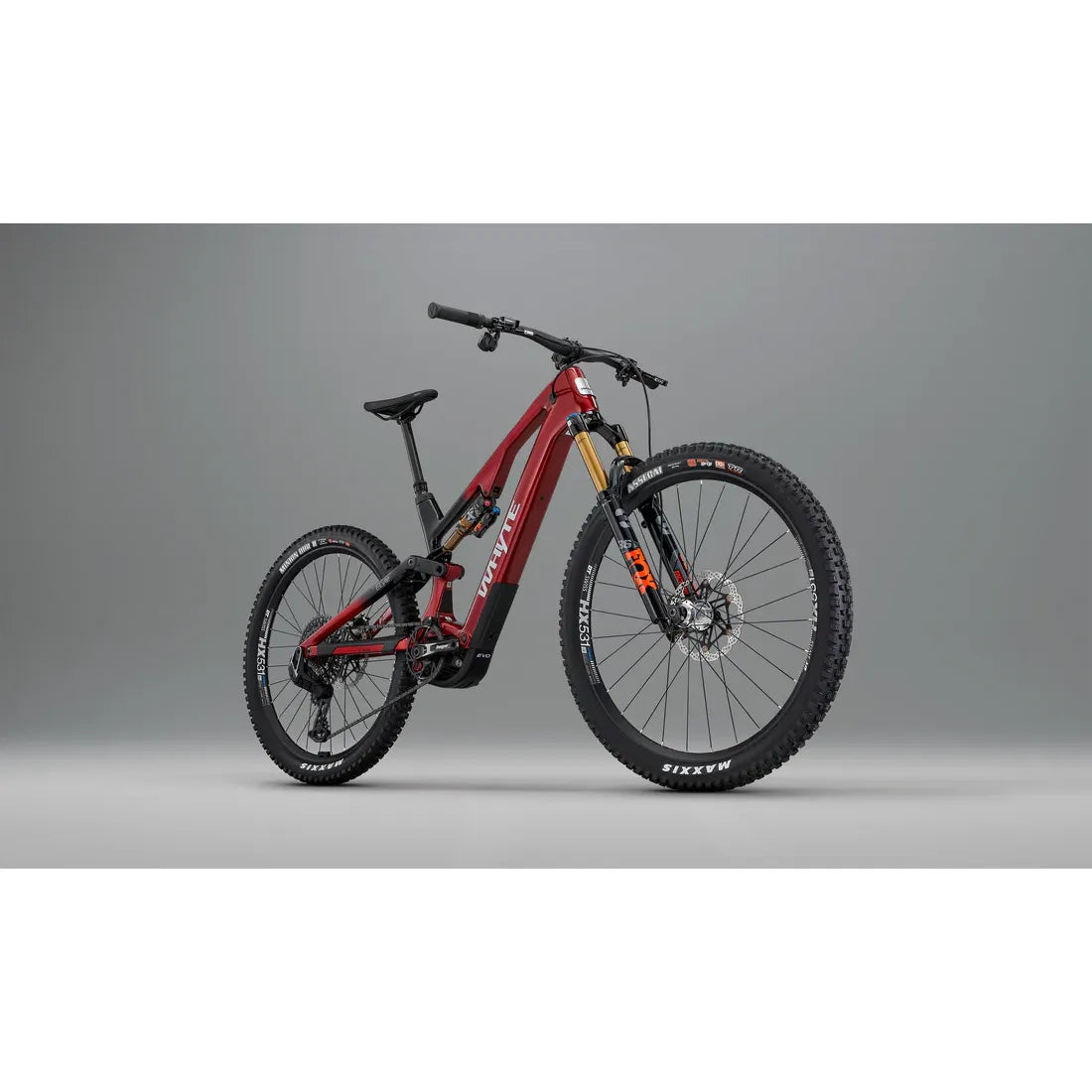

Whyte E-Lyte Evo Stag Works Electric Full Suspension Mountain Bike

• 150mm front + 142mm rear of custom-tuned suspension travel.
• Uni-directional carbon fibre frame is light and reassuringly strong
• Bosch's new Performance Line CX full-torque (85Nm), full-power (600W) motor.
• 650Wh of combined battery (400Wh internal + 250Wh PowerMore range extender) so you can ride further.
• MX wheels (29er front, 27.5in rear) so you can tackle the techiest terrain.
• 492.28mm complete bike centre of gravity for the best handling possible.



• COLOUR

Gloss ruby red with black fade

• CASSETTE

SRAM XS 1295, T-Type, 10-52T, 12 speed

• FRAME

Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts

• CHAIN

SRAM XO T-Type, 12 speed

• FORK

Fox Float 36 Factory 29in, 150mm travel, 44mm offset, Grip X2 damper, tapered steerer, 110m x 15mm Kabolt axle

• CRANKSET

Hope E-Bike Cranks, 155mm length, Bosch mounting, 36T chainring T-type

• REAR SHOCK

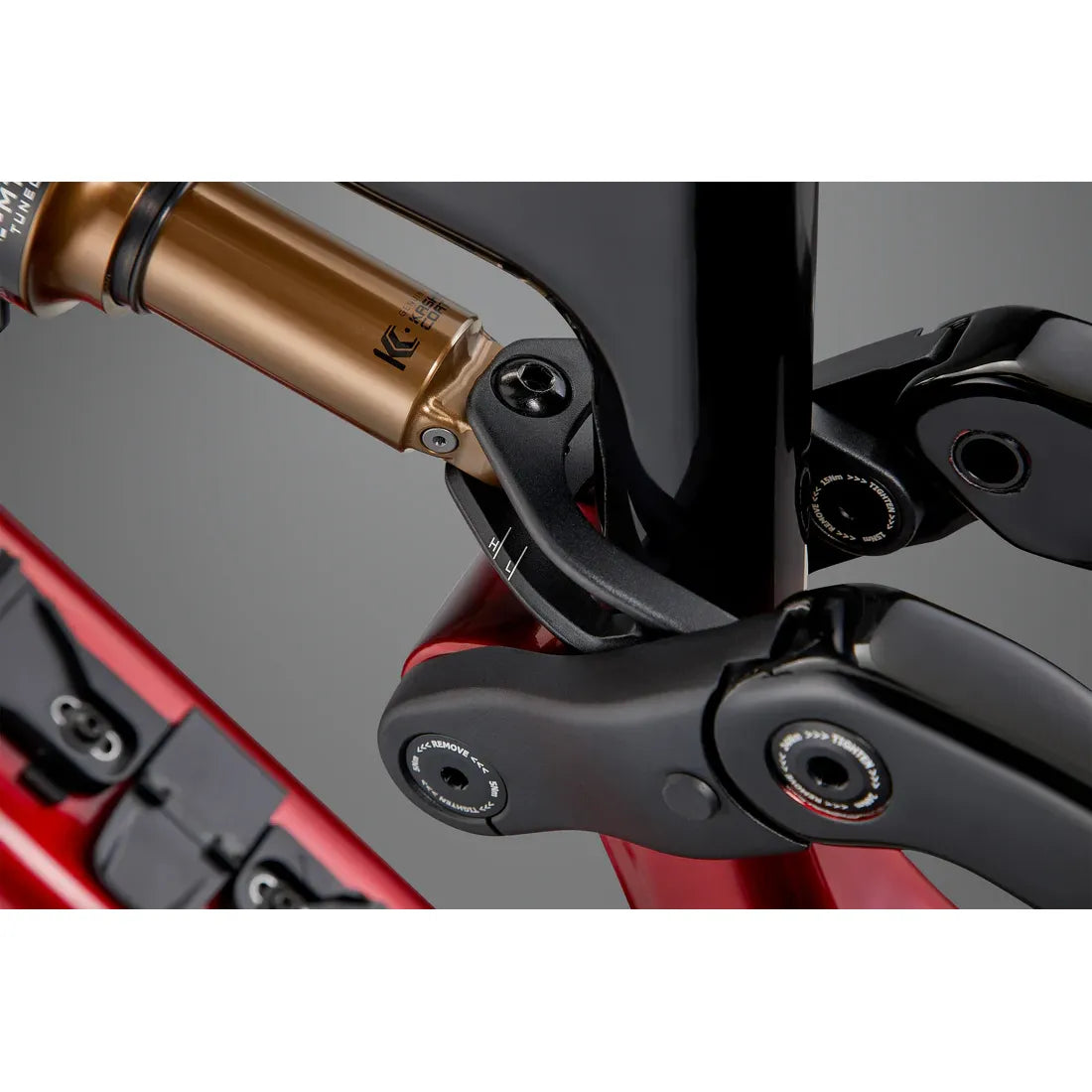

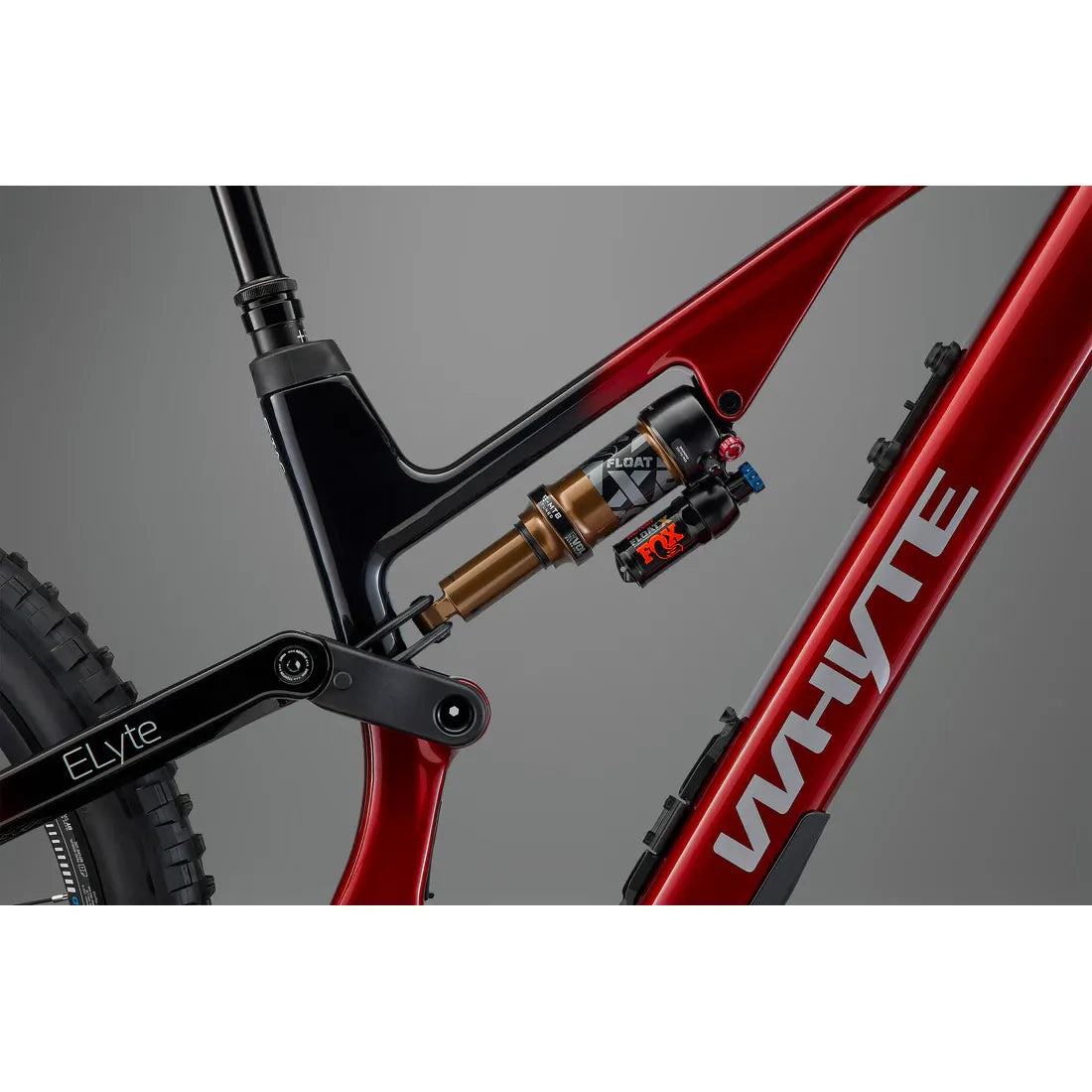

Fox Float X Factory Series, EVOL, lock out, 210mm x 50mm, custom tuned for Whyte

• BOTTOM BRACKET

N/A

• HEADSET

FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) cartridge bearings, with side entry internal routing

• SEATPOST

Whyte drop.it II Adjust, 30.9mm (sizes S/M 140-170mm travel; sizes L/XL 170-200mm travel), MMX Paddle remote lever

• REAR HUB

Hope Pro 5, six bolt, 12mm x 148mm Boost spacing, XD driver, 32 hole

• SADDLE

Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail

• FRONT HUB

Hope Pro 5, six bolt, 15mm x 110mm Boost spacing, 28 hole

• HANDLEBAR

Race Face ERA Carbon, 20mm rise, 35mm bar bore, 800mm wide

• SPOKES

DT Swiss Elemental

• STEM

Whyte Trail full CNC, 32mm extension, 35mm bar bore

• RIMS

DT HX531, 30mm Internal

• GRIPS

Whyte Enduro lock-on

• TYRE

Maxxis Assegai WT, TR, 29in x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead, front; Maxxis Minion DHR 2 WT, TR, 27.5in x 2.5in 120TPI, Double Down Casing, 3C MaxxTerra, Dual Compound, rear

• BRAKES FRONT

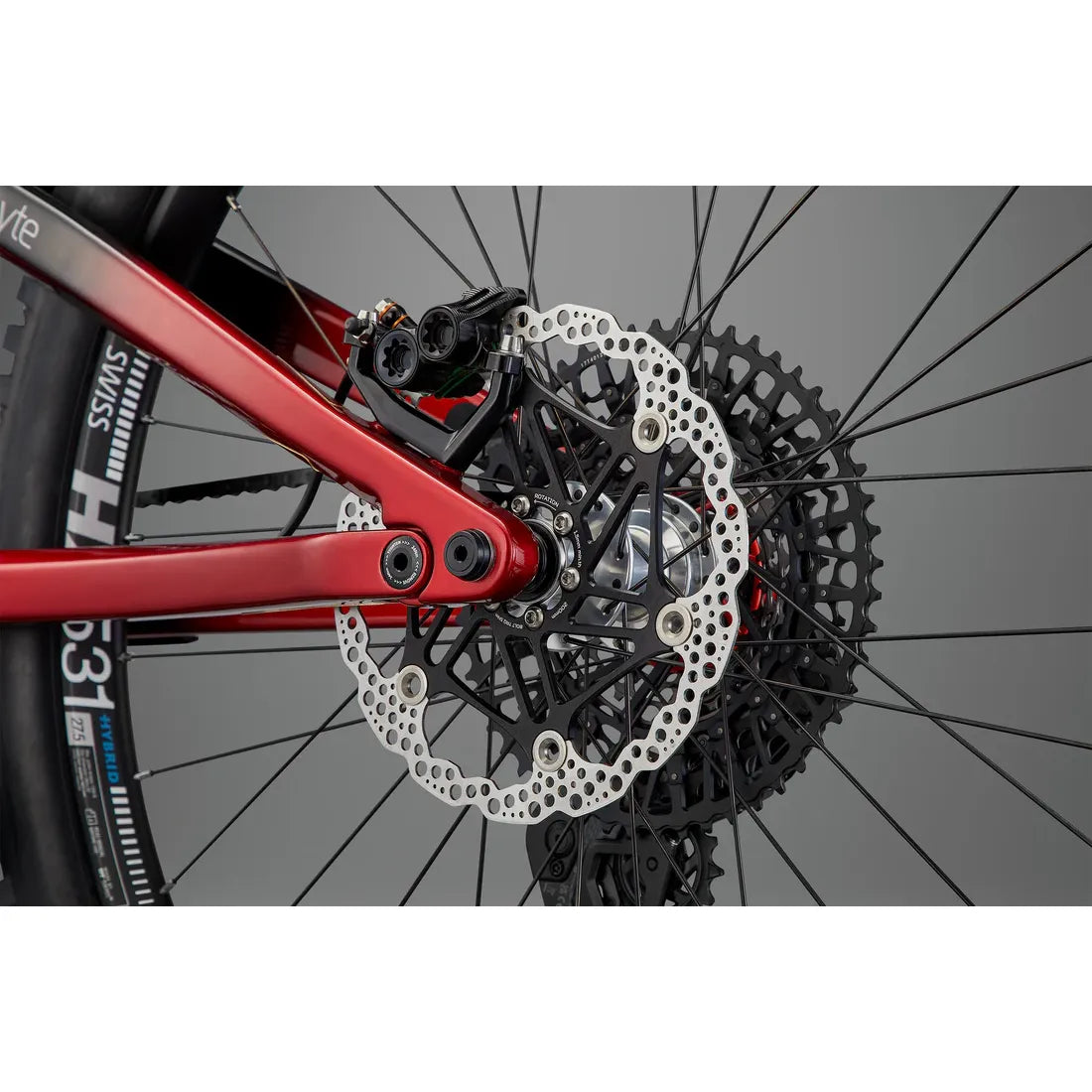

Hope Tech4 V4, four piston hydraulic, 200mm diameter floating disc rotor

• BRAKES REAR

Hope Tech4 V4, four piston hydraulic, 200mm diameter floating disc rotor

• BRAKE LEVERS

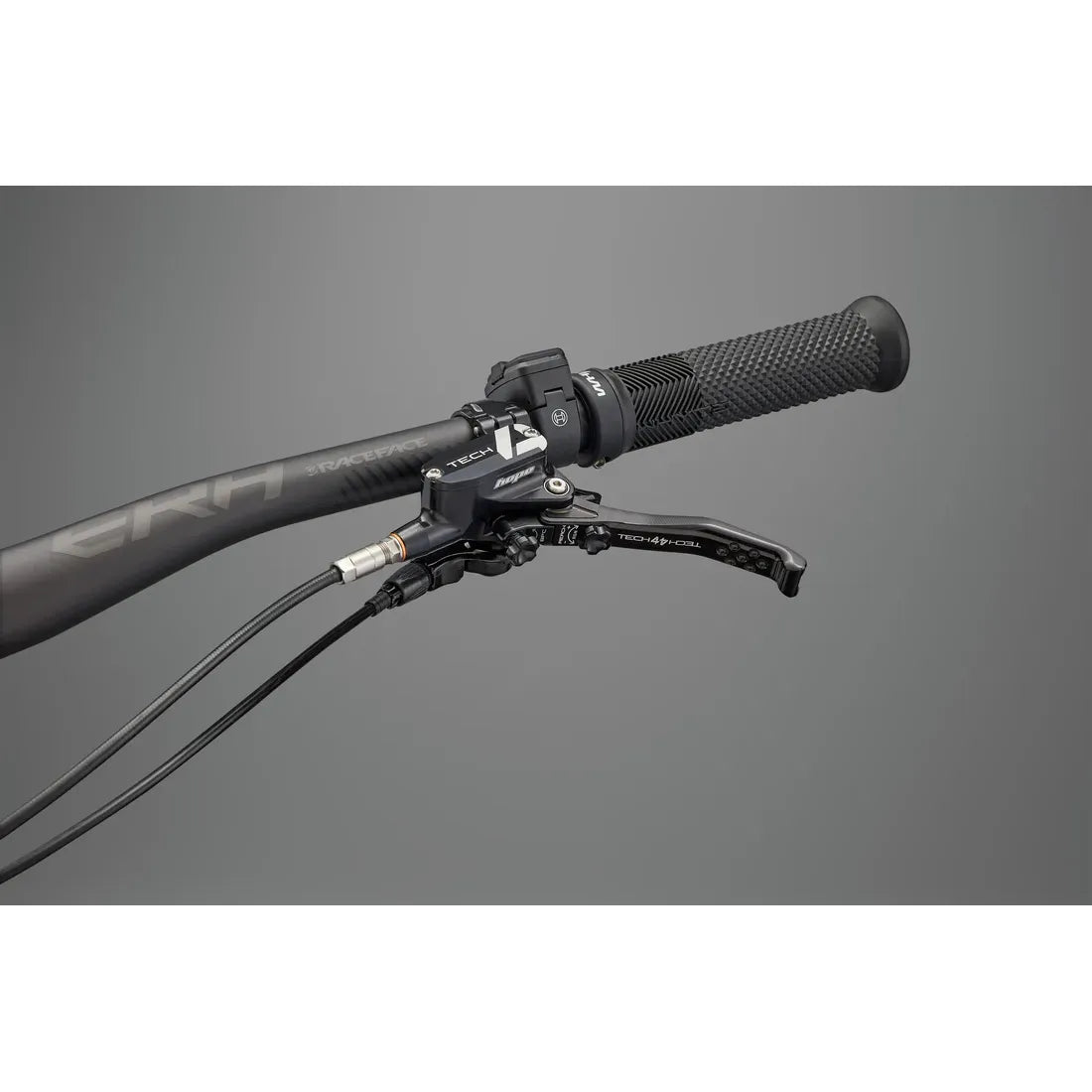

Hope Tech 4

• SHIFT LEVERS

SRAM AXS Pod, right, MMX, 12 speed

• FRONT MECH

N/A

• REAR MECH

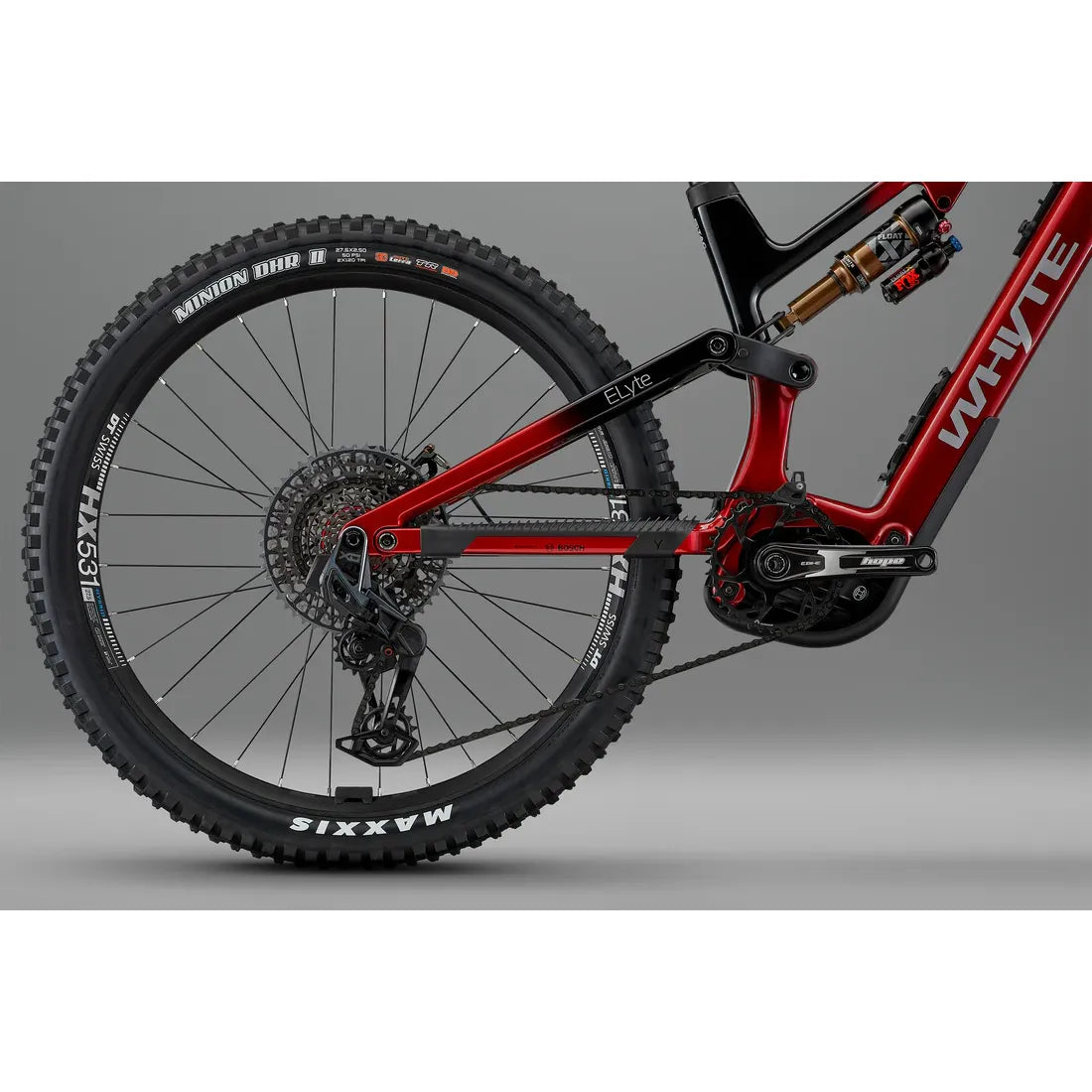

SRAM XO T-Type AXS, 12 speed

• PEDALS

Fibre reinforced composite platform

• WEIGHT

20.8kg (size M, with innertubes + without pedals or PowerMore)

E-BIKE SPECS

• DRIVE UNIT

Bosch Performance Line CX (Smart System) Drive Unit, ready for the latest free software upgrade to unlock 100Nm torque + 750W peak power + the all-new E-MTB+ mode. Features four power mode settings including Tour+ and eMTB+.

• BATTERY

Bosch Compact PowerTube 400Wh, integrated within the downtube as the lowest point for stability and control.

• RANGE EXTENDER

Bosch PowerMore 250Wh (included).

• DISPLAY

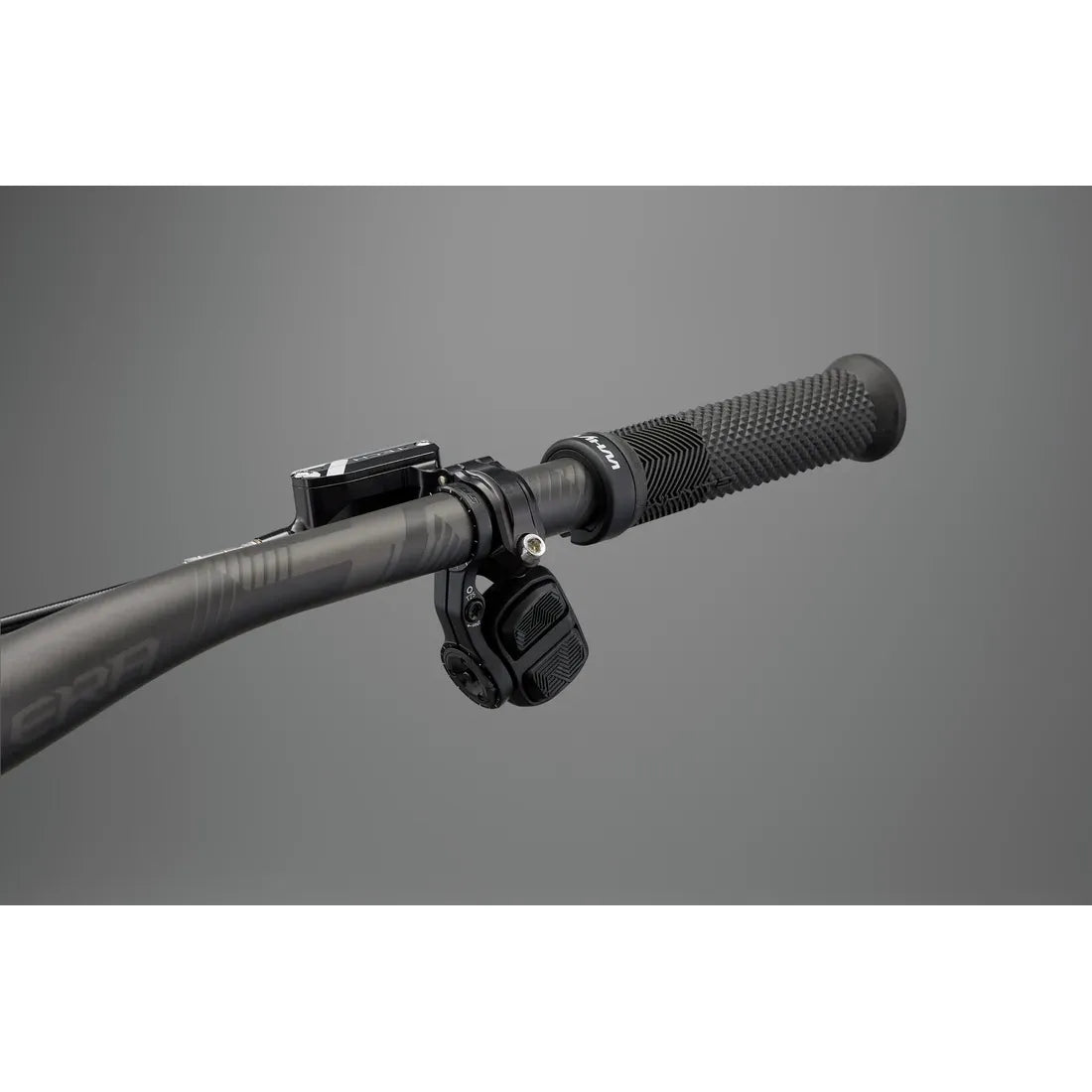

Bosch System controller mounted in the top tube, paired with discrete bar-mounted Mini Remote. Also connects to the Bosch eBike Flow smartphone app to give you even more insight and control at your fingertips.

• CHARGER

4A Compact Charger (230V). Charges to 50% in 1.5hrs, and to 100% in 3.5hrs.
